Section 15 (Chassis Diagnostic Procedures - Anti-Lock Brake System)
>>
Connector PINOUTS
>>
Anti-Lock Brake Module - 47 Way
Anti-Lock Brake Module - 47 Way
WARNING:
This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

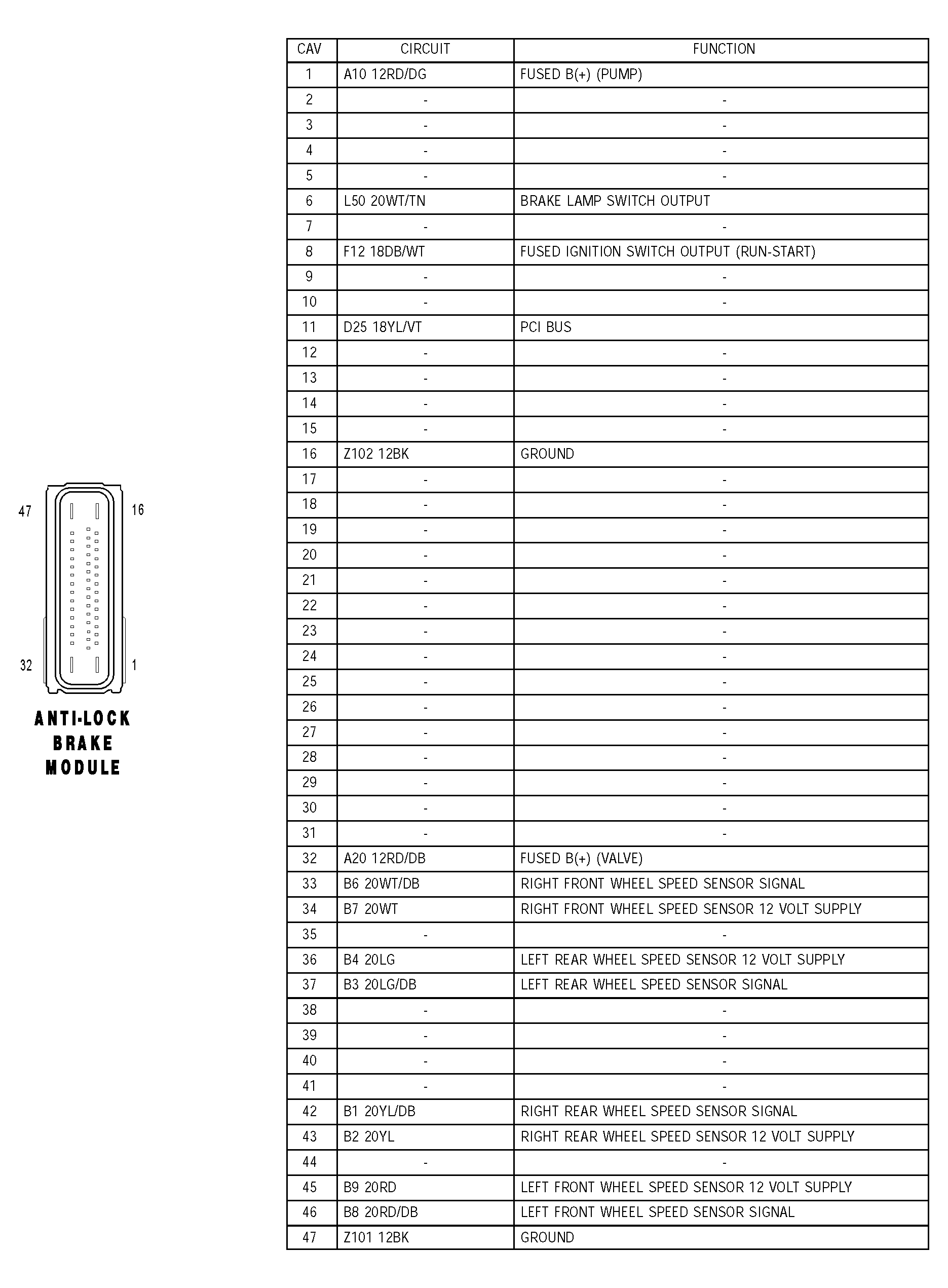

Fig 1: Identifying Anti-Lock Brake Module - 47 Way Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
