Wheel Speed Sensors: Front

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

LEFT FRONT

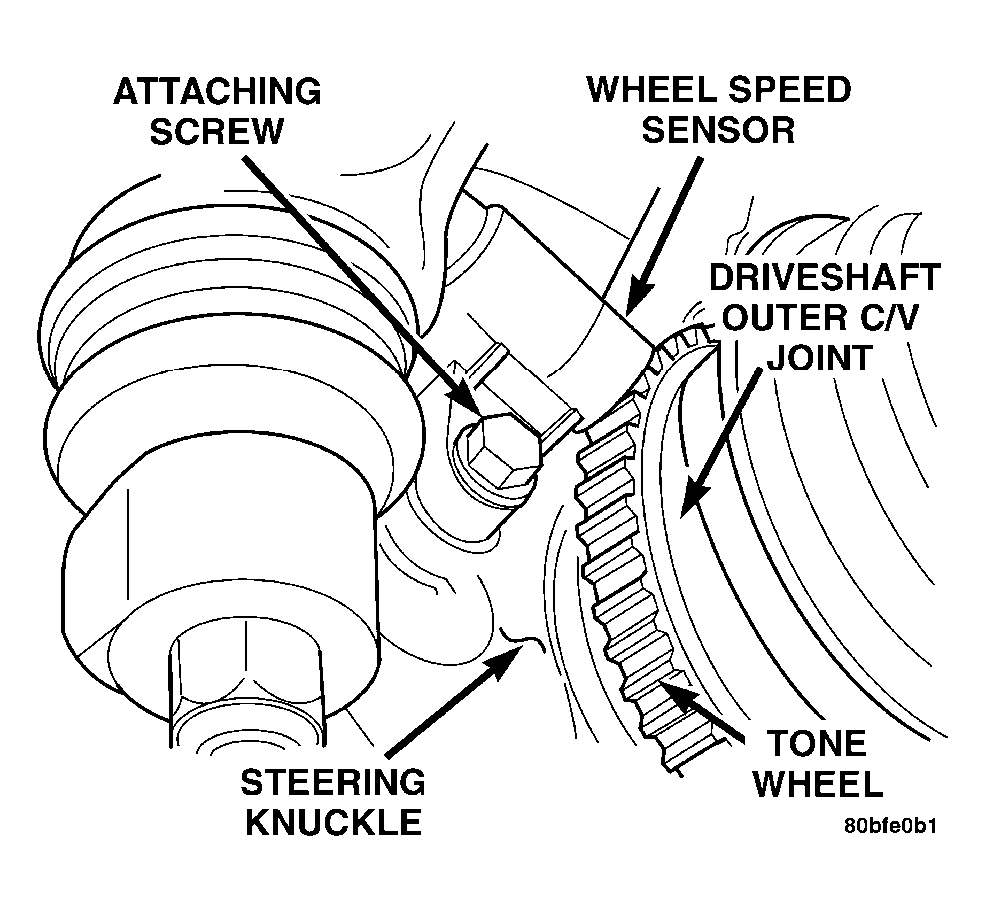

Fig 1: Identifying Wheel Speed Sensors - Left Front
G04536555Courtesy of DAIMLERCHRYSLER CORP.

RIGHT FRONT

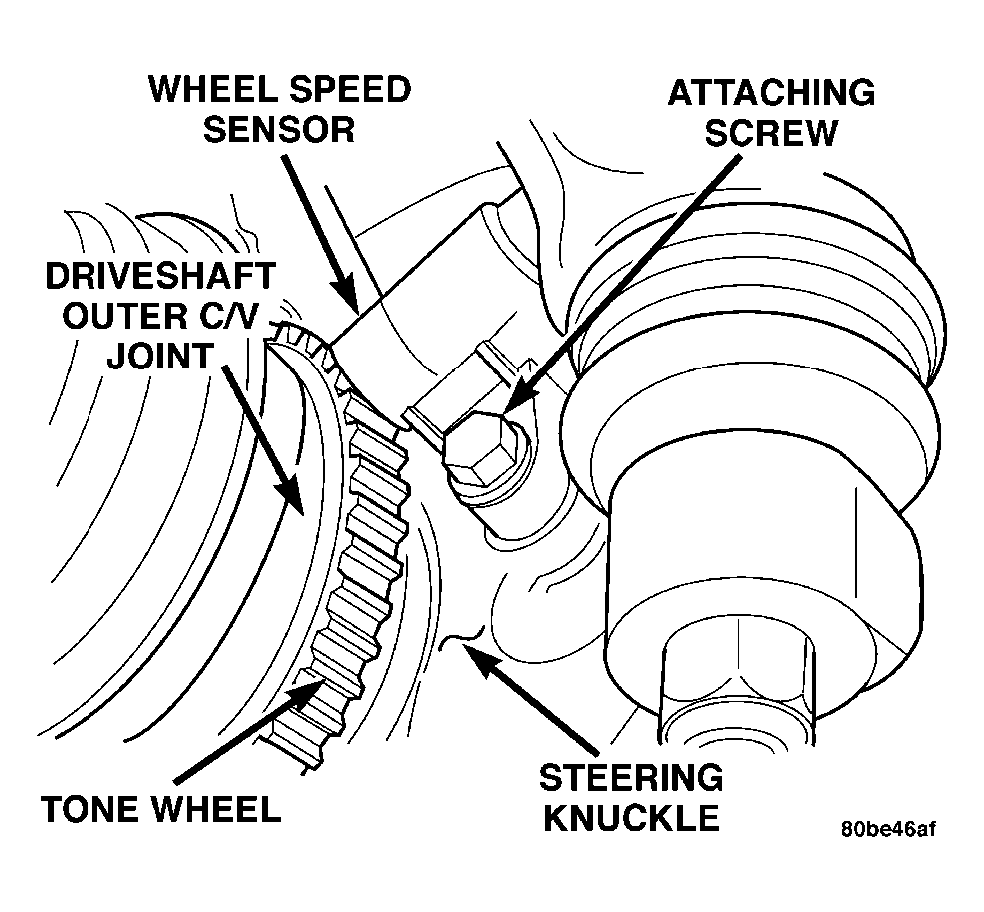

Fig 2: Identifying Wheel Speed Sensors - Right Front
G04536556Courtesy of DAIMLERCHRYSLER CORP.
