Horn System

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

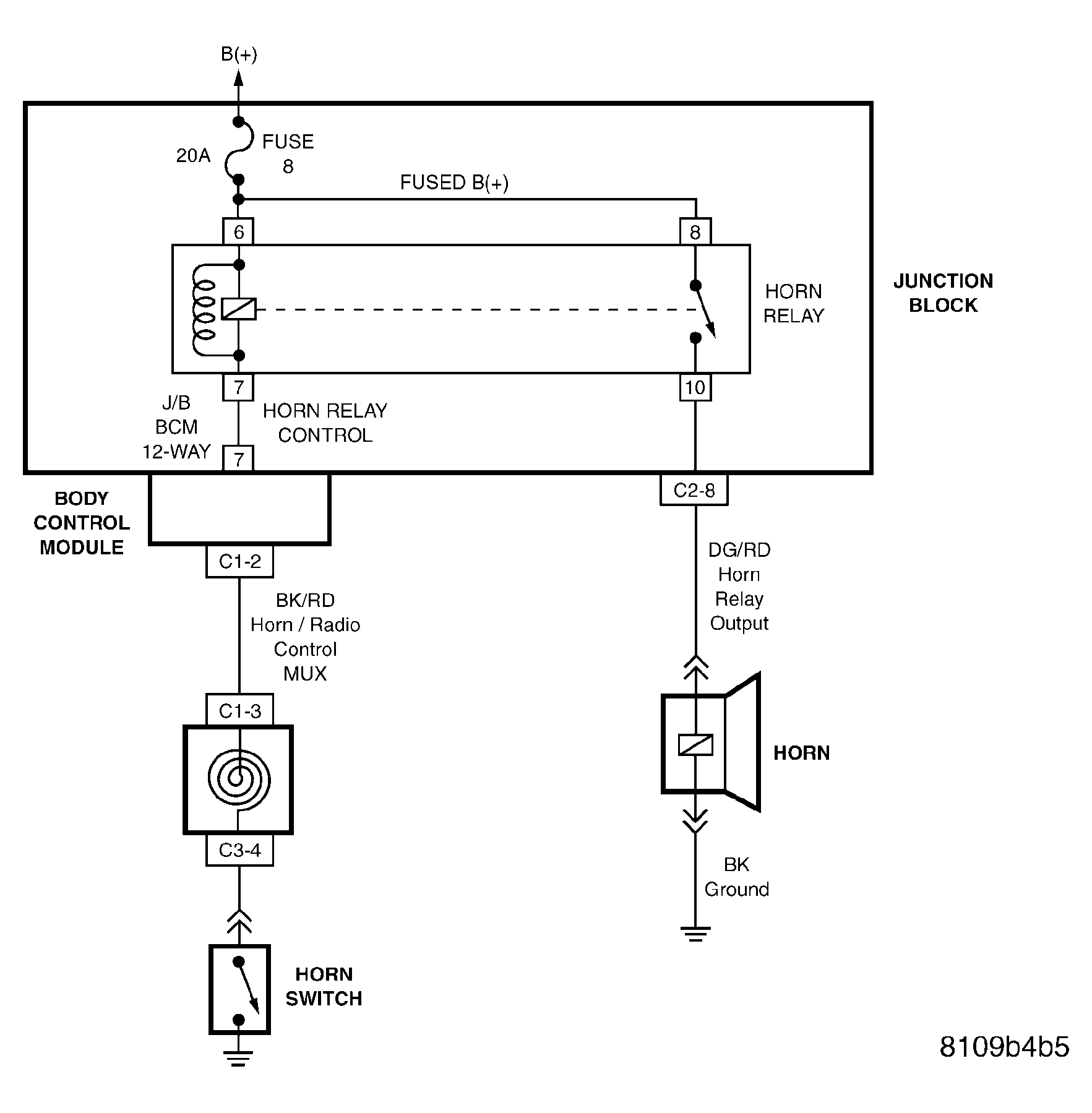

Fig 1: Ignition, Power, Accessory Schematic Diagram - Horn System
G04536539Courtesy of DAIMLERCHRYSLER CORP.
