Radio C1 - White 22 Way

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

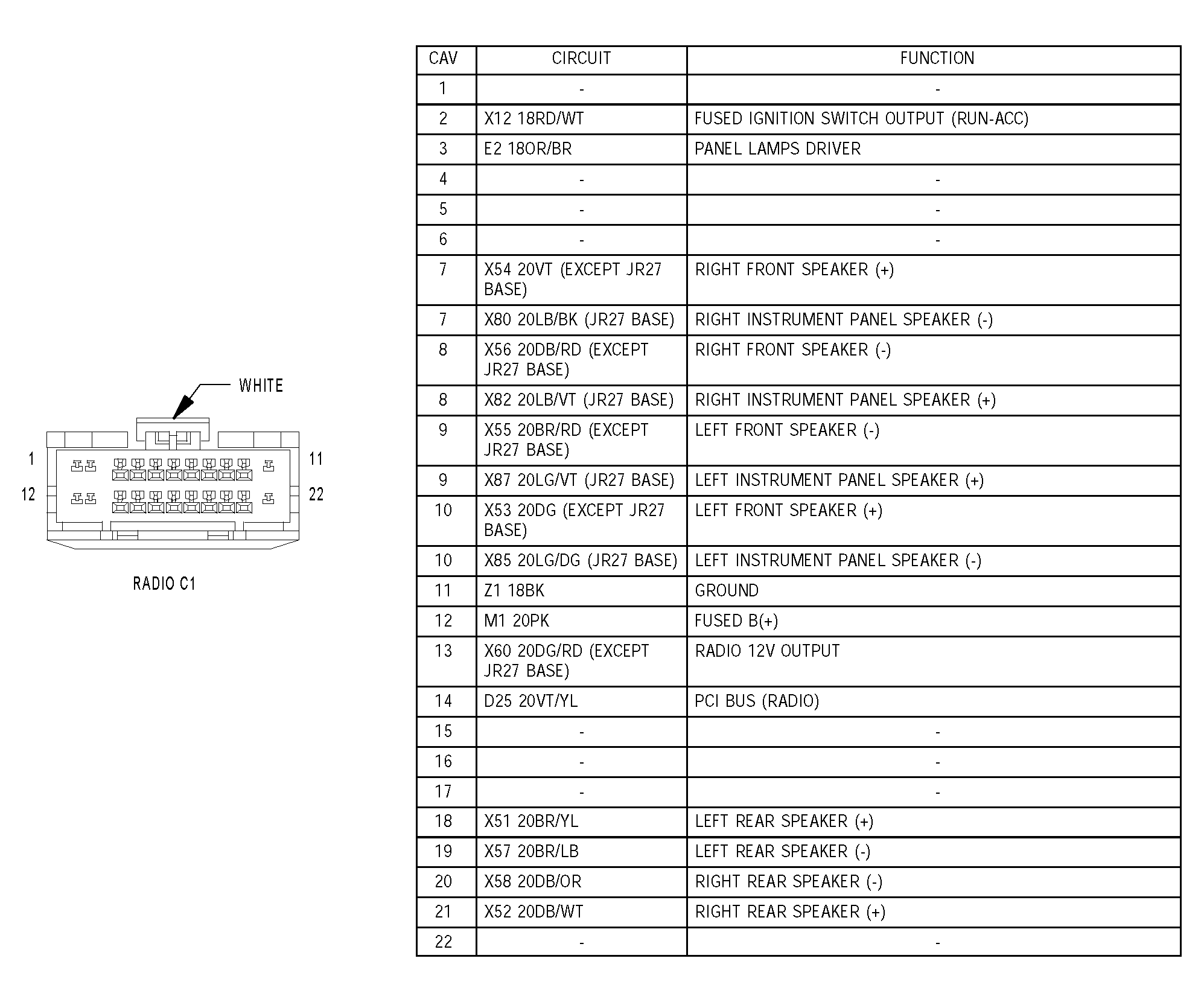

Fig 1: Connector Pinouts - Radio C1 - White 22 Way
G04536492Courtesy of DAIMLERCHRYSLER CORP.
