C311 - Blue (Left Front Door Side)

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

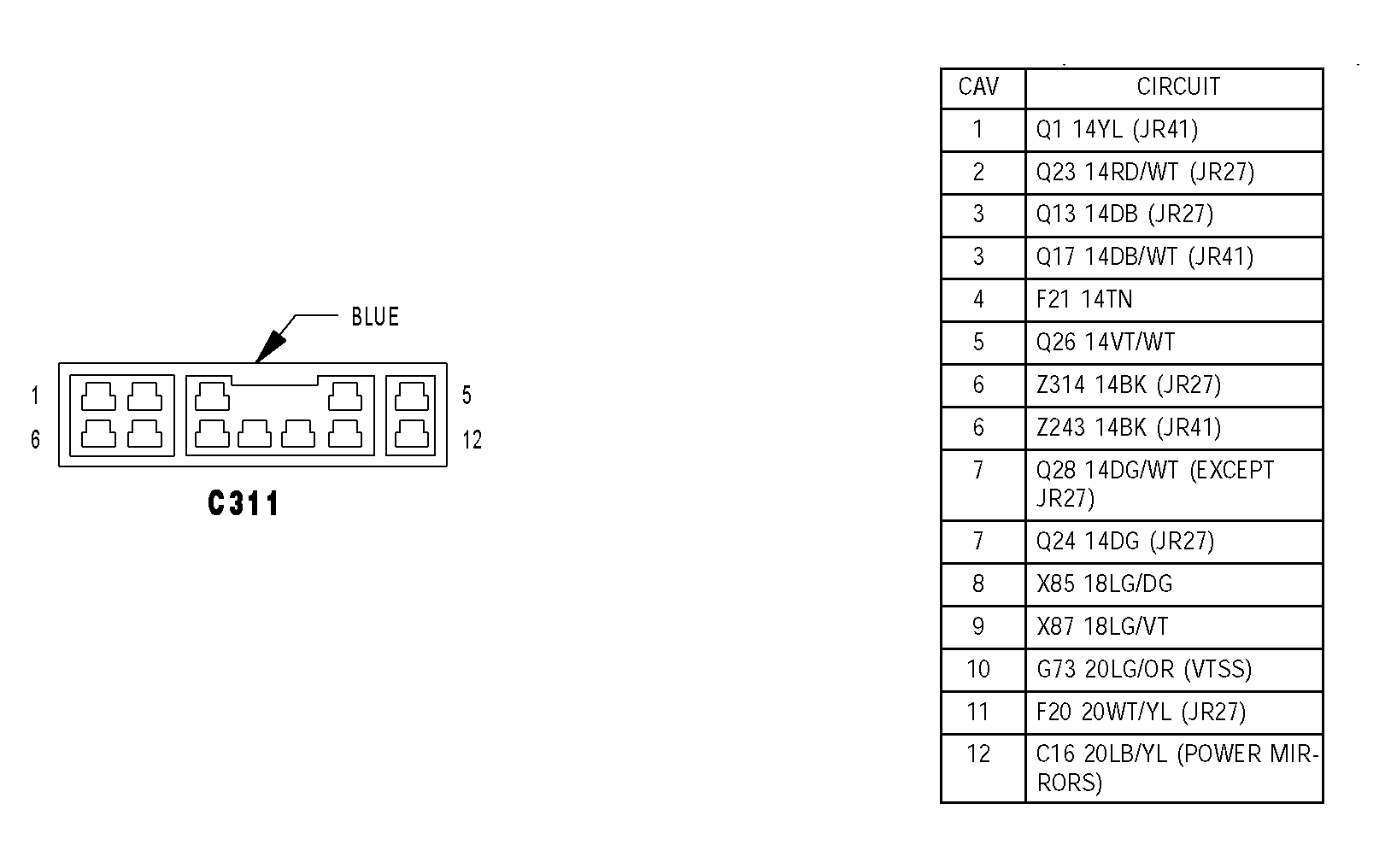

Fig 1: Connector Pinouts - C311 - Blue (Left Front Door Side)
G04536399Courtesy of DAIMLERCHRYSLER CORP.
