Airbag Control Module C2 (Orc) (Premium) - Yellow 32 Way

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

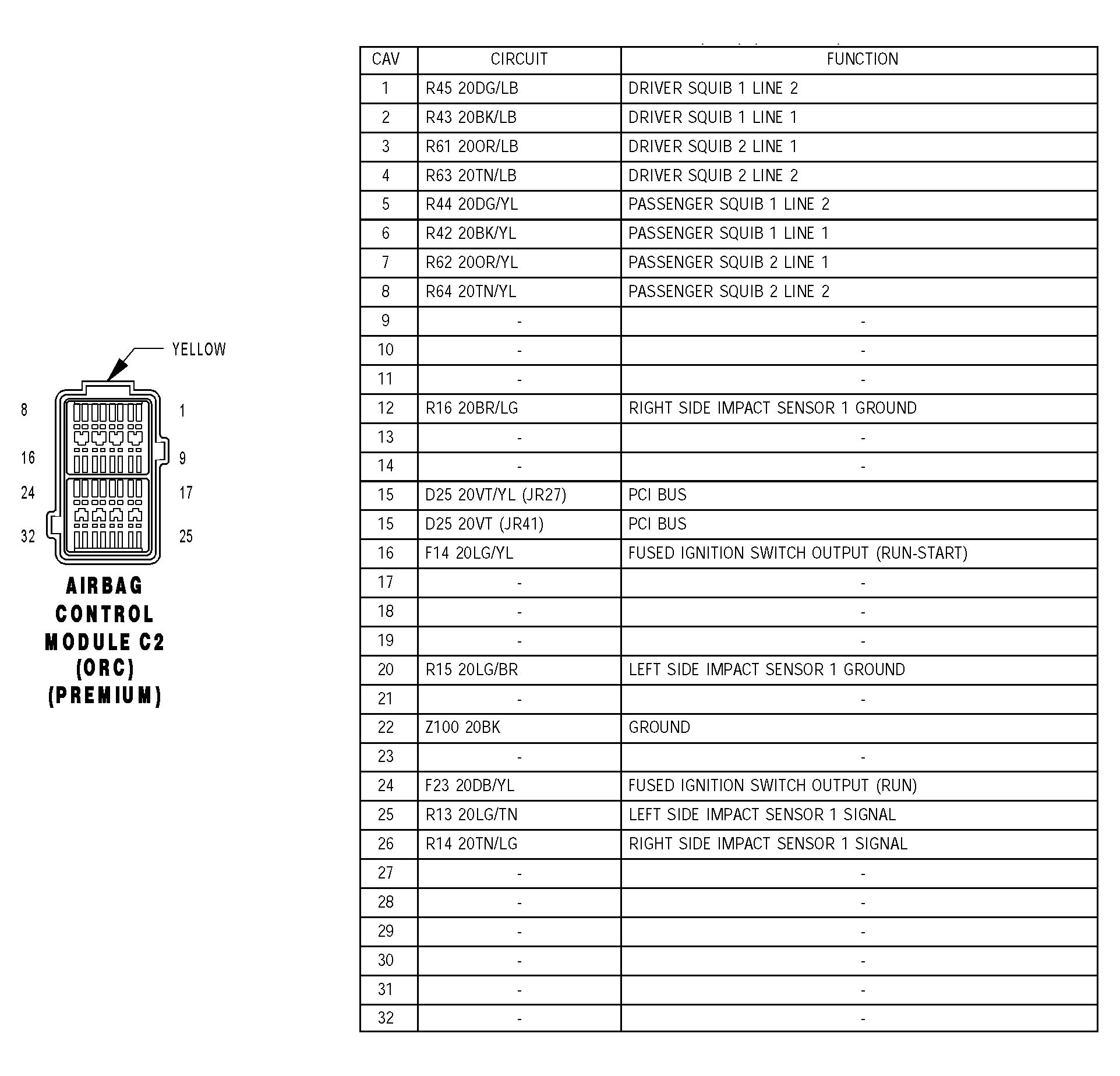

Fig 1: Connector Pinouts - Airbag Control Module C2 (ORC) (Premium) - Yellow 32 Way
G04536380Courtesy of DAIMLERCHRYSLER CORP.
