Premium Airbag System Locations

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

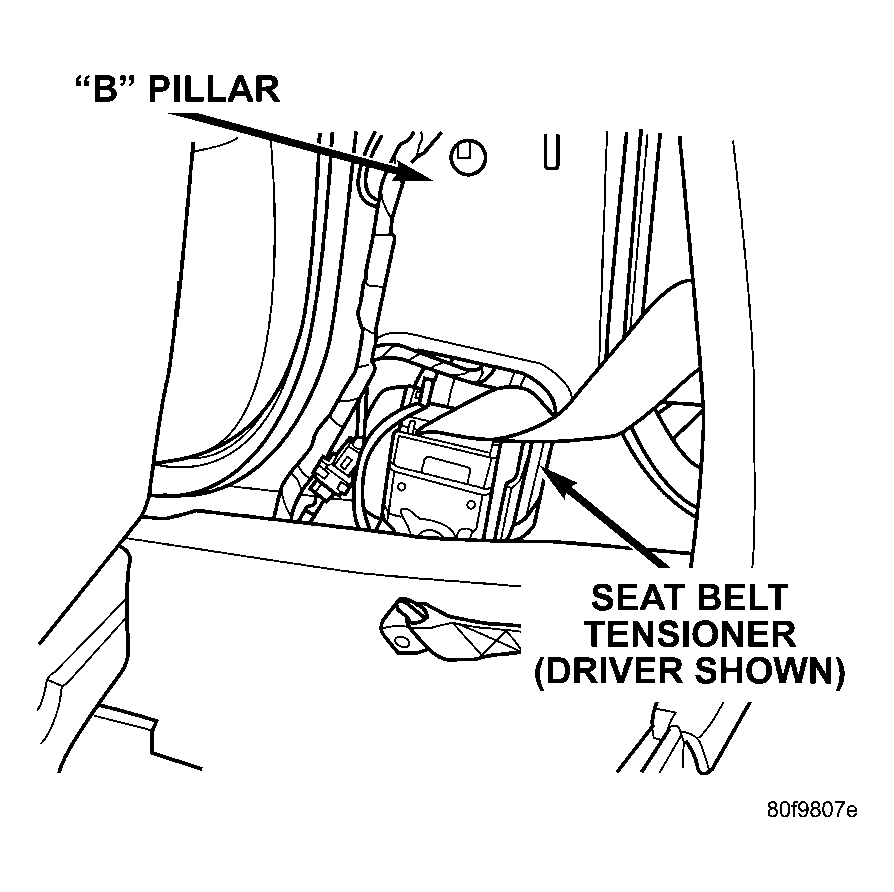

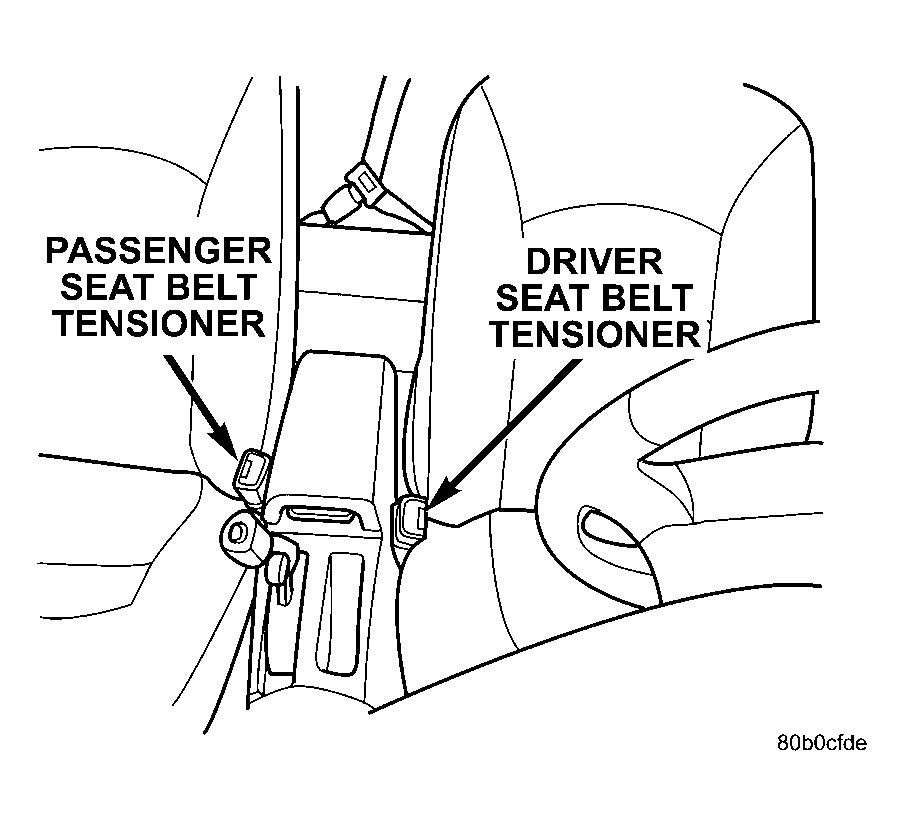

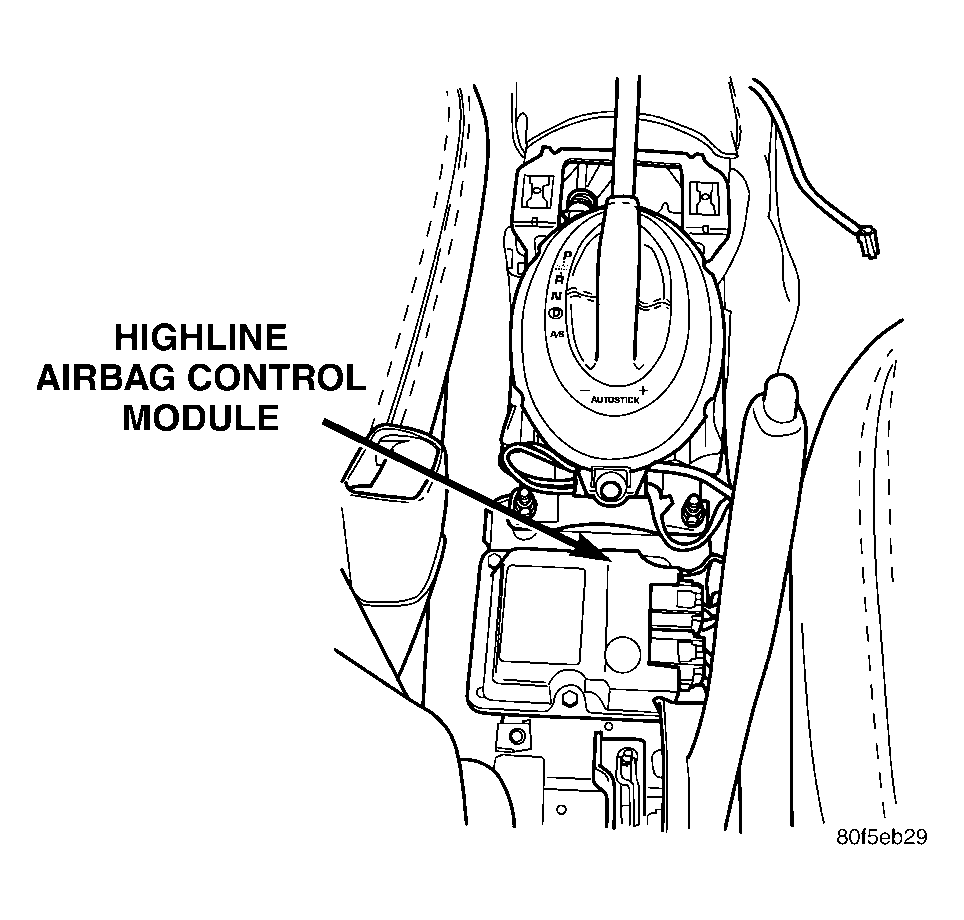

Fig 1: Identifying Airbag System Components - Premium System (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

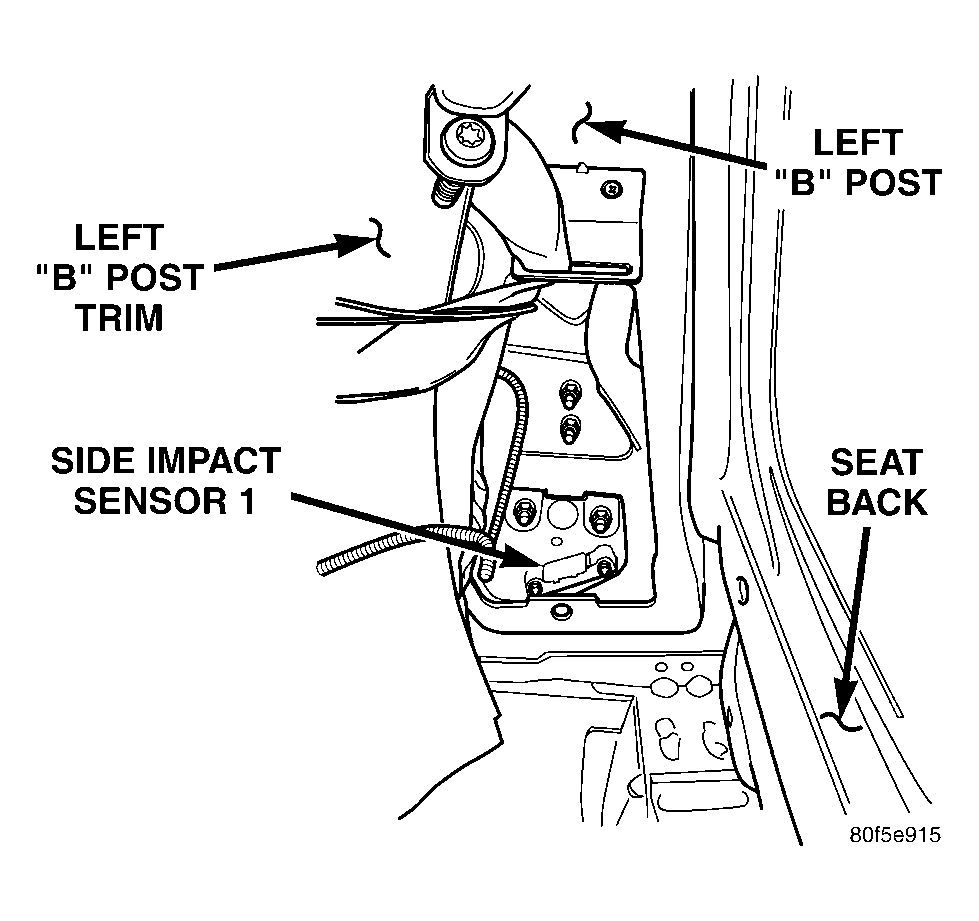

Fig 2: Identifying Airbag System Components - Premium System (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

4-Door Models

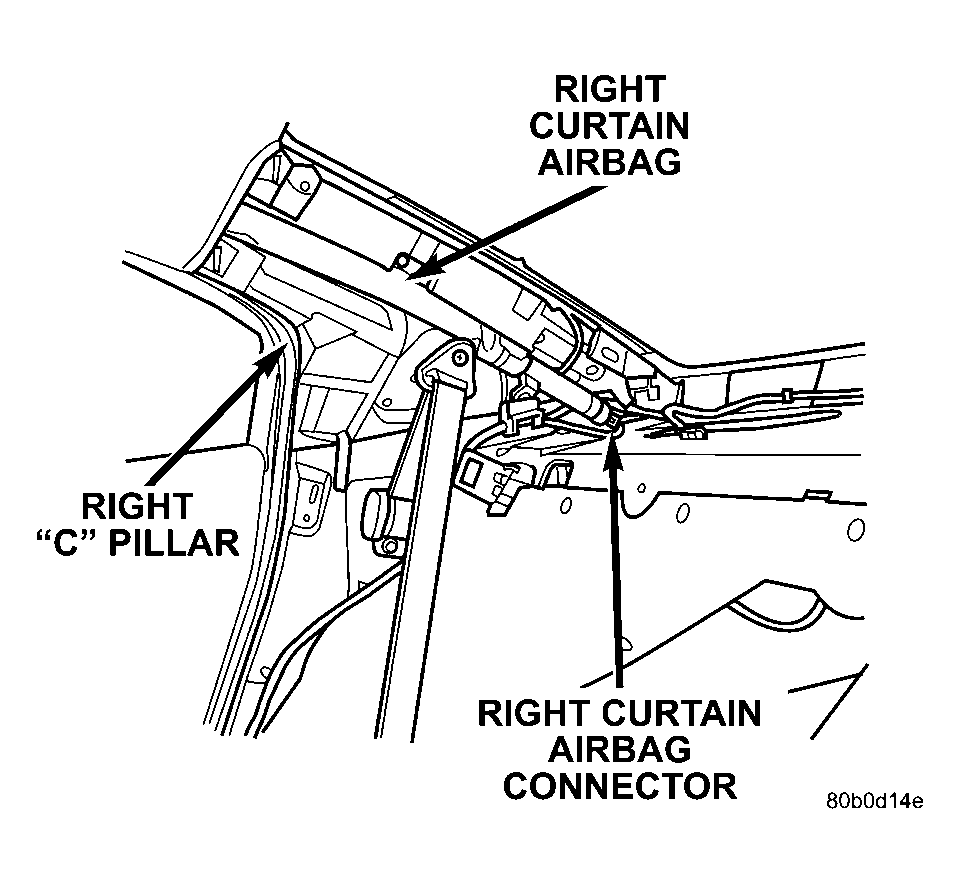

Fig 3: Identifying Airbag System Components - Premium System (4-Door Models) (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Identifying Airbag System Components - Premium System (4-Door Models) (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

Convertible Models

Fig 5: Identifying Airbag System Components - Convertible Models

Courtesy of DAIMLERCHRYSLER CORP.
