Schematic Diagrams: 2.7L

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

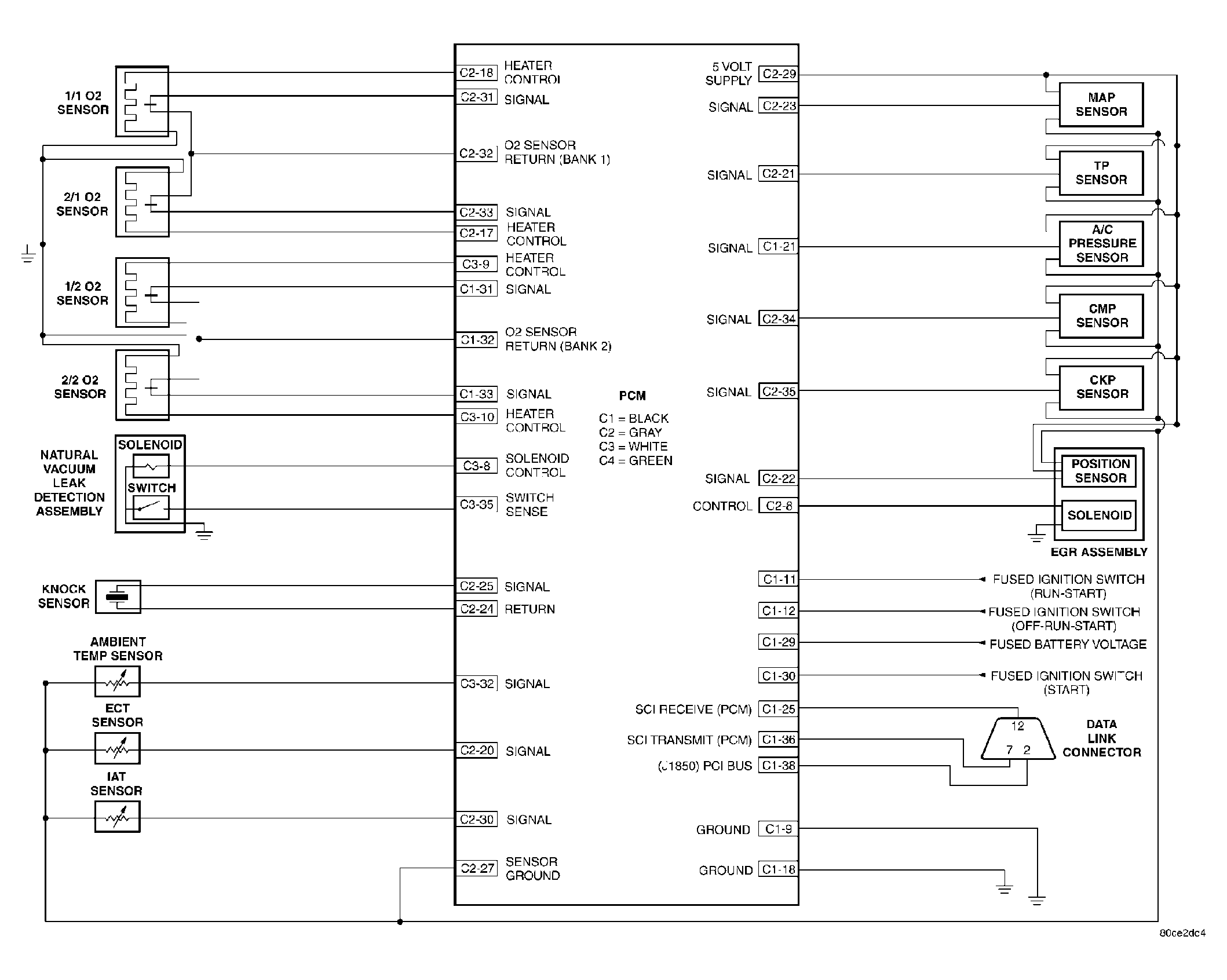

Fig 1: Schematic Diagrams - 2.7L (1 Of 2)
G04536351Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Schematic Diagrams - 2.7L (2 Of 2)
G04536352Courtesy of DAIMLERCHRYSLER CORP.
