Schematic Diagrams: 2.0L/2.4L

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Schematic Diagrams - 2.0L/2.4L (1 Of 2)
G04536349Courtesy of DAIMLERCHRYSLER CORP.

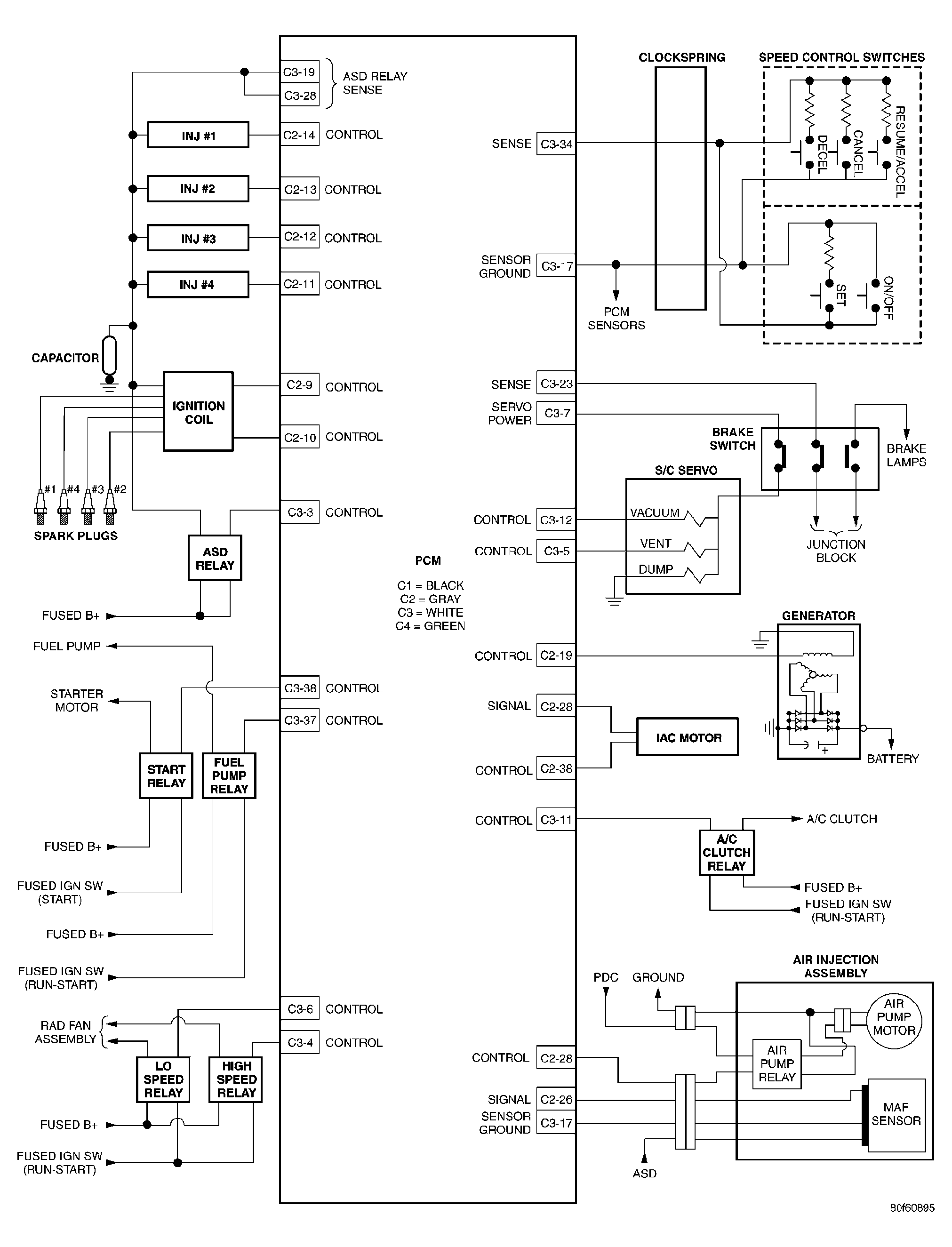

Fig 2: Schematic Diagrams - 2.0L/2.4L (2 Of 2)
G04536350Courtesy of DAIMLERCHRYSLER CORP.
