Powertrain Control Module C2- Black 38 Way

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

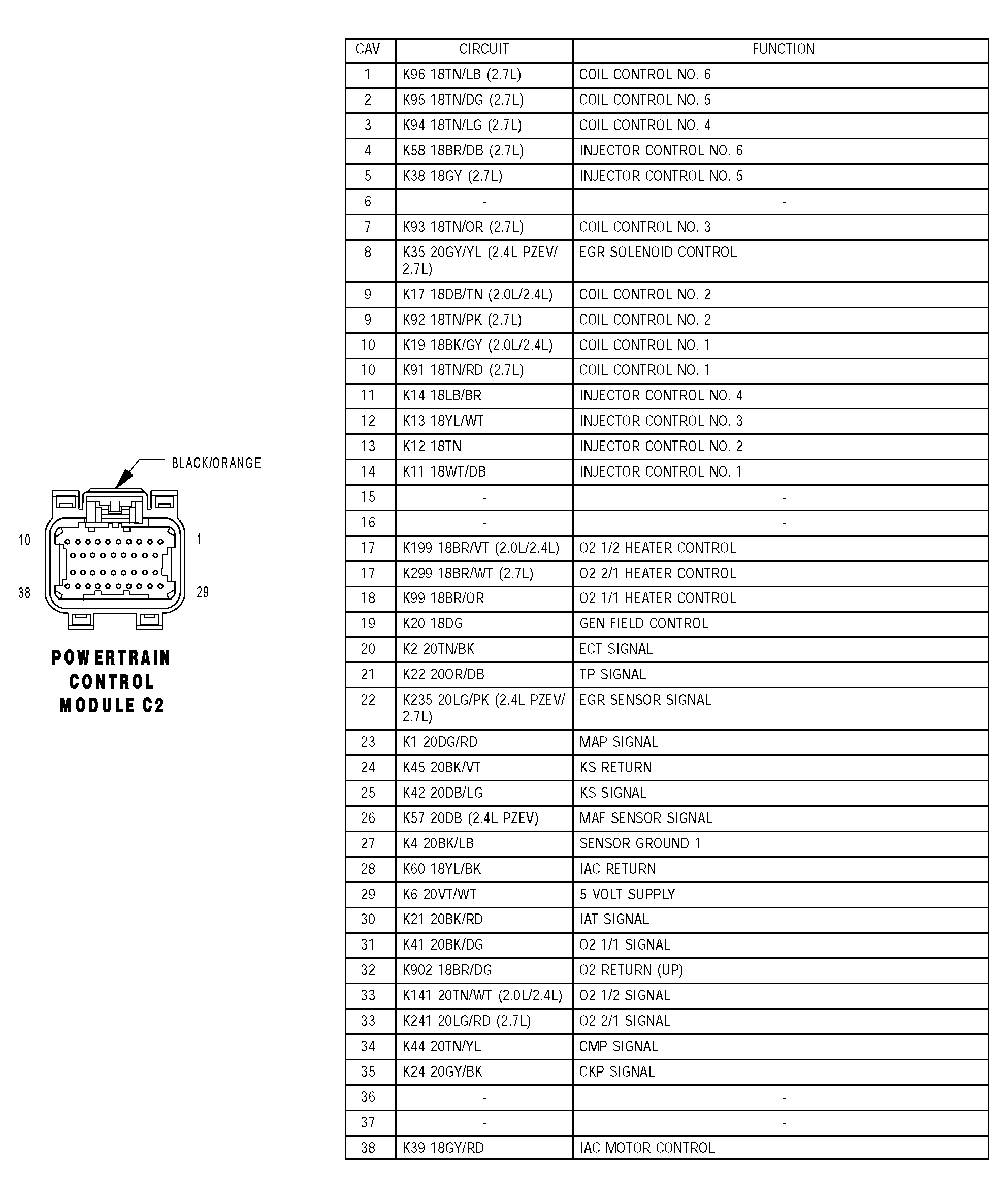

Fig 1: Powertrain Control Module C2 - Connector Pinout
G04536339Courtesy of DAIMLERCHRYSLER CORP.
