O2 Sensor Locations - 2.7L

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

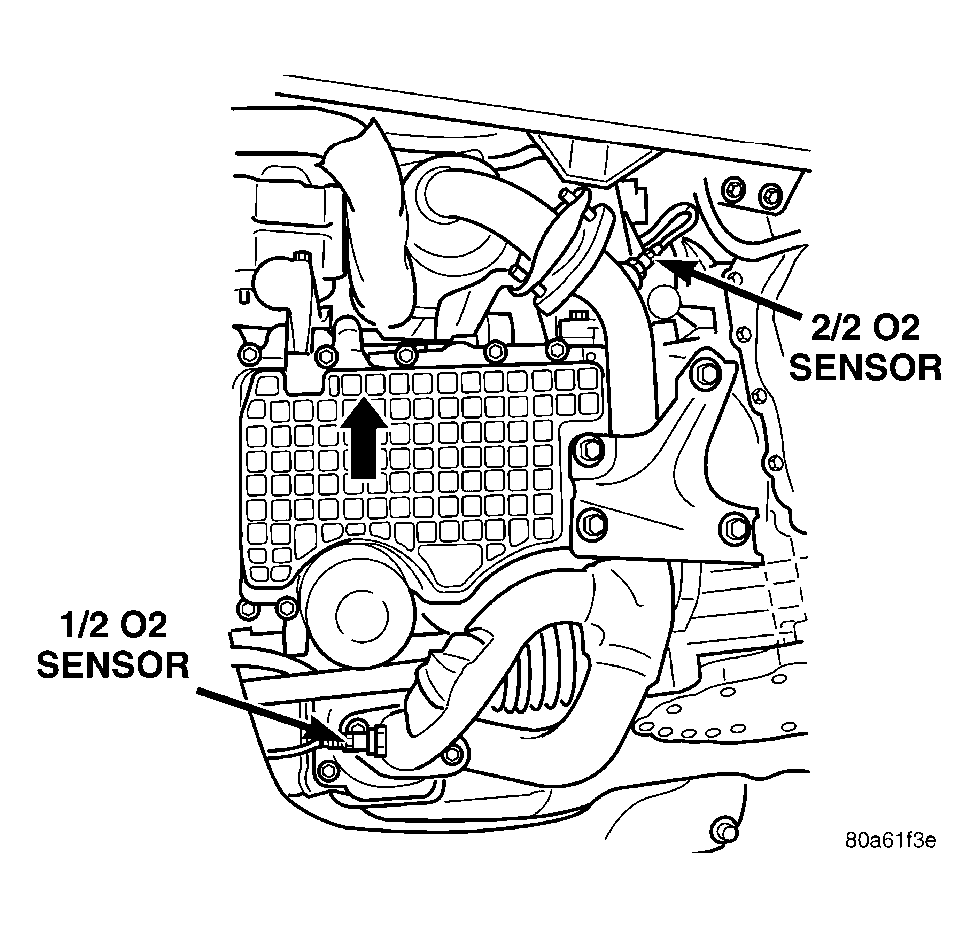

Fig 1: Identifying 1/2 and 2/2 O2 Sensor Component Location - 2.7L
G04536283Courtesy of DAIMLERCHRYSLER CORP.
