WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Vacuum Gauge Reading Charts
Courtesy of DAIMLERCHRYSLER CORP.

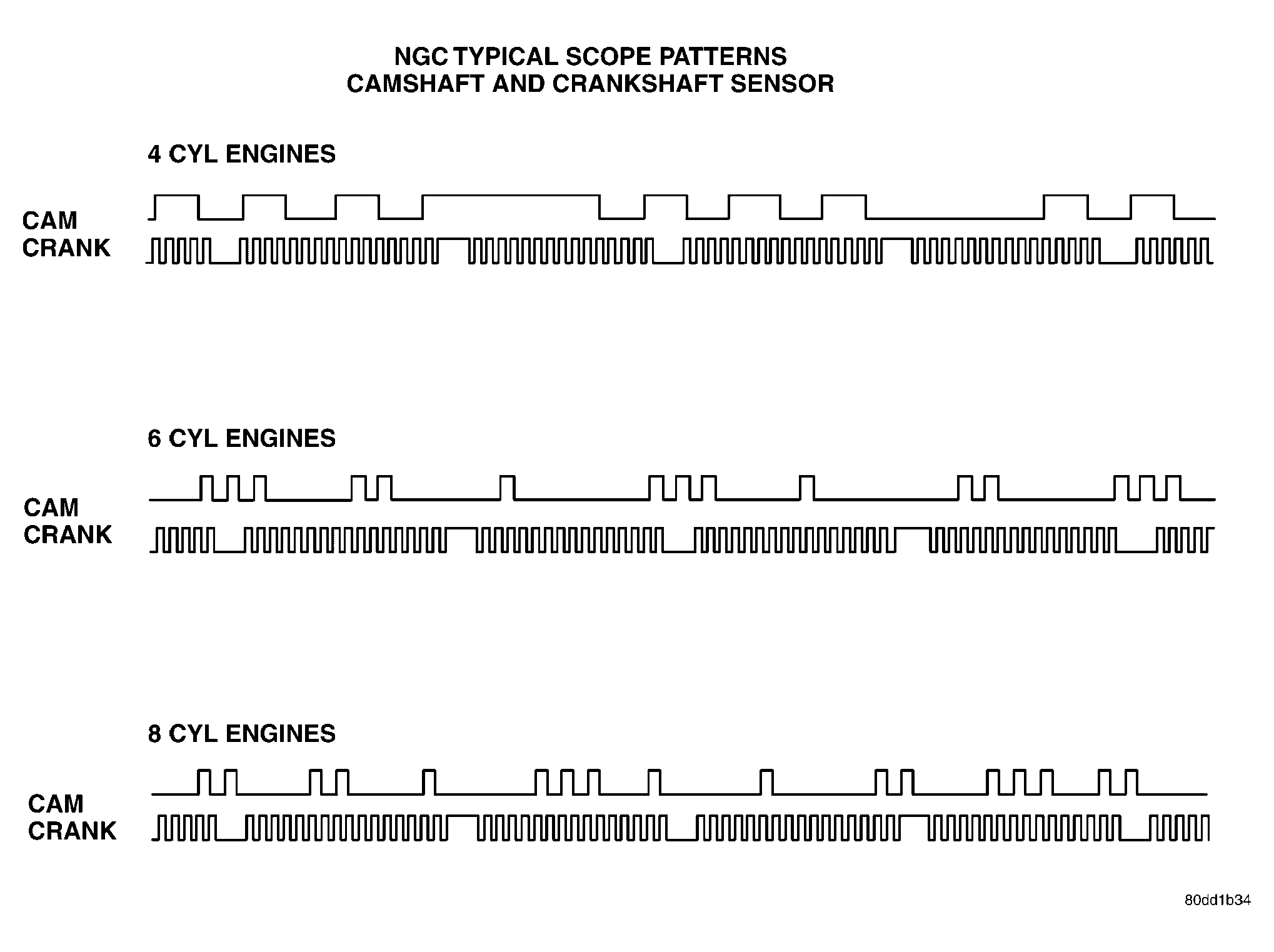

Fig 2: Camshaft And Crankshaft Sensors Pattern Chart
