Section 11 (Electrical Component Locator - Except Coupe): Switches
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
SWITCHES LOCATION
| Component | Location |
|---|---|
| A/C Pressure Transducer (2.4L) | On A/C compressor discharge line. |
| A/C Pressure Transducer (2.7L) | On A/C compressor discharge line. |
| Autostick Switch | Integral with gearshift mechanism. |
| Back-Up Light Switch (2.4L) (M/T) | Rear of transaxle. See Figure. |
| Back-Up Light Switch (2.7L) (M/T) | Rear of transaxle. See Figure. |

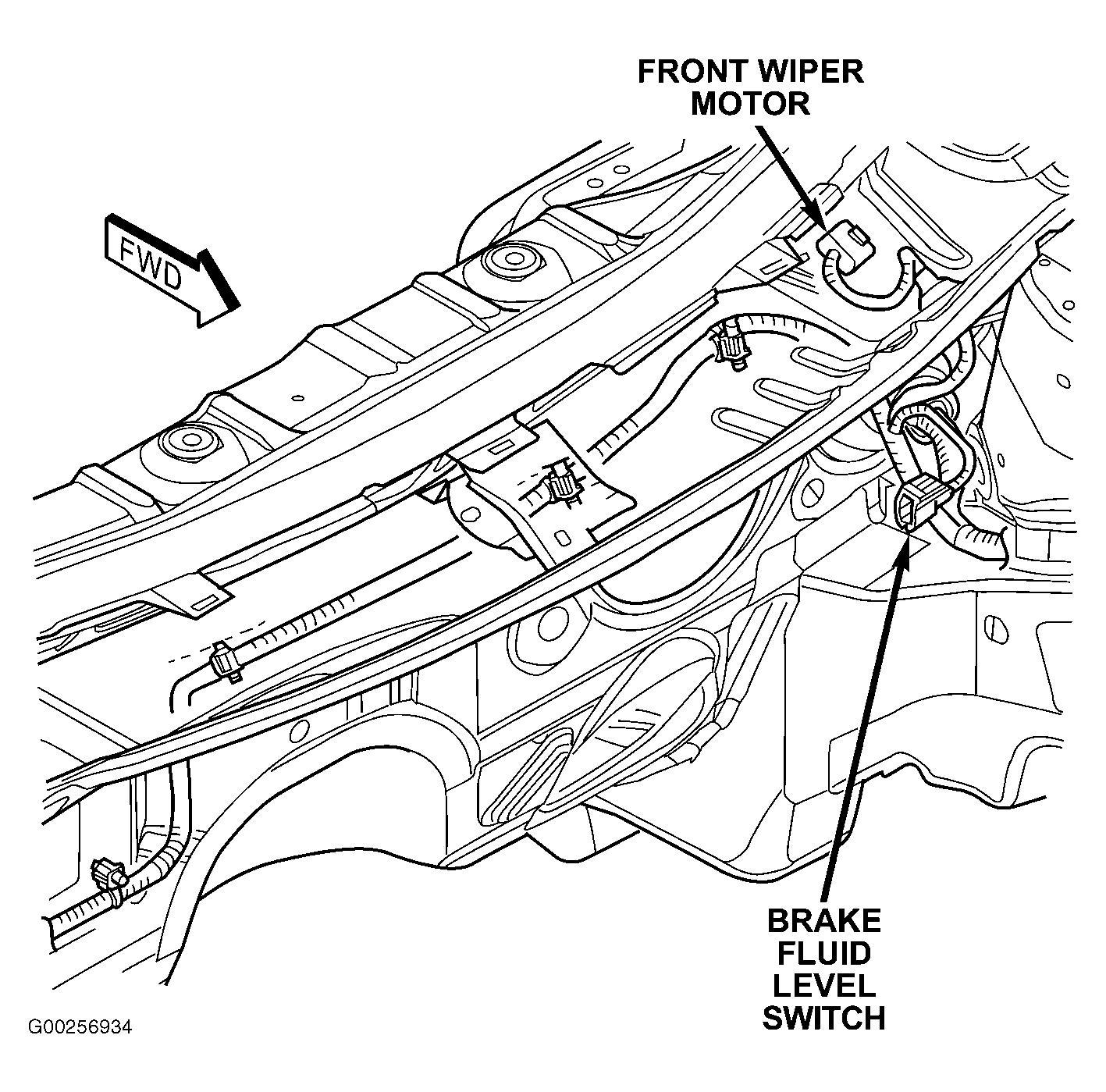

| Brake Fluid Level Switch | At left rear of engine compartment. See Figure. |
| Brake Lamp Switch | At top of brake pedal assembly. See Figure. |
| Clutch Interlock/Upstop Switch | Top of clutch pedal, on bracket. |

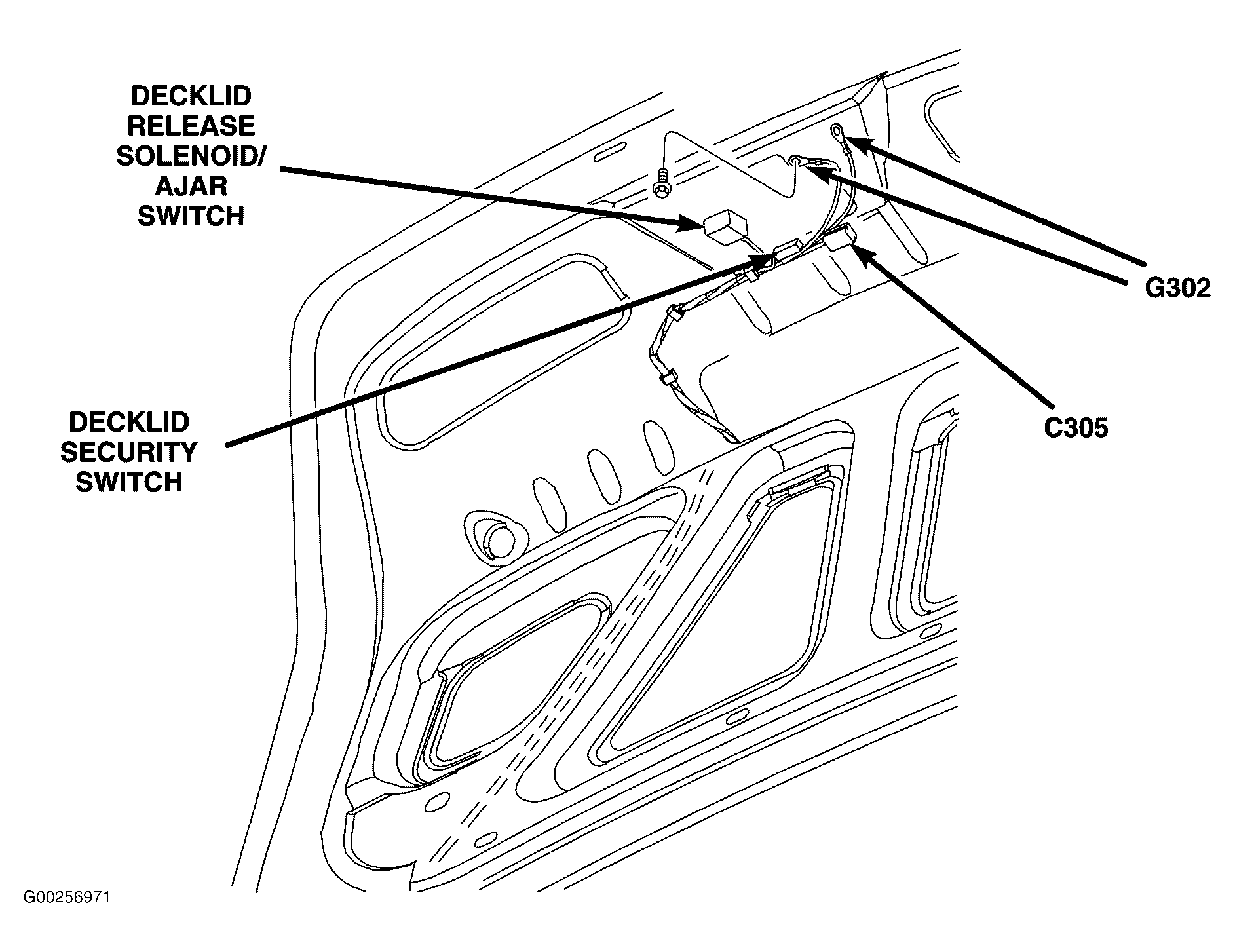

| Decklid Release Solenoid/Ajar Switch (Convertible) | At center rear of deck lid. See Figure. |
| Decklid Ajar Switch (Sedan) | At center rear of deck lid. See Figure. |
| Decklid Cylinder Lock Switch (Convertible) | At center rear of deck lid. See Figure. |
| Decklid Security Switch (Sedan) | At center rear of deck lid. See Figure. |
| Driver Door Ajar Switch | At rear of driver door. |
| Driver Seat Belt Switch | Near driver seat belt reel. |
| Left Rear Door Ajar Switch | At rear of left rear door. |
| Oil Pressure Switch (2.4L) | On right front side of engine block. See Figure. |
| Oil Pressure Switch (2.7L) | On right side of engine block. See Figure. |
| Park Brake Switch | At base of parking brake lever. See Figure. |
| Passenger Door Ajar Switch | At rear of passenger door. See Figure. |
| Power Steering Pressure Switch | On left side of steering gear. |
| Right Rear Door Ajar Switch | At rear of right rear door. See Figure. |
| Seat Belt Switch | At seat belt buckle. |
| Stoplight Switch | Top of brake pedal. |

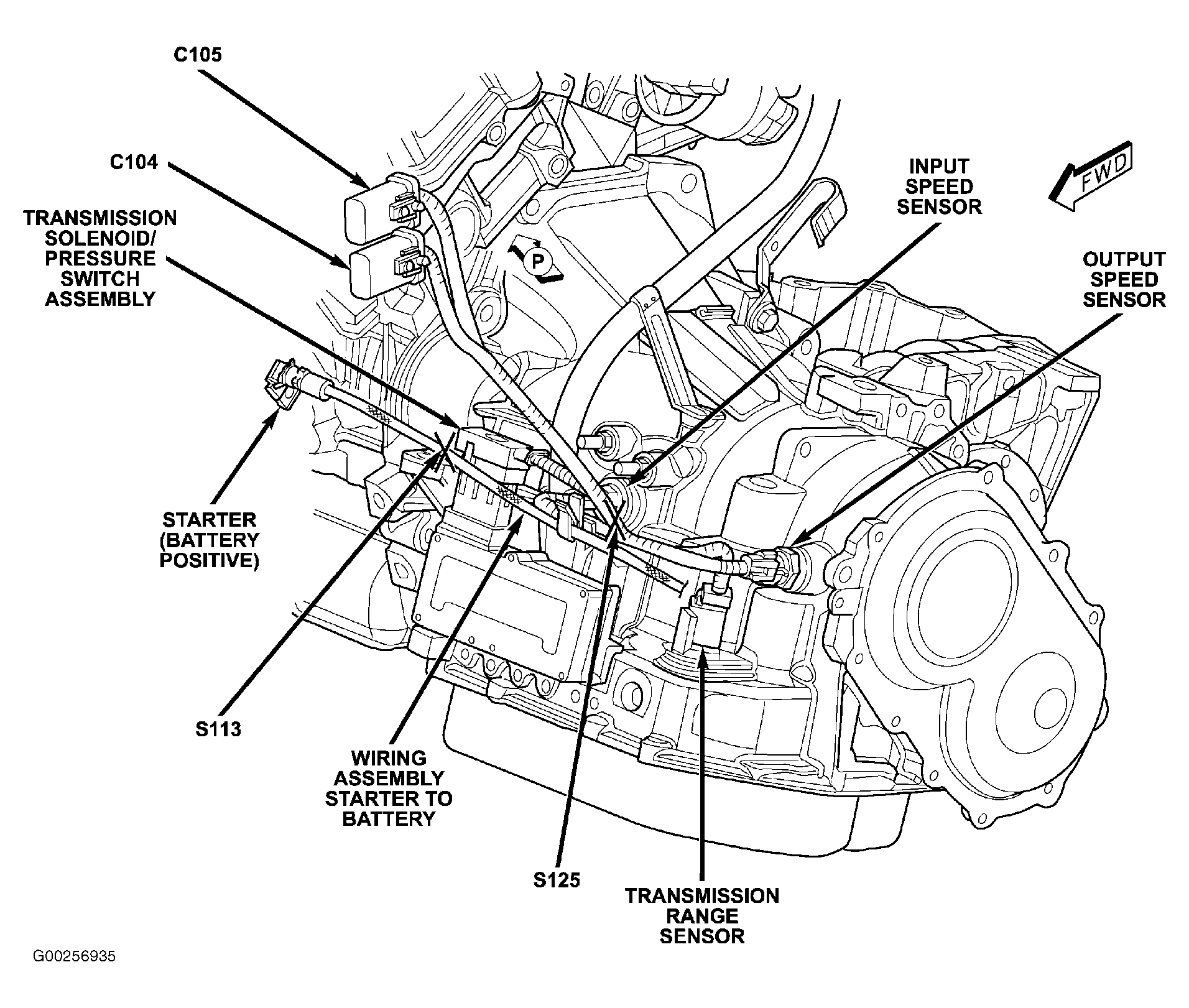

| Transmission Solenoid/Pressure Switch Assembly (A/T) | On left side of transaxle. See Figure. |
