Removal - 4 Cylinder

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative cable from battery cable.
  2. Remove clean air hose (Fig 1).
  3. Remove the throttle cable shield.
  4. Remove throttle and the speed control (if equipped) cables from lever and bracket.
    Fig 1: Throttle Body 4 Cylinder
    G02328002Courtesy of DAIMLERCHRYSLER CORPORATION
  5. Disconnect electrical connectors from the idle air control motor and throttle position sensor (TPS).
  6. Remove throttle body to intake manifold attaching bolts (Fig 2).

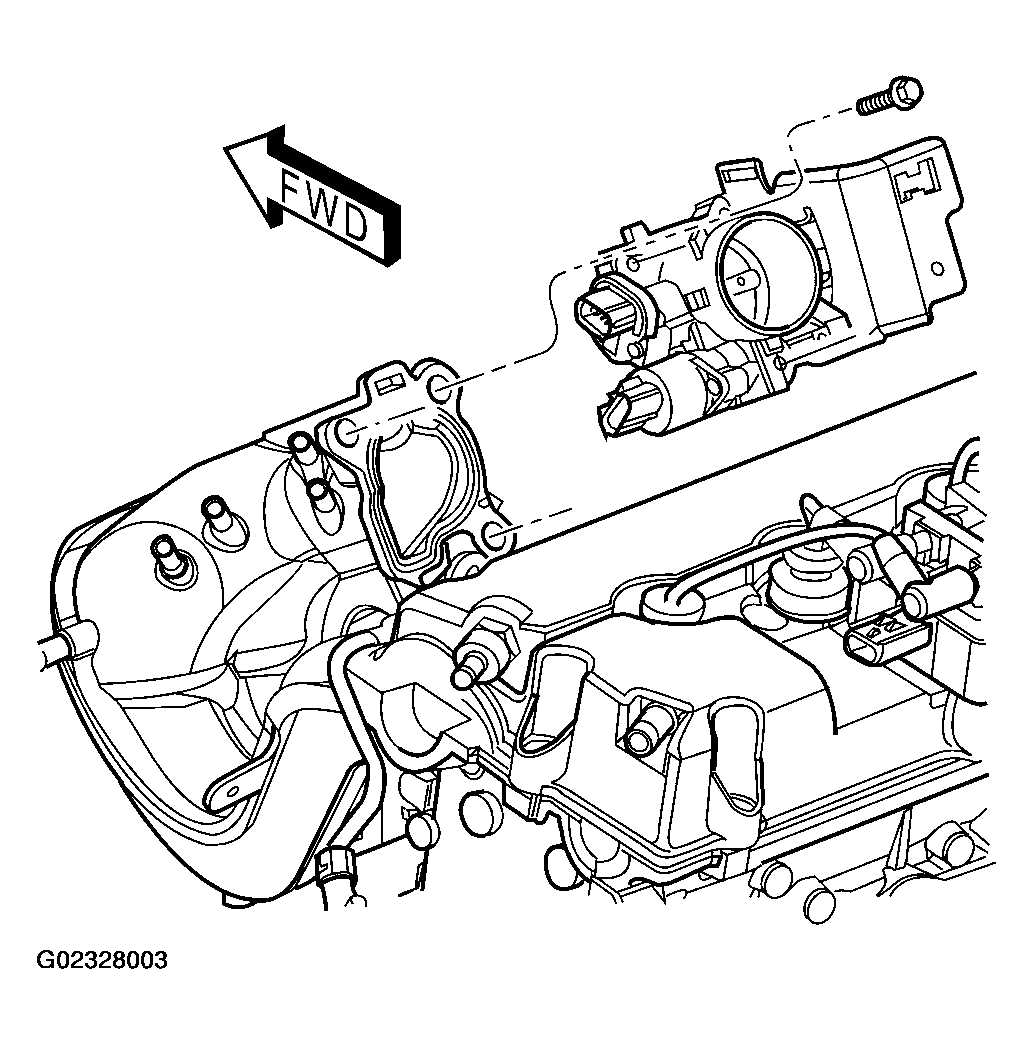

    Fig 2: Throttle Body Mounting
    G02328003Courtesy of DAIMLERCHRYSLER CORPORATION
  7. Remove the throttle cable bracket (Fig 3).

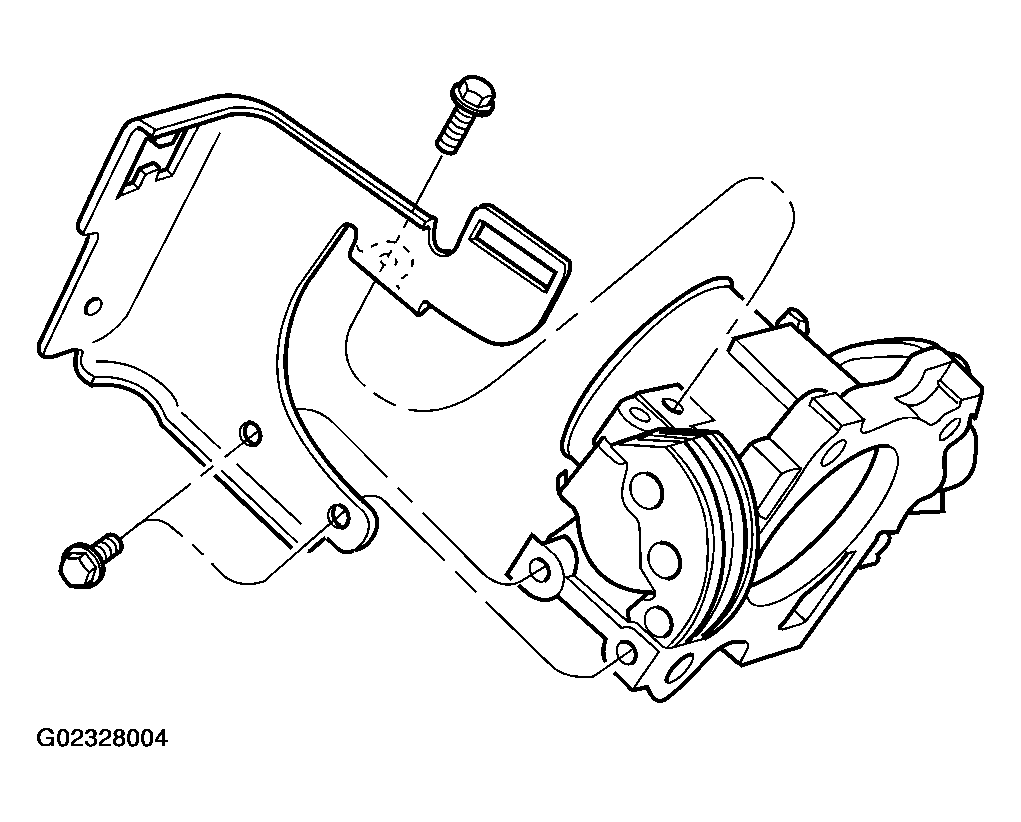

    Fig 3: Throttle Cable Bracket
    G02328004Courtesy of DAIMLERCHRYSLER CORPORATION
  8. Remove throttle body.
