Installation - 2.7L

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

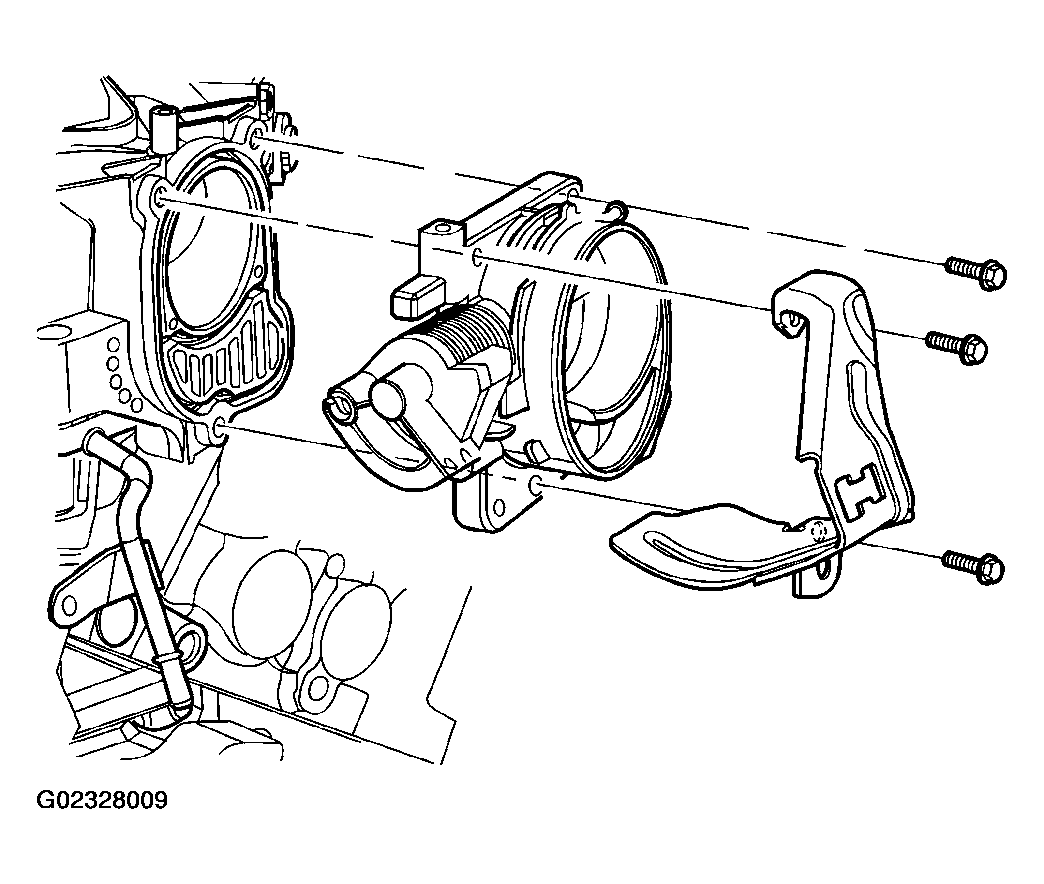

  1. Loose install 2 throttle body bolts (Figure) (upper right and lower bolt).
  2. Install the throttle cable bracket.

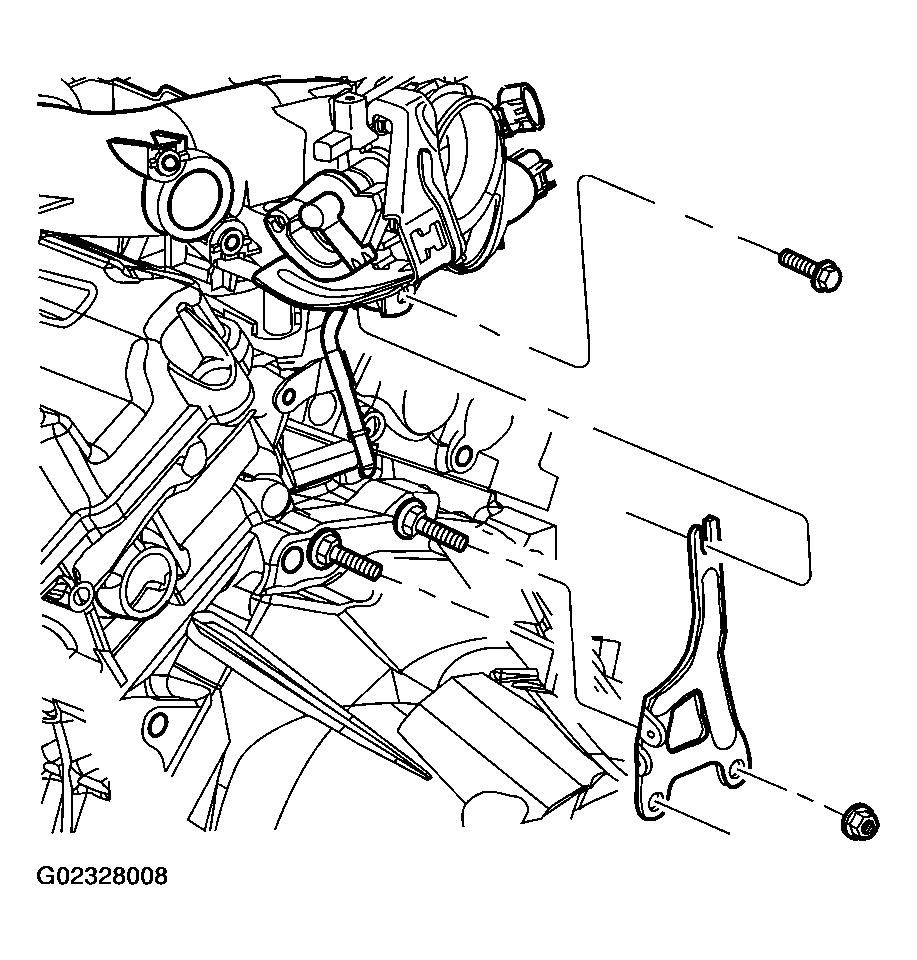

  3. Install the third throttle body bolt and the throttle body support bracket to the bottom of the throttle body (Figure). Tighten the lower support bracket bolts to 31.1 N.m (23 ft. lbs.) torque.
  4. Tighten throttle body bolts to 13.6 N.m (120 in. lbs.) torque.

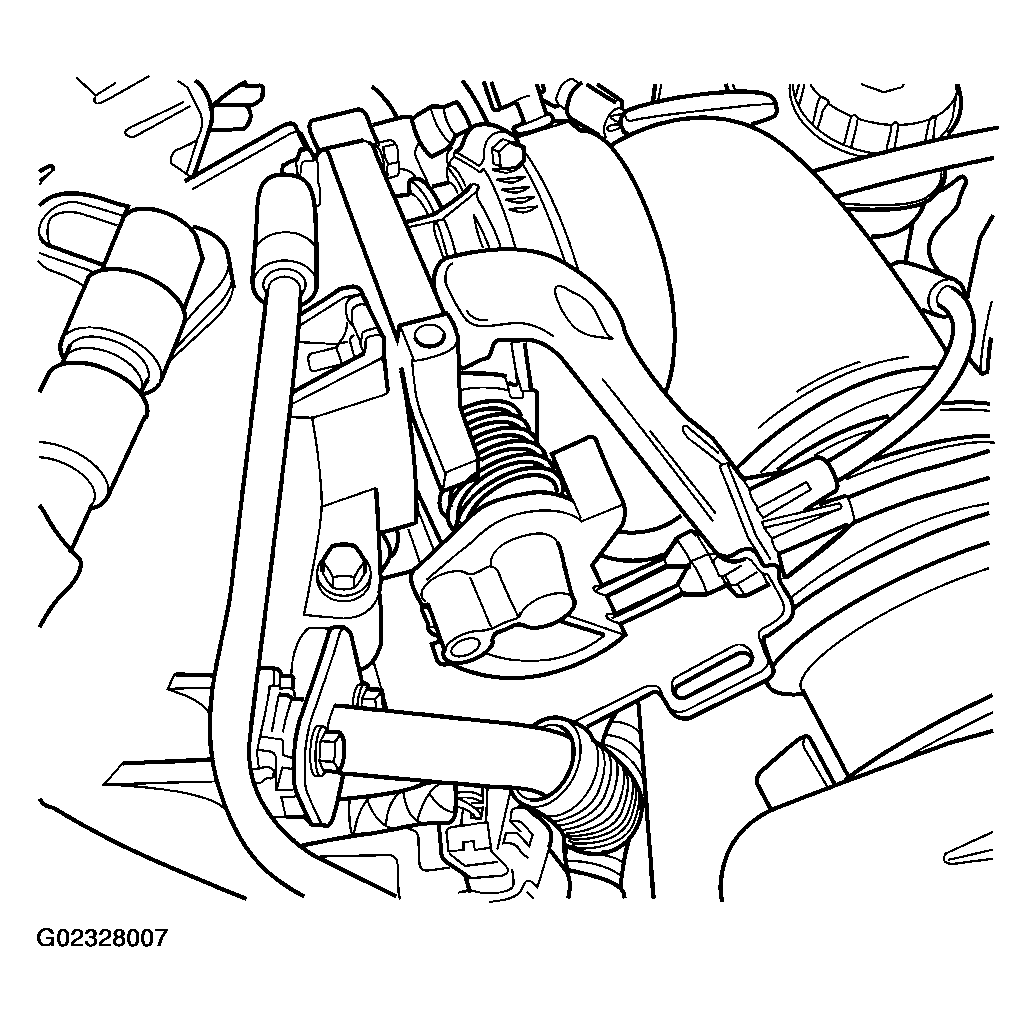

  5. Hold throttle lever in wide open throttle position. Install throttle cable and speed control cable (Figure).
  6. Install the throttle cable shield (Figure).

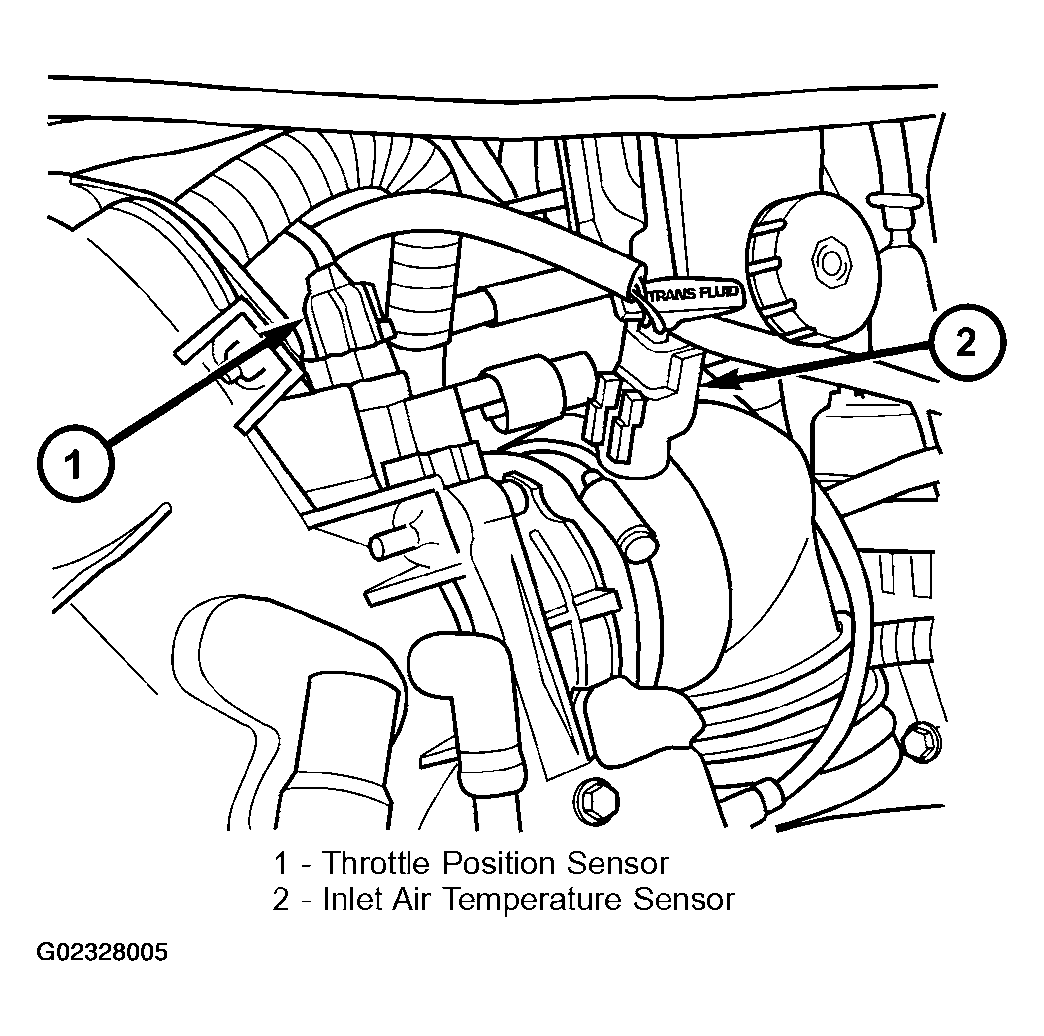

  7. Connect electrical connectors to throttle body (Figure).
  8. Install clean air hose to throttle body.
  9. Connect negative cable to battery.
