Installation - 2.7L
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

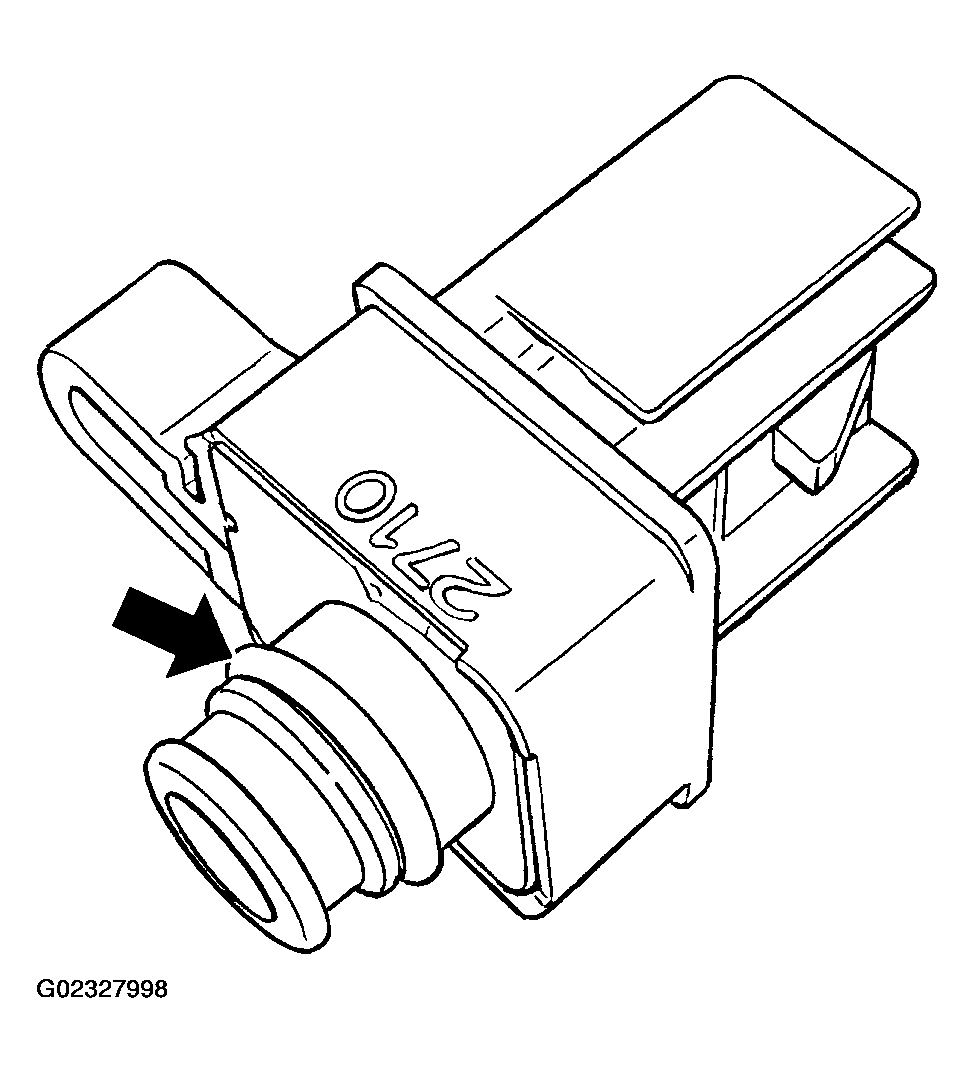

- The sensor mounts onto intake manifold plenum (Fig 1). Tighten screws to 4.5 N.m (40 in. lbs.) torque.
Courtesy of DAIMLERCHRYSLER CORPORATION
- Attach electrical connector to sensor (Figure).
- Install the negative battery cable.
