Installation - 2.7L

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

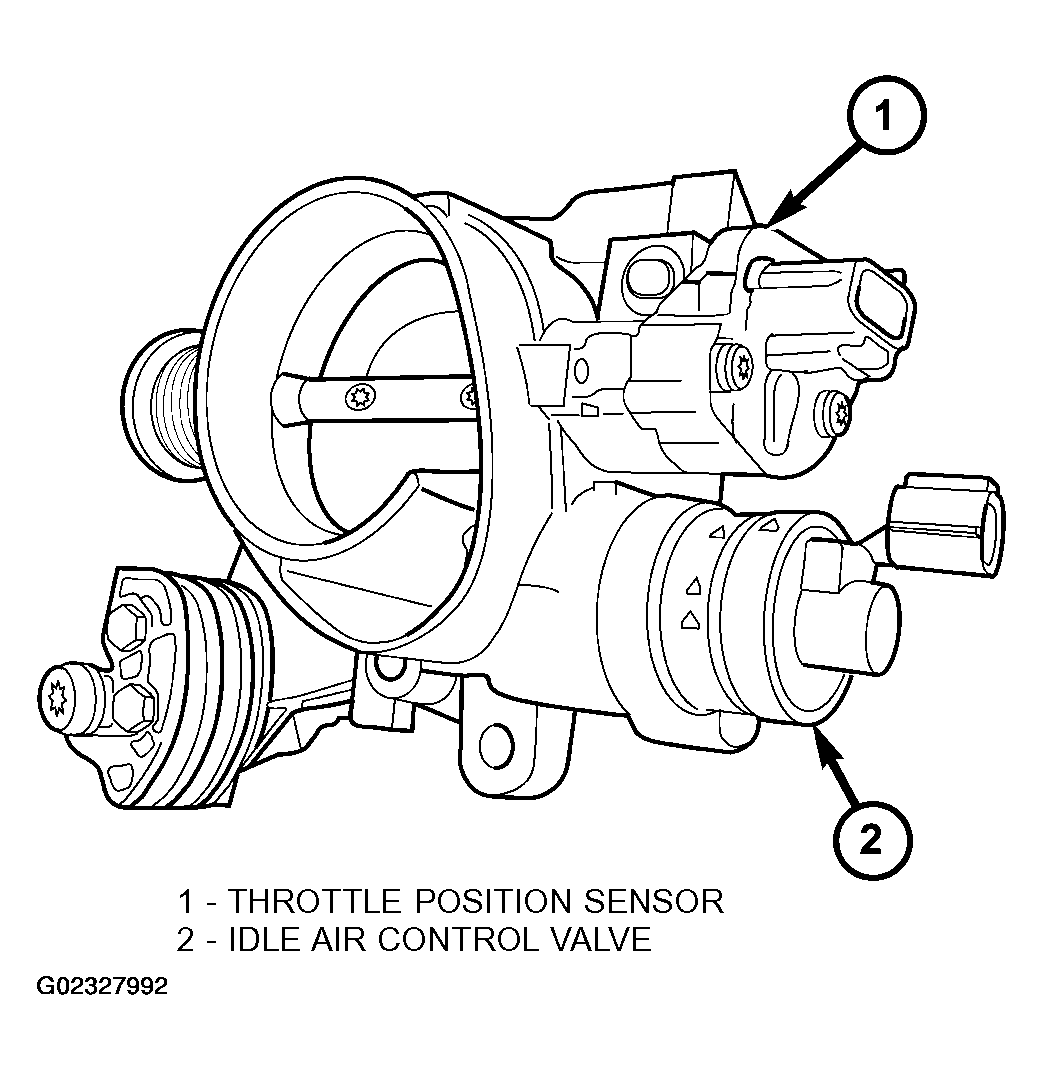

  1. Install the IAC to the throttle body (Figure).
  2. Tighten mounting screws to 5.1 N.m (45 in. lbs.) torque.
  3. Attach electrical connector to the IAC.
  4. Connect the negative battery cable.
