Removal - 4 Cylinder

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

The fuel rail must be removed first (Fig 1). Refer to REMOVAL .

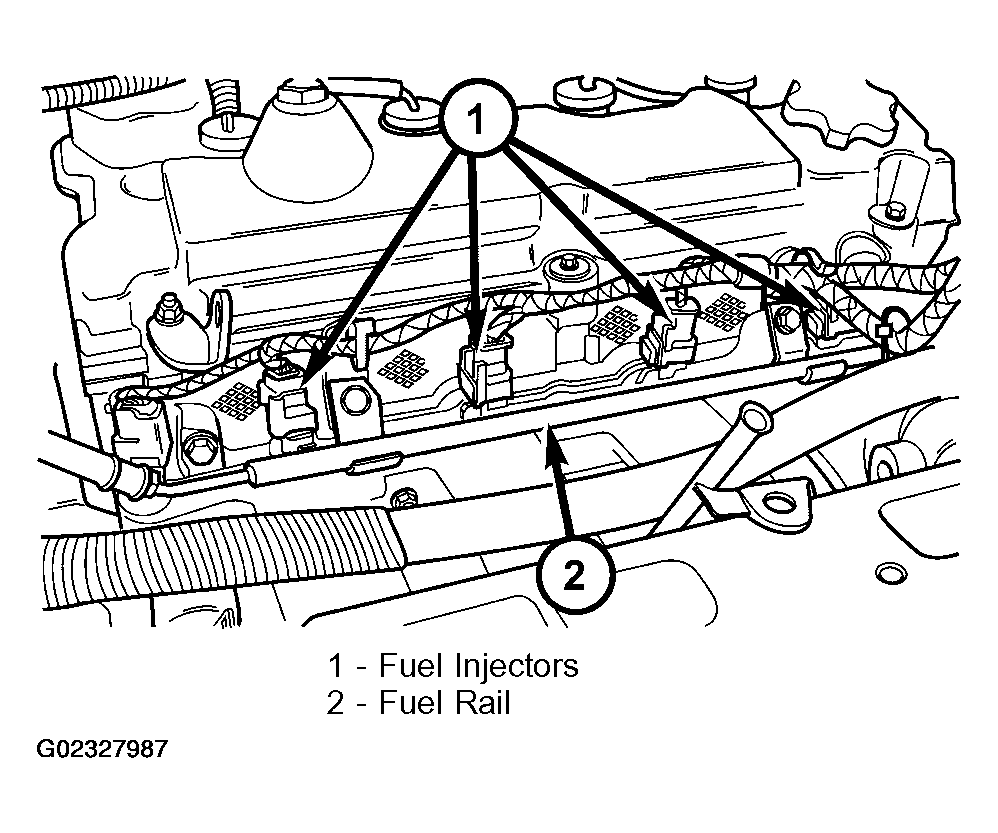

Fig 1: Fuel Rail And Injectors

Courtesy of DAIMLERCHRYSLER CORPORATION

Position fuel rail assembly so that the fuel injectors are easily accessible (Fig 2).

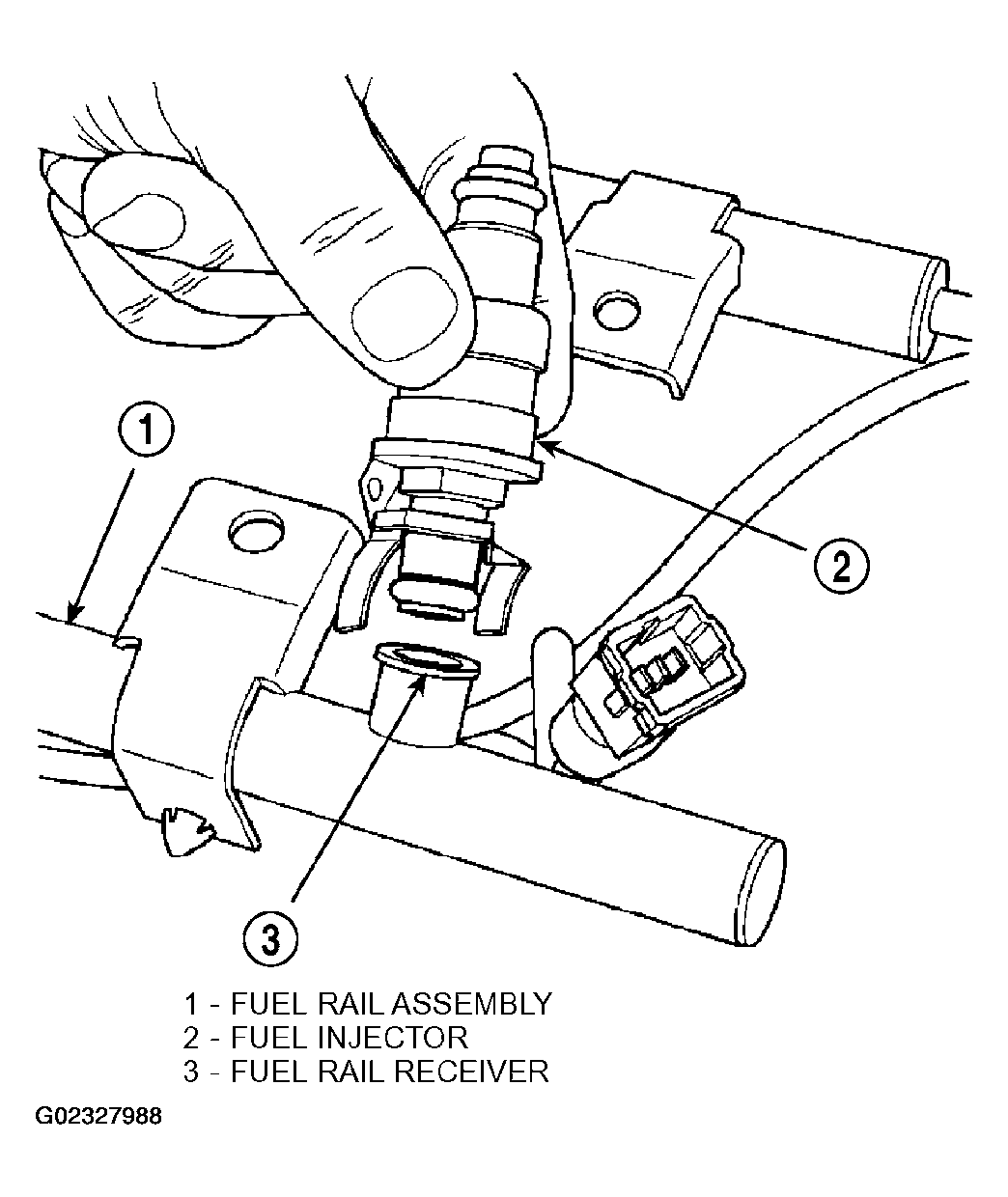

Fig 2: Fuel Injector And Rail - Typical
Courtesy of DAIMLERCHRYSLER CORPORATION
Remove injector clip and pull injector out of fuel rail.
Check injector O-ring for damage. If O-ring is damaged, it must be replaced. Replace the injector clip if it is damaged.
Repeat for remaining injectors.
