Crankshaft Position Sensor: Description
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

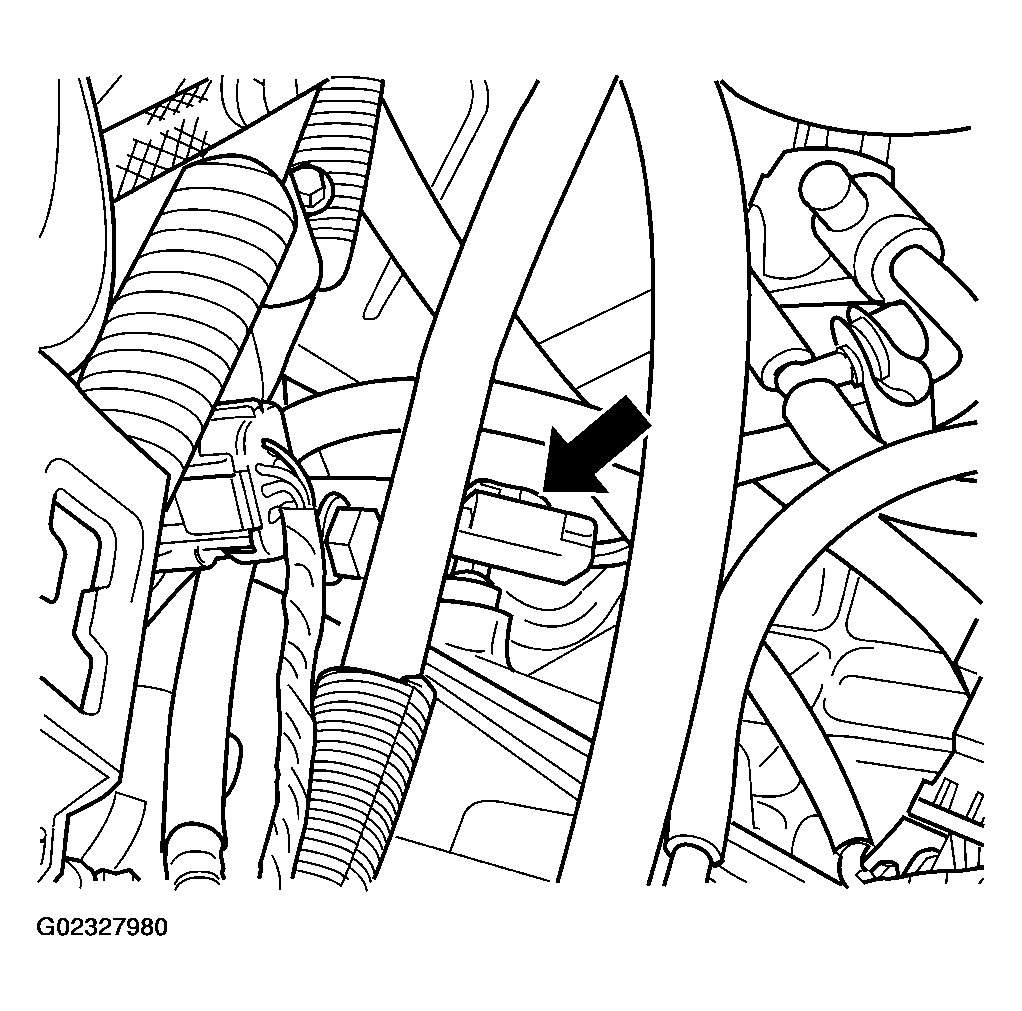

The 4 cylinder crankshaft sensor is located on the front of the engine below the starter (Fig 1). The 2.7L crankshaft sensor is located on the rear of the transmission housing, above the differential housing (Fig 2). The bottom of the sensor is positioned next to the drive plate.
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
