Installation - 4 Cylinder

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure injector holes are clean. Replace O-rings if damaged.
  2. Lubricate injector O-rings with a drop of clean engine oil to ease installation.
  3. Put the tip of each injector into their ports. Push the assembly into place until the injectors are seated in the ports.
  4. Install the 2 fuel rail mounting bolts to intake manifold. Tighten bolts to 11.9 N.m (105 in. lbs.) torque.
  5. Install the fuel rail mounting bolt to cylinder head. Tighten bolt to 22 N.m (195 in. lbs.) torque
  6. Connect the connectors to the fuel injectors.
  7. Install fuel rail support bracket and loosely install all bolts (Figure).
  8. Tighten three fasteners to intake manifold to 28.3 N.m (250 in. lbs.) torque.
  9. Tighten two bolts to fuel rail to 8.5 N.m (75 in. lbs.) torque.

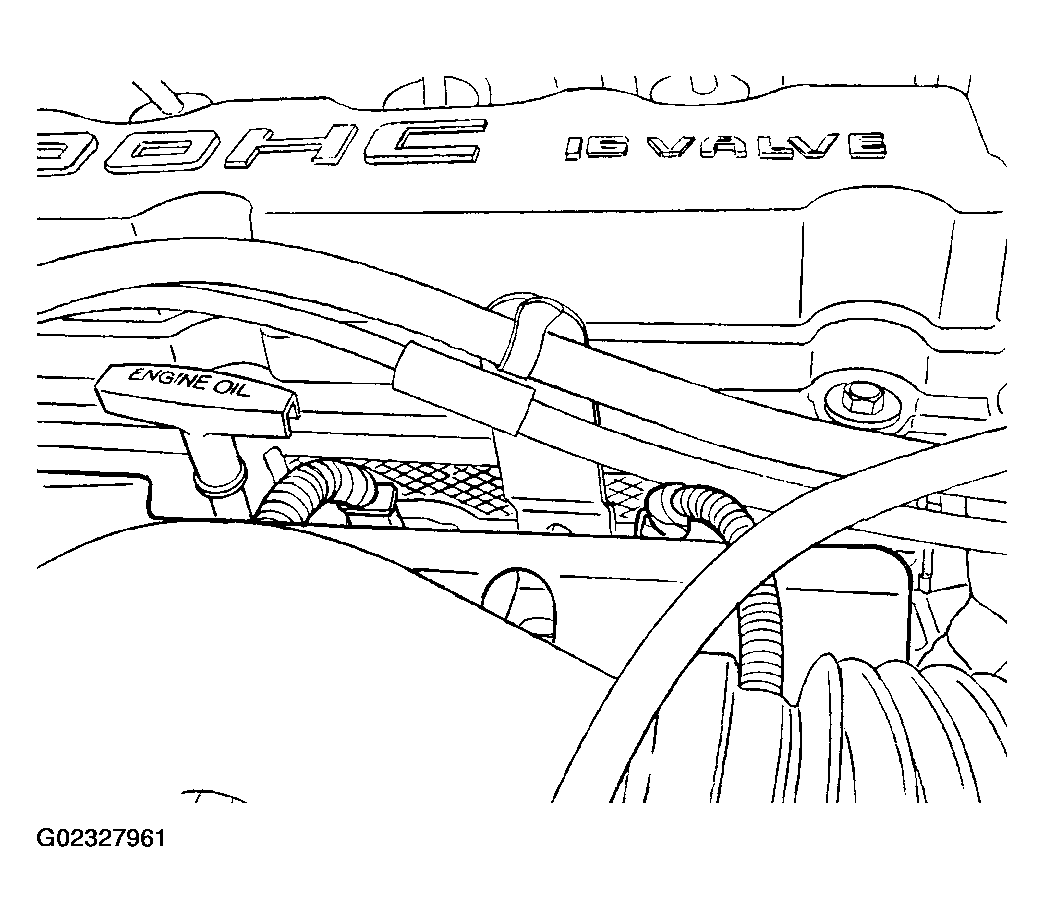

  10. Install wiring harness to brackets (Figure).
  11. Connect the throttle and speed control cables to fuel rail bracket (Figure).
  12. Connect negative battery cable.
  13. Use the DRBIII(R) scan tool to pressurize the fuel system. Check for leaks.
