Connector/Ground/Splice Location: Description

This information provides illustrations identifying connector, ground, and splice locations in the vehicle. Connector, ground, and splice indexes are provided. Use the wiring diagrams in each article for connector, ground, and splice identification. Refer to the service information for the proper figure number. For items that are not shown in this information N/S is placed in the Fig. column.

Connector Name/Number	Color	Location	Fig.
A/C Compressor Clutch (2.0L/2.4L)	GY	Top of Compressor	Fig 16.
A/C Compressor Clutch (2.7L)	GY	Top of Compressor	Fig 15.

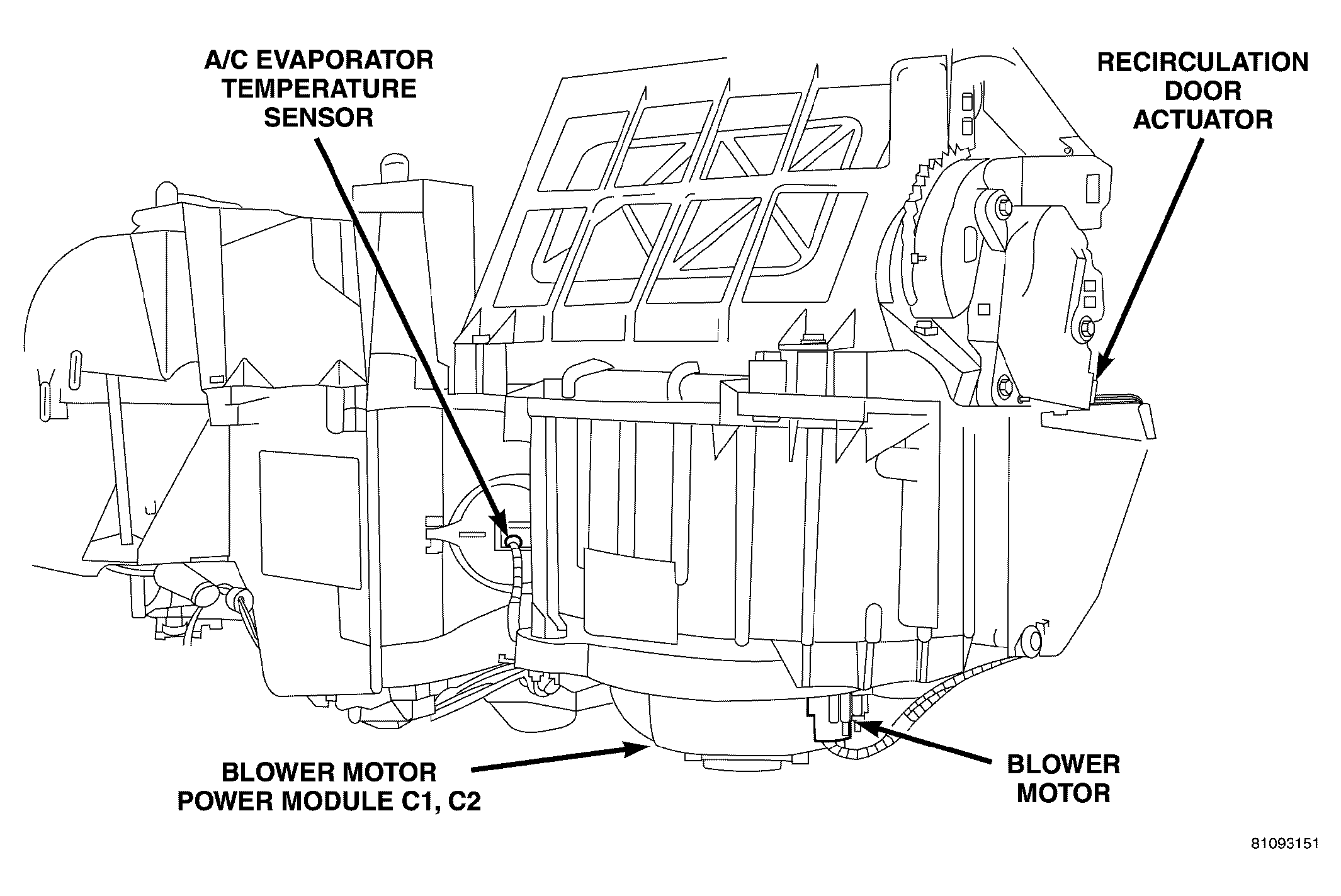

A/C Evaporator Temperature Sensor	BK	Right Side of HVAC	Fig 34, Fig 35.
A/C-Heater Control C1 (MTC)	NAT	Rear of Control, Center of Instrument Panel	Fig 21, Fig 28.
A/C-Heater Control C2 (MTC)	BK	Rear of Control, Center of Instrument Panel	Fig 21, Fig 28.

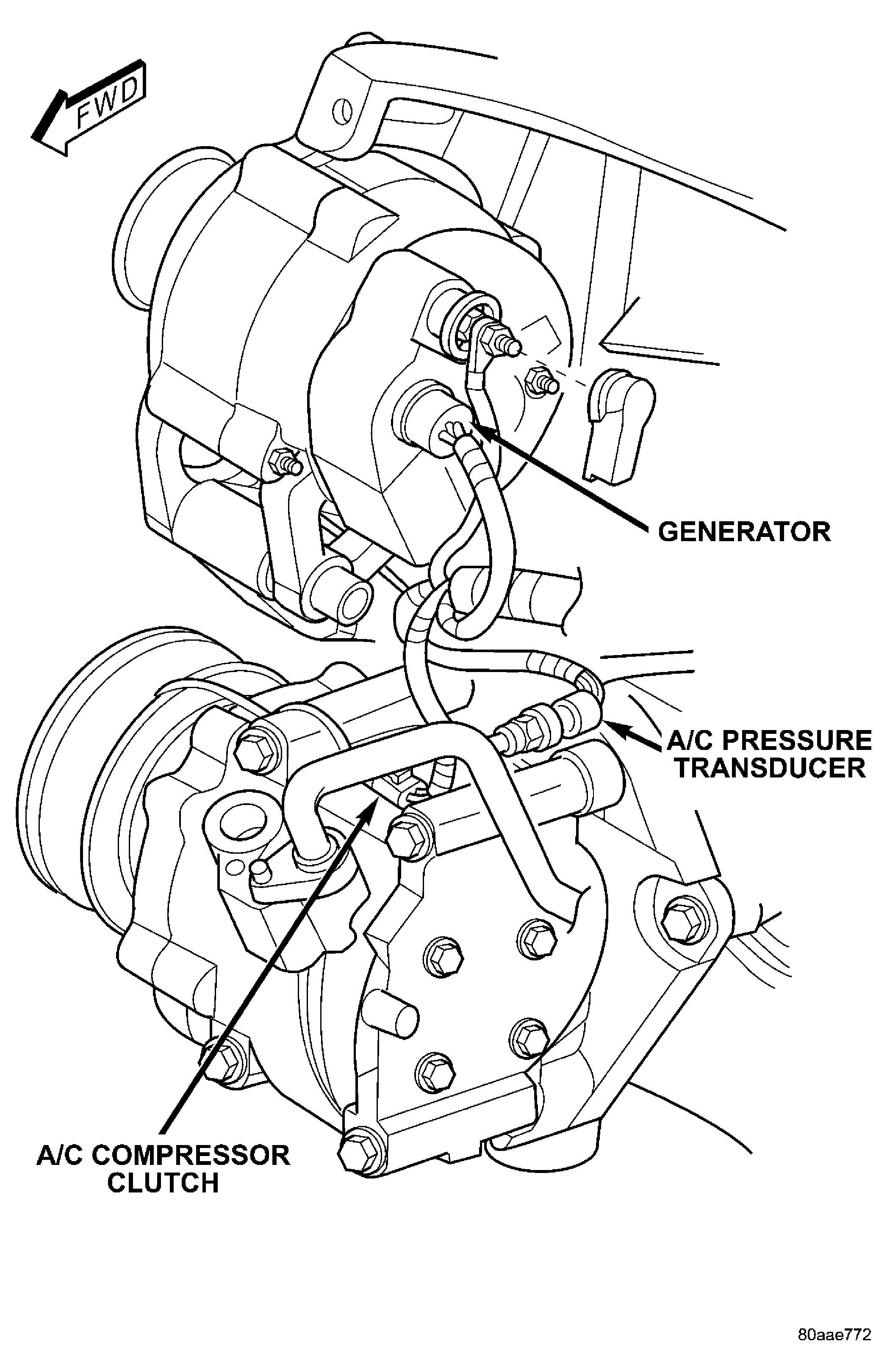

A/C Pressure Transducer	GY	Top of A/C Compressor	Fig 16.

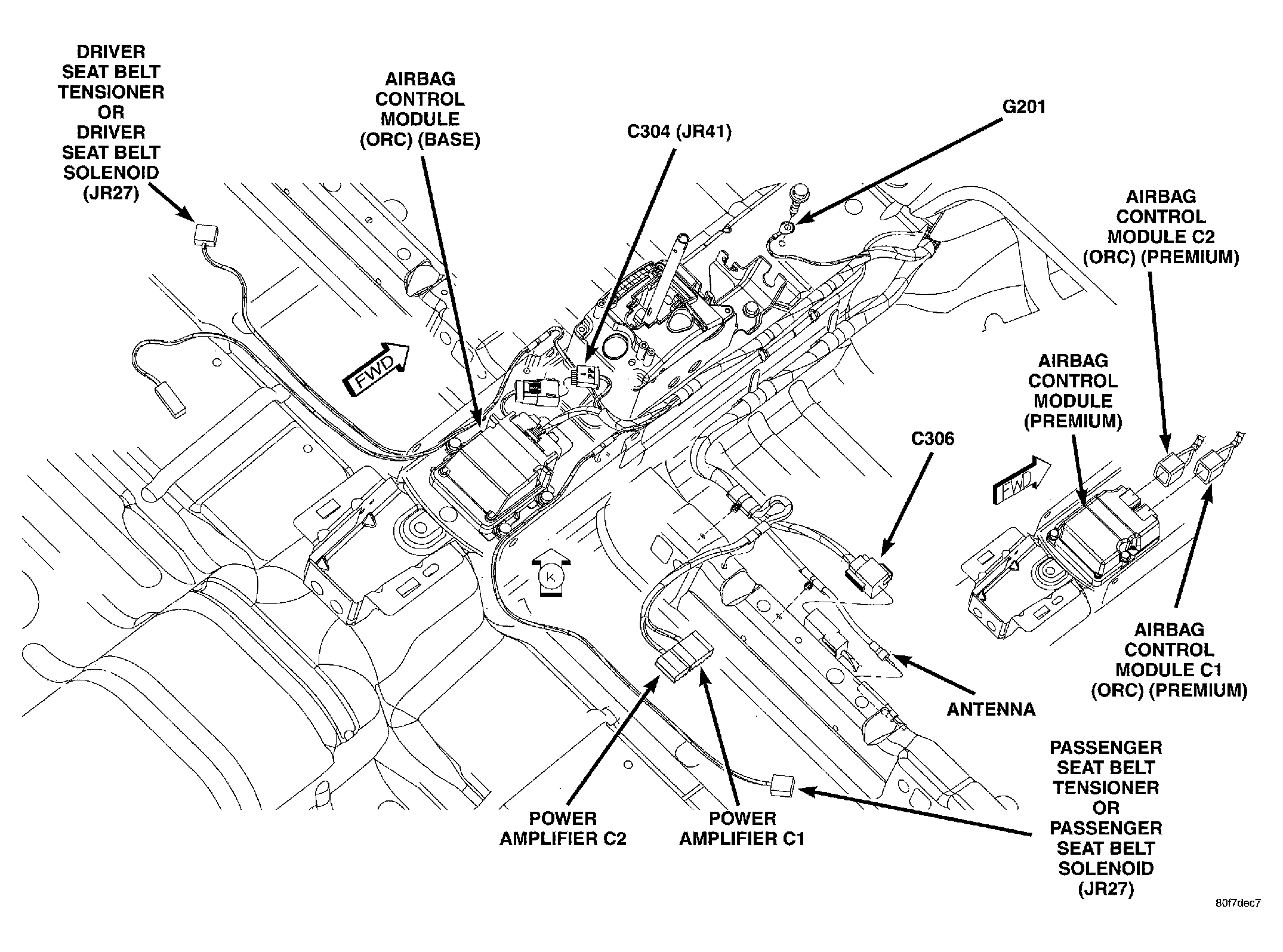

Airbag Control Module (ORC) (BASE)	GY	Center Body Near Shifter Assembly	Fig 21, Fig 39.
Airbag Control Module C1 (ORC) (Premium)	YL	Front Center Body Connector	Fig 39.
Airbag Control Module C2 (ORC) (Premium)	YL	Front Center Body Connectors and Instruments Panel Harness Connector	Fig 21, Fig 39.
Air Pump Motor (2.4L PZEV)	BK	Below Intake Manifold	Fig 13.
Air Pump Motor Relay (2.4L PZEV)	BK	Below Intake Manifold	Fig 13.
Ambient Temperature Sensor	BK	Front Center of Engine Compartment	Fig 1.

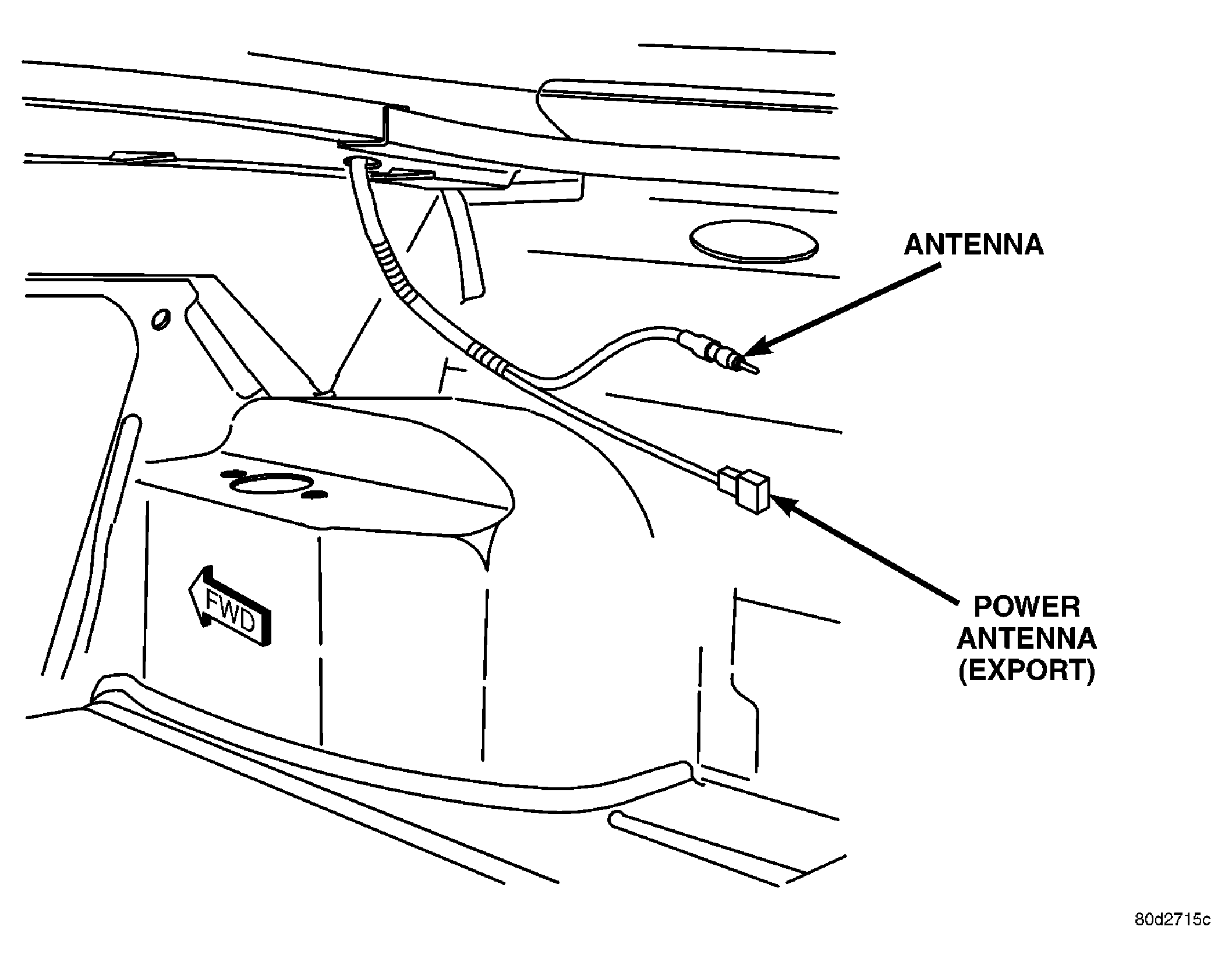

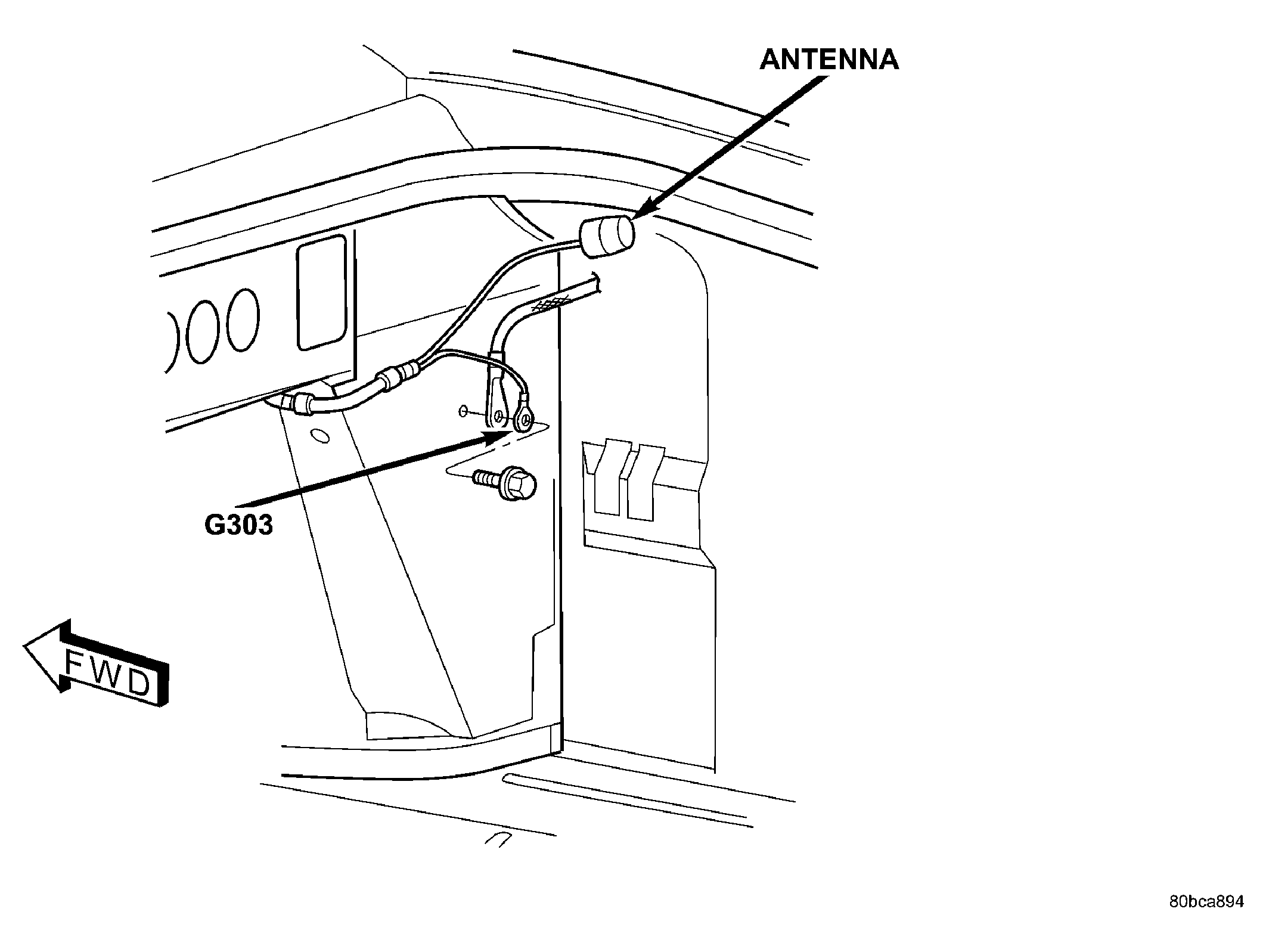

	Antenna	Center of Instrument Panel and Trunk	Fig 21, Fig 28, Fig 39, Fig 40, Fig 53, Fig 54.
Antilock Brake Module	BK	Left Front Engine Compartment	Fig 4.
Automatic Day/Night Mirror	BK	At Mirror	Fig 38.
Auto Headlamp Relay (Premium)	NAT	Lower Center I/P	Fig 21.

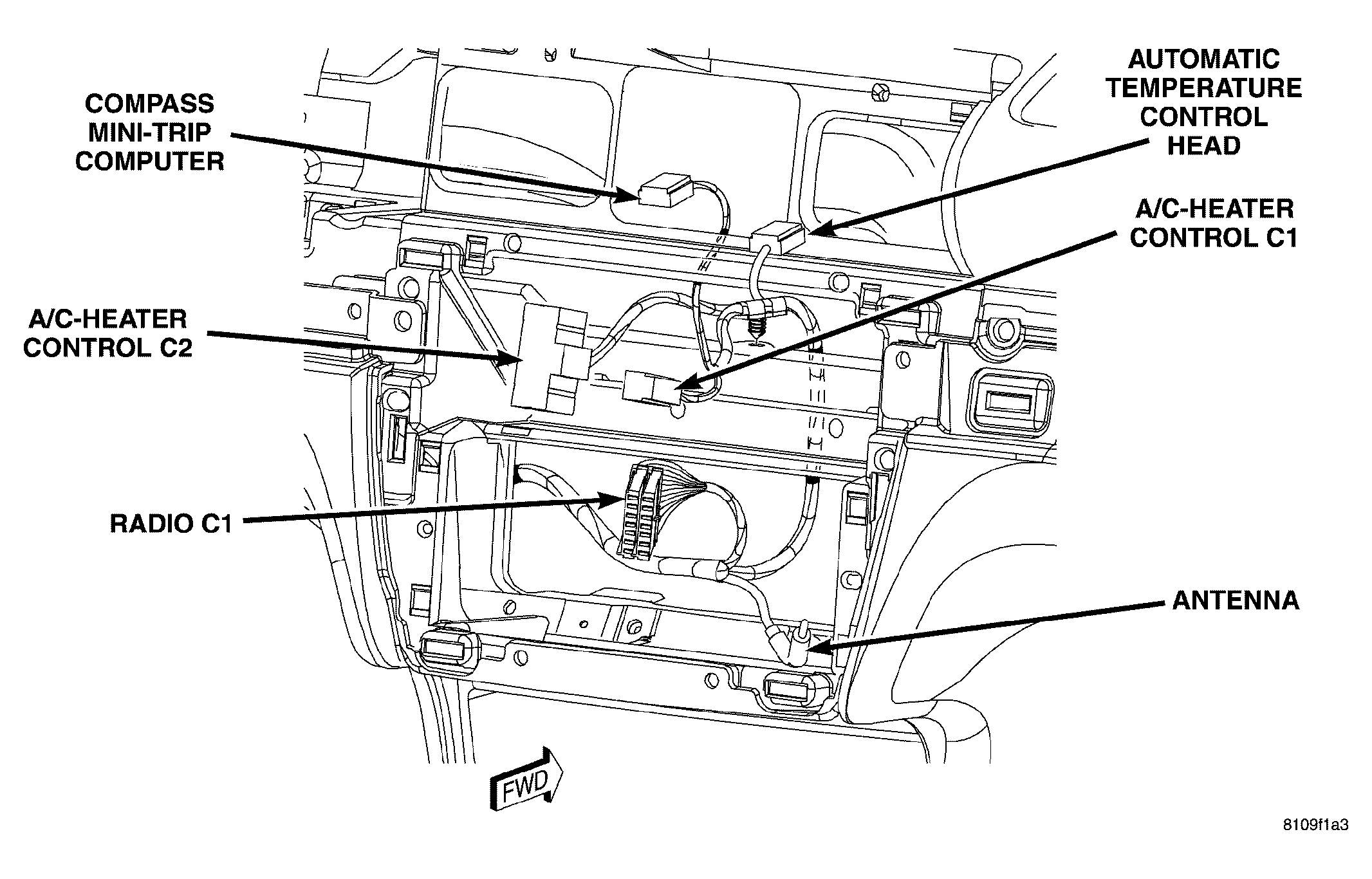

Automatic Temperature Control Head	BK	Upper Center of I/P,at back side of Controls	Fig 21, Fig 28.
Autostick Switch	BK	Center of Body at Base of Shifter	Fig 40.

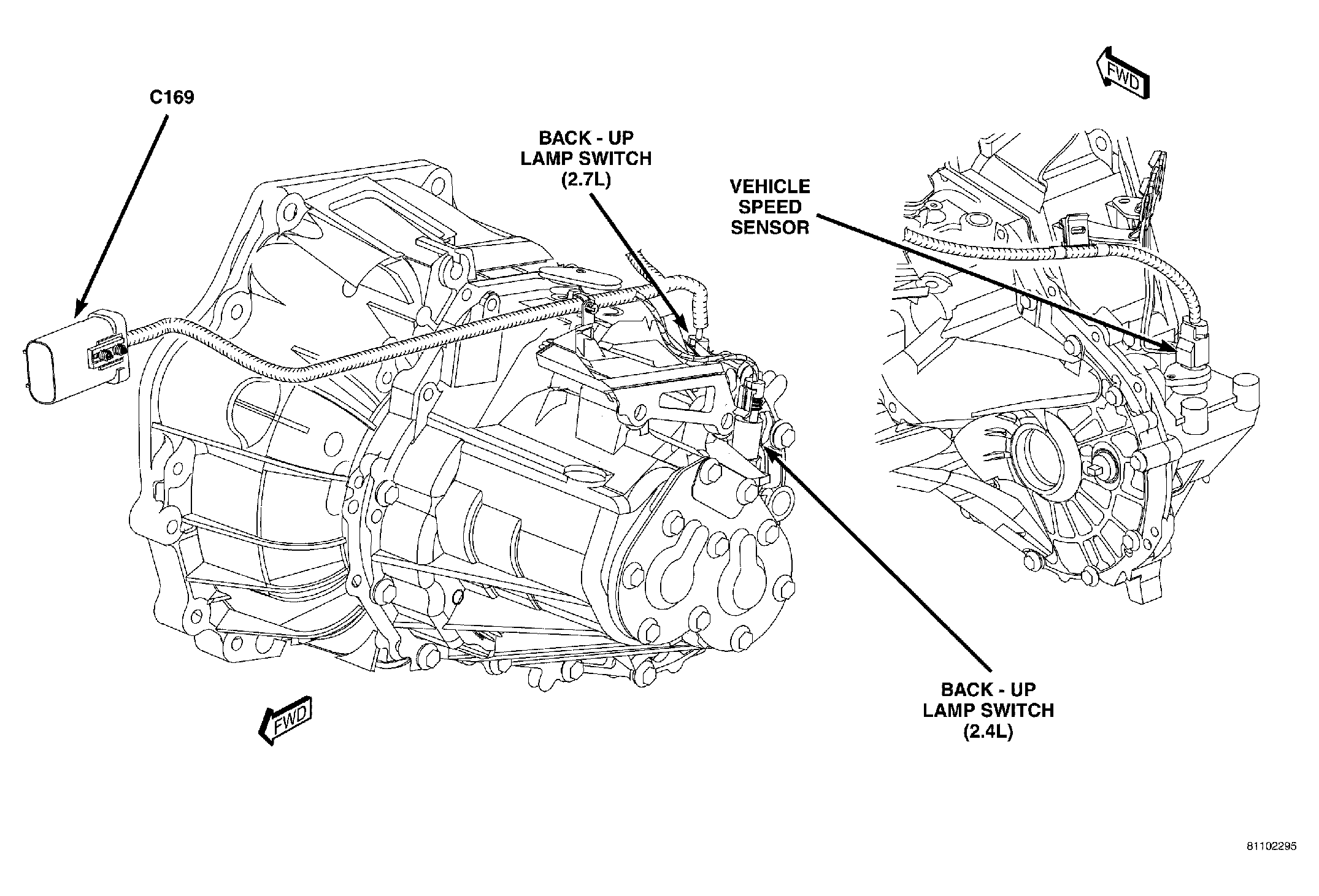

Back-Up Lamp Switch (MTX)	GY	Rear of Transmission	Fig 11.

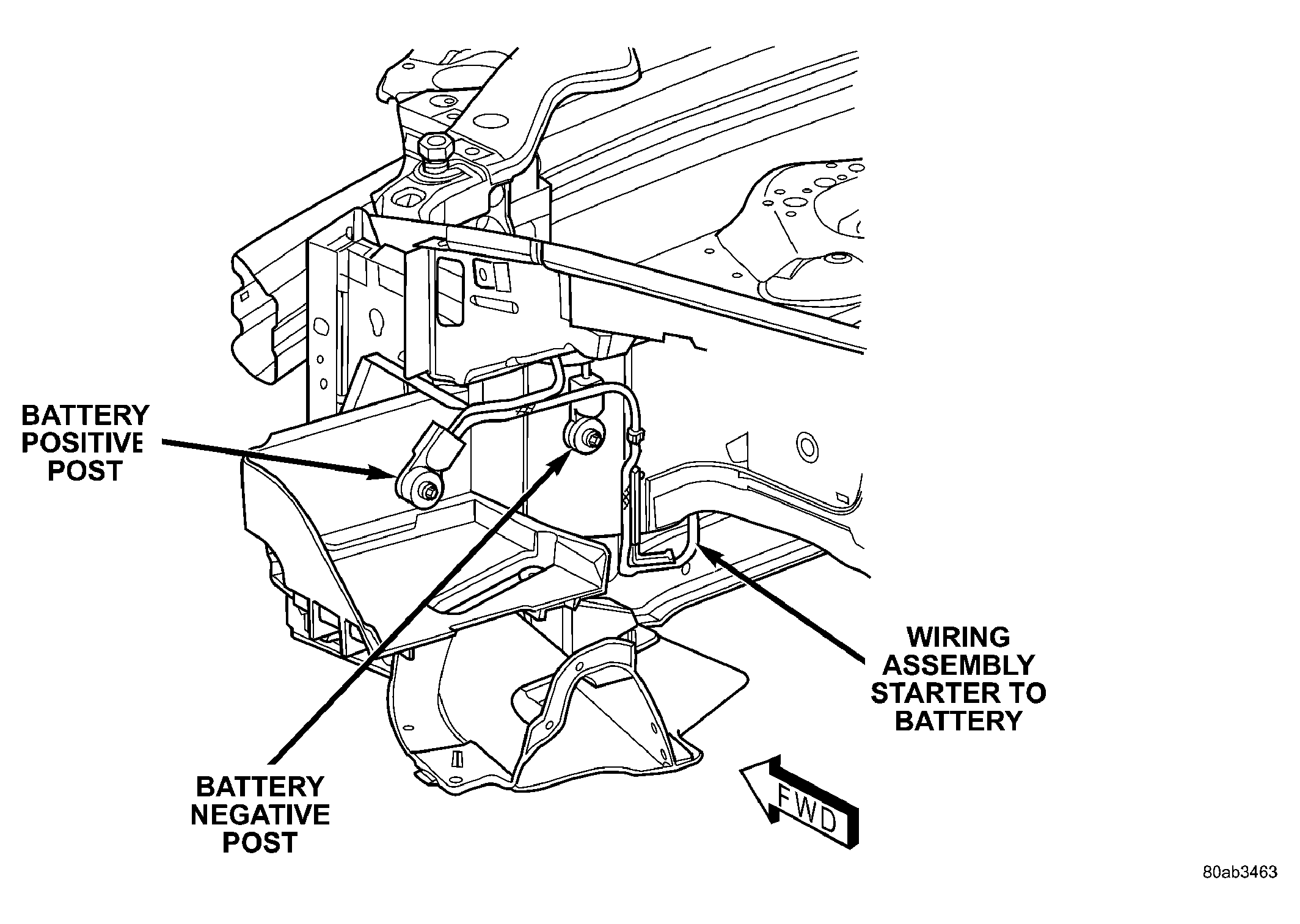

	Battery Negative Post	Left Side Engine Compartment	Fig 9.

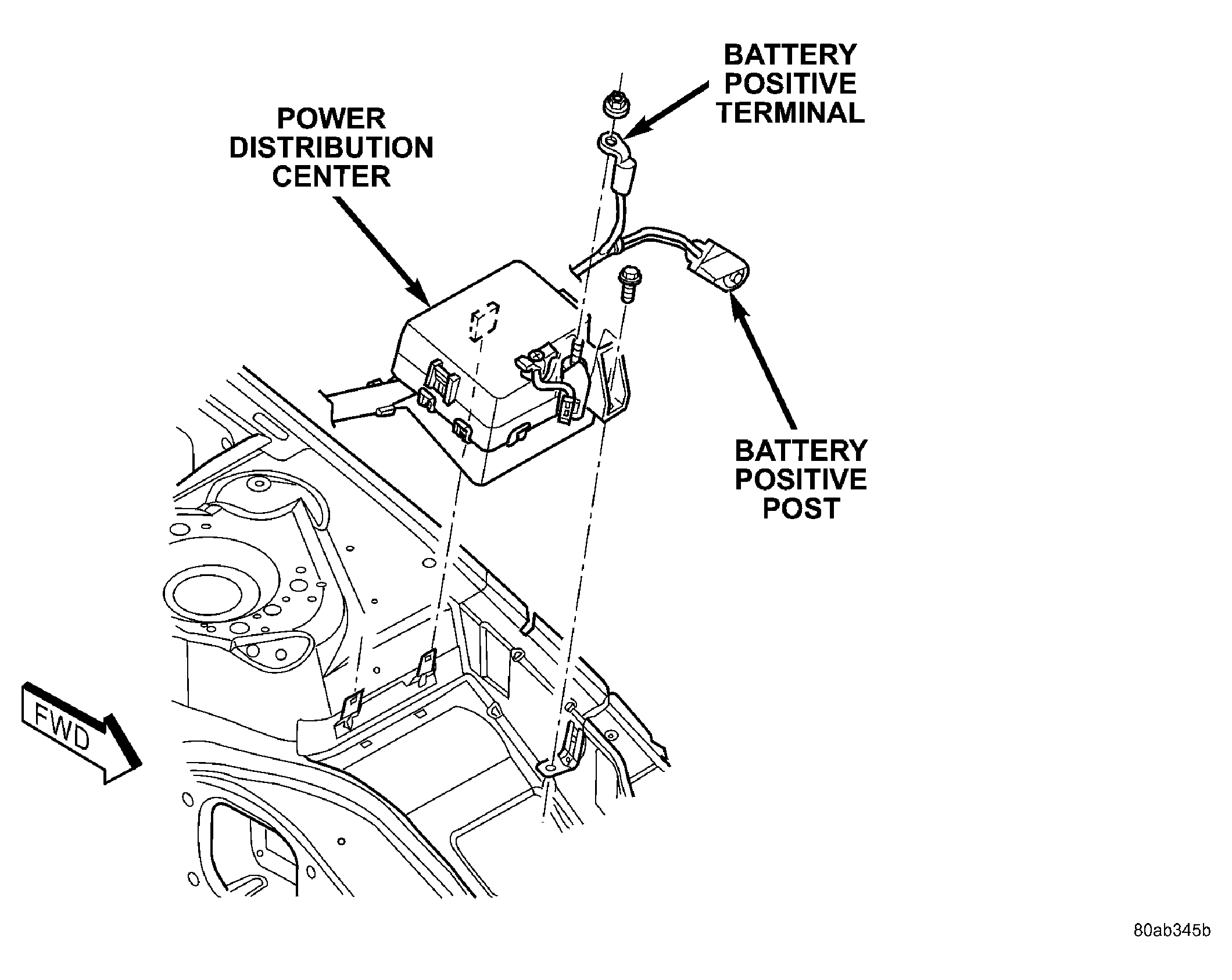

	Battery Positive Post	Left Side Engine Compartment	Fig 8, Fig 9.
	Battery Positive Terminal	Left Side Engine Compartment	Fig 8.

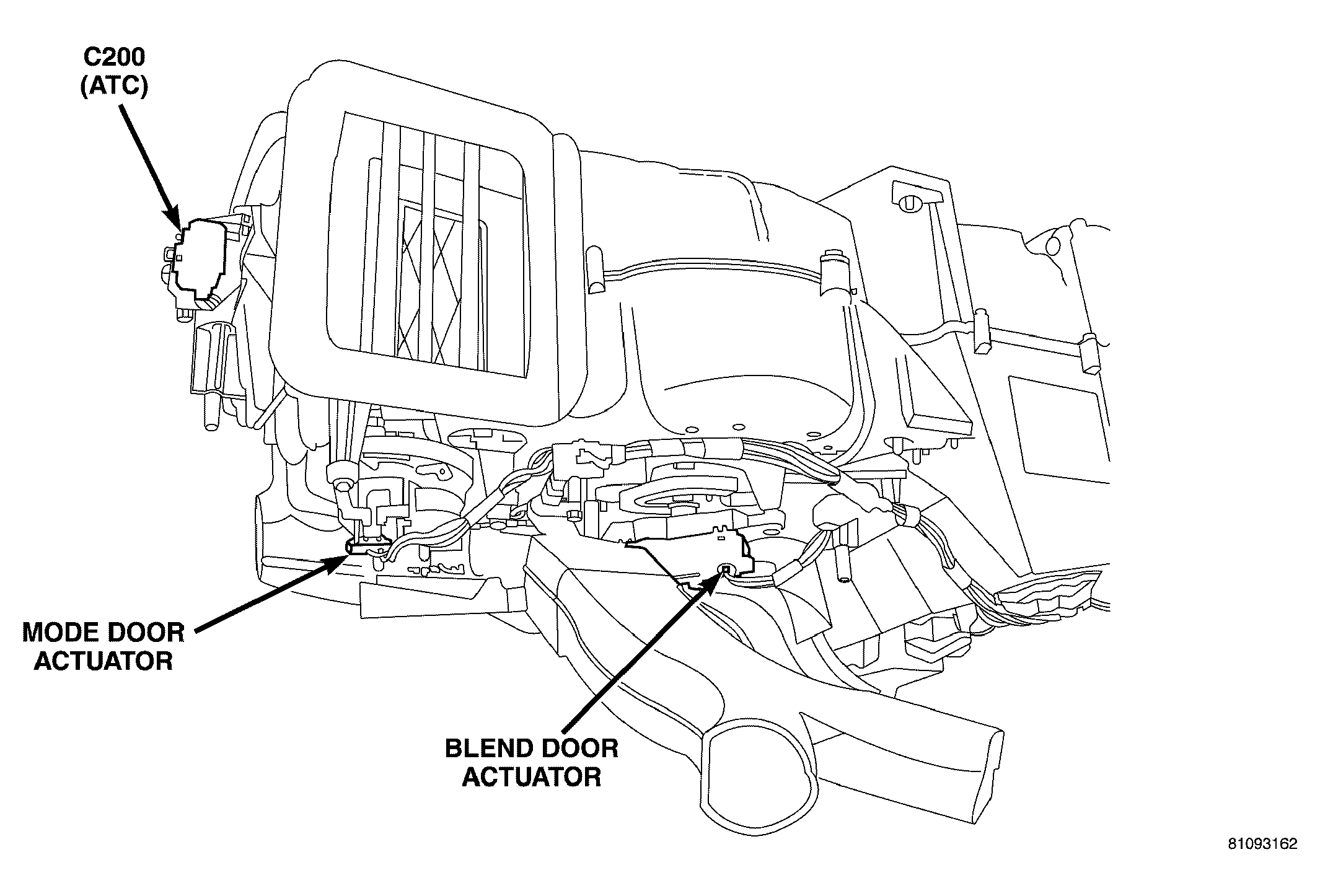

Blend Door Actuator	NAT	At Blend Door, Bottom Center of HVAC	Fig 37.
Blower Motor	BK	At Blower Motor, Right Bottom of HVAC	Fig 35.

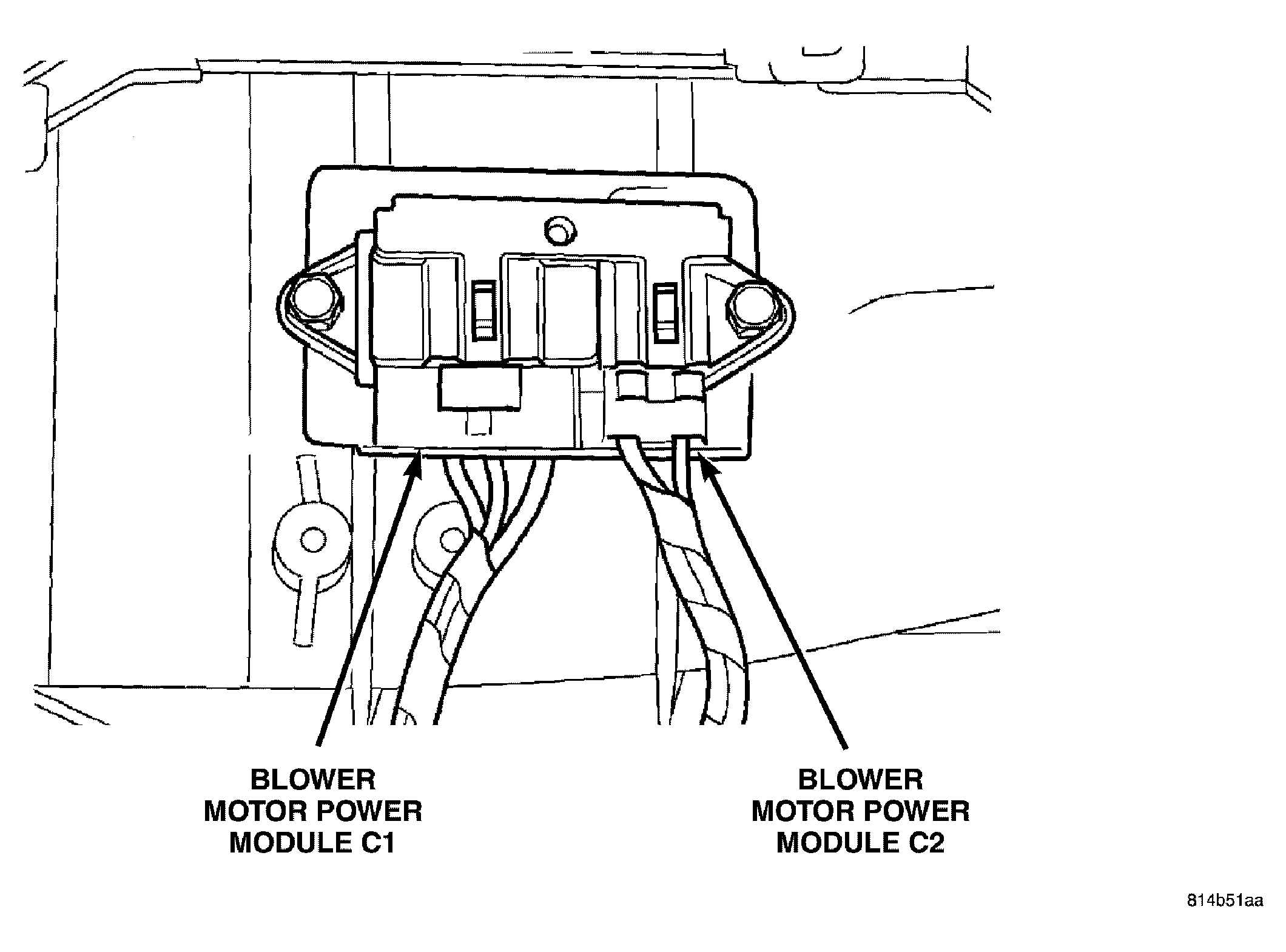

Blower Motor Power Module C1 (ATC)	BK	At Control Module, Right End of HVAC	Fig 36.
Blower Motor Power Module C2 (ATC)	BK	At Control Module, Right End of HVAC	Fig 36.
Blower Motor Resister Block	BK	Right Side of HVAC	Fig 34.
Body Control Module C1	WT	Left Front Kick Panel	Fig 21, Fig 32.
Body Control Module C2	WT	Left Front Kick Panel	Fig 21, Fig 32.
Body Control Module C3	GY	Left Front Kick Panel	Fig 32.
Body Control Module C4	WT	Left Front Kick Panel	Fig 32, Fig 41.

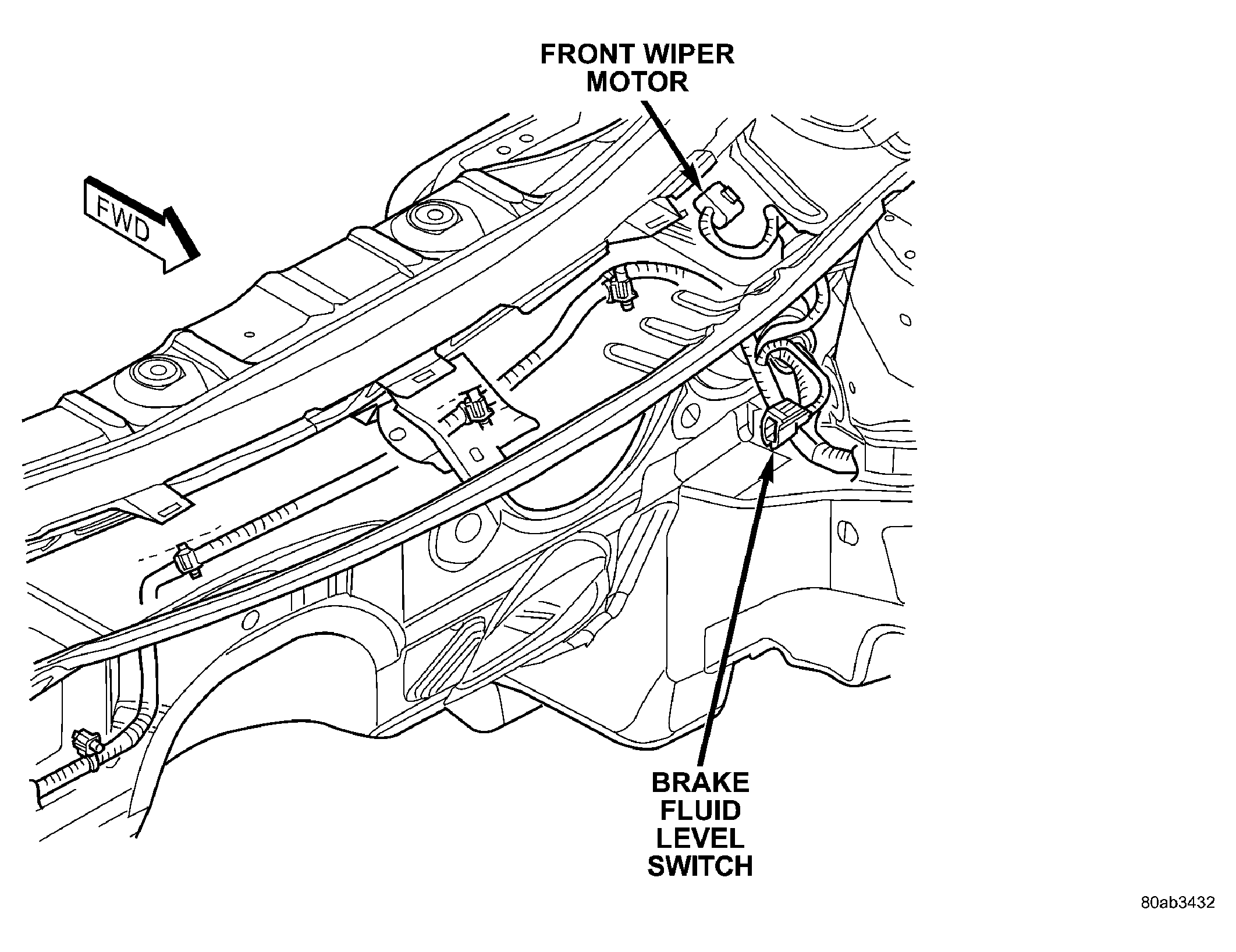

Brake Fluid Level Switch	BK	Left Rear Engine Compartment	Fig 5, Fig 6.

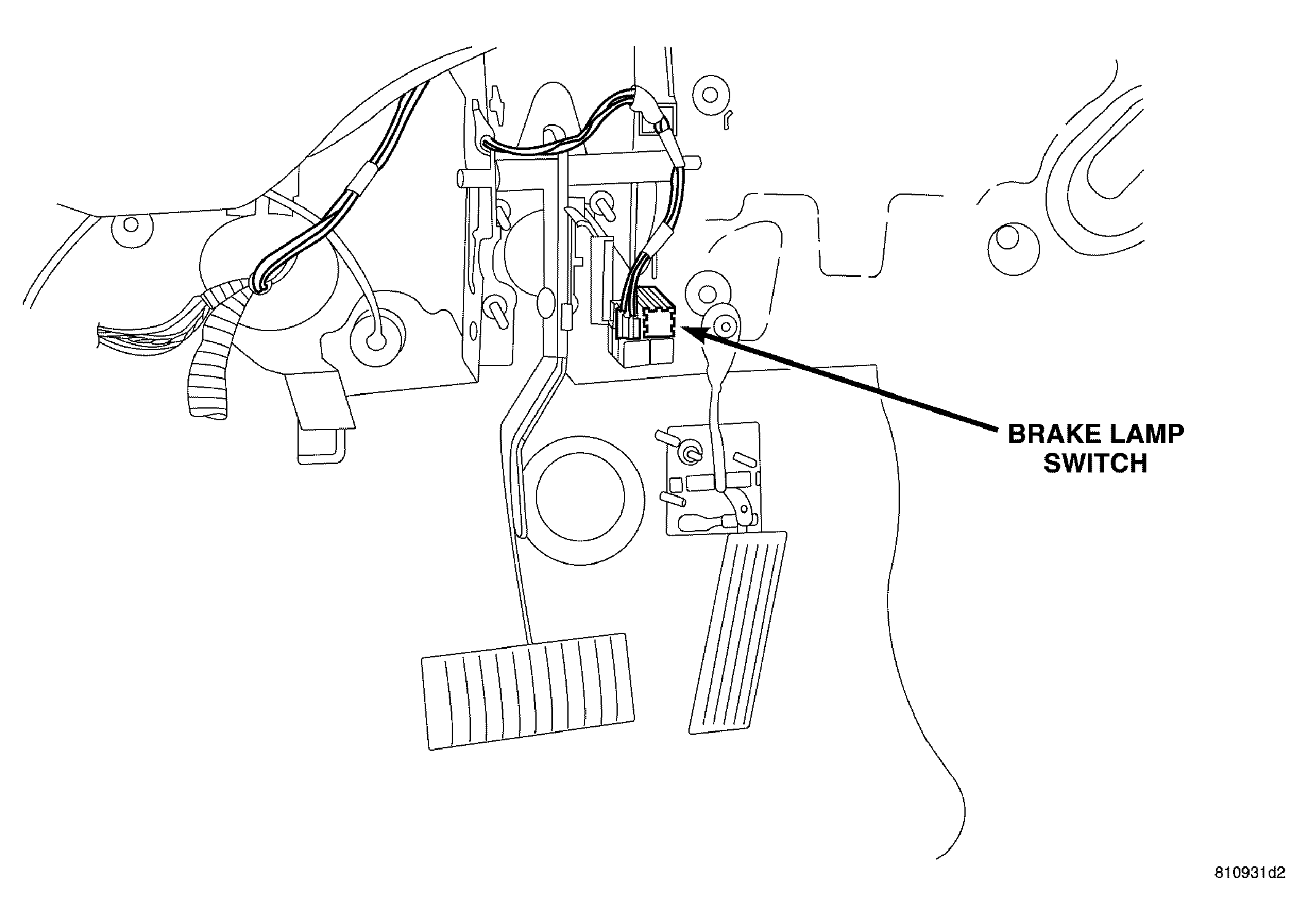

Brake Lamp Switch	GY	At Brake Pedal	Fig 25.
Brake Transmission Shift Interlock Solenoid	WT	At Steering Column	Fig 21, Fig 23.

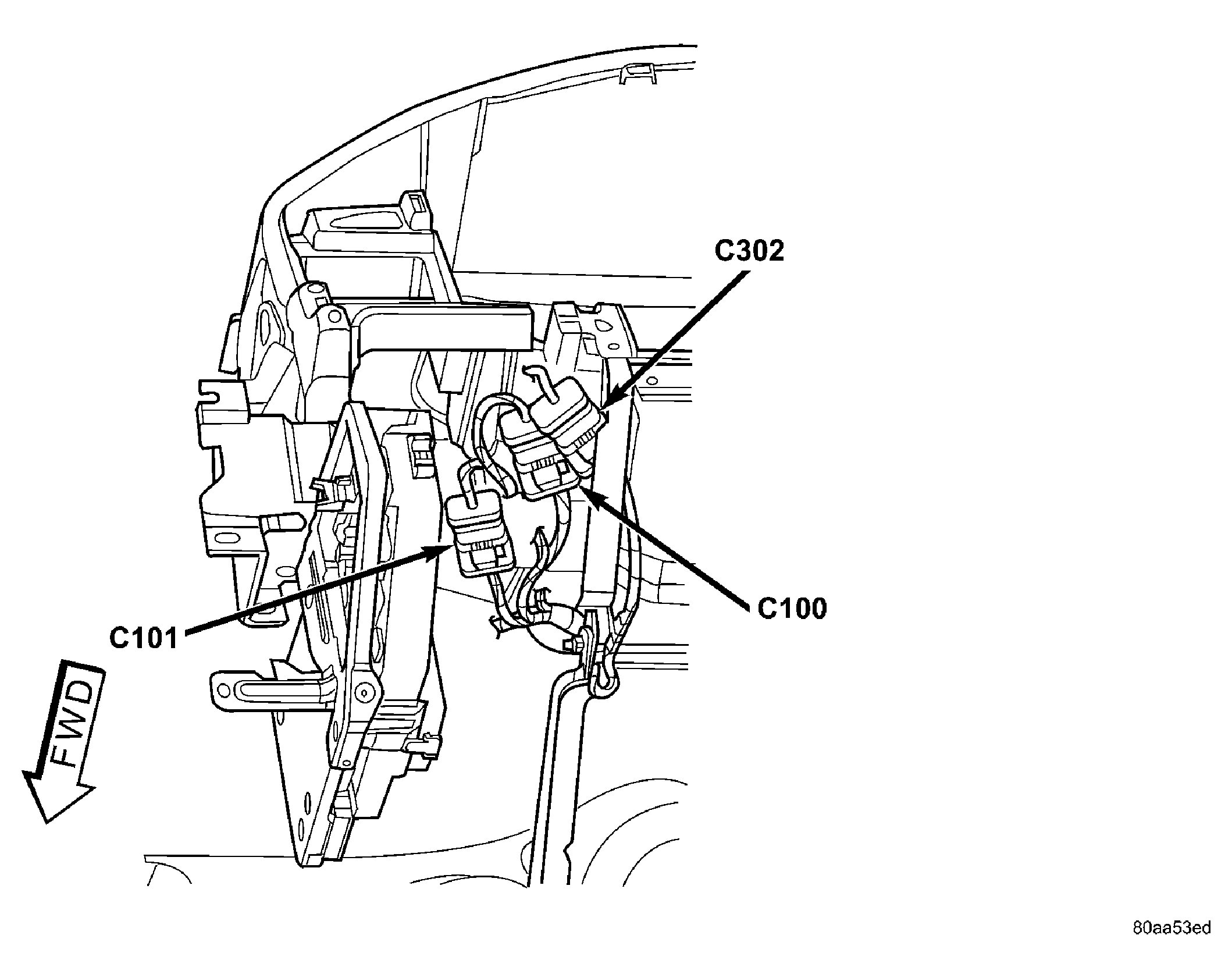

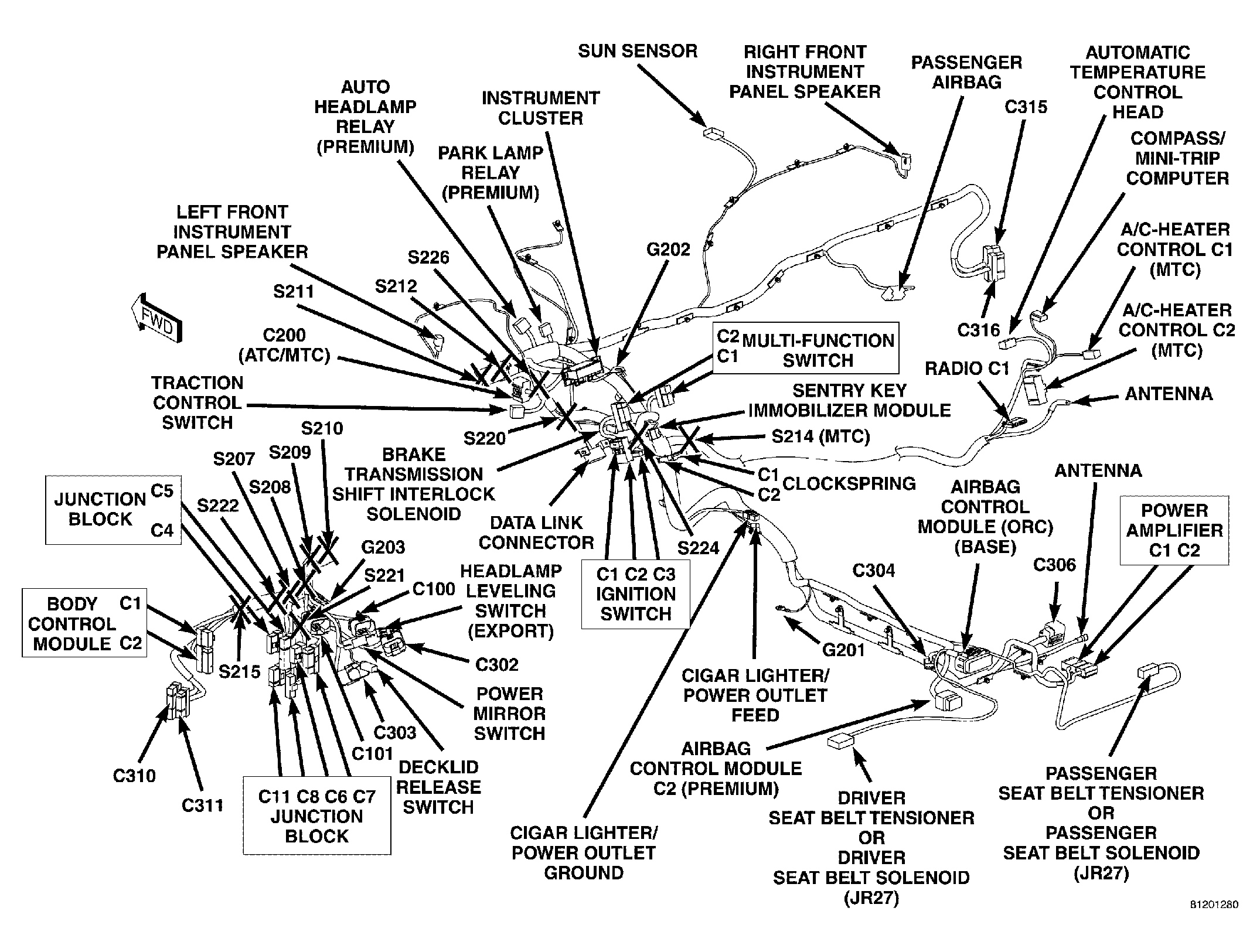

C100	LT/GN	Lower Left Side Instrument Panel	Fig 21, Fig 22, Fig 24.
C101	LT/GY	Lower Left Side Instrument Panel	Fig 21, Fig 22, Fig 24.

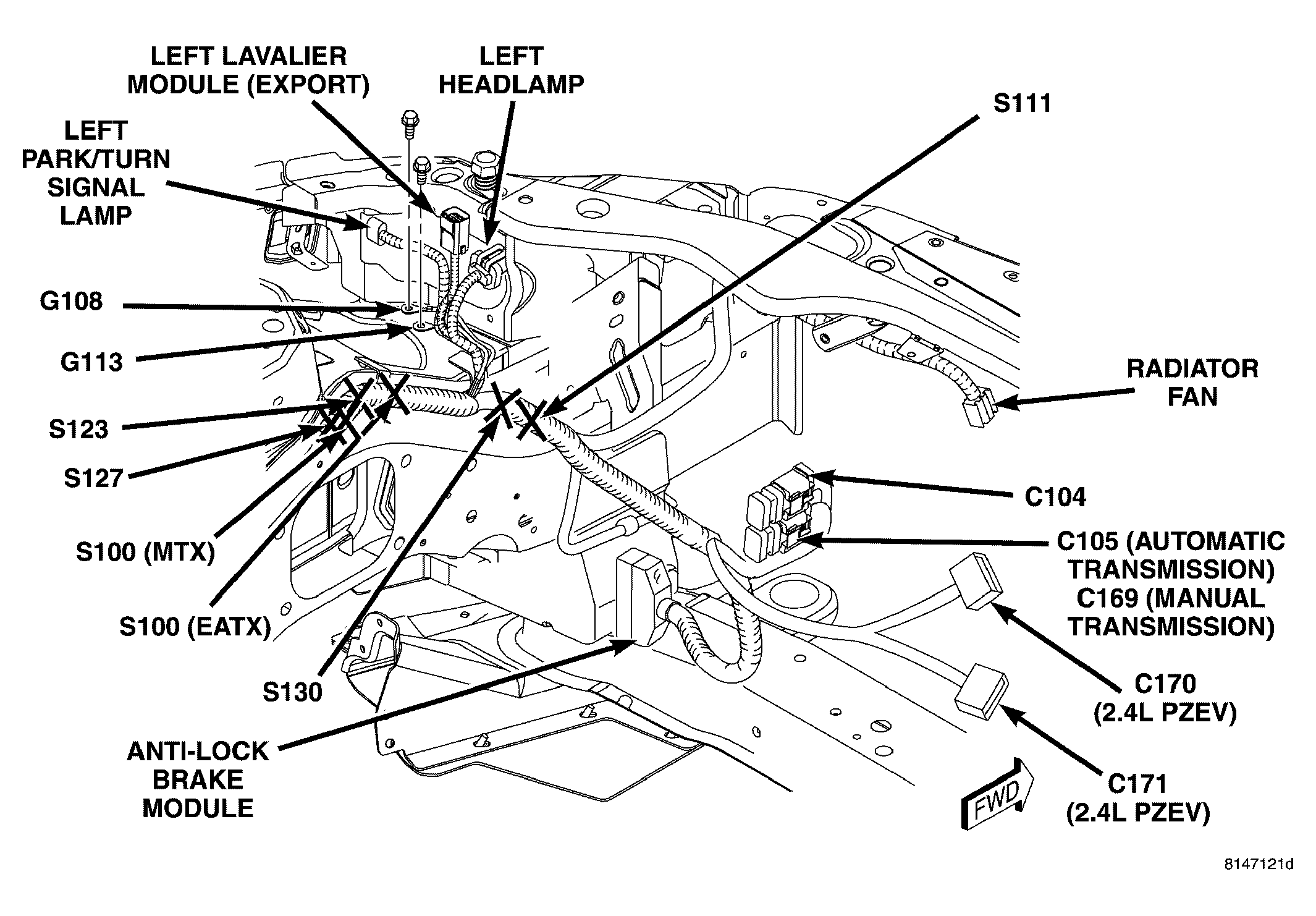

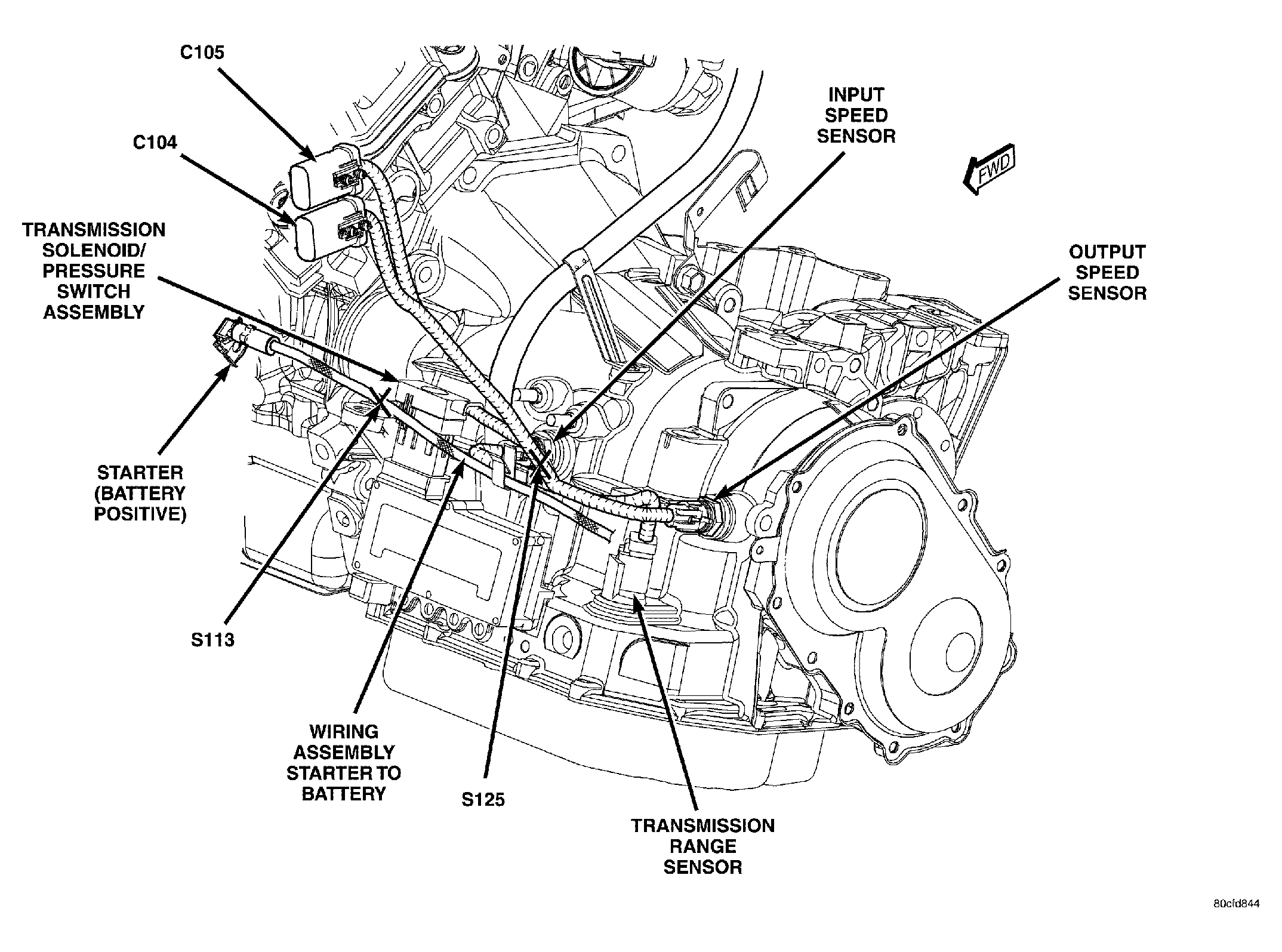

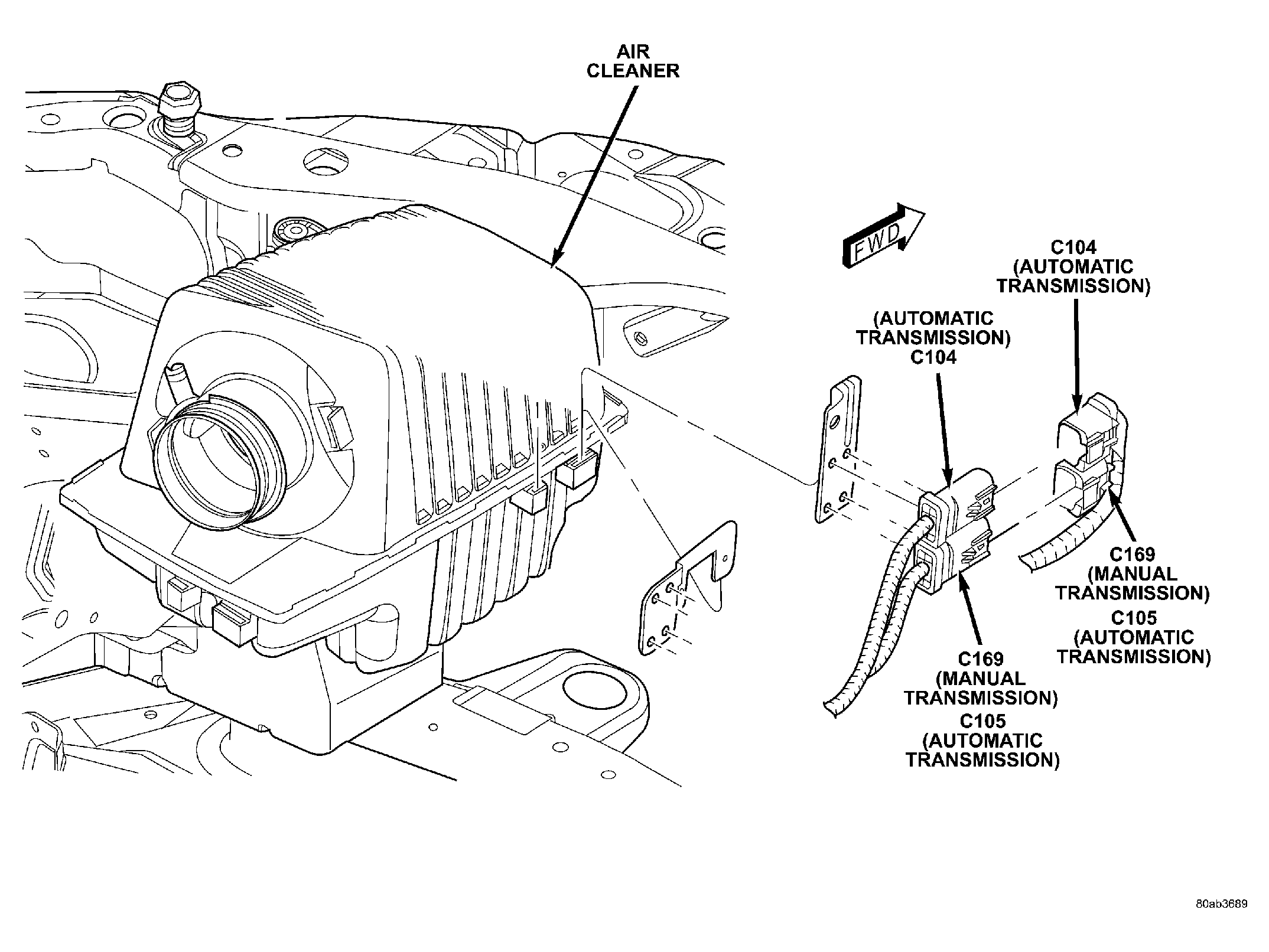

C104 (EATX)	LT/GY	Left Front Engine Compartment	Fig 4, Fig 10, Fig 12.
C105 (EATX)	BK	Left Front Engine Compartment	Fig 4, Fig 10, Fig 12.

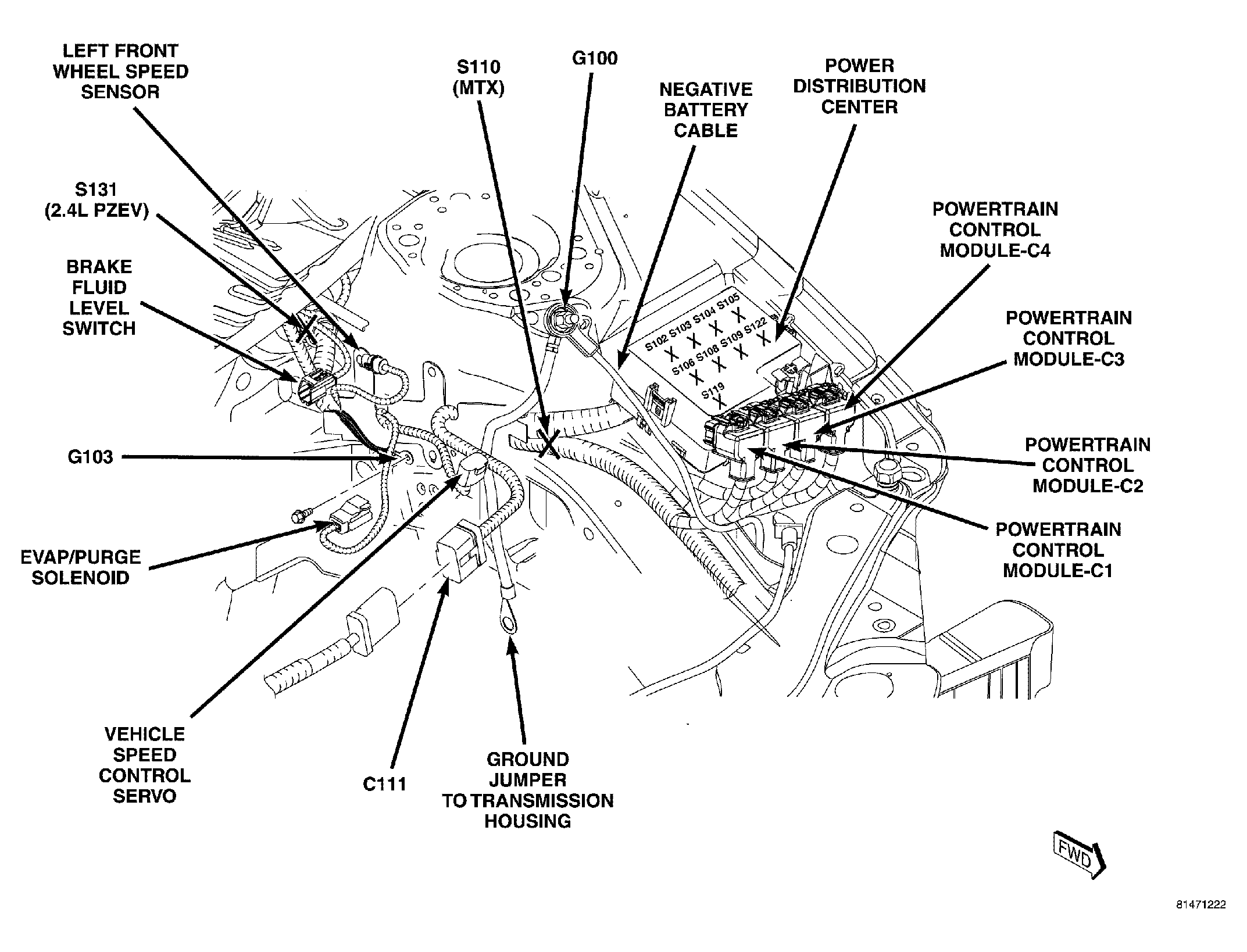

C111	BK	Left Side Engine Compartment	Fig 5.
C121	BK	Left Side Cowl Panel	Fig 41.
C169 (MTX)	BK	Left Front Engine Compartment	Fig 4, Fig 11, Fig 12.
C170	DK/GY	On Air Pump Assy near Starter	Fig 4, Fig 13.
C171	DK/GY	On Air Pump Assy near Starter	Fig 4, Fig 13.

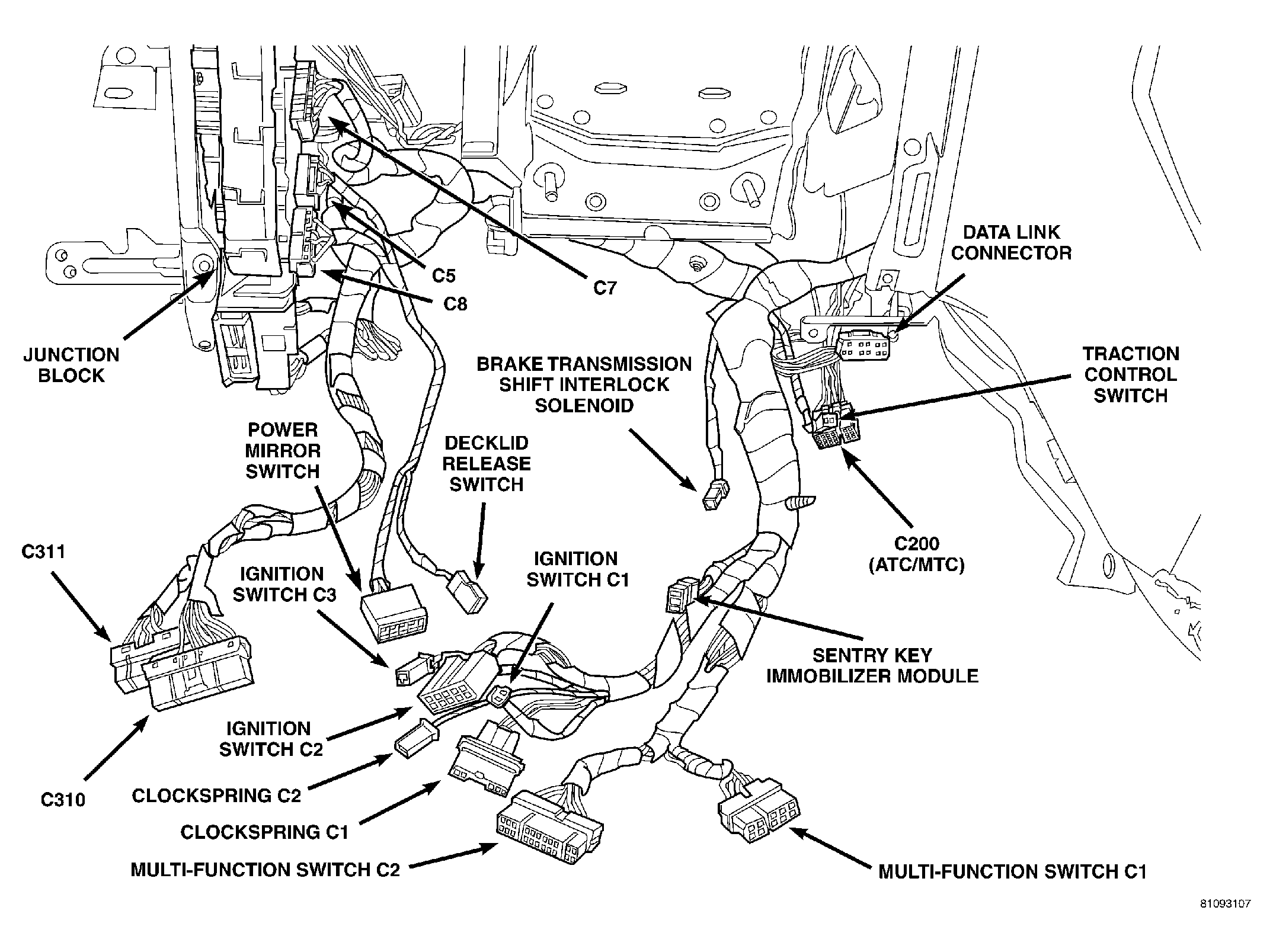

C200 (ATC)	WT	Lower Center Instrument Panel	Fig 21, Fig 23, Fig 37.
C200 (MTC)	NAT	Left End of HVAC	Fig 21, Fig 23.
C225 (Export)	BK	Center Body Behind Occupant Restraint Controller	Fig 40.

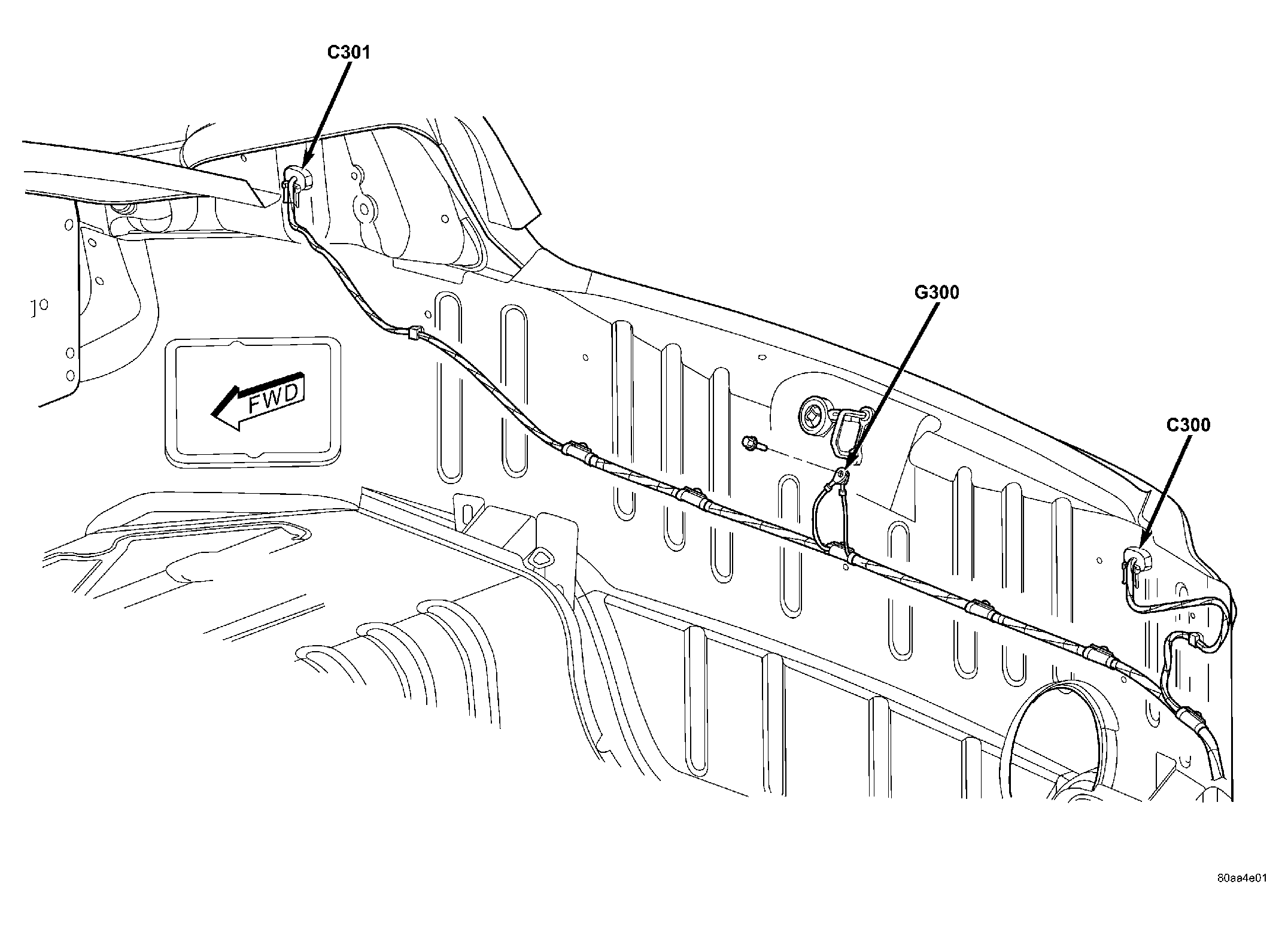

C300	BK	In Trunk Near Left Tail Lamp	Fig 48.
C301	BK	In Trunk Near Right Tail Lamp	Fig 48.
C302	BK	Lower Left Side Instrument Panel	Fig 21, Fig 22, Fig 24, Fig 41.
C303	LT/GY	Lower Left Side Instrument Panel	Fig 21, Fig 41.
C304	YL	Center Body to Console	Fig 21, Fig 39, Fig 40.
C305	BK	At Decklid	Fig 57.
C306	BK	Under Passenger Seat	Fig 21, Fig 39, Fig 40.
C307	WT	Lower Left Side Instrument Panel	Fig 41.
C308	BL	At Left B-Pillar	Fig 43, Fig 49.

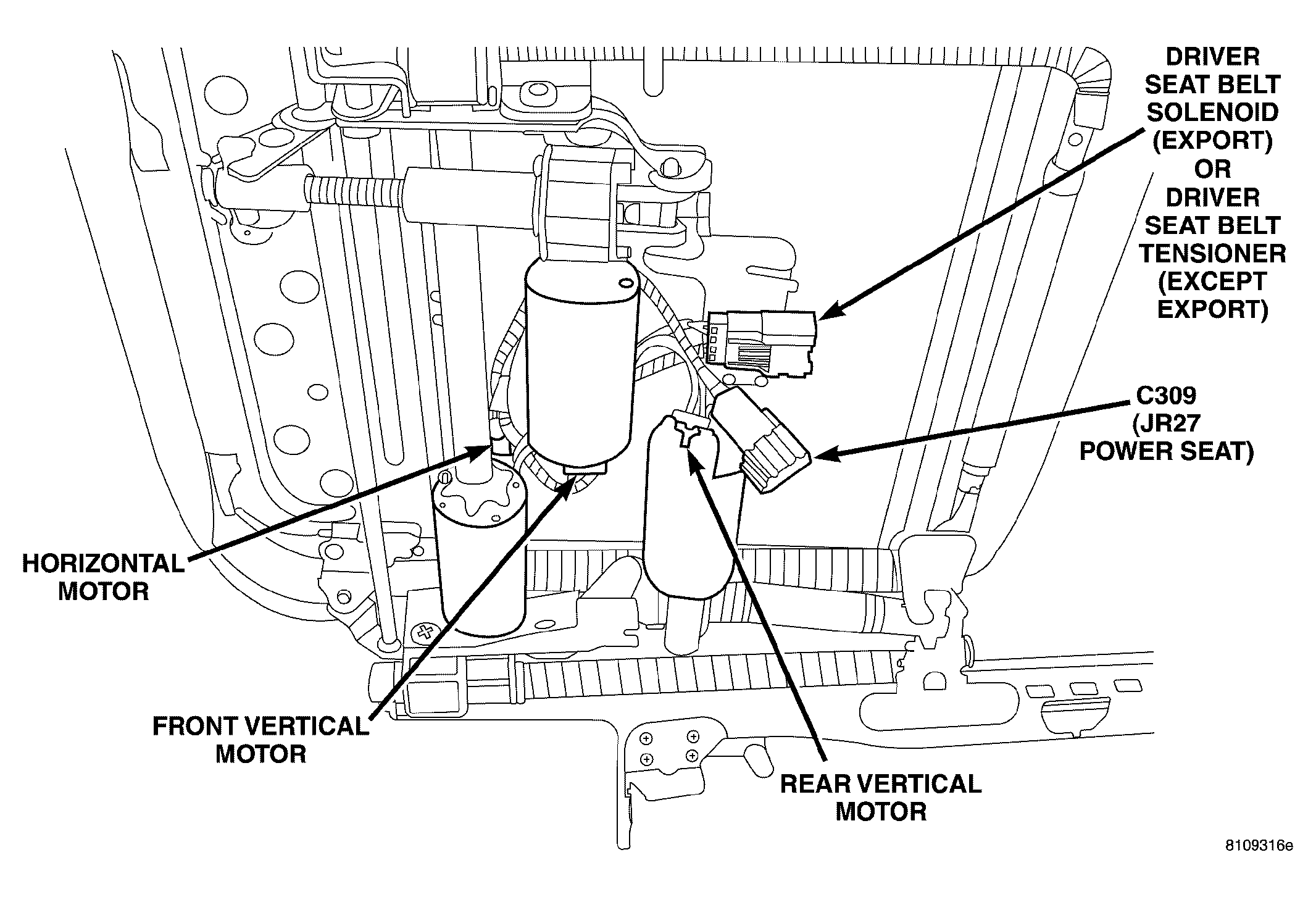

C309 (Power Seat)	BK	Under Driver Seat	Fig 40, Fig 45.
C310	BR	Lower Left Side Instrument Panel	Fig 21, Fig 23.
C311	BL	Lower Left Side Instrument Panel	Fig 21, Fig 23.
C312 (Except JR41 Domestic)	BK	Center Behind Occupant Restraint Controller	Fig 40.

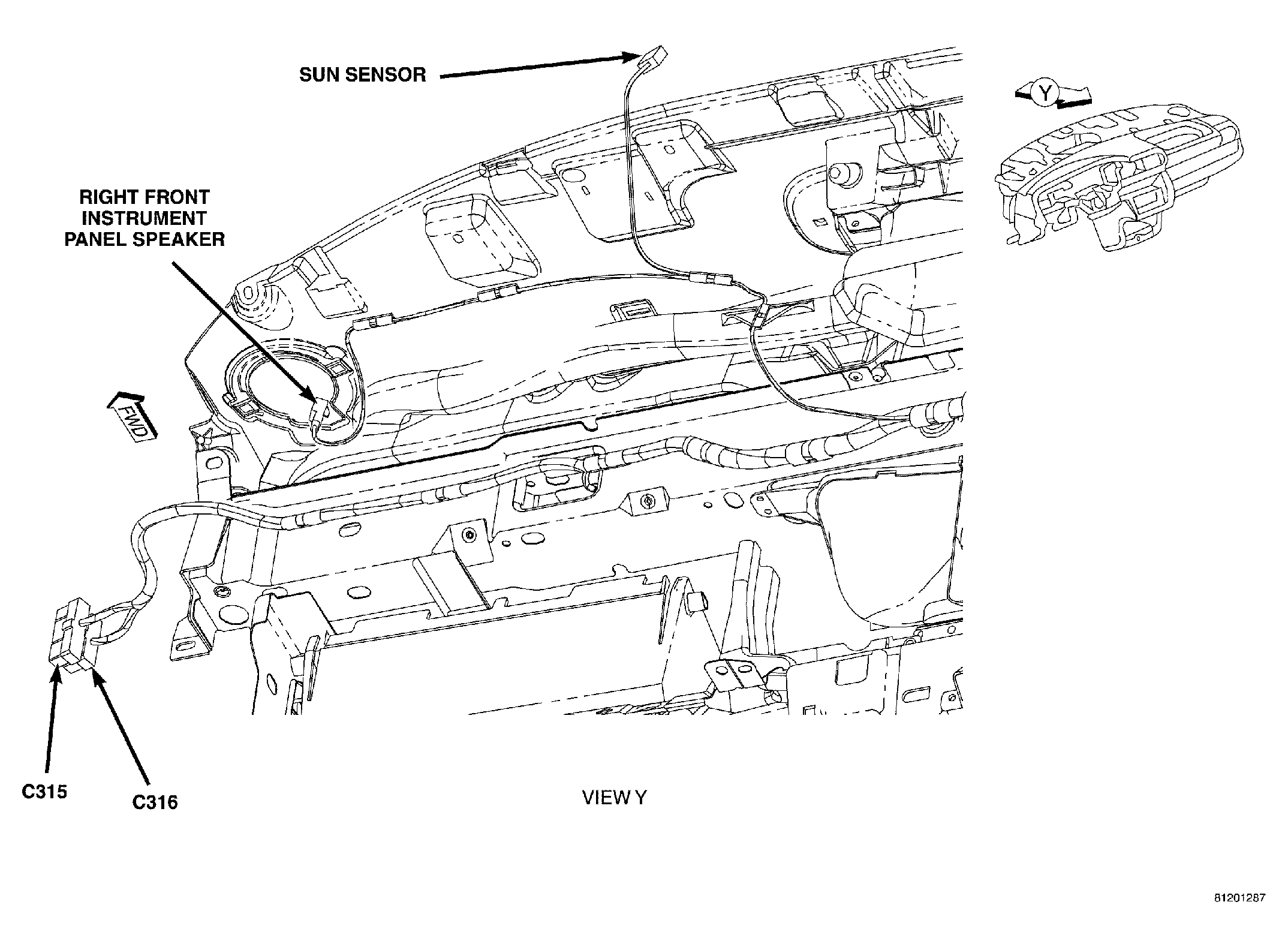

C315	BR	Right Side Instrument Panel	Fig 21, Fig 26, Fig 50, Fig 51.
C316	BL	Right Side Instrument Panel	Fig 21, Fig 26, Fig 50, Fig 51.
C318	BL	At Right B-Pillar	Fig 49.
C320	BK	Near License Lamp	Fig 56.

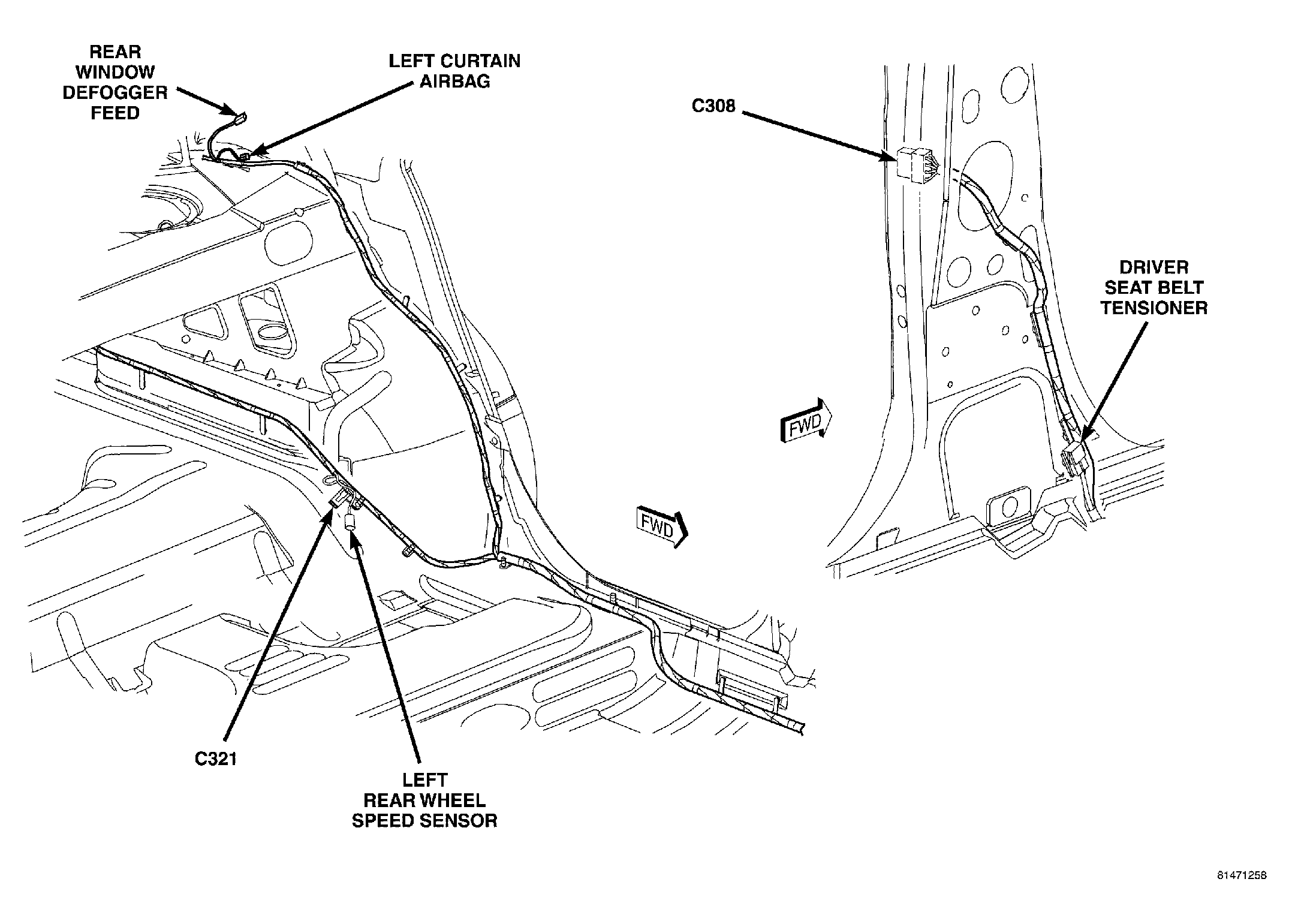

C321	BK	Left Rear Body Near Wheel Opening	Fig 42, Fig 43.
C322 (Export)	BK	Rear Body to Rear Fog Lamp Harness	N/S
C323	BK	In Console	N/S
C324	BK	Under Driver Seat	N/S
C325	BK	Under Passenger Seat	N/S

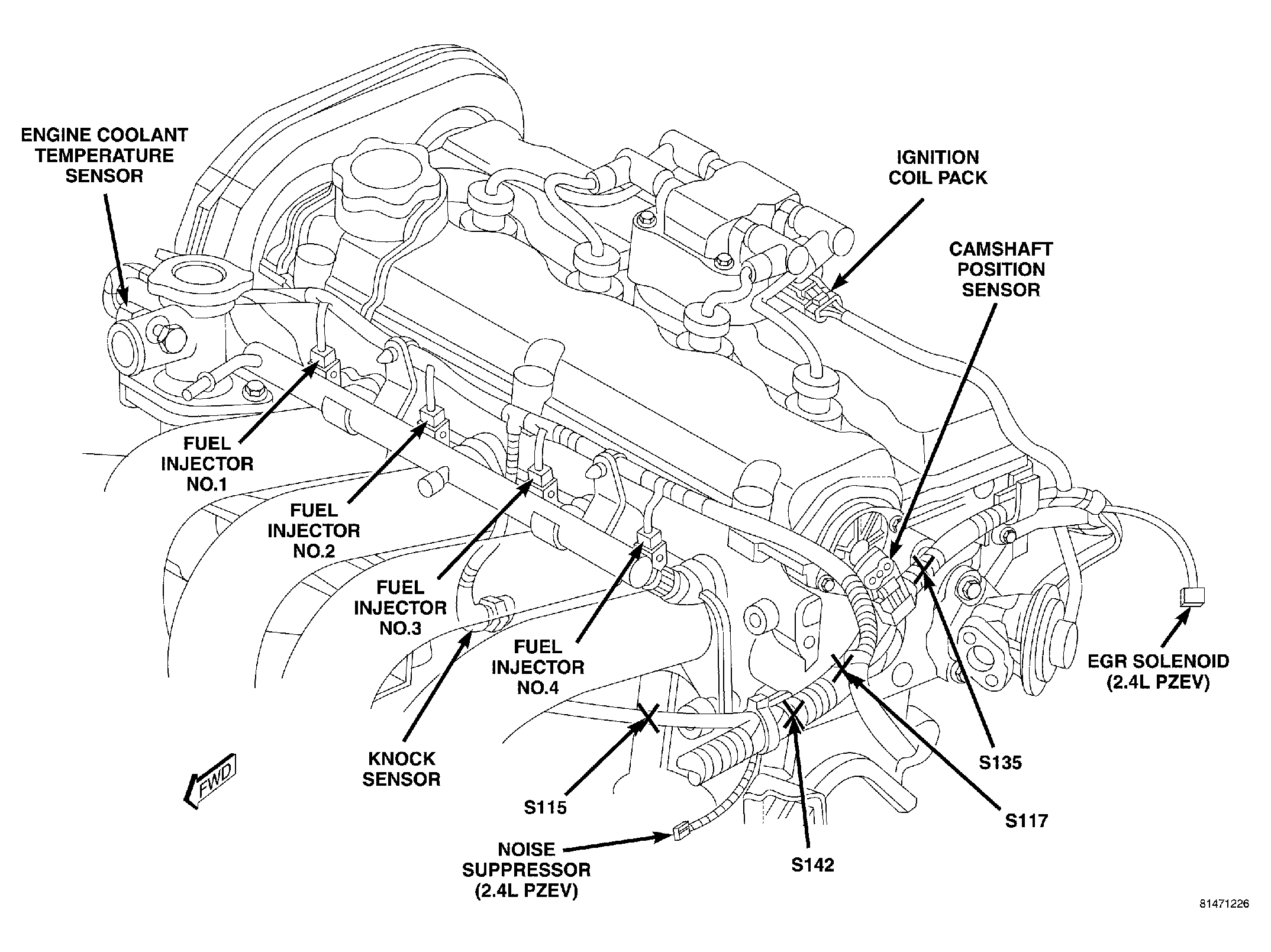

Camshaft Position Sensor (2.0L/2.4L)	BK	Left Side of Cylinder Head	Fig 14.

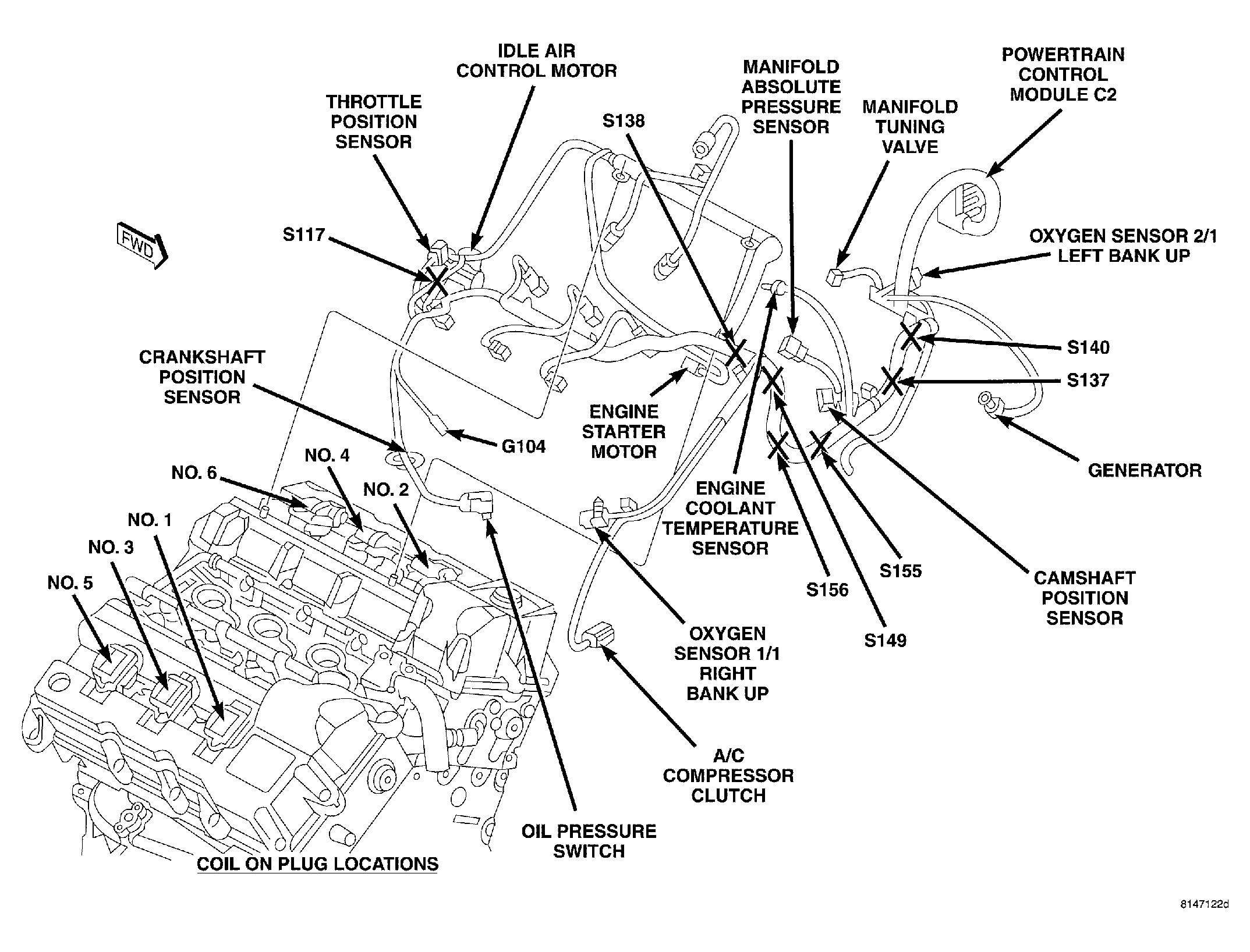

Camshaft Position Sensor (2.7L)	BK	Front of Engine	Fig 15.
CD Changer	BK	At Rear of Compact Disk Changer	N/S

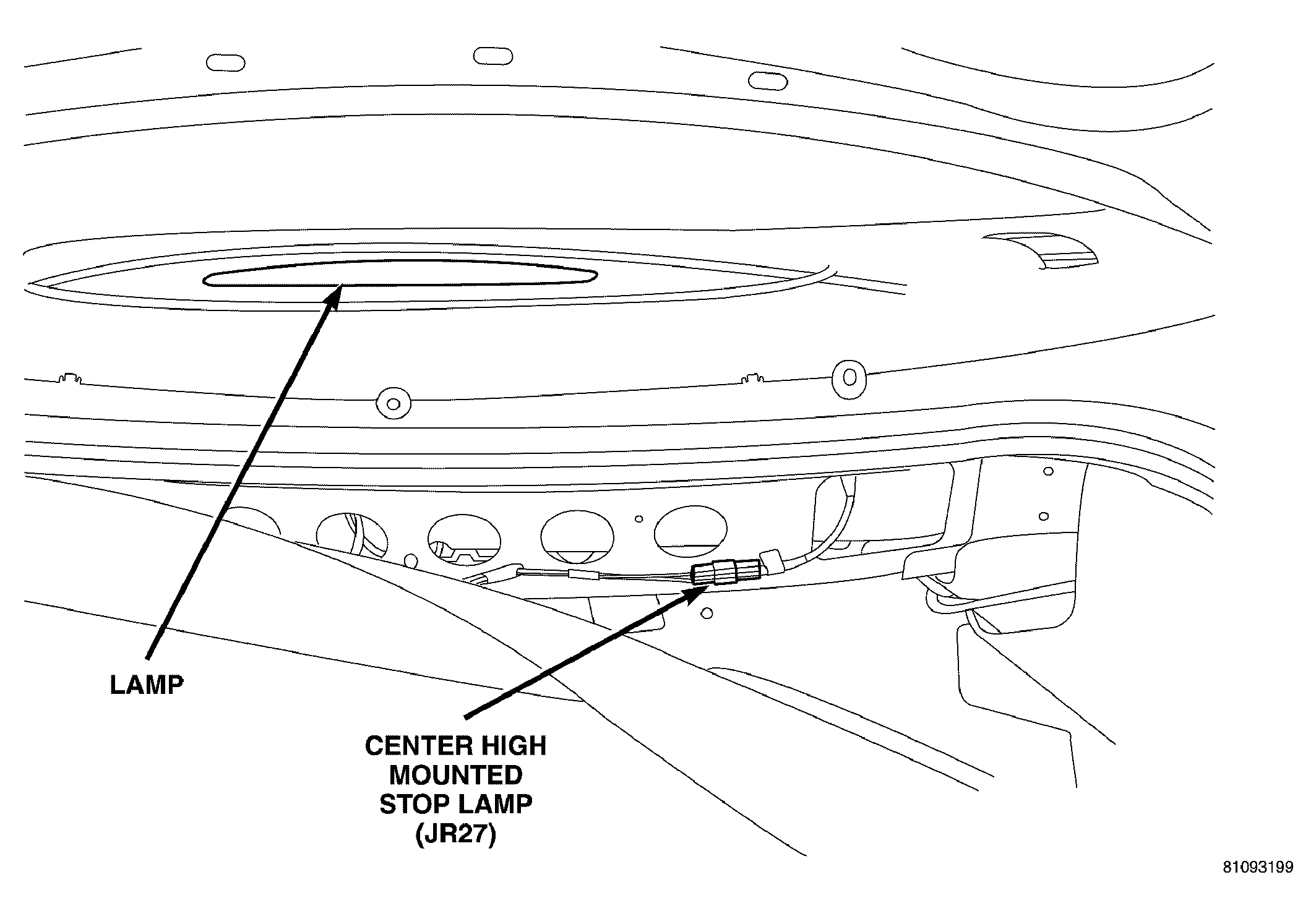

Center High Mounted Stop Lamp JR27	RD/GY	In Trunk Dressup panel, near Trunk Lamp	Fig 55.
Center High Mounted Stop Lamp JR41	BK	At Lamp, in Deck Lid	N/S

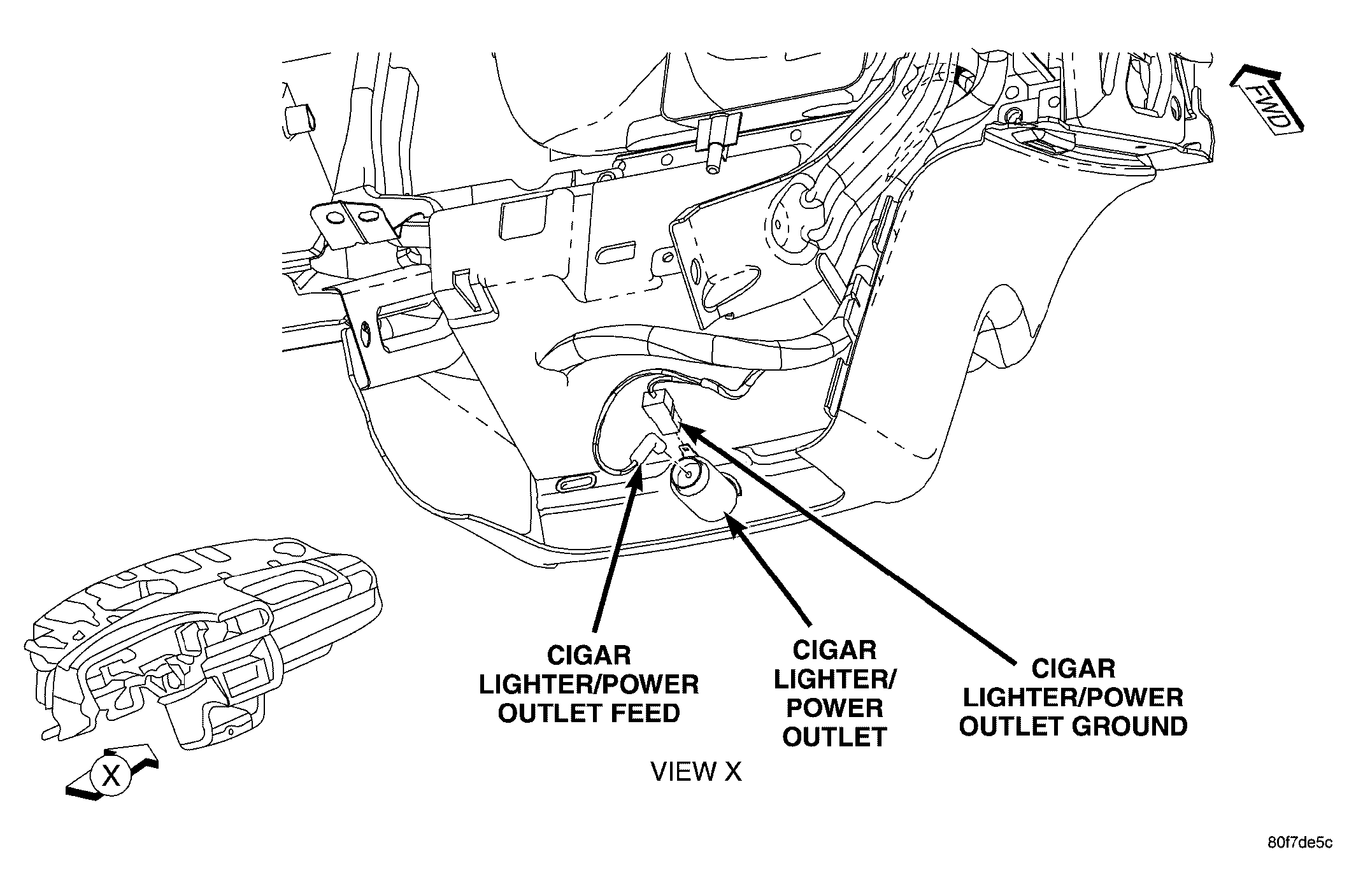

Cigar Lighter/Power Outlet	BK	Lower Center Instrument Panel	Fig 21, Fig 27.
	Cigar Lighter/Power Outlet Feed	Lower Center Instrument Panel	Fig 21, Fig 27.
	Cigar Lighter/Power Outlet Ground	Lower Center Instrument Panel	Fig 21, Fig 27.
Clockspring C1	NAT	Rear of Clockspring	Fig 21, Fig 23.
Clockspring C2	YL	Rear of Clockspring	Fig 21, Fig 23.
	Clockspring C3	Front Side of Clockspring	N/S
Clutch Interlock/ Upstop Switch (MTX)	BK	At Switch	N/S
Coil On Plug No.1 (2.7L)	BK	At Plug	Fig 15.
Coil On Plug No.2 (2.7L)	BK	At Plug	Fig 15.
Coil On Plug No.3 (2.7L)	BK	At Plug	Fig 15.
Coil On Plug No.4 (2.7L)	BK	At Plug	Fig 15.
Coil On Plug No.5 (2.7L)	BK	At Plug	Fig 15.
Coil On Plug No.6 (2.7L)	BK	At Plug	Fig 15.
Compass/Mini-Trip Computer	BK	Upper Center Instrument Panel	Fig 21, Fig 28.
Crankshaft Position Sensor (2.0L/2.4L)	BK	Front of Cylinder Block, Below Starter	Fig 13.
Crankshaft Position Sensor (2.7L)	BK	Rear of Engine	Fig 15.
Data Link Connector	BK	Lower Left Center Instrument Panel	Fig 21, Fig 22, Fig 23.
	Daytime Running Lamp Module	In Junction Block	Fig 31.

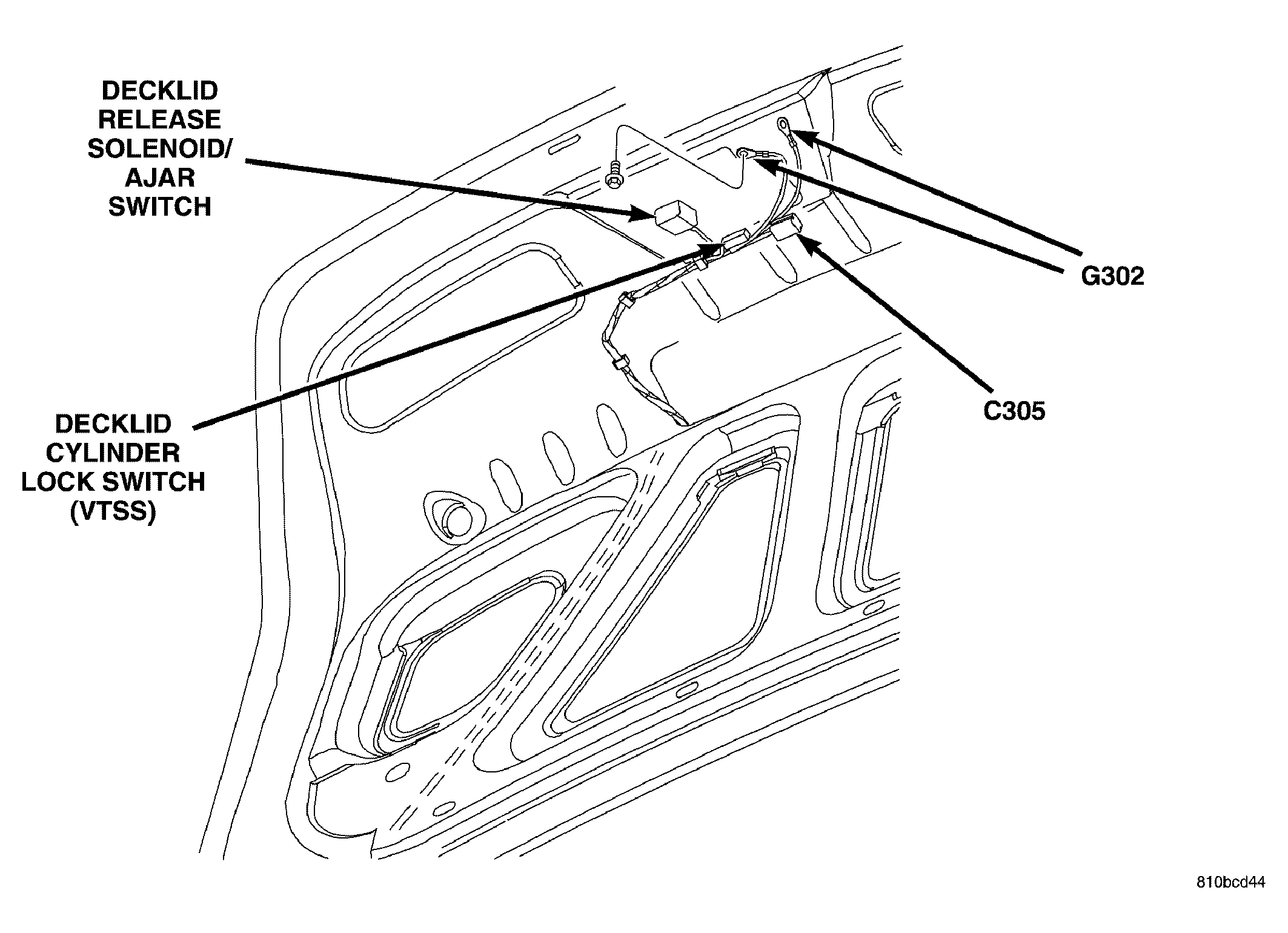

Decklid Cylinder Lock Switch (VTSS)	BK	At Decklid	Fig 56, Fig 57.

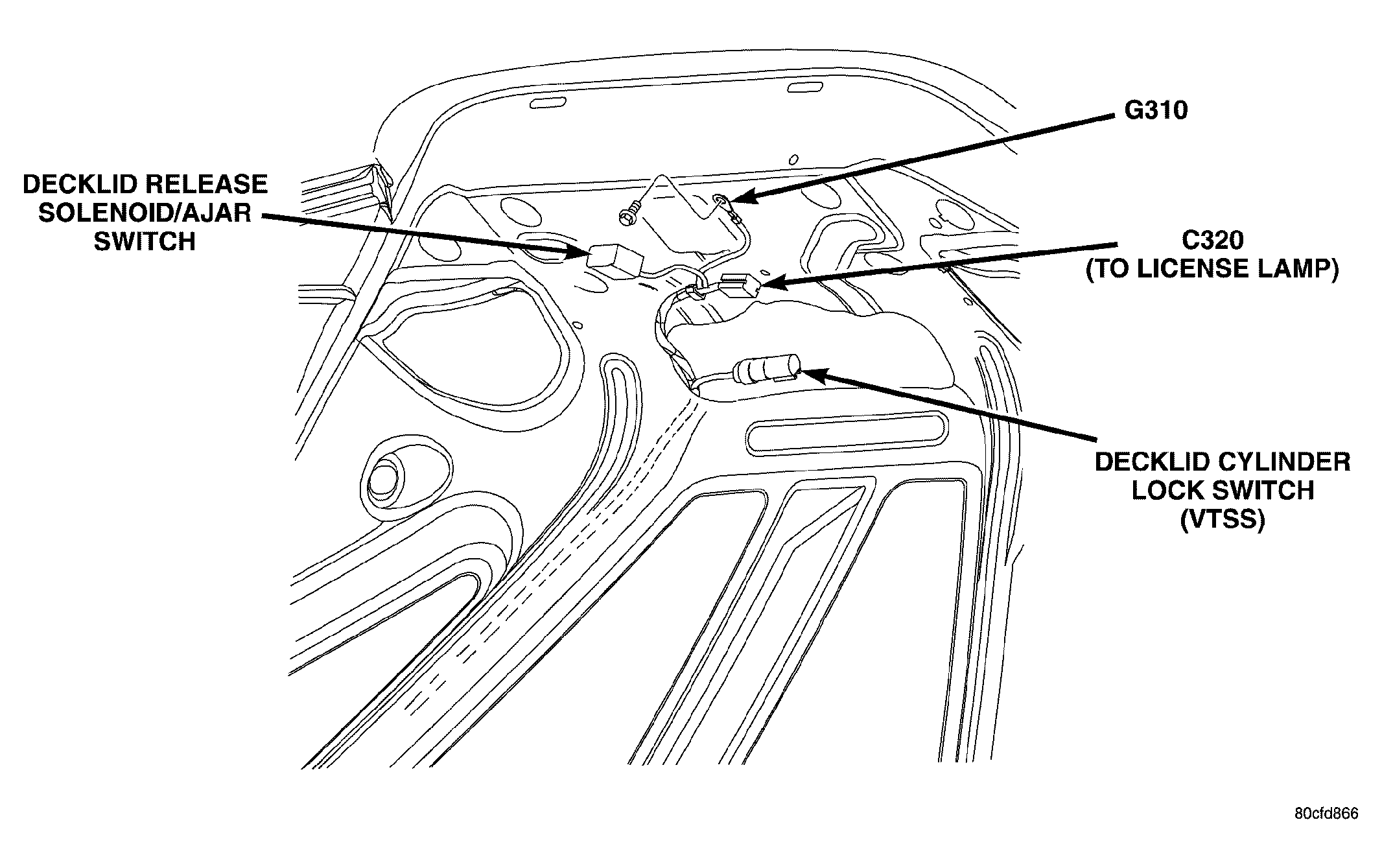

Decklid Release Solenoid/Ajar Switch	BK	At Decklid	Fig 56, Fig 57.
Decklid Release Switch	BK	Left Side Instrument Panel	Fig 21, Fig 23.

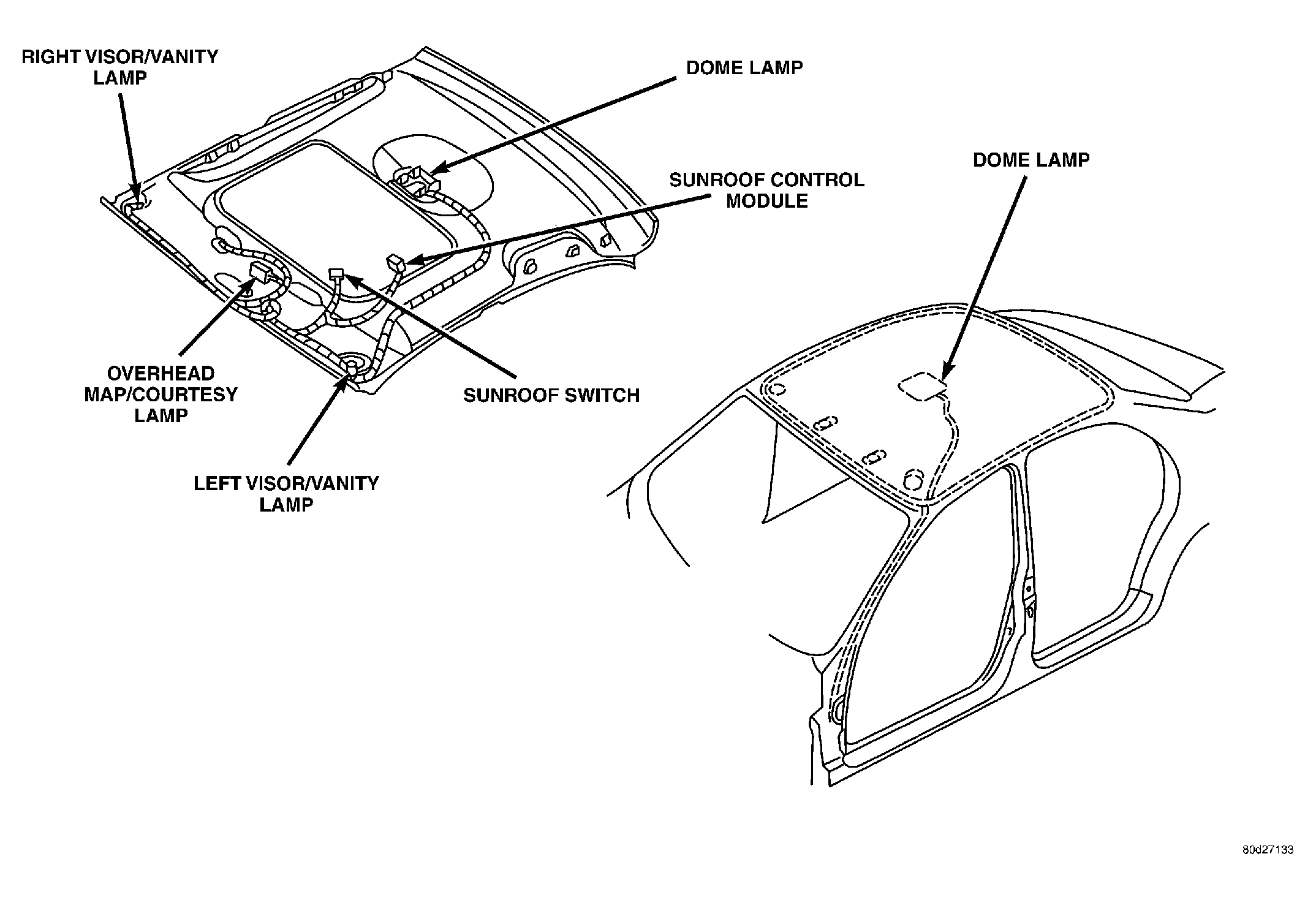

Dome Lamp	BK	At Lamp	Fig 52.
Driver Airbag Squib No.1	GY	Back Side of the Driver Airbag Module	Fig 30.
Driver Airbag Squib No.2	BK	Back Side of the Driver Airbag Module	Fig 30.
Driver Cylinder Lock Switch	GY	In Driver Door	N/S

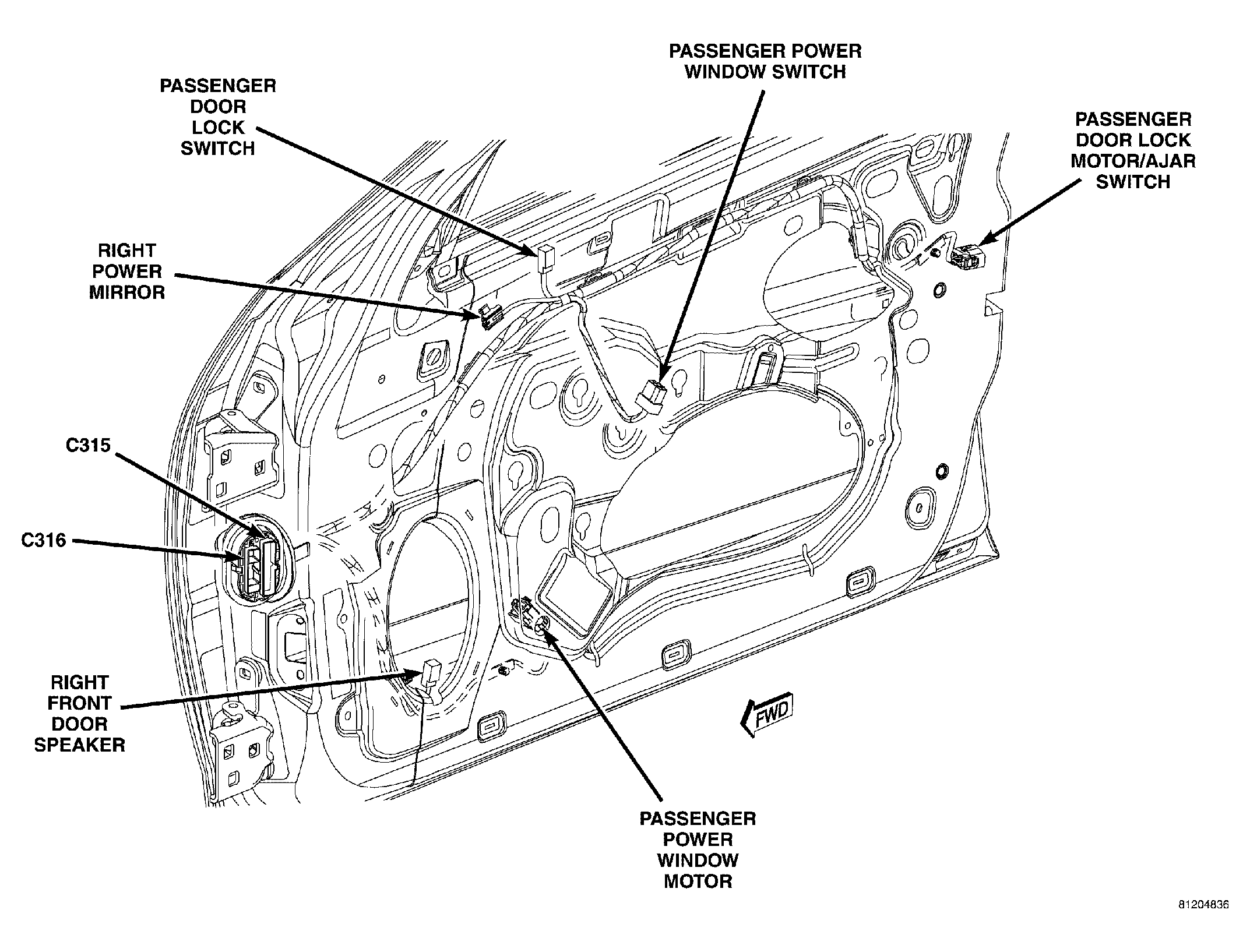

Driver Door Lock Motor/Ajar Switch	BK	In Driver Door, See Passenger figure	N/S
Driver Door Lock Switch	NAT	In Driver Door, See Passenger figure	N/S
	Driver Heated Seat Module	Under Driver Seat	N/S
Driver Power Window Motor	LT/GY	In Driver Door, See Passenger figure	N/S
	Driver Power Window Switch	In Driver Door, See Passenger figure	N/S
Driver Seat Belt Solenoid (Export)	BK	Under Driver Seat	Fig 21, Fig 39, Fig 45.
Driver Seat Belt Switch (JR41)	WT	Near Belt Real	N/S
Driver Seat Belt Tensioner (JR27)	YL	Under Driver Seat	Fig 21, Fig 39, Fig 43, Fig 45.
Driver Seat Belt Tensioner (JR41)	YL	Near Belt Real	N/S
EGR Solenoid	BK	At Left Rear of Engine Head	Fig 14.
Engine Coolant Temperature Sensor (2.0L/2.4L)	BK	At Sensor	Fig 14.
Engine Coolant Temperature Sensor (2.7L)	BK	At Sensor	Fig 15.
Engine Starter Motor	BK	At Engine Starter Motor	Fig 15.
EVAP Purge Solenoid	BK	Left Side Engine Compartment	Fig 5.
Fog Lamp Relay (Premium)	NAT	Lower Left Side I/P	Fig 22.
Front Vertical Motor (Power Seat)	BK	Under Seat	Fig 45.
Front Washer Pump Motor	BK	Right Front Engine Compartment	Fig 2.
Front Wiper Motor	BK	Left Rear Engine Compartment	Fig 6.
Fuel Injector No.1 (2.0L/2.4L)	BK	At Injector	Fig 14.
Fuel Injector No.1 (2.7L)	BK	At Injector	N/S
Fuel Injector No.2 (2.0L/2.4L)	BK	At Injector	Fig 14.
Fuel Injector No.2 (2.7L)	BK	At injector	N/S
Fuel Injector No.3 (2.0L/2.4L)	BK	At Injector	Fig 14.
Fuel Injector No.3 (2.7L)	BK	At Injector	N/S
Fuel Injector No.4 (2.0L/2.4L)	BK	At Injector	Fig 14.
Fuel Injector No.4 (2.7L)	BK	At Injector	N/S
Fuel Injector No.5 (2.7L)	BK	At Injector	N/S
Fuel Injector No.6 (2.7L)	BK	At Injector	N/S
Fuel Pump Module C1	LT/GY	Center Rear of Trunk Area	N/S
Generator (2.0L/2.4L)	BK	Rear of Generator	Fig 13.
Generator (2.7L)	BK	Rear of Generator	Fig 15, Fig 16.
	Ground Jumper (Transmission)	Lower Left Engine Compartment	Fig 5.
	Headlamp Delay Relay	In Junction Block	Fig 31.
Headlamp Leveling Switch (Export)	BK	Left Side Instrument Panel	Fig 21.
Headlamp Washer Pump Motor	BK	At Pump	Fig 2.
	Heated Seat Switch	In Console	N/S
Horizontal Motor (Power Seat) (JR27)	BK	Under Seat	Fig 45.
Horizontal Motor (Power Seat) (JR41)	GY	Under Seat	N/S

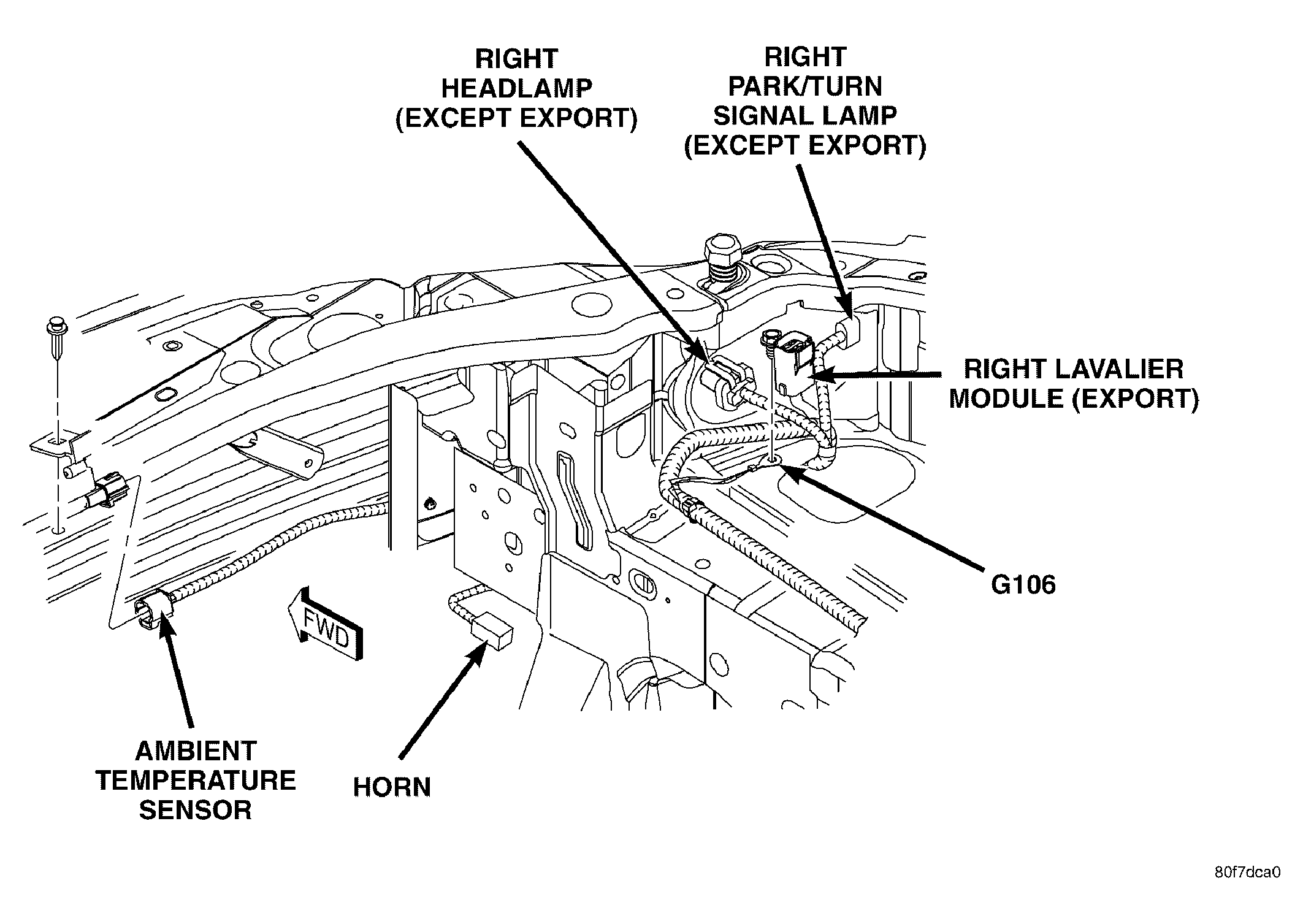

Horn	BK	Right Front Frame Rail	Fig 1.
	Horn Relay	In Junction Block	Fig 31.

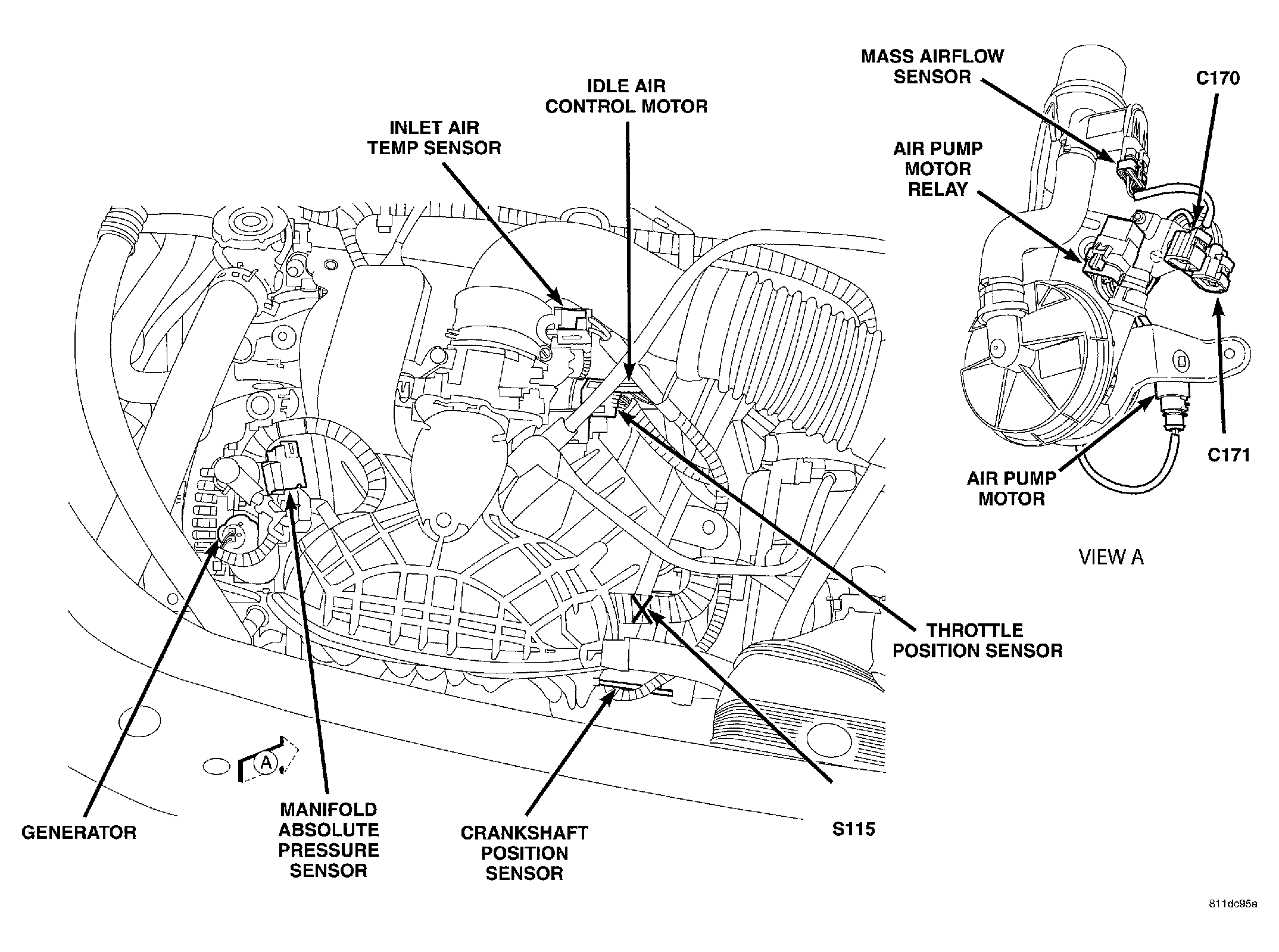

Idle Air Control Motor (2.0L/2.4L)	BK	On Throttle Body	Fig 13.
Idle Air Control Motor (2.7L)	BK	On Throttle Body	Fig 15.
Ignition Coil Pack (2.0L/2.4L)	BK	Top of Valve Cover	Fig 14.
Ignition Switch C1	BK	At Switch	Fig 21, Fig 23.
Ignition Switch C2	BK	At Switch	Fig 21, Fig 23.
Ignition Switch C3	GN	At Switch	Fig 21, Fig 23.

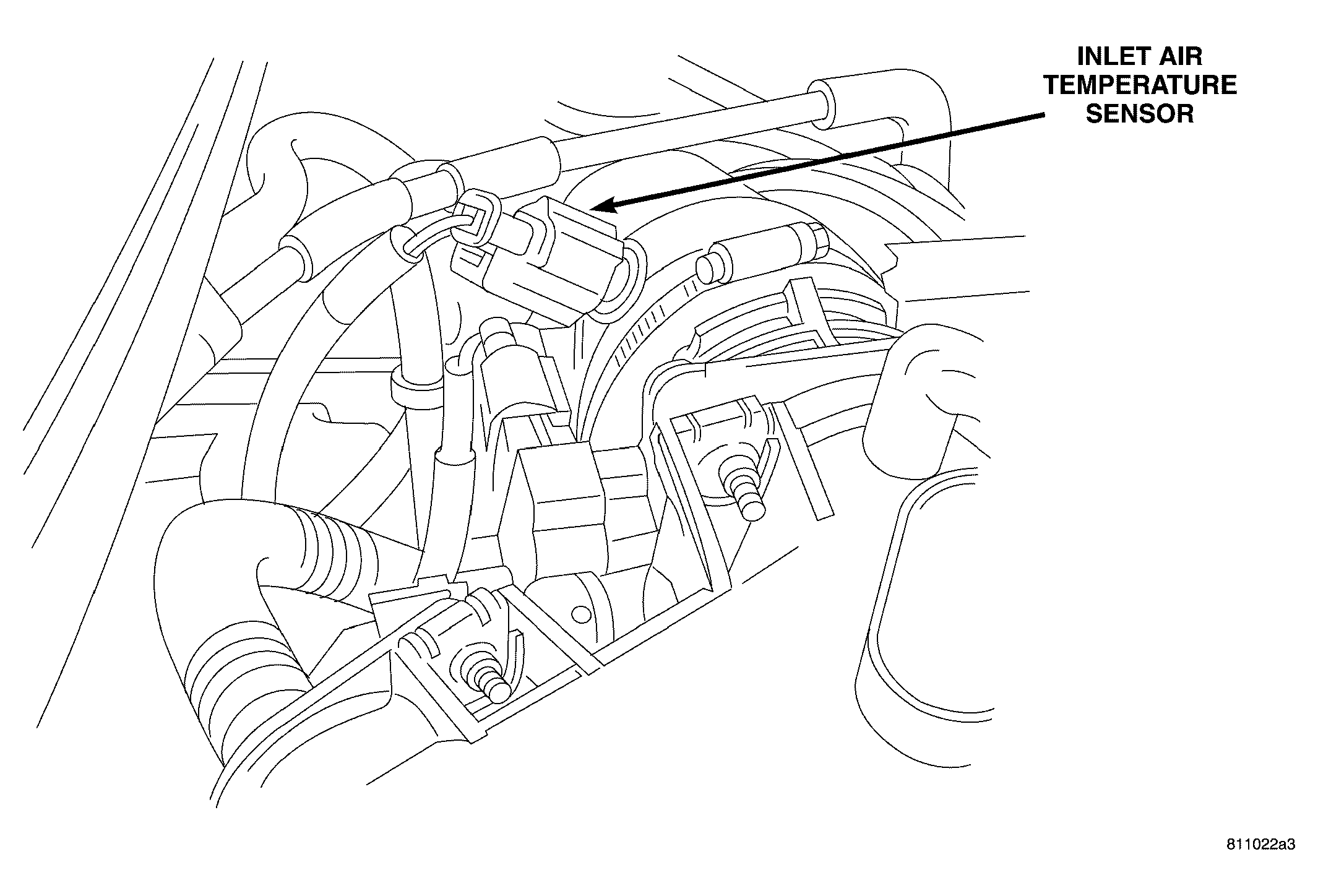

Inlet Air Temperature Sensor	BK	On Intake	Fig 13, Fig 17.
Input Speed Sensor	GY	Left Front of Transmission	Fig 10.

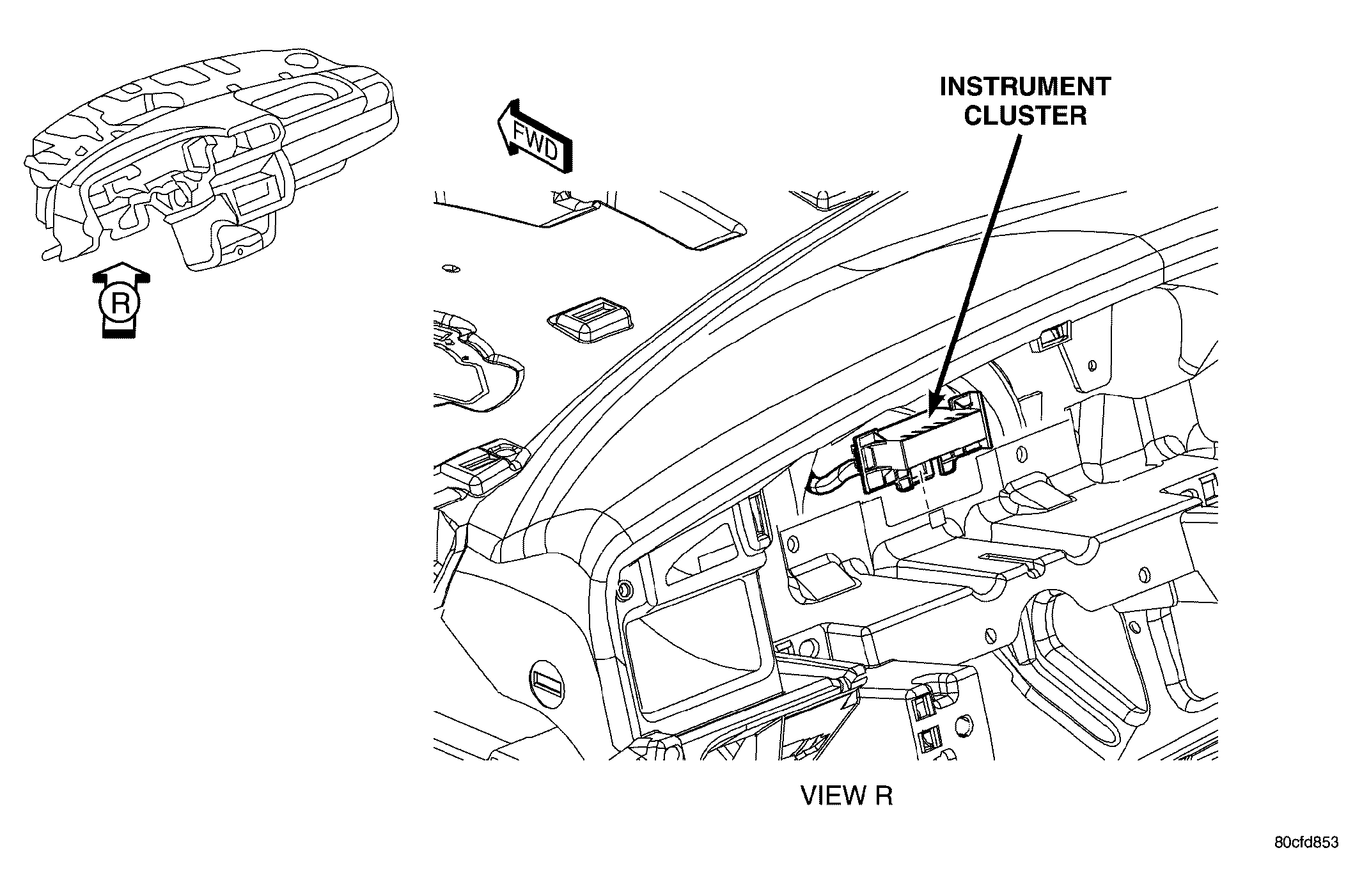

Instrument Cluster	NAT	Rear of Cluster	Fig 21, Fig 29.

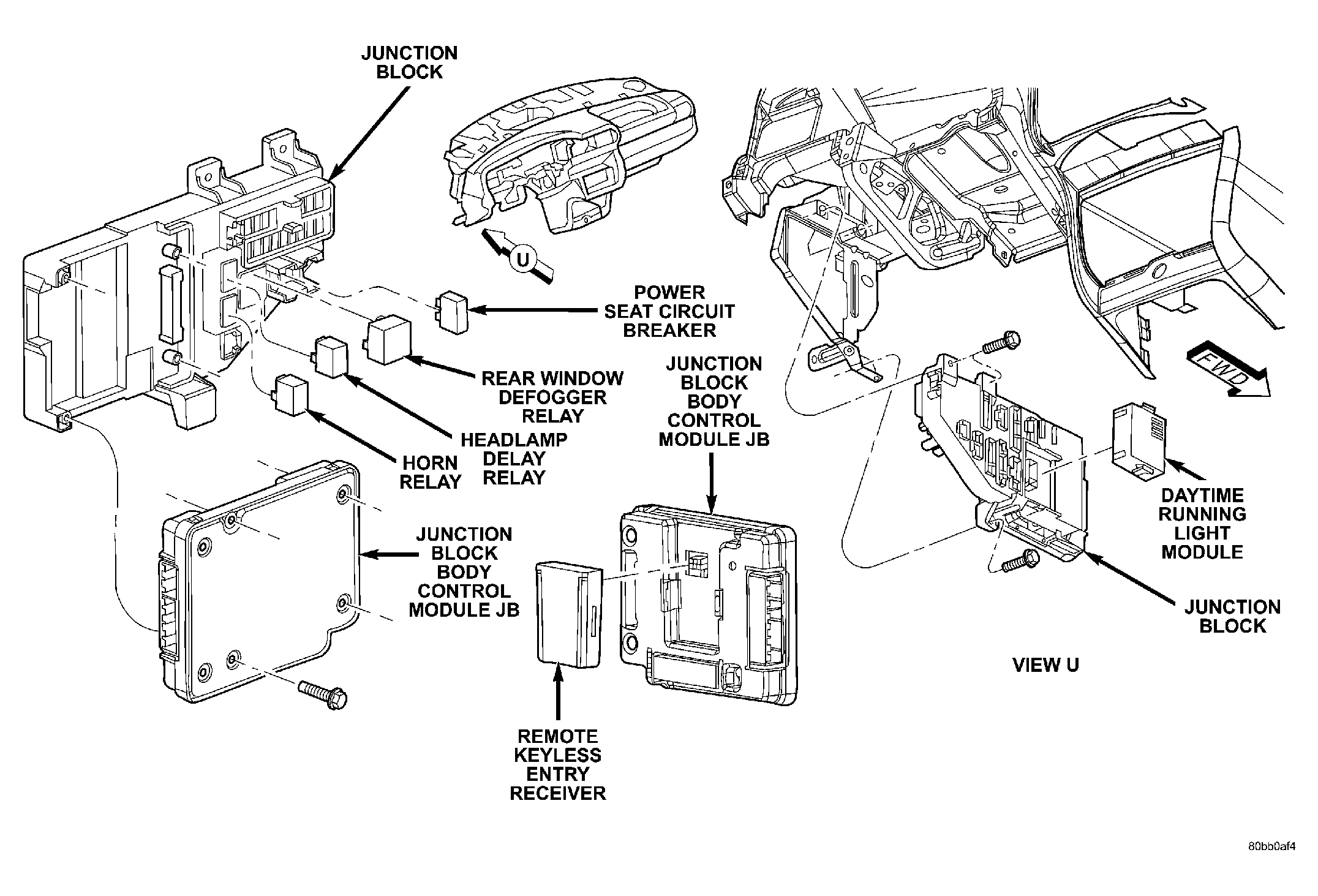

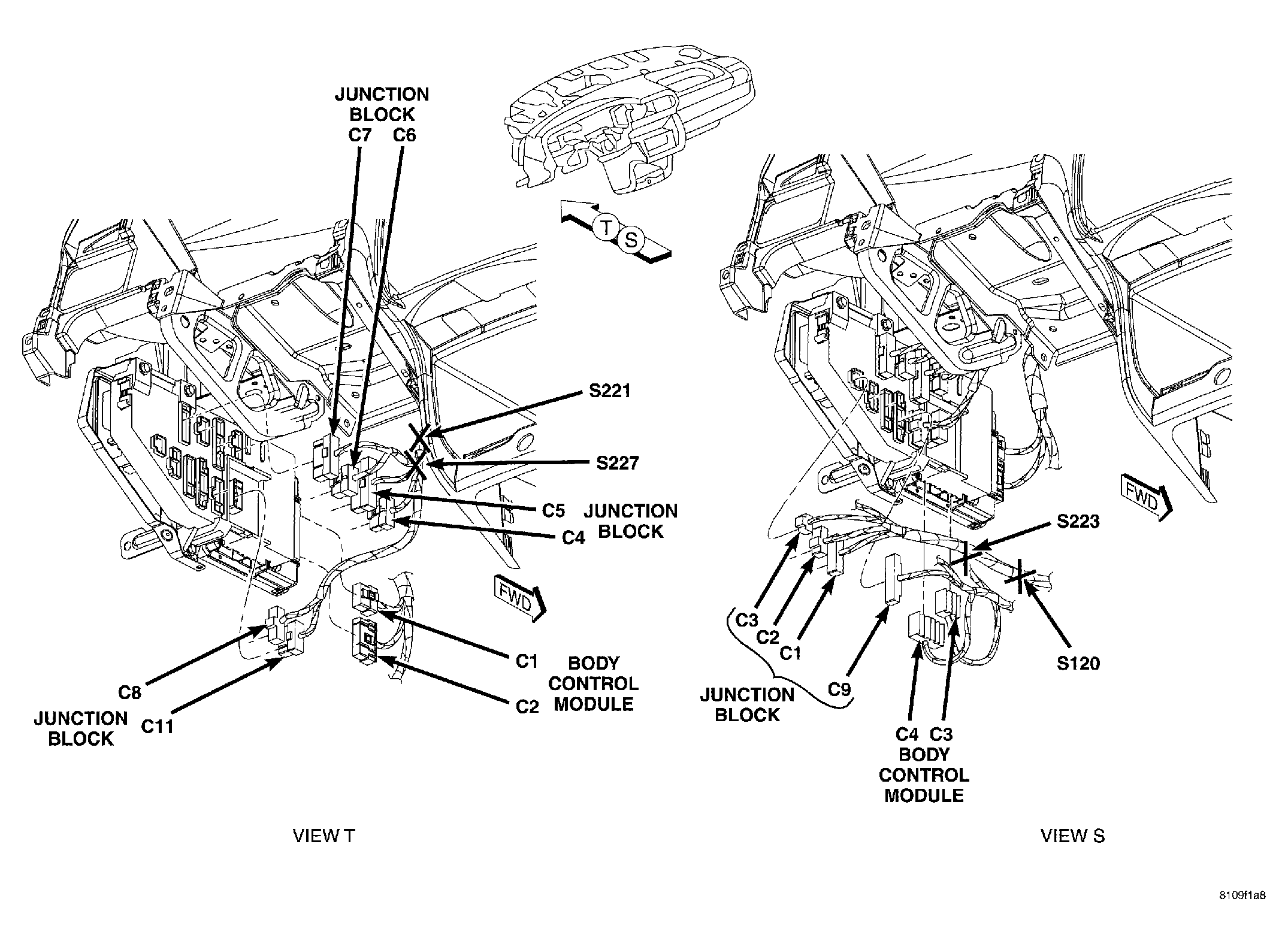

	Junction Block Body Control Module-JB	Left Front Kick Panel	Fig 31.
Junction Block C1	BR	Left Front Kick Panel	Fig 32.
Junction Block C2	NAT	Left Front Kick Panel	Fig 32.
Junction Block C3	WT	Left Front Kick Panel	Fig 32.
Junction Block C4	BL	Left Front Kick Panel	Fig 21, Fig 32.
Junction Block C5	GY	Left Front Kick Panel	Fig 21, Fig 23, Fig 32.
Junction Block C6	WT	Left Front Kick Panel	Fig 21, Fig 32.
Junction Block C7	NAT	Left Front Kick Panel	Fig 21, Fig 23, Fig 32.
Junction Block C8	BK	Left Front Kick Panel	Fig 21, Fig 23, Fig 32.

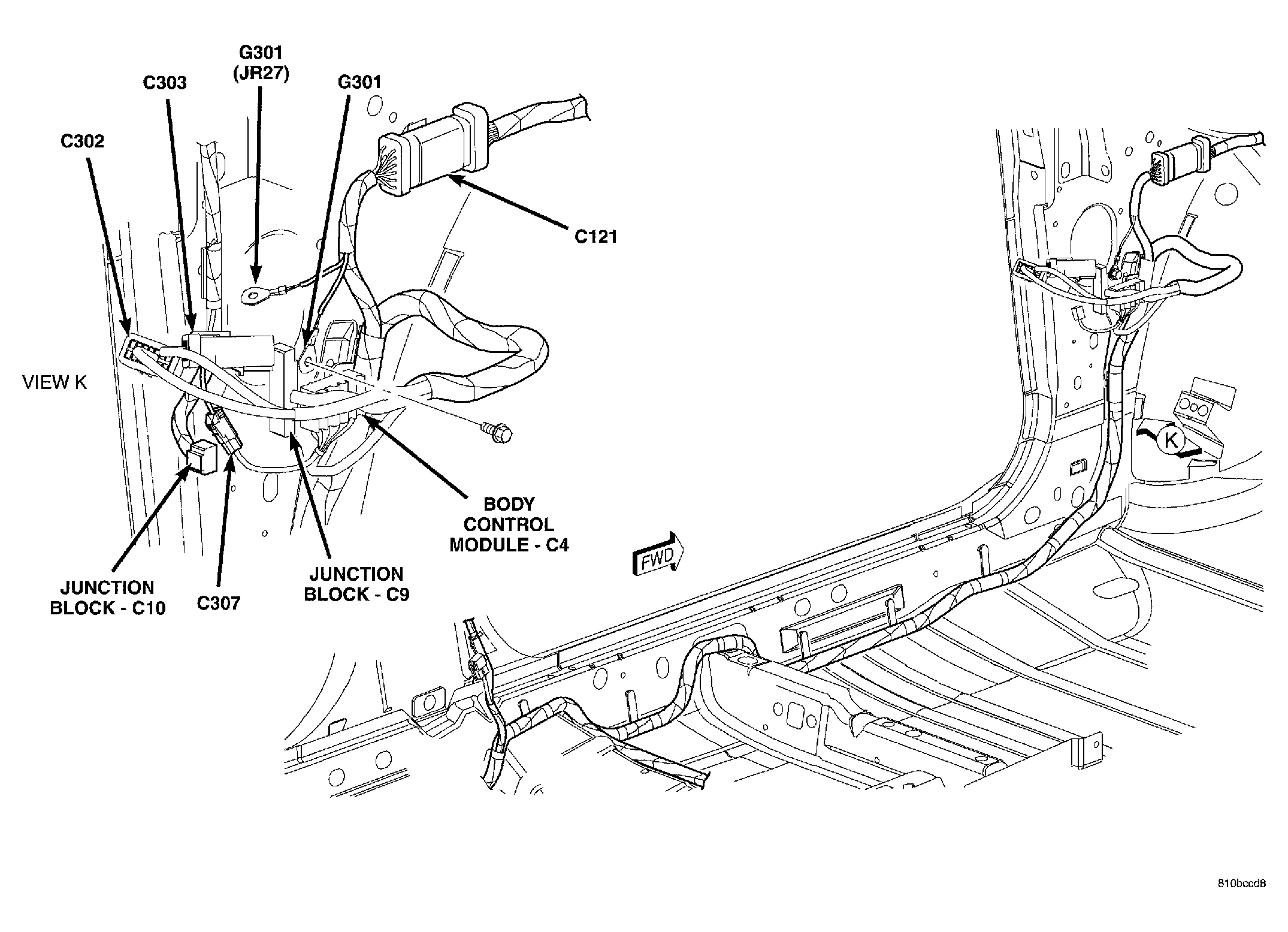

Junction Block C9	WT	Left Front Kick Panel	Fig 32, Fig 41.
Junction Block C10	NAT	Left Front Kick Panel	Fig 41.
Junction Block C11 (Export)	BK	Left Front Kick Panel	Fig 21, Fig 32.
Knock Sensor (2.0L/2.4L)	GY	At Sensor	Fig 14.
Knock Sensor (2.7L)	BK	Below Throttle Body	N/S
Leak Detection Pump	BK	On Fuel Tank	N/S
Left Back-Up Lamp	GY	At Lamp	N/S
Left Curtain Airbag	YL	On Airbag Module At Headliner	Fig 43.

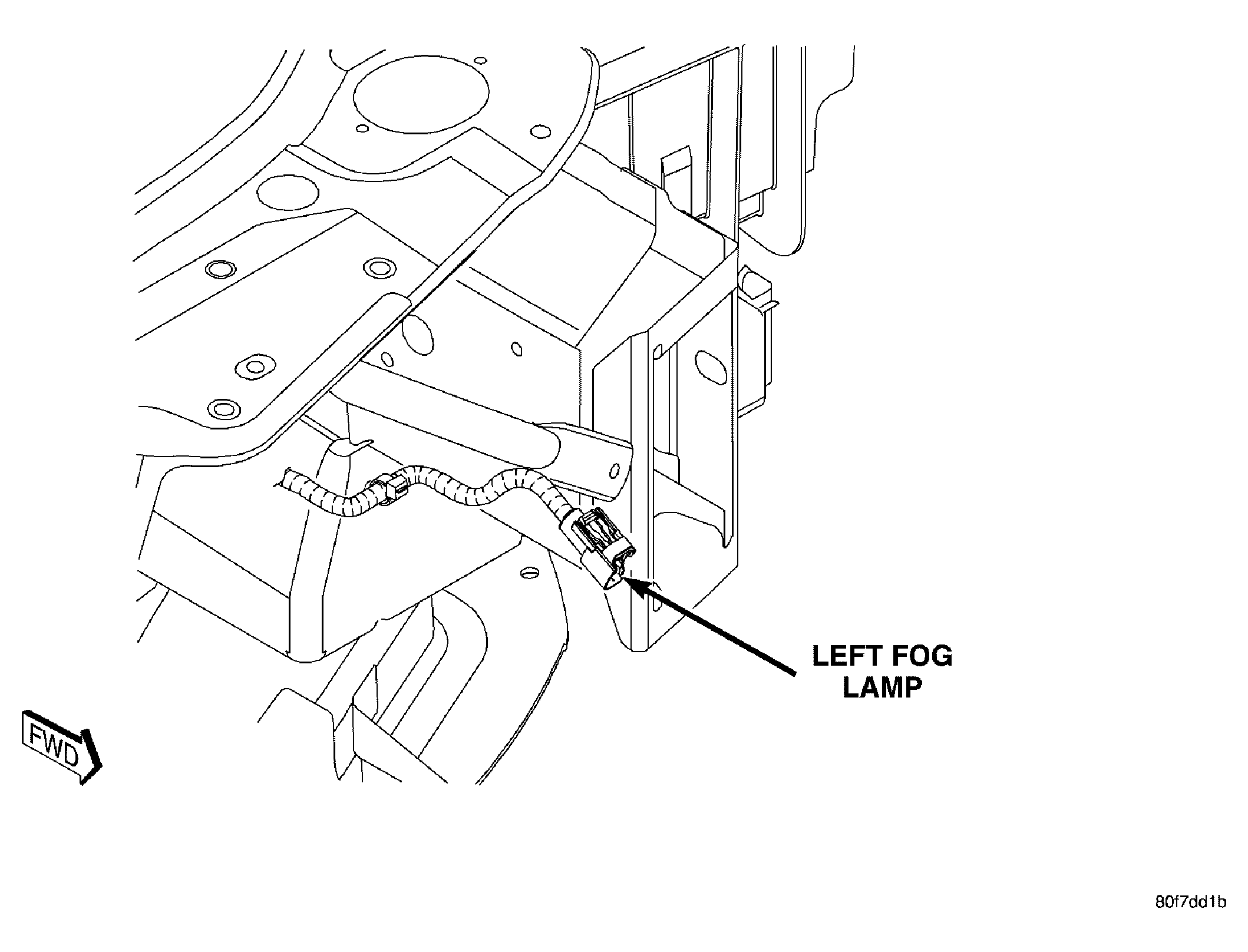

Left Fog Lamp	GY	On Airbag Module At Headliner	Fig 7.
Left Front Door Speaker	BK	At Speaker, Similar to Right, See Passenger Door Connectors	N/S

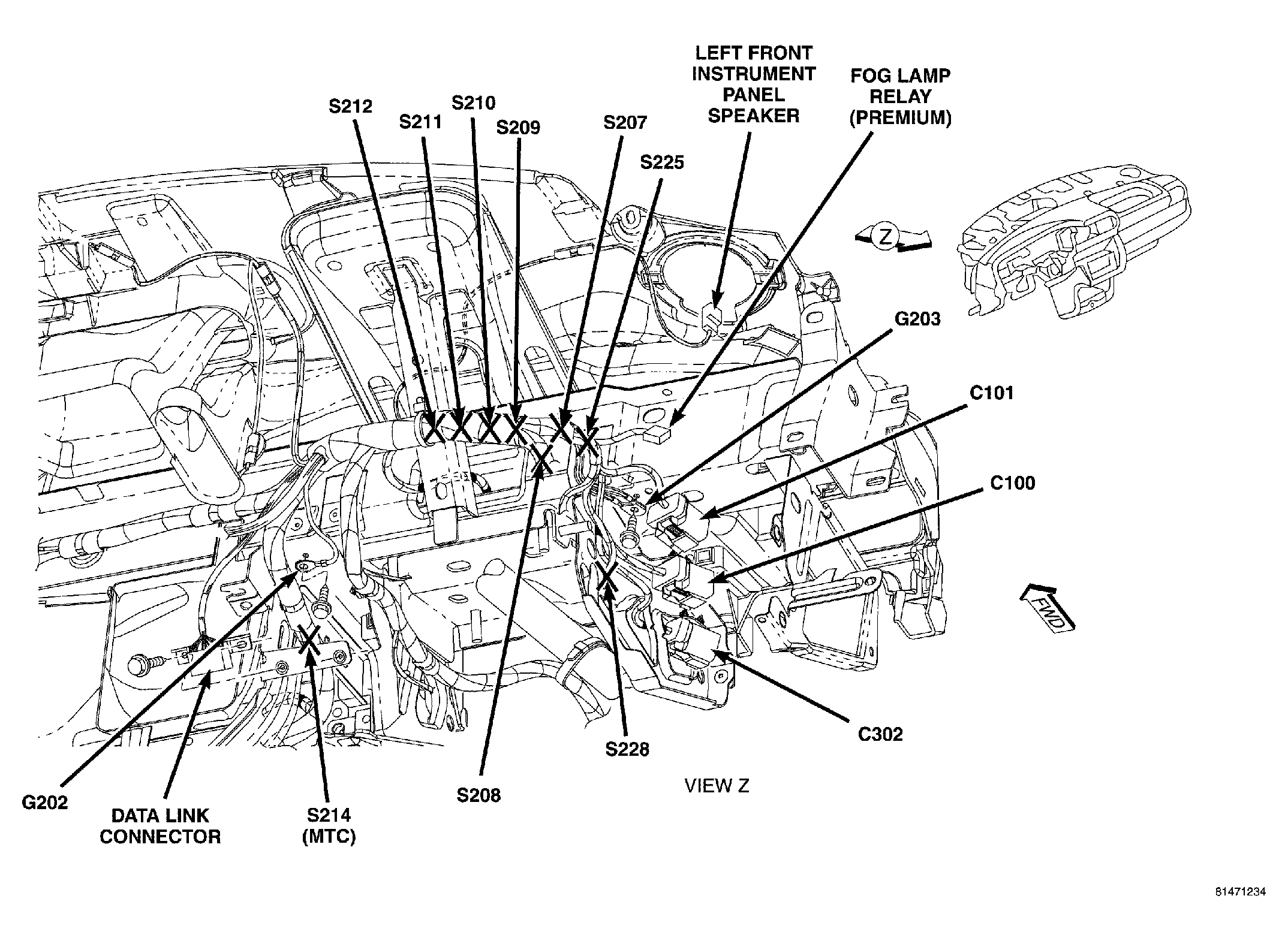

Left Front Instrument Panel Speaker	BK	At Speaker	Fig 21, Fig 22.
Left Front Wheel Speed Sensor	BK	Left Fender Side Shield	Fig 5.
Left Headlamp (Except Export)	BK	Left Headlamp Opening	Fig 4.
Left Lavalier Module (Export)	BK	Left Headlamp Opening	Fig 4.
Left License Lamp	NAT	At Lamp	N/S
Left Park/Turn Signal Lamp (Except Export)	BK	Left Headlamp Opening	Fig 4.
Left Power Mirror	NAT	At Door, See Right figure	N/S

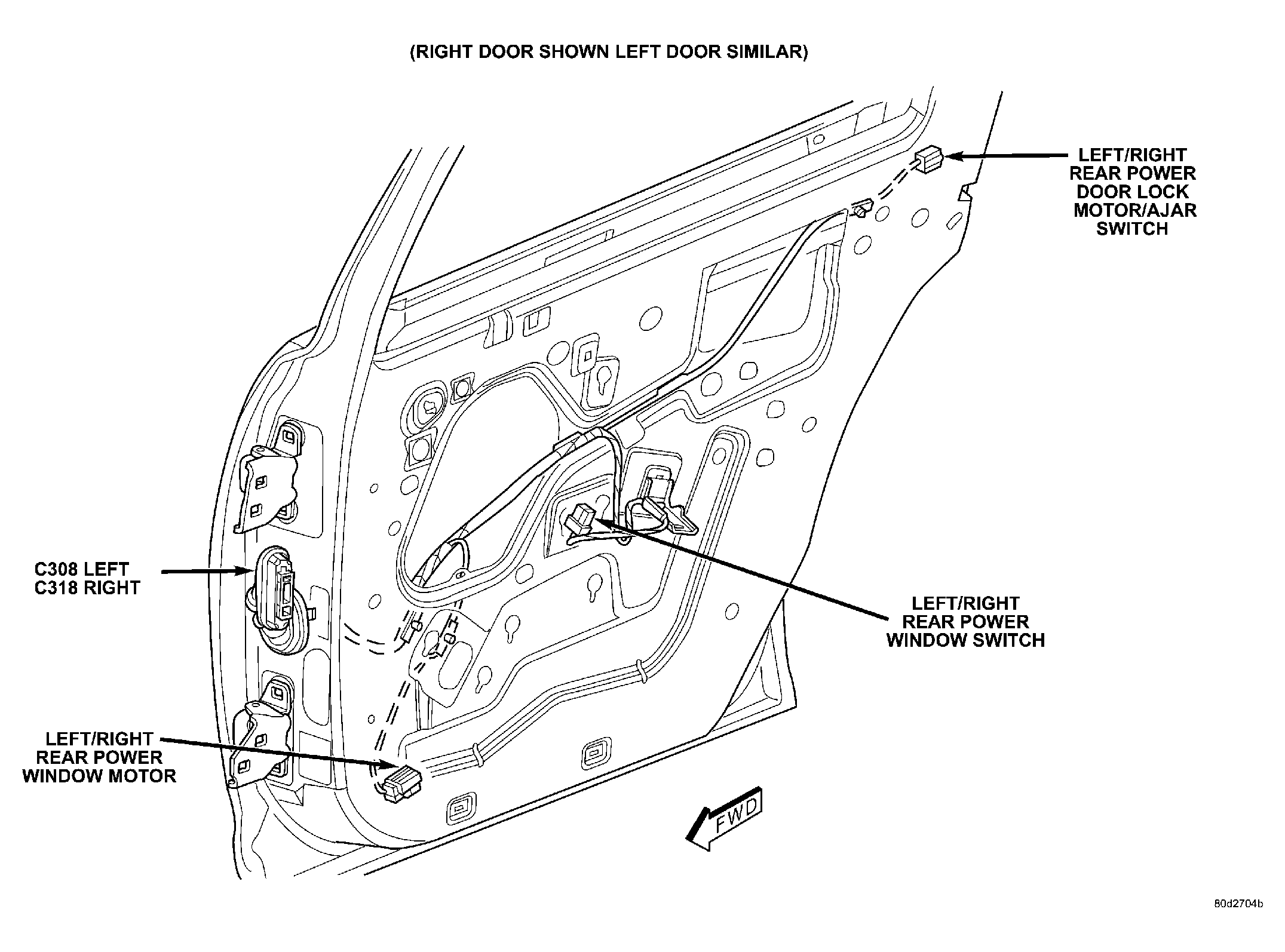

Left Rear Door Lock Motor/Ajar Switch	GY	In Door Near Latch	Fig 49.
Left Rear Fog Lamp (Export)	GY	At Lamp	N/S
Left Rear Power Window Motor	BK	At Motor	Fig 42, Fig 49.
Left Rear Power Window Switch (JR41)	BL	At Switch	Fig 49.

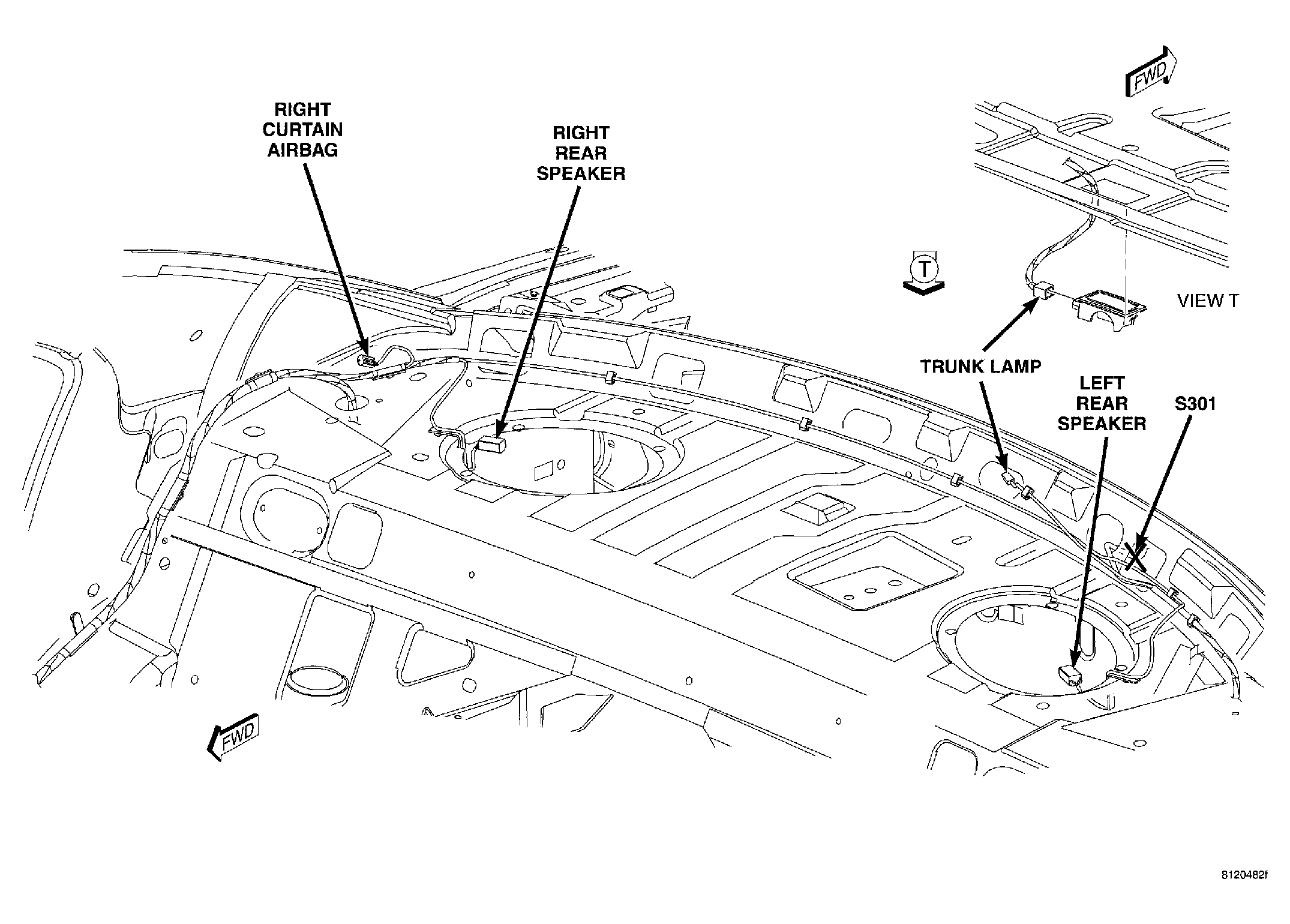

Left Rear Speaker	BK	Left Side Shelf Panel at Speaker	Fig 42, Fig 46.
Left Rear Wheel Speed Sensor	BK	Left Quarter Panel	Fig 42, Fig 43.

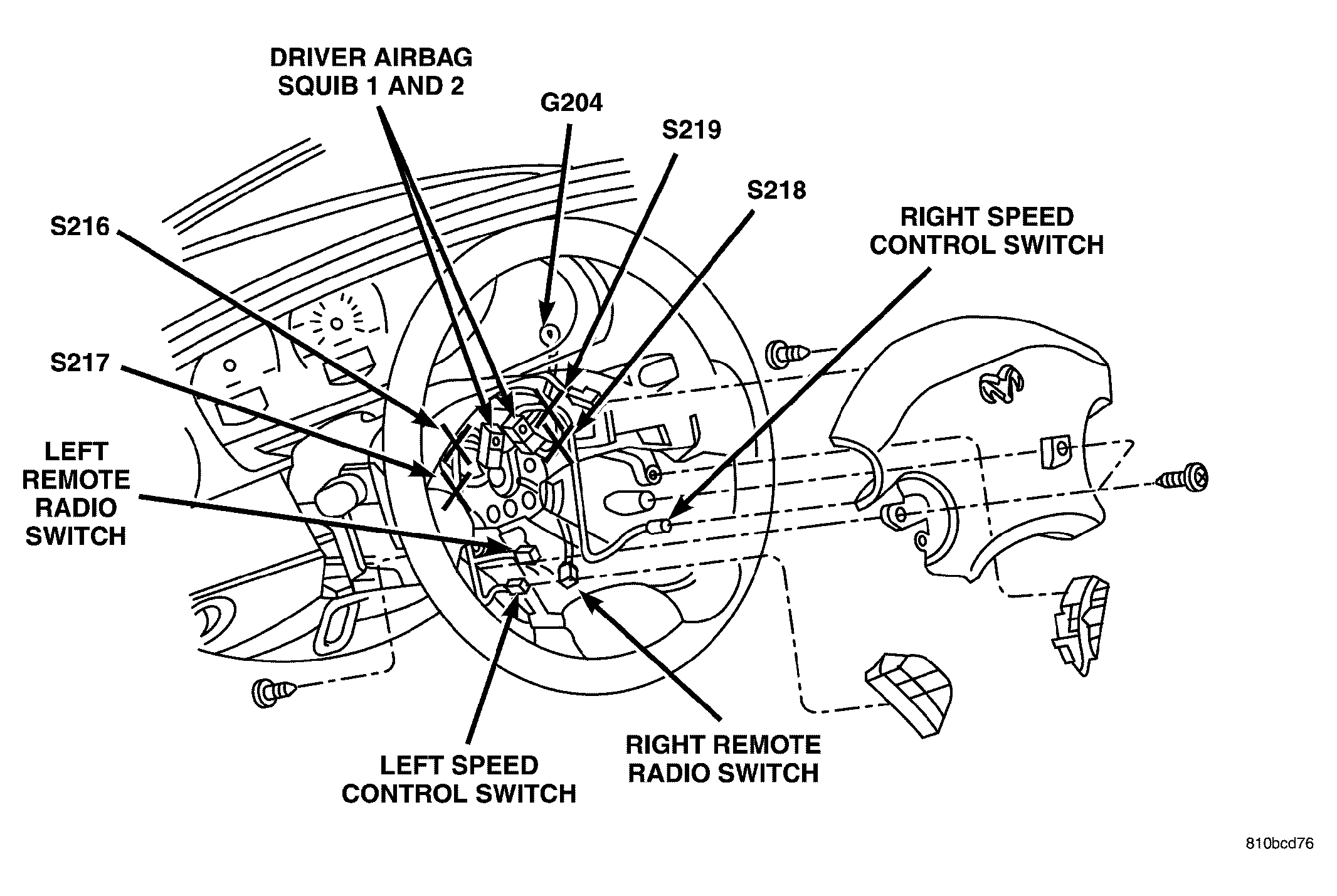

	Left Remote Radio Switch	Under Horn Pad	Fig 30.
Left Side Impact Sensor	YL	At B Post	N/S
Left Speed Control Switch	BK	Under Horn Pad	Fig 30.
Left Tail/Side Marker Lamp	BK	At Lamp	N/S
Left Tail/Stop Lamp	GY	At Lamp	N/S
Left Tail/Turn Signal Lamp	GY	At Lamp	N/S
Left Turn Lamp	TN	At Lamp	N/S
Left Visor/Vanity Lamps	BK	At Lamp	Fig 38, Fig 52.
Licence Lamp (Except Export)	NAT	At Lamp	N/S
Manifold Absolute Pressure Sensor (2.0L/2.4L)	BK	Intake Manifold	Fig 13.
Manifold Absolute Pressure Sensor (2.7L)	BK	Intake Manifold	Fig 15.
Mass Airflow Sensor	BK	On Air Pump Assembly	Fig 13.
Master Power Window Switch	BL	At Switch	N/S

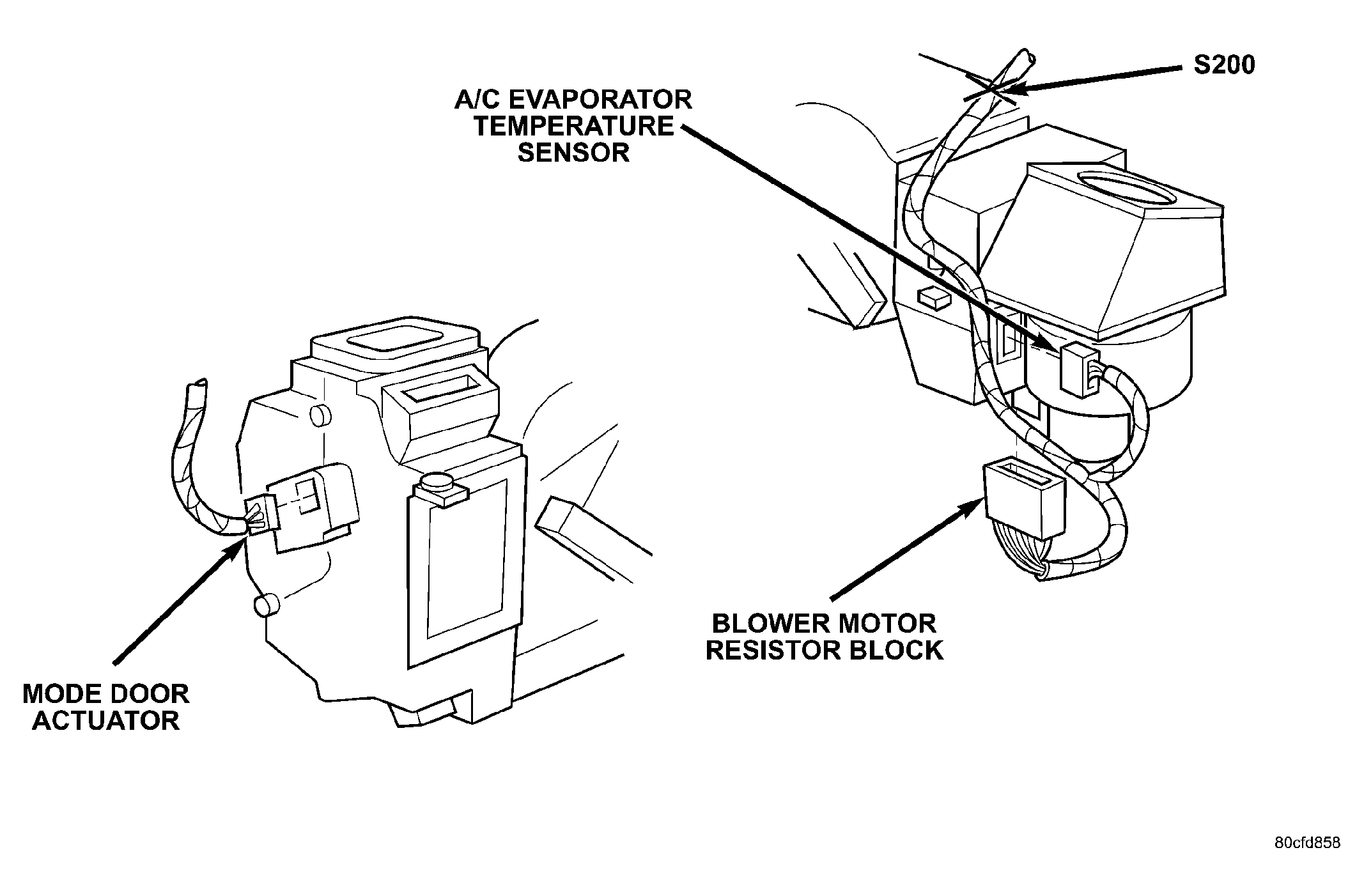

Mode Door Actuator	BK	Left Bottom Side of HVAC, Center I/P	Fig 34, Fig 37.
Multi-Function Switch C1	NAT	Left Side of Switch	Fig 21, Fig 23.
Multi-Function Switch C2	BL	Right Side of Switch	Fig 21, Fig 23.
Natural Vacuum Leak Detection Assembly (2.0L/2.4L)	BK	On Fuel Tank	N/S
Negative Battery Cable	BK	Left Side Engine Compartment	Fig 5.
Noise Suppressor	BK	At Left Front of Engine Head	Fig 14.
Oil Pressure Switch (2.0L/2.4L)	LT/GN	Rear of Engine at Switch	Fig 18.
Oil Pressure Switch (2.7L)	LT/GN	Rear of Engine at Switch	Fig 15.
Output Speed Sensor	GY	Left Side of Transmission	Fig 10.
Overhead Map Courtesy Lamps	BK	At Lamp Assy	Fig 52.
Oxygen Sensor 1/1 Upstream (2.7L)	BK	At Sensor	Fig 15, Fig 20.

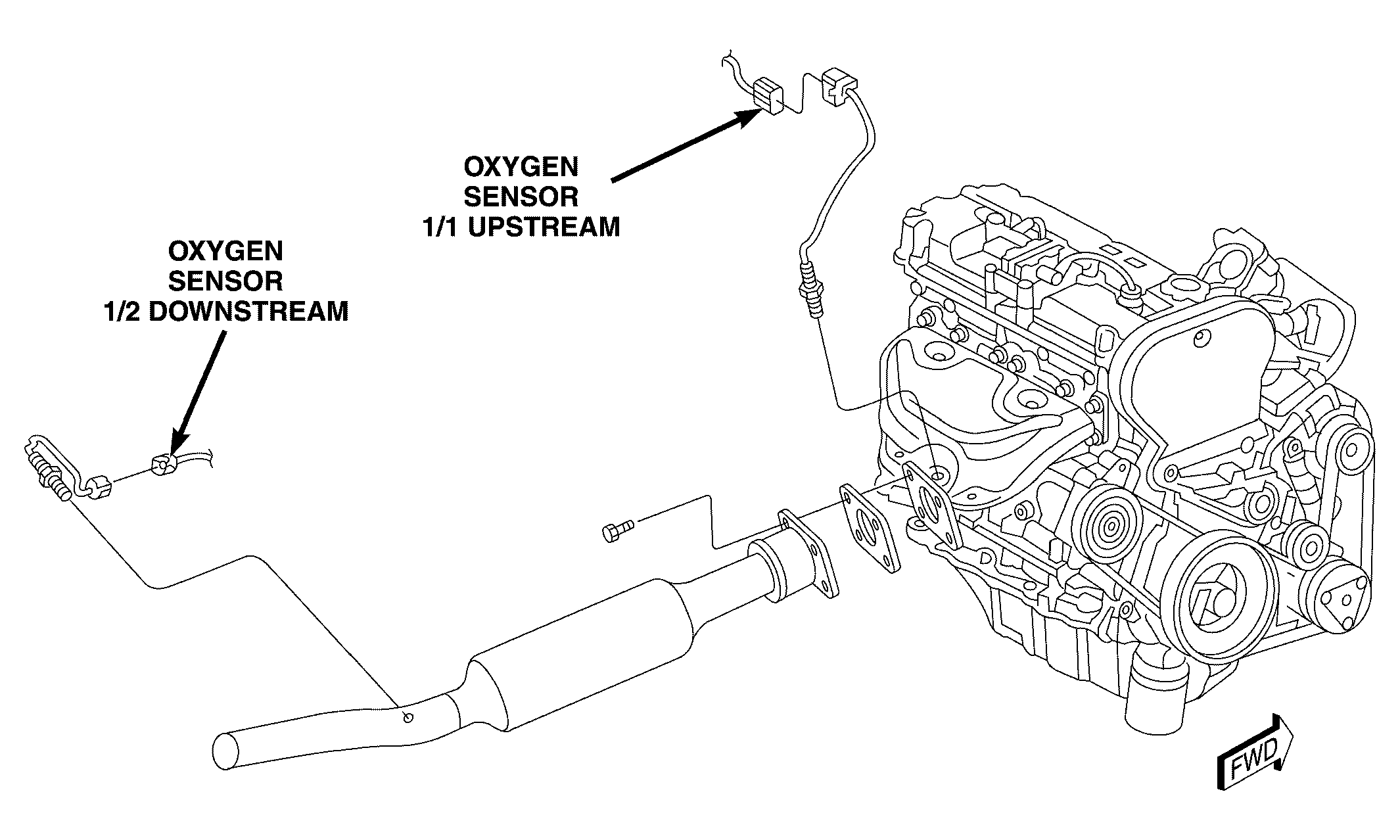

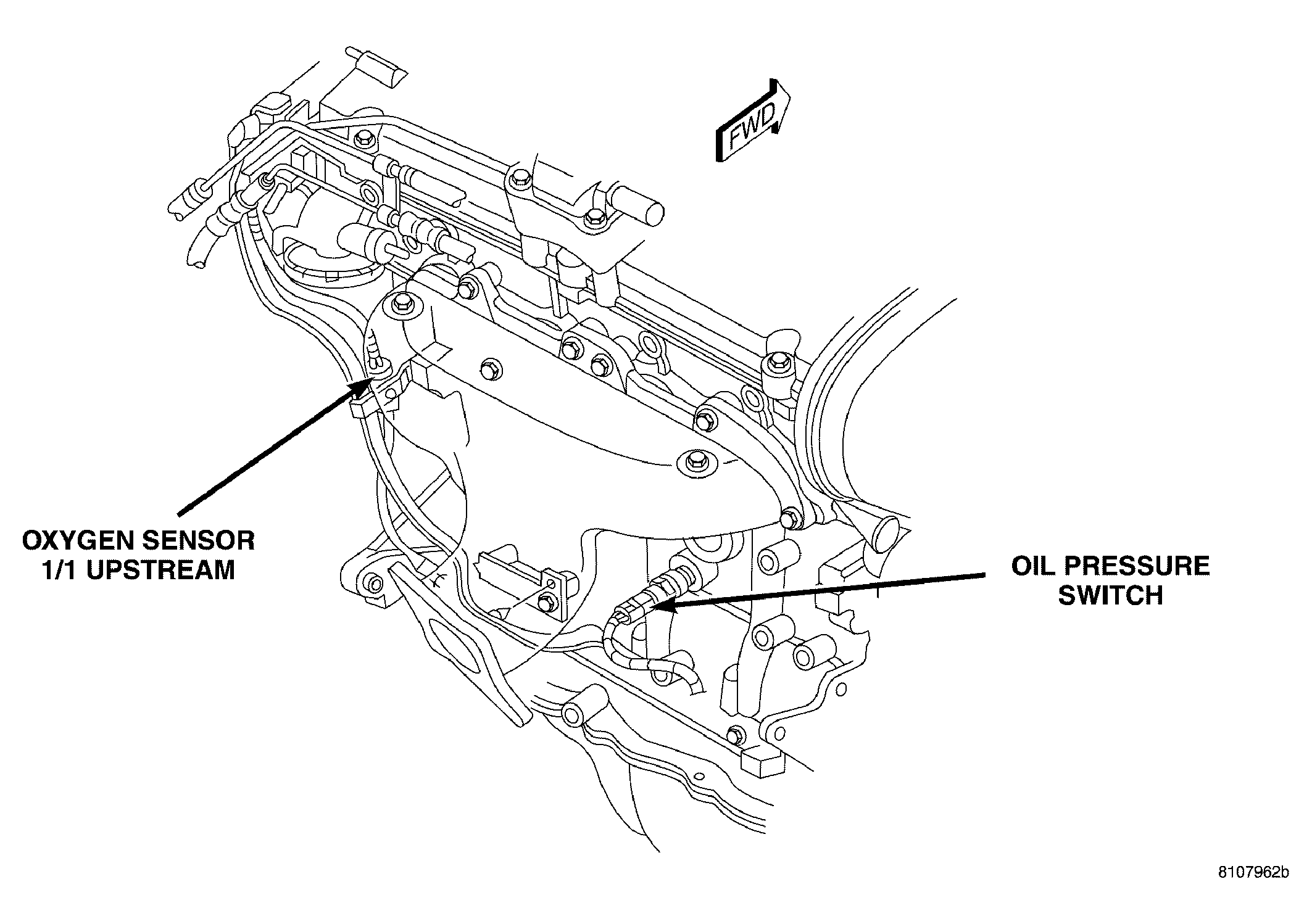

Oxygen Sensor 1/1 Upstream (2.0L/2.4L)	BK	Rear of Engine	Fig 18, Fig 19.
Oxygen Sensor 1/2 Downstream (2.0L/2.4L)	BK	Rear of Engine	Fig 19.

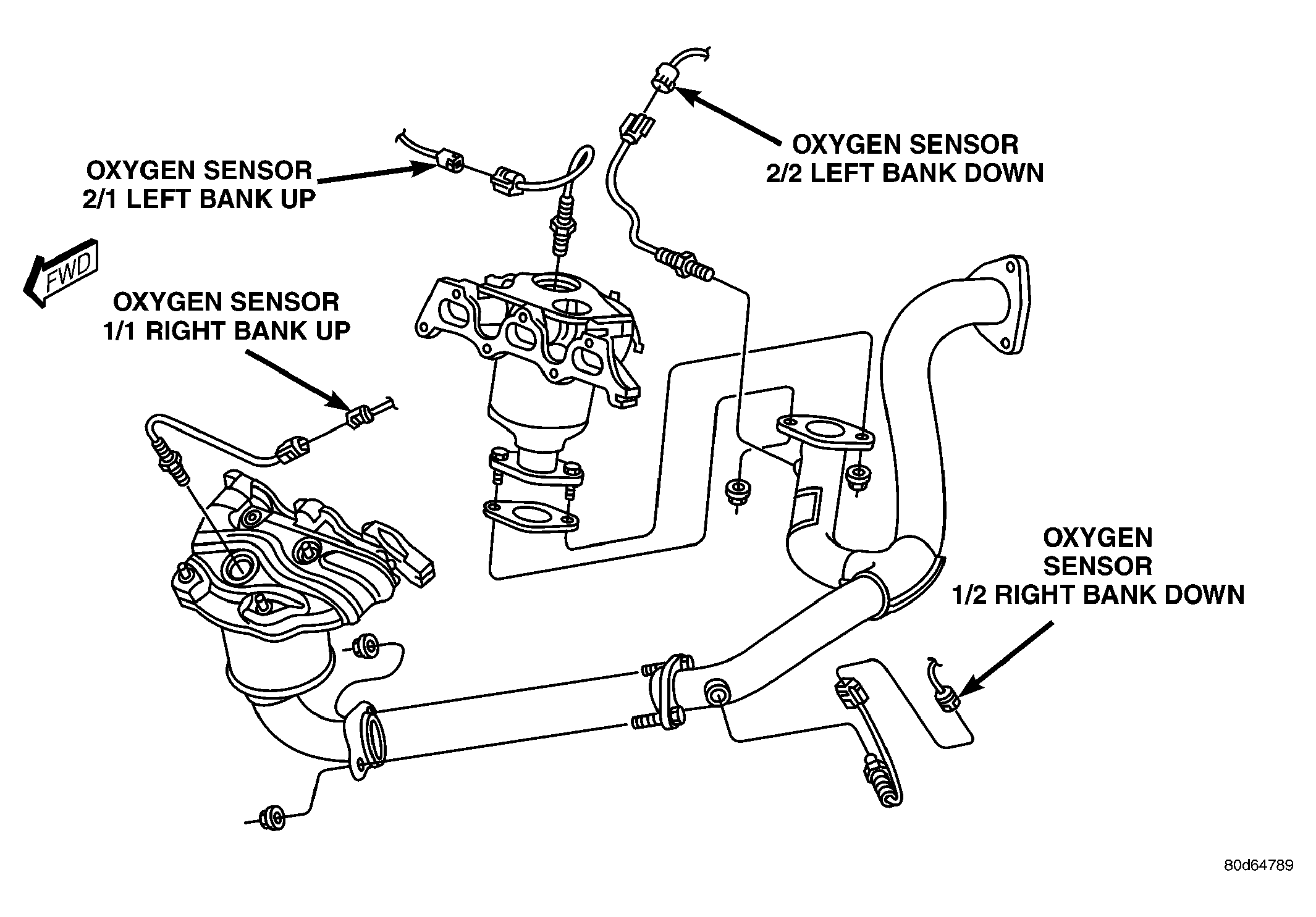

Oxygen Sensor 1/2 Downstream (2.7L)	BK	Right Rear of Engine	Fig 20.
Oxygen Sensor 2/1 Upstream (2.7L)	BK	At Sensor	Fig 15, Fig 20.
Oxygen Sensor 2/2 Downstream (2.7L)	BK	At Sensor	Fig 20.
Park Brake Switch	NAT	Center of Body at Park Brake Lever	Fig 40.
Park Lamp Relay (Premium)	NAT	Lower Center I/P	Fig 21.

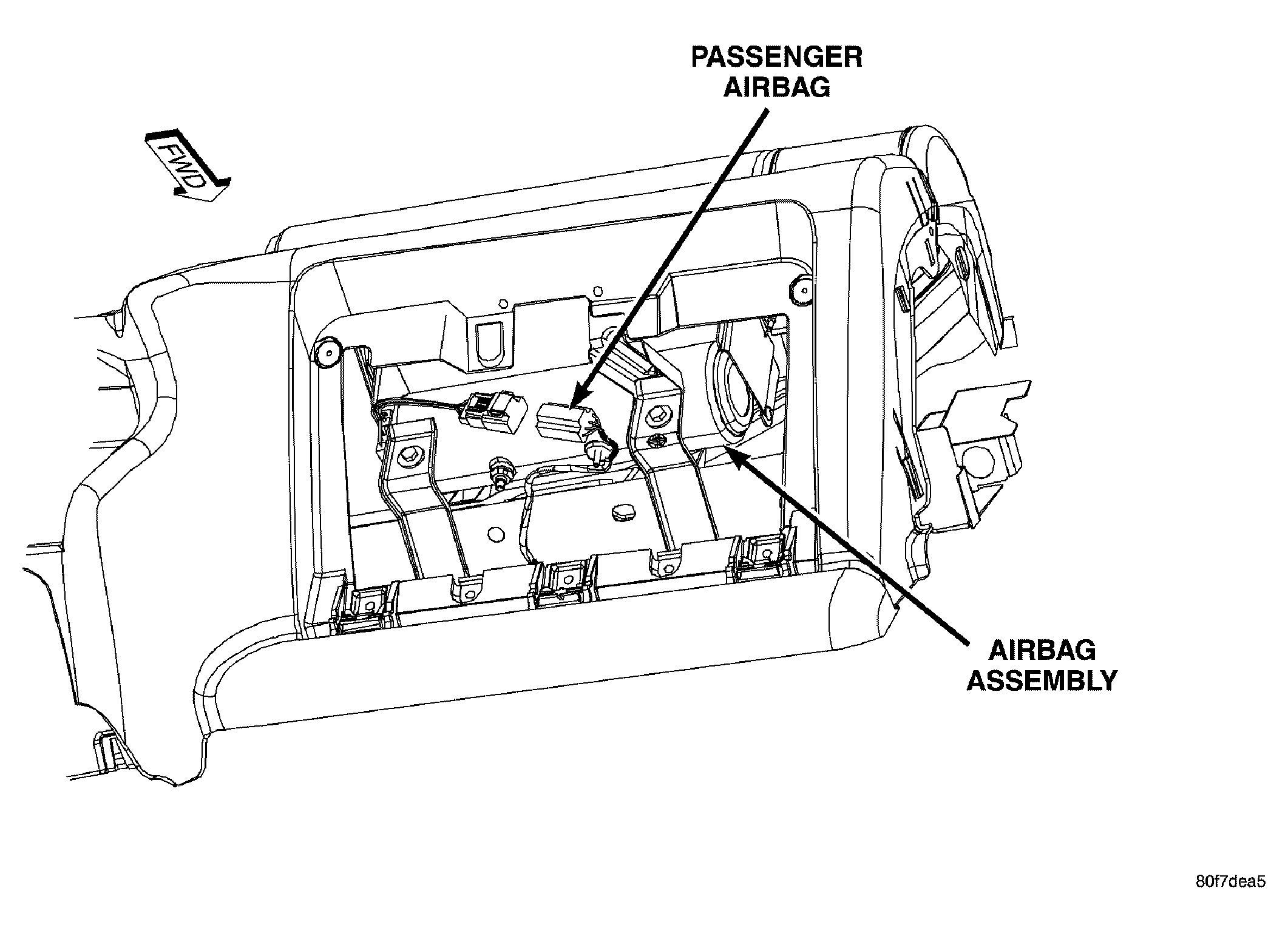

Passenger Airbag	YL	Right Side Instrument Panel	Fig 21, Fig 33.

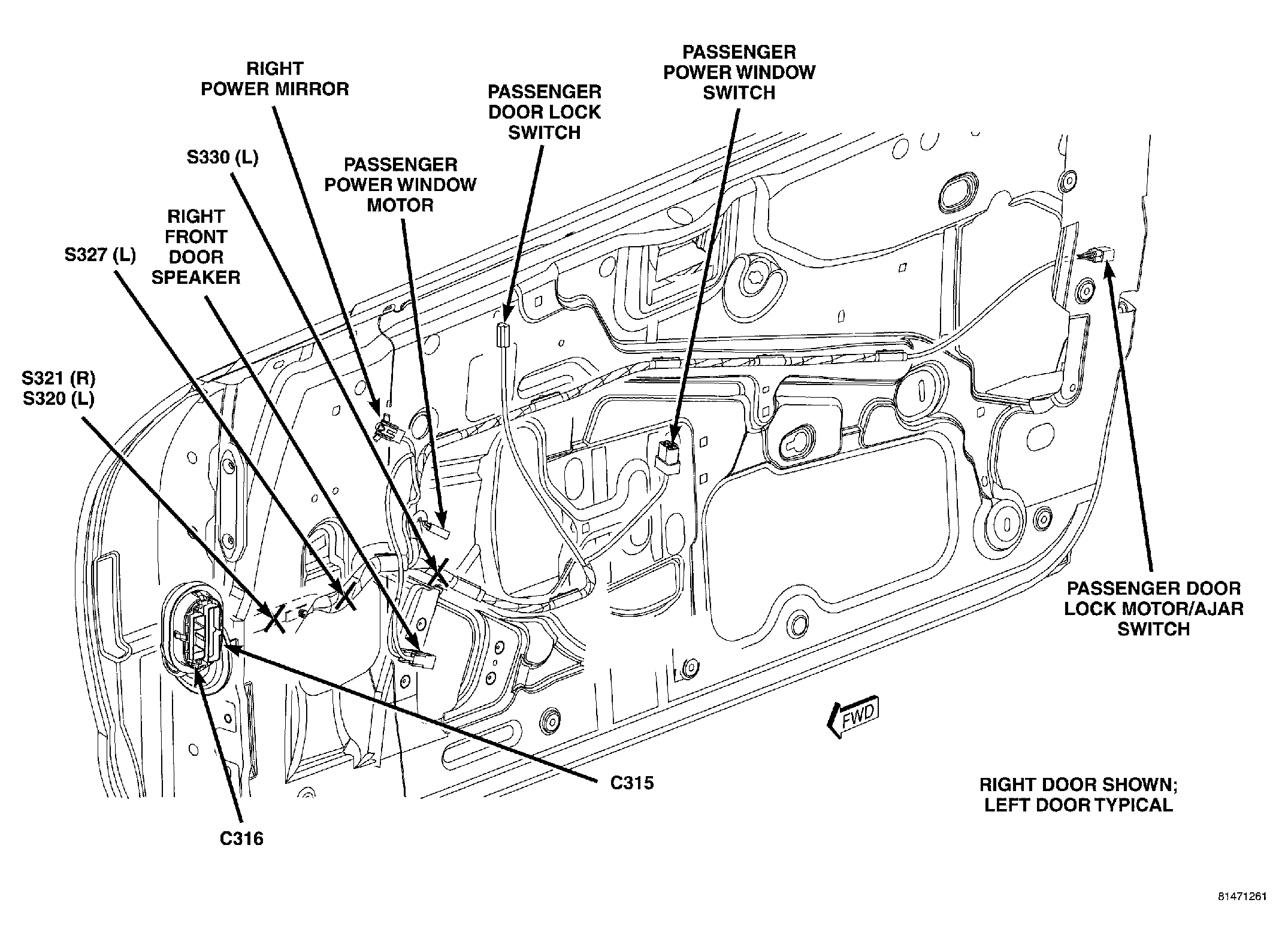

Passenger Door Lock Motor/Ajar Switch	BK	In Passenger Door	Fig 50, Fig 51.
Passenger Door Lock Switch	NAT	In Passenger Door	Fig 50, Fig 51.
	Passenger Heated Seat Module	Under Passenger Seat	N/S
Passenger Power Window Motor	LT/GY	In Passenger Door	Fig 50, Fig 51.
Passenger Power Window Switch	BL	In Passenger Door	Fig 50, Fig 51.
Passenger Seat Belt Solenoid (Export)	BK	Under Passenger Seat	Fig 21, Fig 39.
Passenger Seat Belt Tensioner	YL	Under Passenger Seat (JR27) Near Belt Retractor (JR41)	Fig 21, Fig 39, Fig 40.
Power Amplifier C1 (Premium)	WT	Under Passenger Seat	Fig 21, Fig 39.
Power Amplifier C2 (Premium)	WT	Under Passenger Seat	Fig 21, Fig 39.
Power Antenna (Export)	BK	Right Trunk	Fig 54.
Power Distribution Center	BK	Left Front Engine Compartment	Fig 5, Fig 8.
Power Mirror Switch	BK	At Switch	Fig 21, Fig 23.
Power Outlet	BK	Rear of Outlet	N/S
	Power Seat Circuit Breaker	In Junction Block	Fig 31.

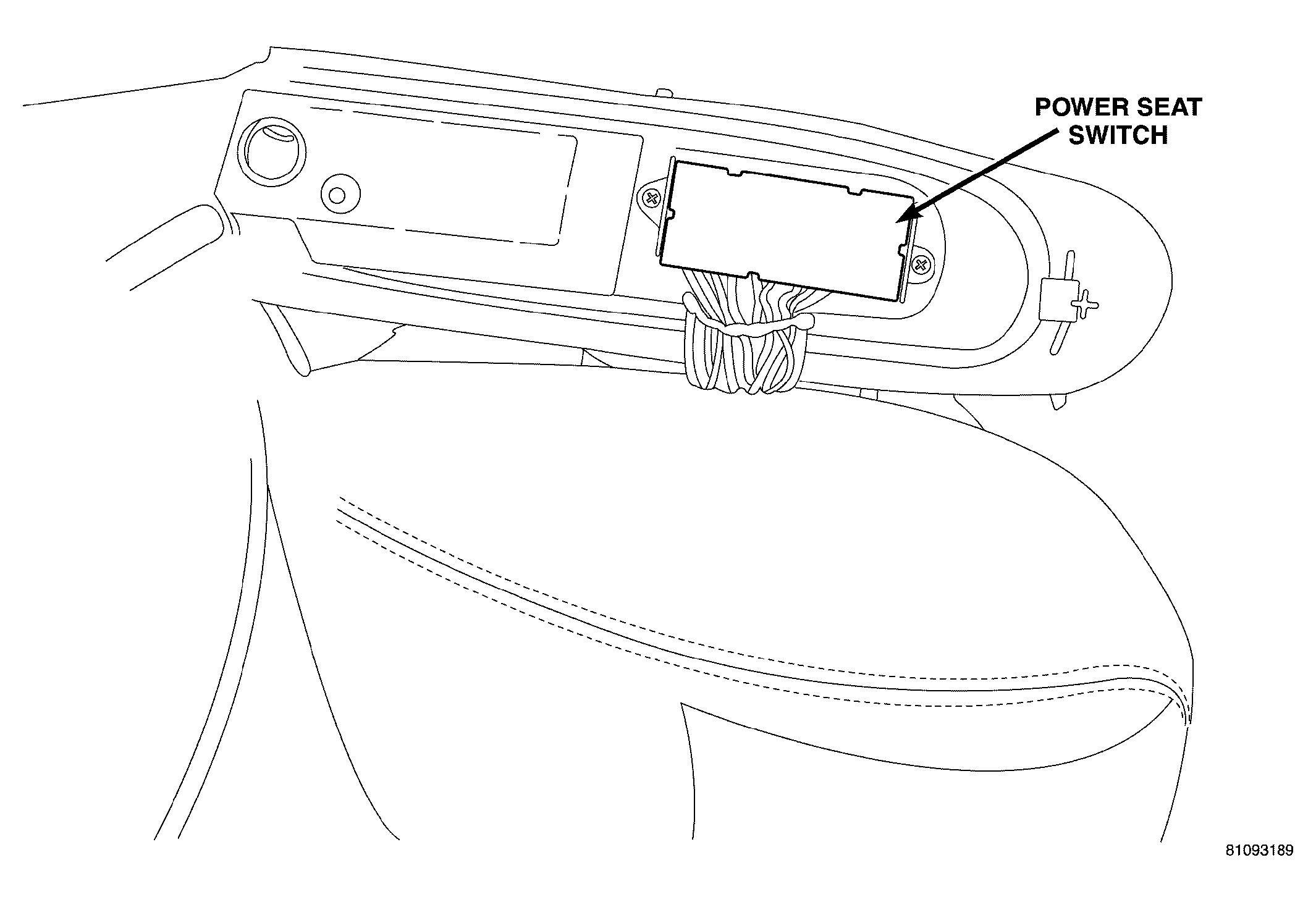

Power Seat Switch (JR27)	BK	At Switch	Fig 44.
Power Seat Switch (JR41)	BL	At Switch	N/S
Power Steering Pressure Switch	BK	Left Side of Steering Gear	N/S
Power Top Pump Motor	RD	At Motor	Fig 42.
Power Top Switch	GY	At switch on Center Console	N/S
	Power Top Up/Down Relays	At Relay	Fig 42.
Powertrain Control Module C1 (NGC)	BK	At Module	Fig 5.
Powertrain Control Module C1 (2.7L)	GY/ BK face	At Module	Fig 15.
Powertrain Control Module C2 (NGC)	GY	At Module	Fig 5.
Powertrain Control Module C2 (2.7L SBEC)	GY/ GY face	At Module	Fig 5.
Powertrain Control Module C2 (2.7L NGC)	GY	At Module	Fig 15.
Powertrain Control Module C3 (NGC)	WT	At Module	Fig 5.
Powertrain Control Module C4 (NGC)	GN	At Module	Fig 5.
Radiator Fan	BK	Front Center of Engine Compartment	Fig 4.
Radio C1	WT	Rear of Radio	Fig 21, Fig 28.
Radio C2	BK	Rear of Radio	N/S
Rear Floor Courtesy Lamp	BK	At Lamp	N/S
Rear Vertical Motor (Power Seat)	BK	Under Seat	Fig 45.

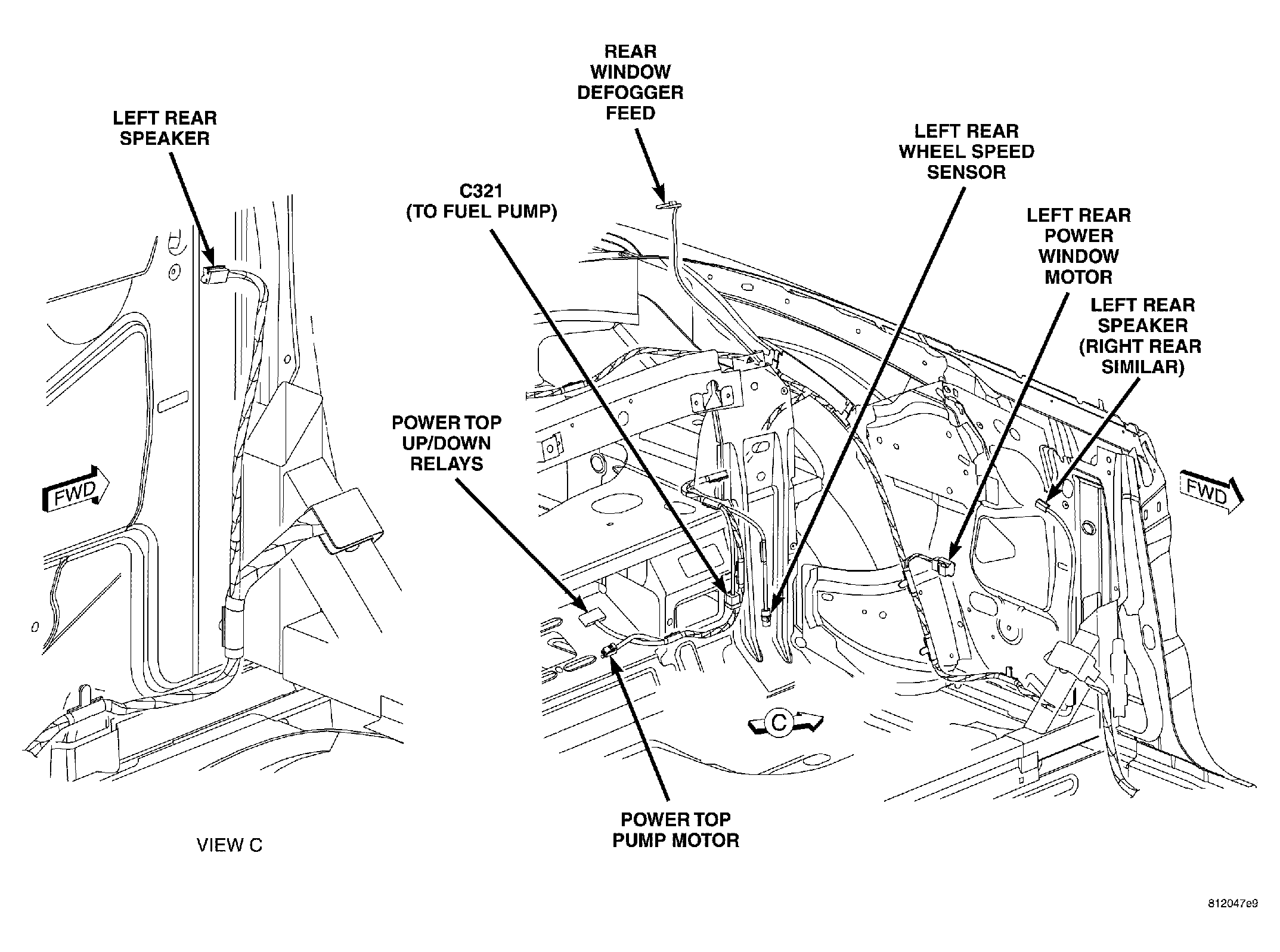

	Rear Window Defogger Feed	Left Side Shelf Panel	Fig 42, Fig 43.
	Rear Window Defogger Ground	Right Side of Rear Window Defogger	N/S
	Rear Window Defogger Relay	In Junction Block	Fig 31.
Recirculation Door Actuator	BK	At Actuator, Right end of HVAC	Fig 35.
Recline Motor (Power Seat)	GN	Under Driver Seat	N/S
	Remote Keyless Entry Receiver	On Junction Block Body Control Module	Fig 31.
Right Back-Up Lamp	GY	At Lamp	N/S
Right Curtain Airbag	YL	On Airbag Module At Headliner	Fig 46.
Right Fog Lamp	GY	At Lamp	Fig 2.
Right Front Door Speaker	BK	At Speaker	Fig 50, Fig 51.
Right Front Instrument Panel Speaker	BK	At Speaker	Fig 21, Fig 26.

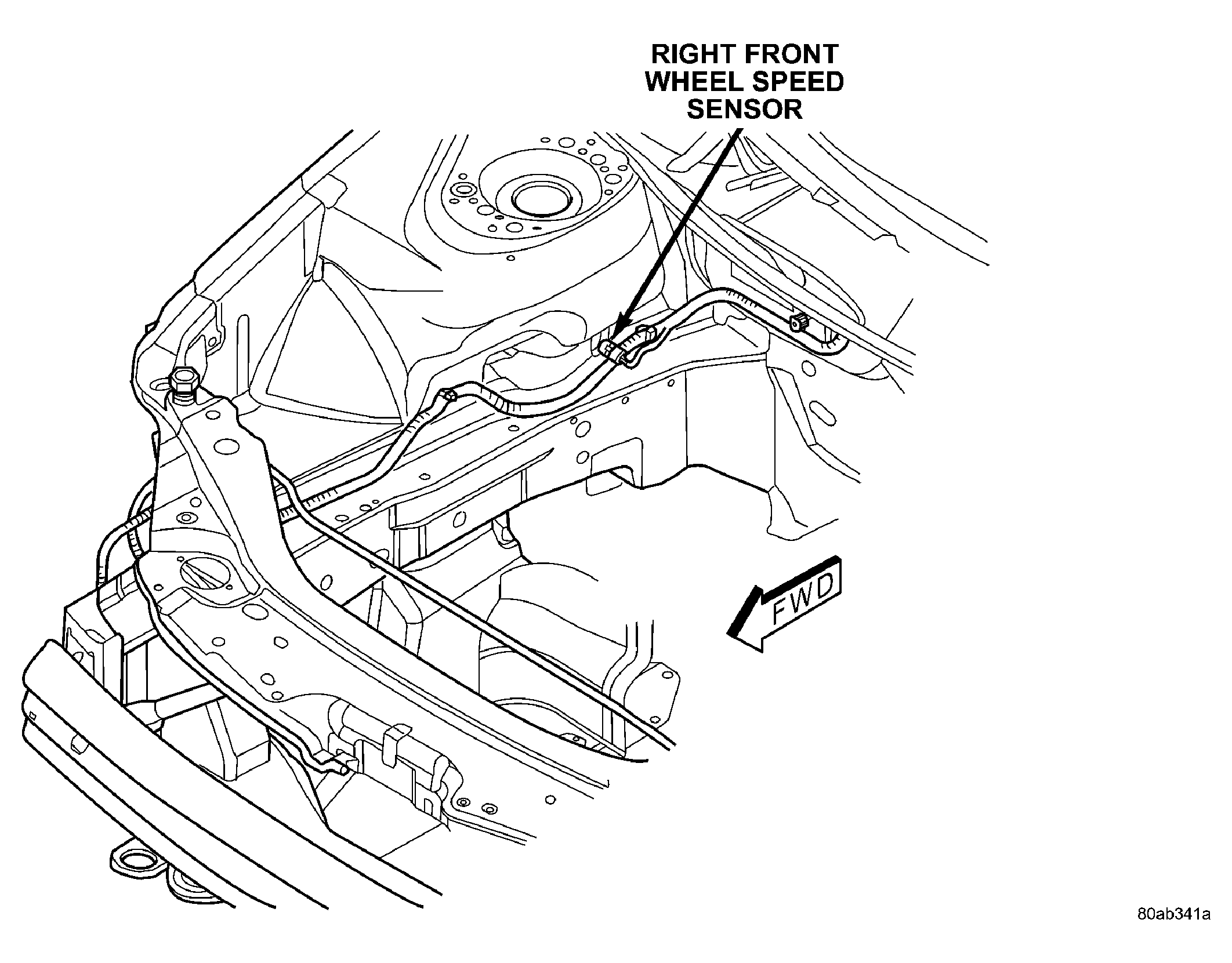

Right Front Wheel Speed Sensor	BK	Right Fender Side Shield	Fig 3.
Right Headlamp (Except Export)	BK	At Right Headlamp Opening	Fig 1, Fig 2.
Right Lavalier Module (Export)	BK	At Right Headlamp Opening	Fig 1.
Right License Lamp	NAT	At Lamp	N/S

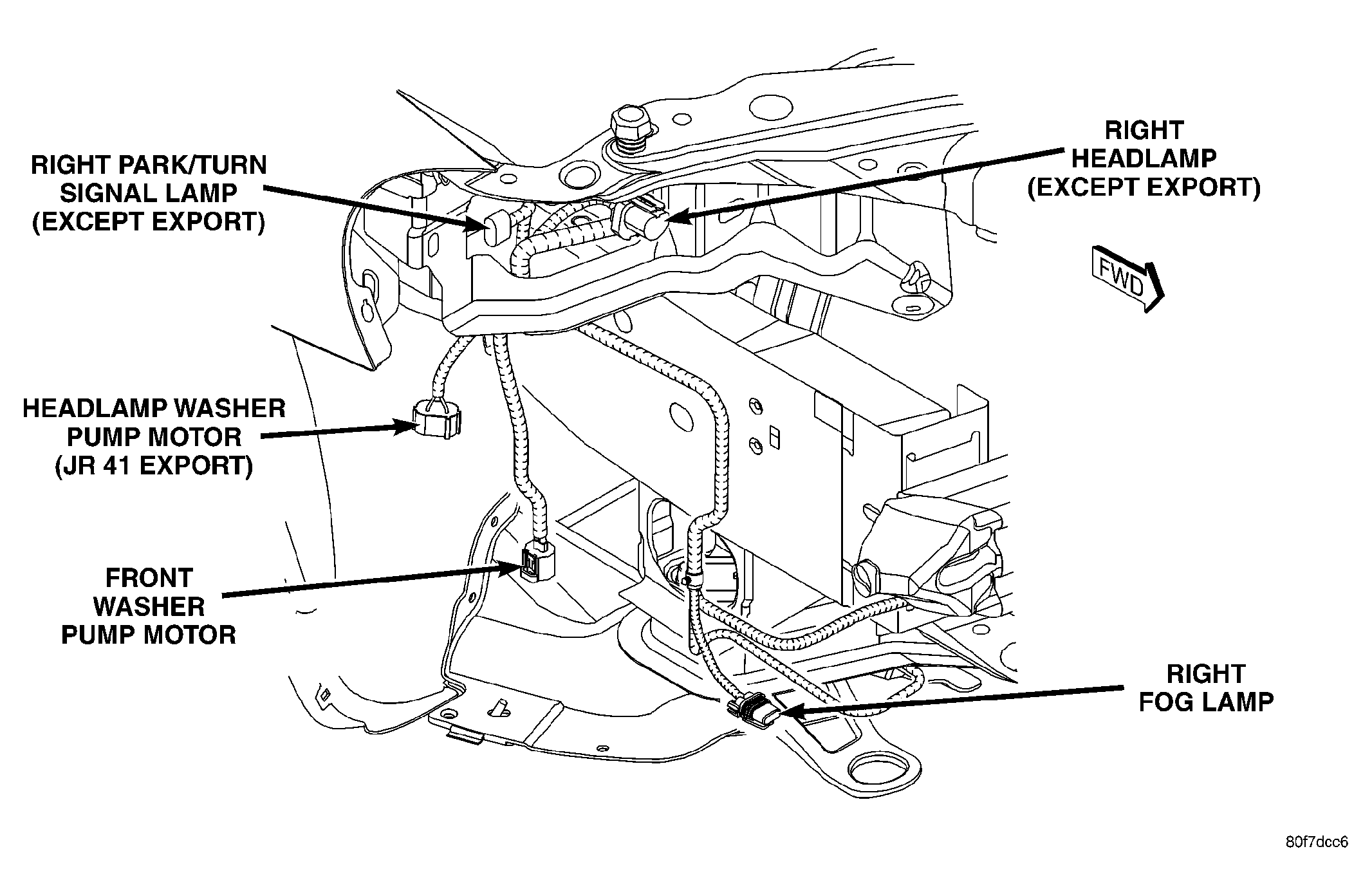

Right Park/Turn Signal Lamp (Except Export)	BK	Right Headlamp Opening	Fig 1, Fig 2.
Right Power Mirror	NAT	At Mirror	Fig 50, Fig 51.
Right Rear Door Lock Motor/Ajar Switch	BK	In Door near Latch	Fig 49.
Right Rear Fog Lamp (Export)	BK	At Lamp	N/S
Right Rear Power Window Motor (JR41)	BK	At Motor	Fig 49.
Right Rear Power Window Switch (JR41)	BK	At Switch	Fig 49.
Right Rear Speaker (JR41)	BK	At Speaker	Fig 46.
Right Rear Speaker (JR27)	BK	At Speaker see left speaker	N/S

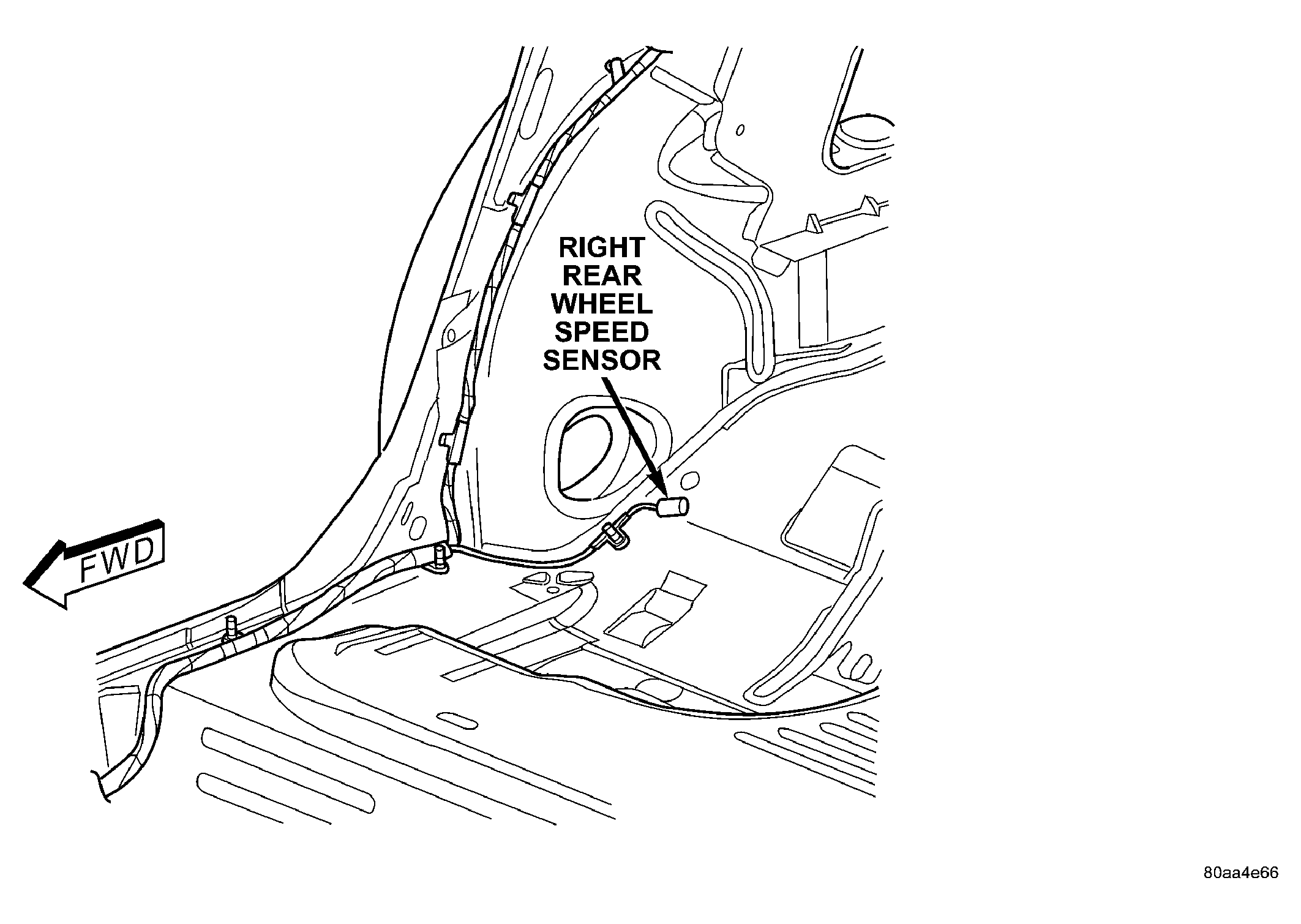

Right Rear Wheel Speed Sensor	BK	Right Side Trunk Area	Fig 47.
	Right Remote Radio Switch	Under Horn Pad	Fig 30.
Right Side Impact Sensor	YL	At B-Pillar	N/S
Right Speed Control Switch	BK	Under Horn Pad	Fig 30.
Right Tail/Side Marker Lamp	BK	At Lamp	N/S
Right Tail/Stop Lamp	GY	At Lamp	N/S
Right Tail/Turn Signal Lamp	GY	At Lamp	N/S
Right Turn Lamp	TN	At Lamp	N/S
Right Visor/Vanity Lamps	BK	At Lamp	Fig 38, Fig 52.
Seat Belt Control Module (Export)	NAT	Under Driver Seat	N/S
Sentry Key Immobilizer Module	BK	At Steering Column	Fig 21, Fig 23.
	Starter	Lower Front of Engine	Fig 10.
Sunroof Control Module	WT	In Left Headliner	Fig 52.
Sunroof Switch	NAT	In Left Headliner	Fig 52.
Sun Sensor (ATC)	BK	Center I/P	Fig 21, Fig 26.
Throttle Position Sensor (2.0L/2.4L)	NAT	On Throttle Body	Fig 13.
Throttle Position Sensor (2.7L)	BK	On Throttle Body	Fig 15.
	Traction Control Switch	On Top of Steering Column	Fig 21, Fig 23.
Transmission Range Indicator Illumination (PRNDL)	BR	Center of Body Near Shifter Assembly	Fig 40.
Transmission Range Sensor	DK/GY	Left Side of Transmission	Fig 10.
Transmission Solenoid/Pressure Switch Assembly	BK	Left Side of Transmission	Fig 10.
Trunk Lamp	BK	Rear Center Shelf Panel	Fig 46.
Vehicle Speed Control Servo	BK	Left Side of Engine Compartment at Servo	Fig 5.
Vehicle Speed Sensor (MTX)	BK	Right Side of Transmission	Fig 11.
	Window Drop Relay Assembly	In Driver Door	N/S

Connector Name/Number	Location	Fig.
G100	Left Strut Tower	Fig 5.
G103	Near Left Strut Tower	Fig 5.
G104 (2.7L)	Near EGR Solenoid	Fig 15.
G106	Right Headlamp Area	Fig 1.
G108	Left Headlamp Area	Fig 4.
G113	Left Headlamp Area	Fig 4.
G201	Center Body Between Occupant Restraint Controller and Shift Assembly	Fig 21, Fig 39.
G202	Lower Left Center Instrument Panel	Fig 21, Fig 22.
G203	Left Side Instrument Panel	Fig 21, Fig 22.
G204	On Steering Column harness	Fig 30.
G300	Center of Trunk Opening Below Latch	Fig 48.
G301	Left Side Cowl	Fig 41.
G302	Left Front of Trunk	Fig 57.
G303	Right Front Side of Trunk	Fig 53.
G310	Rear Center Decklid	Fig 56.

Splice Number	Location	Fig.
S100(ATX)	Left Front Engine Compartment	Fig 4.
S100(MTX)	Left Front Engine Compartment	Fig 4.
S102	Internal to the Power Distribution Center	Fig 5.
S103	Internal to the Power Distribution Center	Fig 5.
S104	Internal to the Power Distribution Center	Fig 5.
S105	Internal to the Power Distribution Center	Fig 5.
S106	Internal to the Power Distribution Center	Fig 5.
S108	Internal to the Power Distribution Center	Fig 5.
S109	Internal to the Power Distribution Center	Fig 5.
S110	Left Side Engine Compartment	Fig 5.
S111	Left Front Engine Compartment	Fig 4.
S112 (ATX)	Internal to the Power Distribution Center	Fig 5.
S113 (2.7L)	In T/O for Starter Feed Terminal	Fig 10.
S115	Near T/O for MAP/IAT Sensor	Fig 13, Fig 14.
S116	Near T/O for MAP/IAT Sensor	Fig 14.
S117 (2.0L/2.4L)	Near T/O for Powertrain Control Module C1	Fig 14.
S117 (2.7L)	Near Throttle Position Sensor T/O	Fig 15.
S119 (Export)	Internal in Power Distribution Center	Fig 5.
S120	Left Front Kick Panel	Fig 32.
S122	Internal to Power Distribution Center	Fig 5.
S123	Left Front Engine Compartment	Fig 4.
S125	Near A/T inline Connectors	Fig 10.
S127	Left Front Engine Compartment	Fig 4.
S130	Near T/O for Left Headlamp	Fig 4.
S131	Near T/O for Brake Fluid Level Switch	Fig 5.
S135	Near T/O for Power Steering Pressure Switch	Fig 14.
S137 (2.7L)	In Engine Valley Near Left Engine Head	Fig 15.
S138 (2.7L)	Near T/O for Oxygen Sensor 1/1 Right Bank Up	Fig 15.
S139 (2.7L)	Near T/O for Knock Sensor	N/S
S140	At Front corner of Left Engine Head	Fig 15.
S142	Near T/O for Powertrain Control Module C1	Fig 14.
S143 (2.7L)	Left Fuel Rail	N/S
S149 (2.7L)	Near T/O For Generator Feed	N/S
S155	Near T/O for Camshaft Position Sensor	Fig 15.
S200	Between A/C EVAP Temperature Sensor & Blend Door Actuator	Fig 34.
S201	Between Blend Door Actuator and Mode Door Actuator	N/S
S202	Between Blend Door Actuator and Mode Door Actuator	N/S
S203	Center of Instrument Panel, Near Take-out for Data Link Connector	N/S
S207	Left Side of Instrument Panel	Fig 21, Fig 22.
S208 (Export)	Left Side of Instrument Panel	Fig 21, Fig 22.
S209	Left Center of Instrument Panel	Fig 21, Fig 22.
S210	Left Center of Instrument Panel	Fig 21, Fig 22.
S211	Left Center of Instrument Panel	Fig 21, Fig 22.
S212	Left Center of Instrument Panel	Fig 21, Fig 22.
S214	Right Center of Instrument Panel	Fig 21, Fig 22.
S215	Left Side of Instrument Panel	Fig 21.
S216	Under Horn Pad	Fig 30.
S217	Under Horn Pad	Fig 30.
S218	Under Horn Pad	Fig 30.
S219	Under Horn Pad	Fig 30.
S220	Near Brake Trans. Shift Interlock Solenoid	Fig 21.
S221	Near Junction Block C4, & C5	Fig 21, Fig 32.
S222	Next to S207	Fig 21.
S223	Near Body Control Module C3 & C4	Fig 32.
S224	Near Sentry Key Immobilizer Module	Fig 21.
S225	Near Fog Lamp Relay	Fig 22.
S226	Near Data Link Connector	Fig 21.
S227	Near Junction Block C4 & C5	Fig 32.
S228	Near Fog Lamp Relay	Fig 22.
S301	Front Left Center of Trunk	Fig 46.

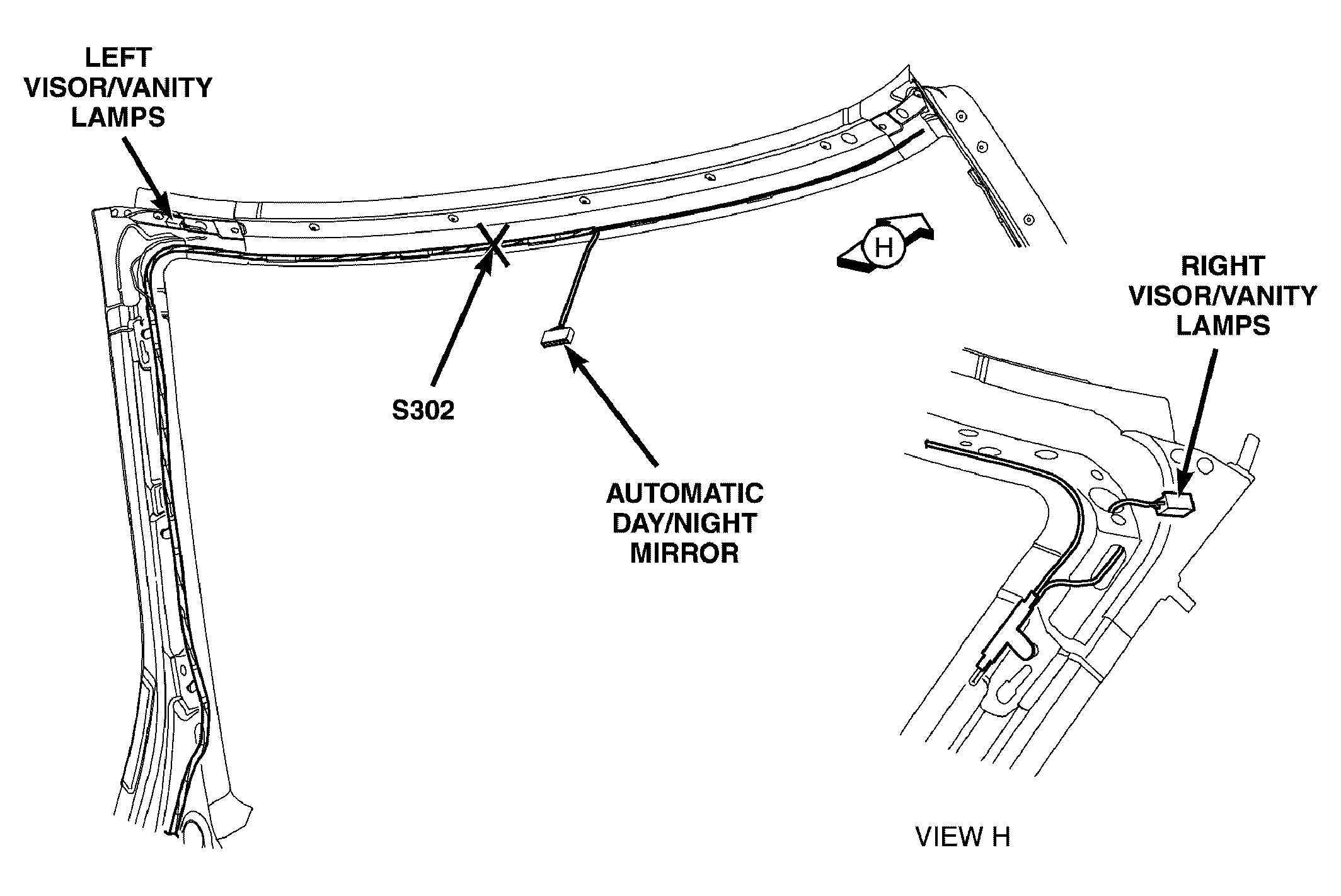

S302	Between Automatic Day/Night Mirror and Left Visor/Vanity Lamp	Fig 38.
S303	Near Splice S302 on Mirror Side	N/S
S304	Between Left Tail/Stop Lamp and Left Turn Lamp	N/S
S305	Between Right Tail/Stop Lamp and Right Turn Lamp	N/S
S306	Near Rear Window Defogger	Fig 43.
S307	Near C320	N/S
S310	2.4"(60mm)Toward Passenger Heated Seat Module, from Harness tie down	N/S
S311	Near Passenger Heated Seat Module	N/S
S312	In Heated Seat	N/S

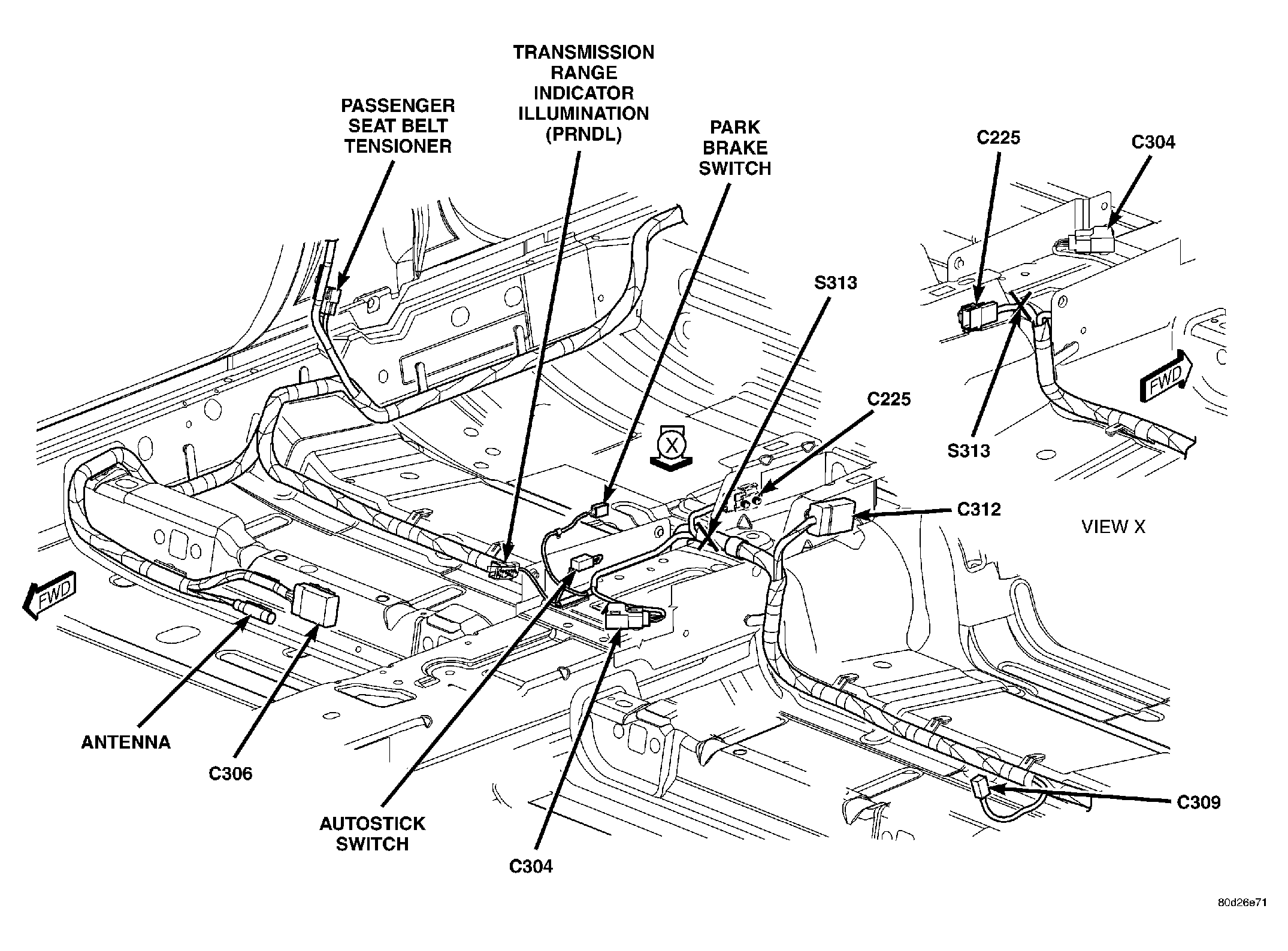

S313	Center Body Floor Between Airbag Module and Shifter Assembly	Fig 40.
S318	Near T/O for Left Tail/Stop Lamp	N/S
S319	Near T/O for Right Tail/Stop Lamp	N/S
S320	In Driver Door	Fig 50.
S321	In Passenger Door	Fig 50.
S324	In Rear Fog Lamp Harness	N/S
S326	Near Fuel Pump Module	N/S
S327 (JR27)	In Driver Door	Fig 50.
S327 (JR41)	Driver Door Forward From Take-out for Power Window and Power Mirror Switches	N/S
S330	In Driver Door	Fig 50.
S331	Between T/O for C320 & T/O For License Lamp	N/S
S332	Near Left License Lamp	N/S
S333 (JR27)	Between Left Rear Fog Lamp & Right Rear Fog Lamp	N/S
S334	Near Left Rear Fog Lamp	N/S
S335 (JR41)	Near Left/Right License Lamp	N/S
S336 (JR41)	Near Left/Right License Lamp	N/S
