Door Cylinder Lock Switch: Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the battery negative cable.
Remove door trim panel (Refer to BODY/DOOR - FRONT/TRIM PANEL - REMOVAL) .

Disconnect the wiring clip and pigtail wire connector. See Fig 1.

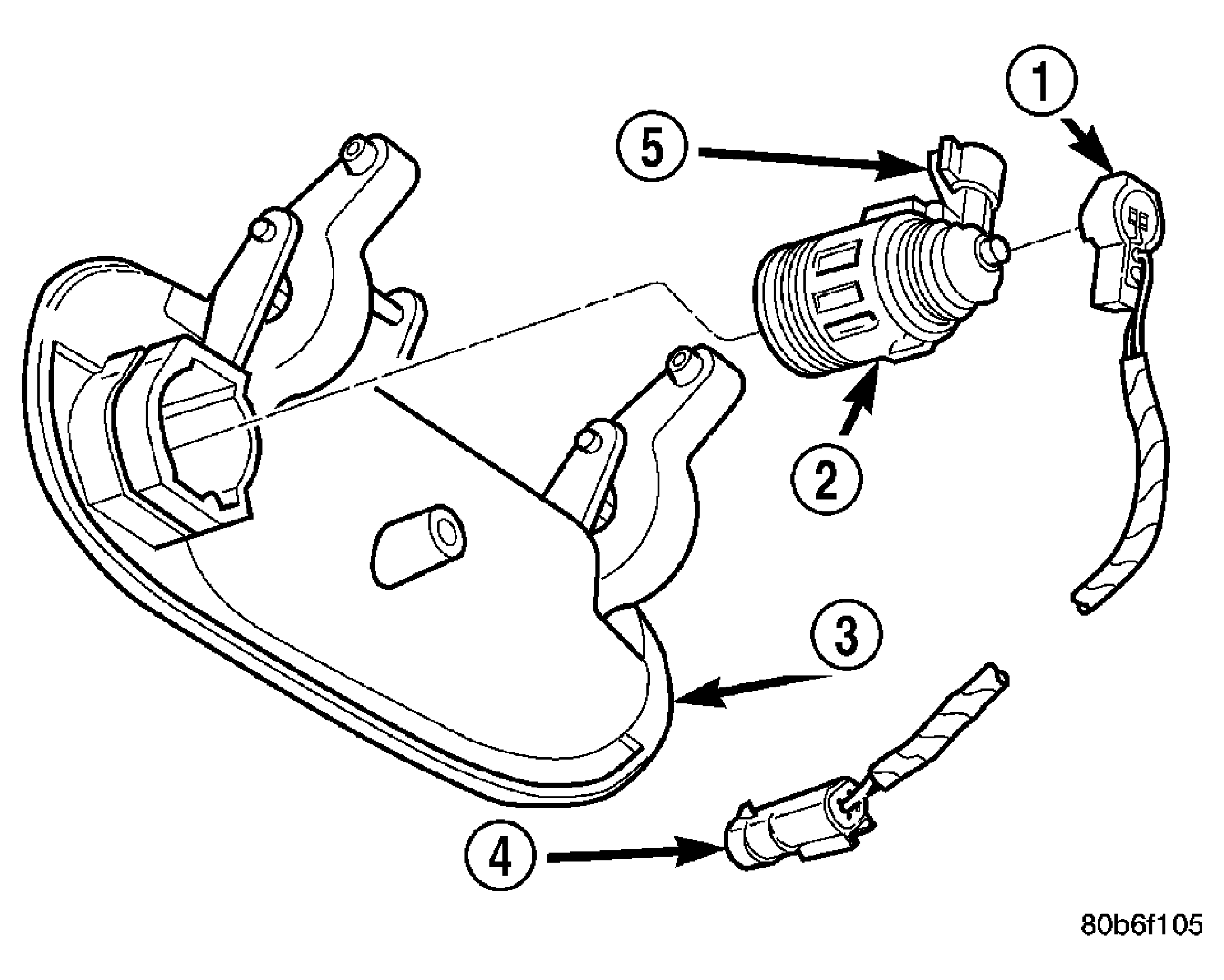

Fig 1: Door Cylinder Lock Switch

Courtesy of DAIMLERCHRYSLER CORP.

1 - DOOR CYLINDER LOCK SWITCH

2 - LOCK CYLINDER

3 - DOOR HANDLE

4 - PIGTAIL CONNECTOR

5 - CLIP

Remove the Door Cylinder Lock Switch from door lock cylinder.
