Installation - Crankshaft Sprocket

  1. Install crankshaft sprocket using Special Tools 6780-1 and 8179 until sprocket bottoms against crankshaft step flange. Use care not to rotate crankshaft.

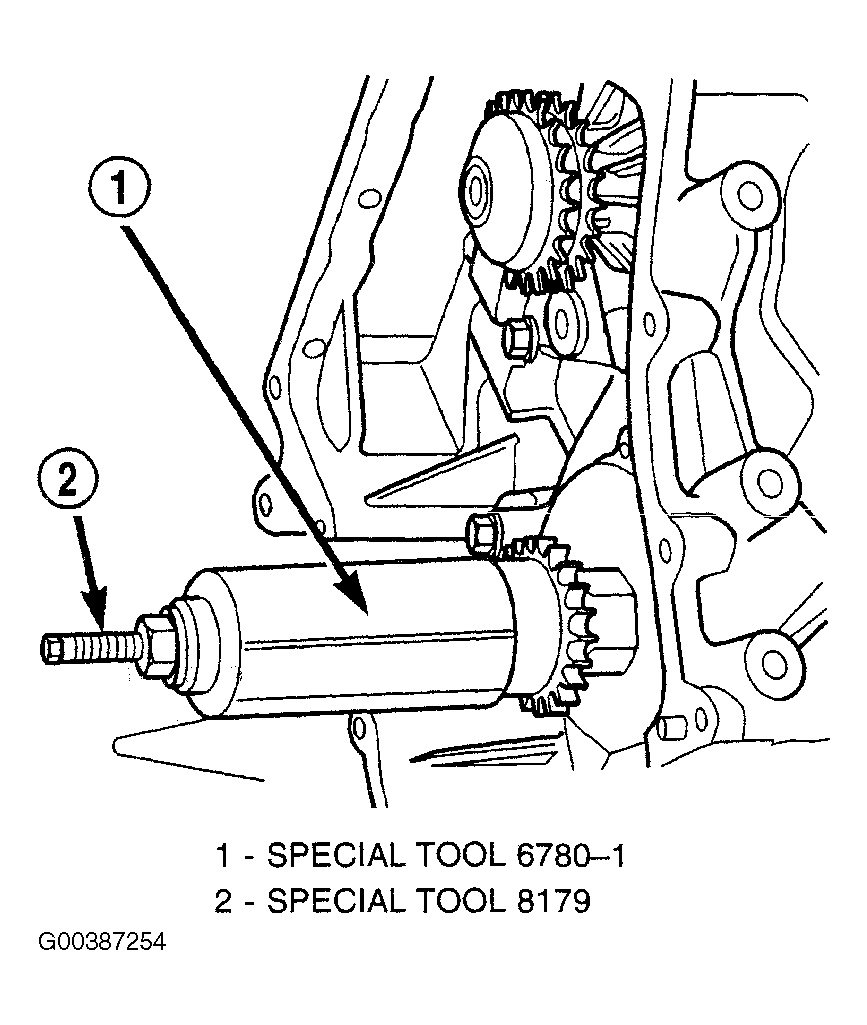

    Fig 1: Installing Crankshaft Sprocket
    G00387254Courtesy of CHRYSLER CORP.
  2. Verify that crankshaft sprocket is installed to proper depth by measuring from sprocket outer face to end of crankshaft. Measurement should read: 39.05 +/- 0.50 mm (1.5374 +/- 0.020").
    Fig 2: Measuring Crankshaft Sprocket Depth
    G00387255Courtesy of CHRYSLER CORP.
  3. Install primary timing chain.
