Removal & Installation: Installation

CAUTION: If a burr or scratch is present on the crankshaft edge (chamfer), clean surface using 400 grit sand paper to prevent seal damage during installation.
  1. Place Special Tool 6926-1 Guide on crankshaft. This is a pilot tool with a magnetic base.

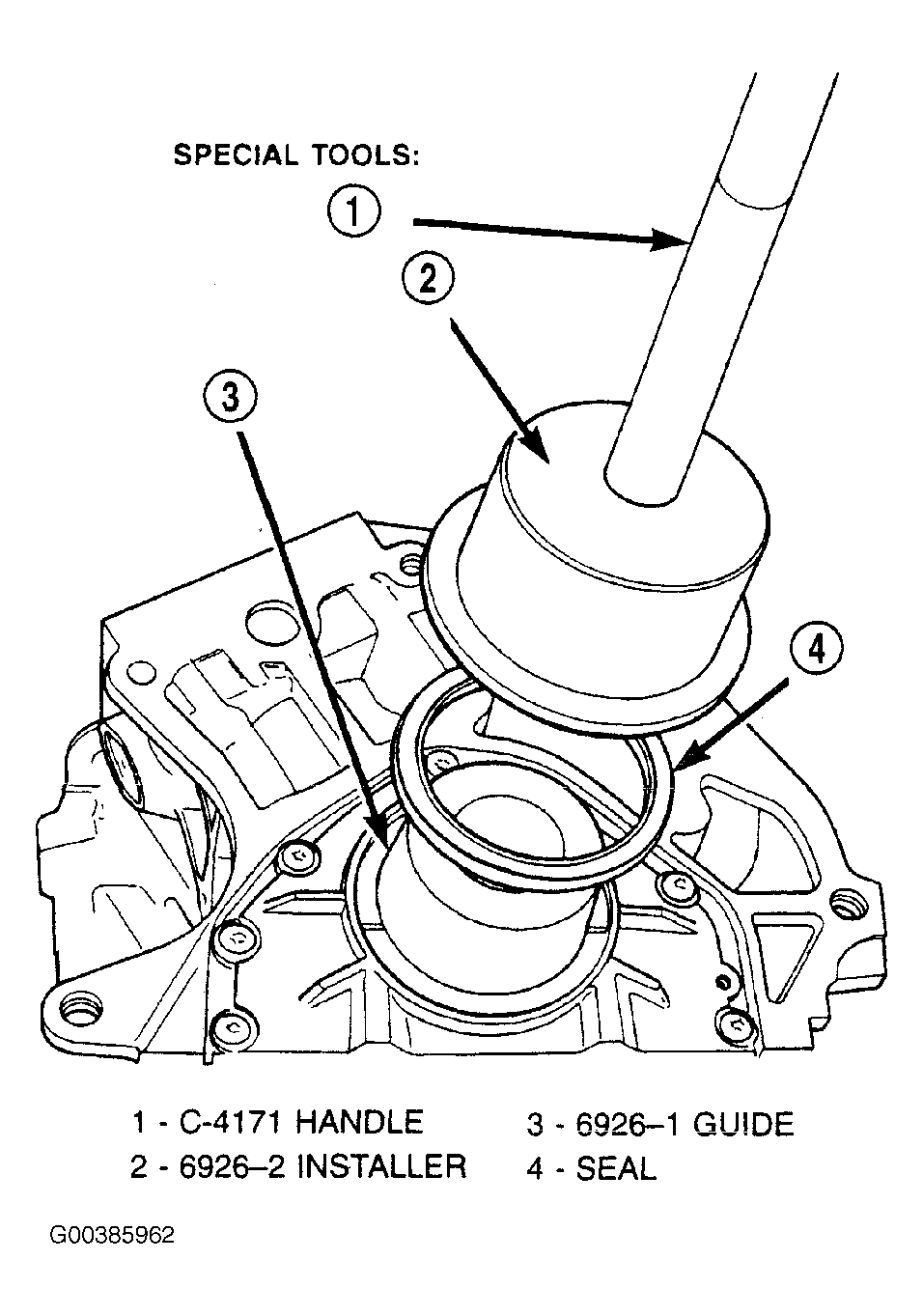

    Fig 1: Installing Crankshaft Rear Seal
    G00385962Courtesy of CHRYSLER CORP.
  2. Position seal over pilot tool. Assure that lip of seal is facing towards the crankshaft during installation. The pilot tool remains on crankshaft during seal installation.
  3. Using Special Tool 6926-2 Installer, and C-4171 Handle, drive seal into the retainer housing until seal is flush with housing surface.
  4. Install drive plate and transaxle.
