Removal & Installation: Removal

  1. Remove crankshaft vibration damper.
  2. Install Special Tool 8194, Insert into crankshaft nose. Remove seal using Special Tool 6771, (Remover).

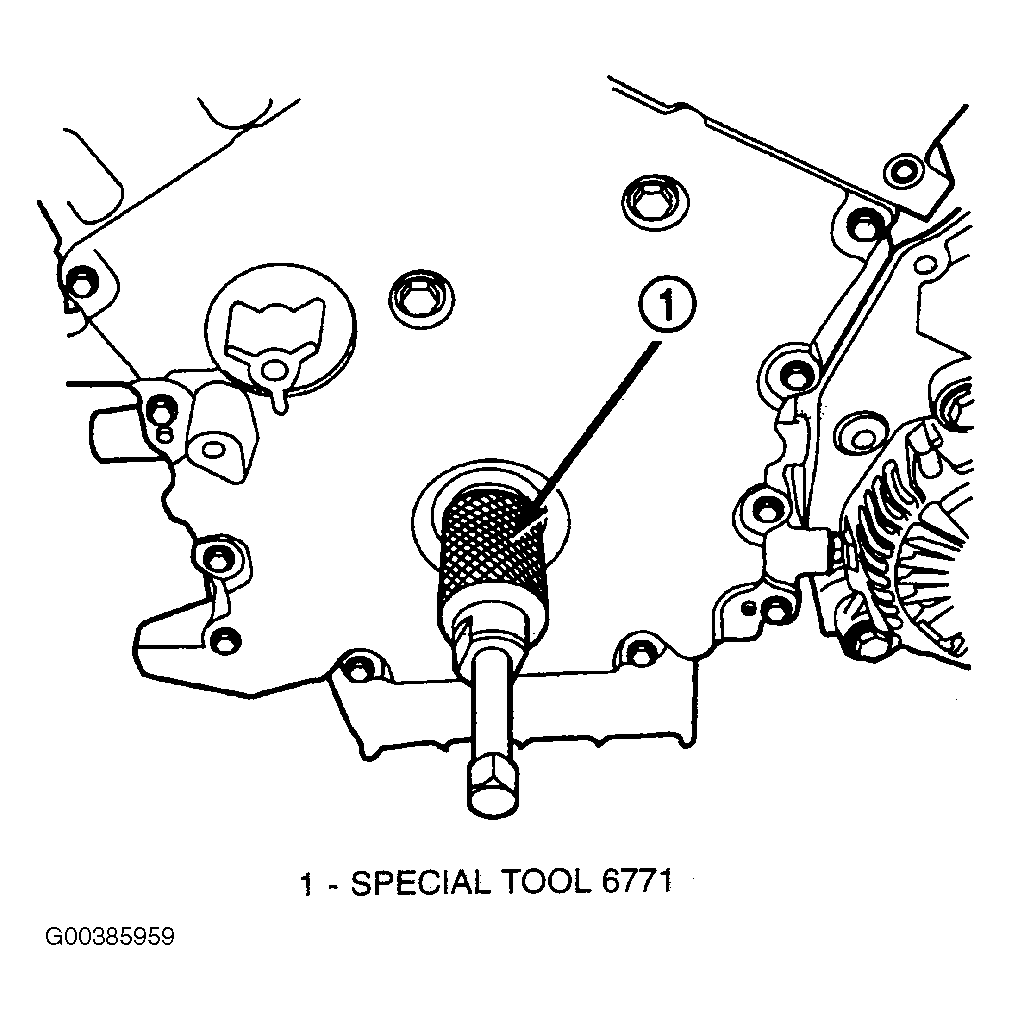

    Fig 1: Removing Front Oil Seal
    G00385959Courtesy of CHRYSLER CORP.
