Removal & Installation: Removal

  1. Remove valve spring. VALVE SPRINGS .
  2. Remove valve stem seal by using a valve seal tool.

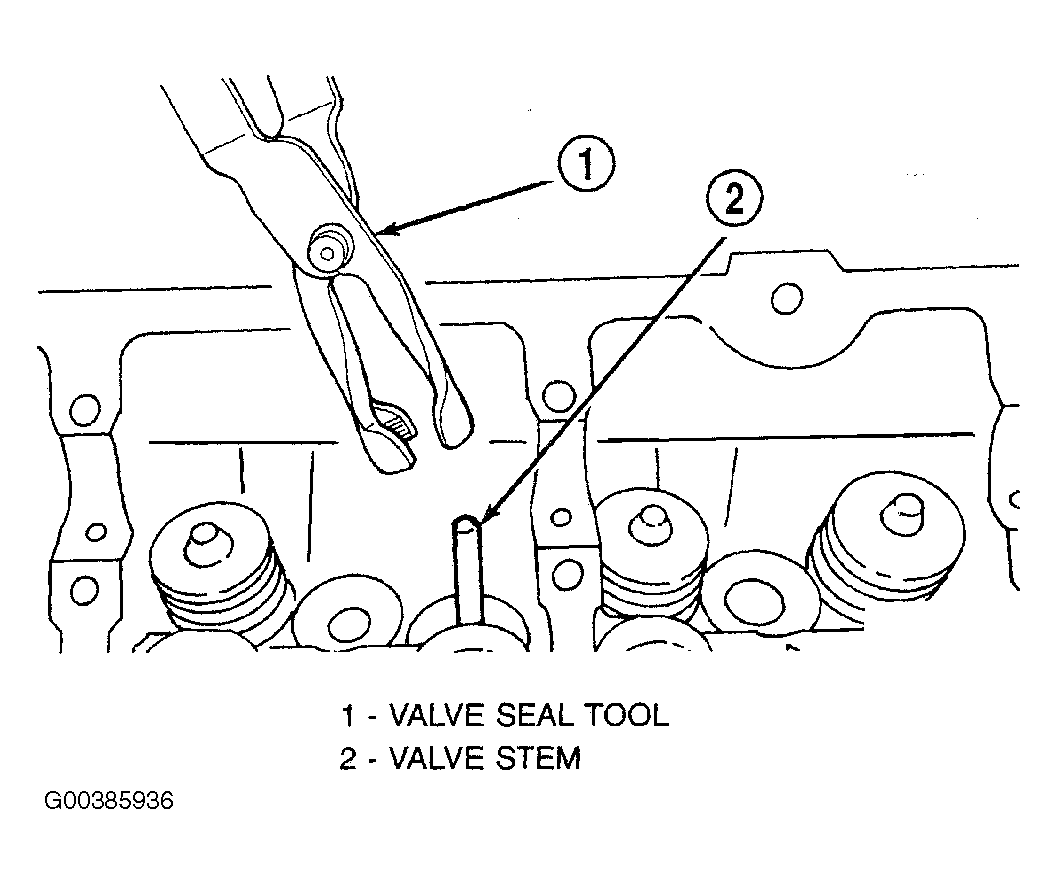

Fig 1: Removing Valve Stem Seal
G00385936Courtesy of CHRYSLER CORP.
