Removal (Off Vehicle)

  1. With cylinder head removed, compress valve springs using a Special Tool C-3422-D, Valve Spring Compressor.
  2. Remove valve retaining locks, valve spring retainers, valve springs and valve spring seat/stem seal assembly.

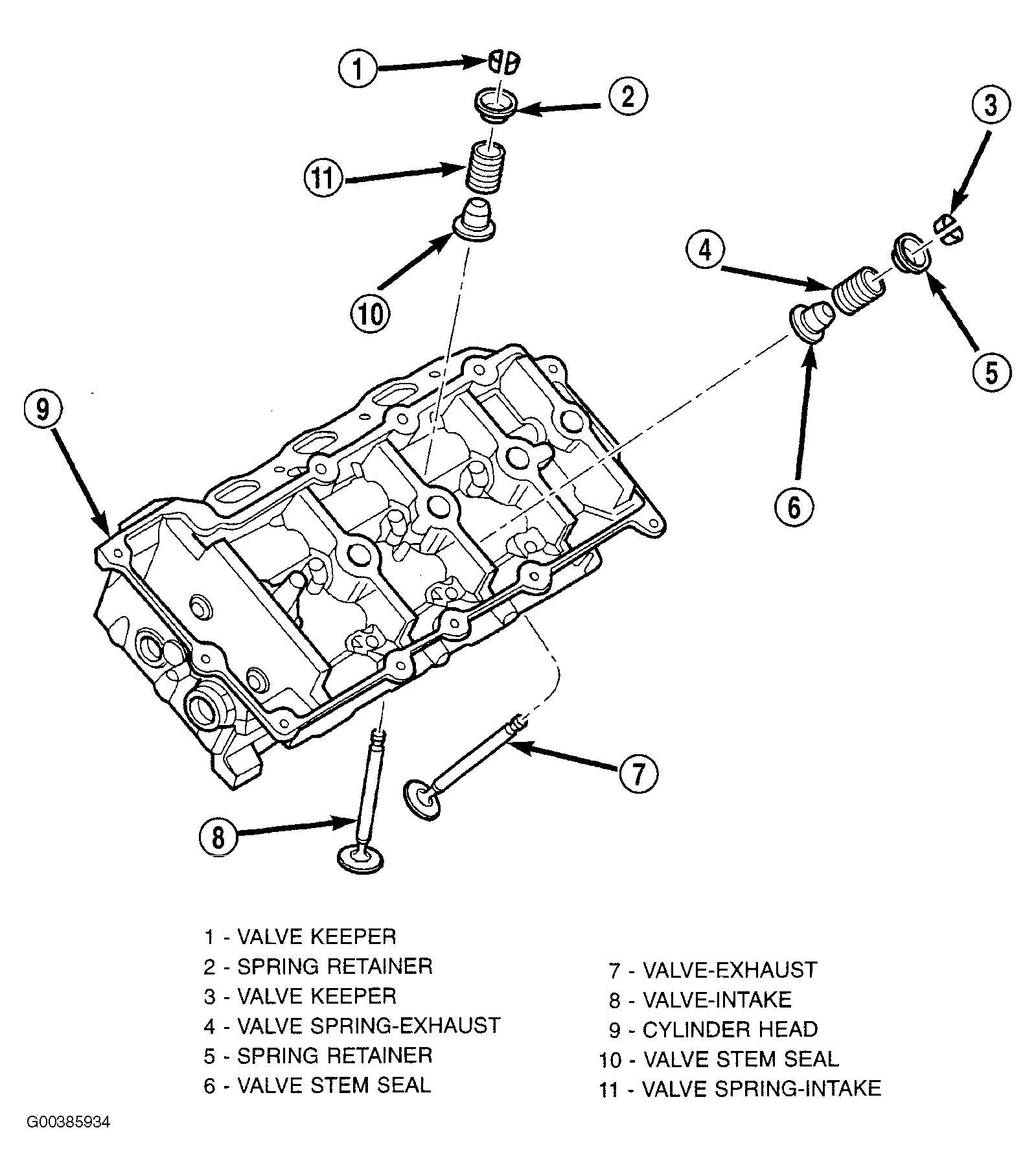

Fig 1: Removing Valve, Spring Seat/Seal, Spring, Retainer & Locks
G00385934Courtesy of CHRYSLER CORP.
