Removal & Installation: Inspection: Valves

  1. Clean and inspect valves thoroughly. Replace burned, warped and cracked valves.
  2. Measure valve stems for wear. For valve specifications see SPECIFICATIONS .

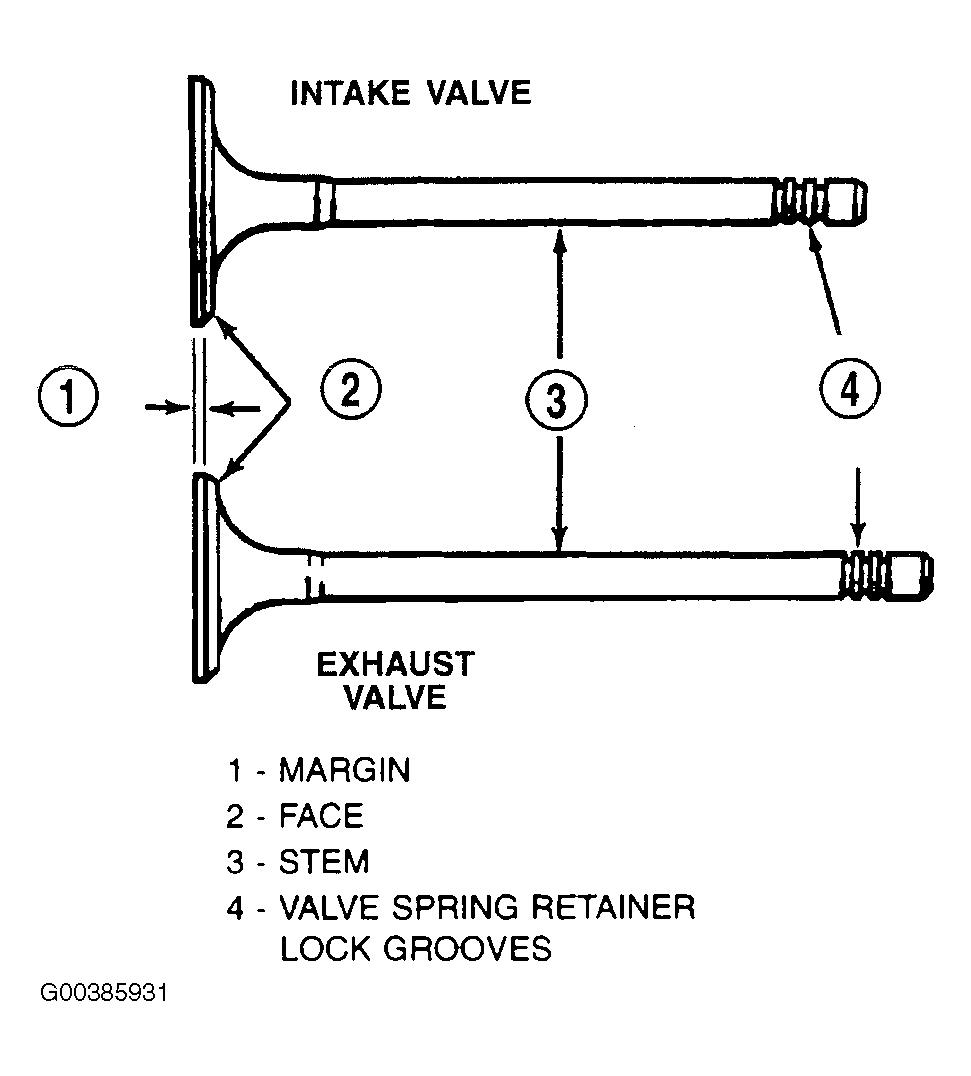

Fig 1: Measuring Valve Stems
G00385931Courtesy of CHRYSLER CORP.
