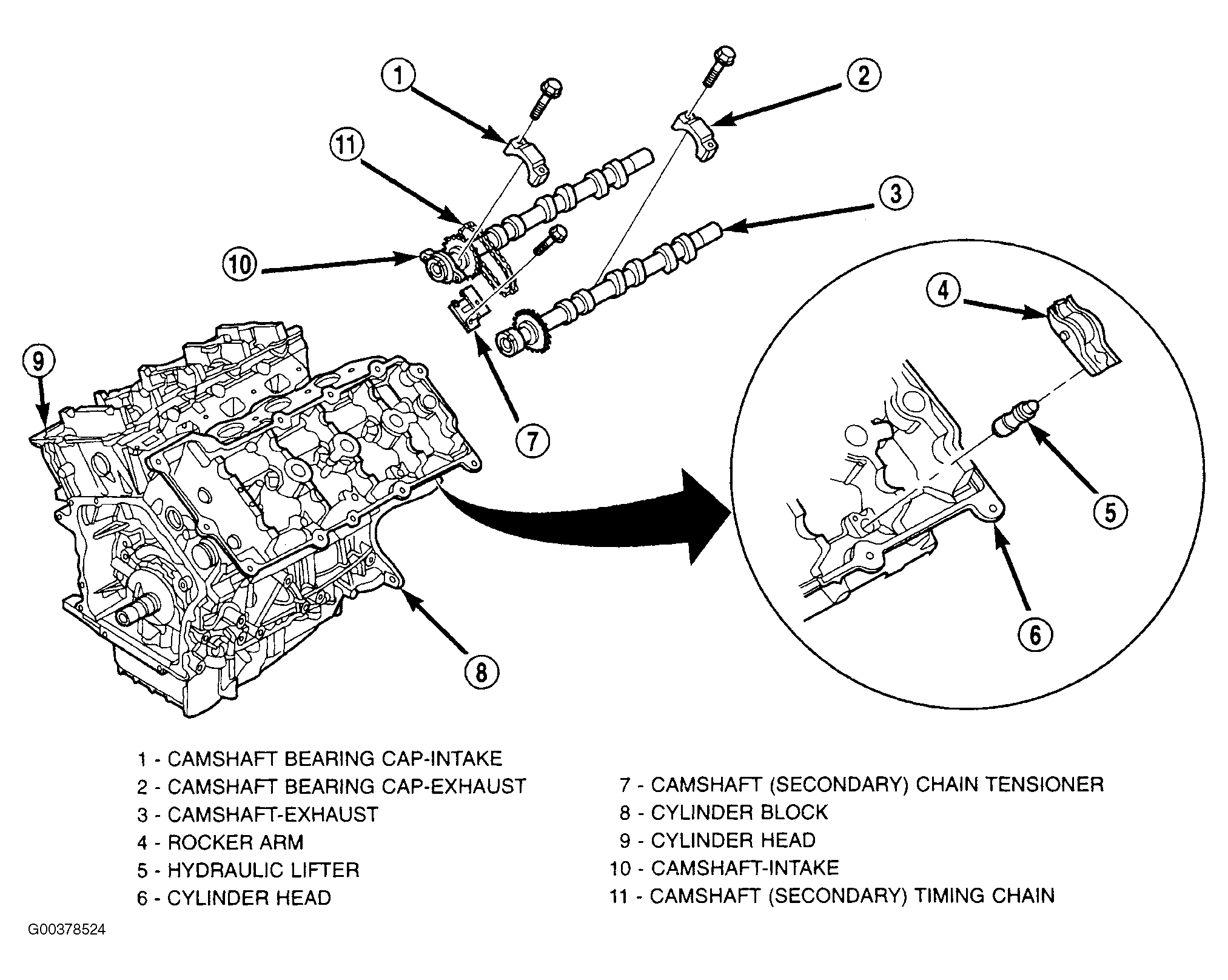

Camshaft (S): Description
The assembled fabricated camshafts are composed of five bearing journals machined into a hollow steel tube. Six steel lobes, a secondary timing drive sprocket, and a primary sprocket/thrust flange are pressed onto the camshaft tube using a unique assembly process. Camshaft end play is controlled by the primary camshaft sprocket attachment flange on the intake camshafts and by a thrust flange on the exhaust camshafts.
