Air Cleaner Element: Removal

Disconnect negative battery cable.
Disconnect inlet air temperature sensor electrical connector.

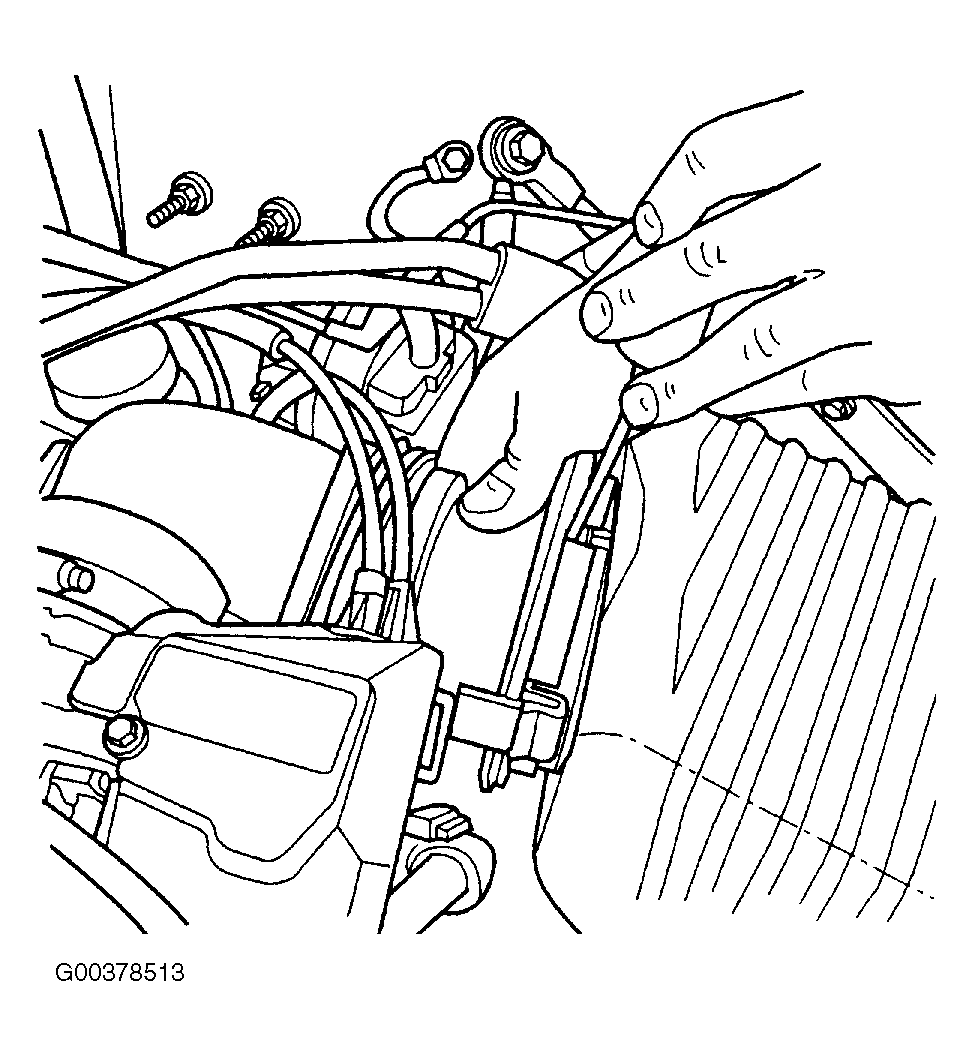

Fig 1: Disconnecting Inlet Air Temperature Sensor
Courtesy of CHRYSLER CORP.
Disconnect fresh air makeup hose from throttle body air inlet hose.

Fig 2: Disconnecting Air Makeup Hose
Courtesy of CHRYSLER CORP.
Loosen hose clamp at throttle body. Remove hose from throttle body.

Fig 3: Loosening Hose Clamp
Courtesy of CHRYSLER CORP.
Push in on locking tabs to disengage air inlet hose from air cleaner housing. Pull air inlet hose out far enough to disengage air cleaner element from hose with screwdriver.

Fig 4: Disengaging Air Inlet Hose From Air Cleaner Housing
Courtesy of CHRYSLER CORP.
Remove throttle body air inlet hose.
Remove air cleaner element from air cleaner housing.
