Removal - 2.4L

  1. Disconnect negative battery cable.
  2. Drain cooling system (Refer to COOLING SYSTEM - DRAINING ).
  3. Remove timing belt, camshaft sprockets, and rear timing belt cover (refer to appropriate ENGINES article).
  4. Remove water pump to engine attaching screws (Fig 1).

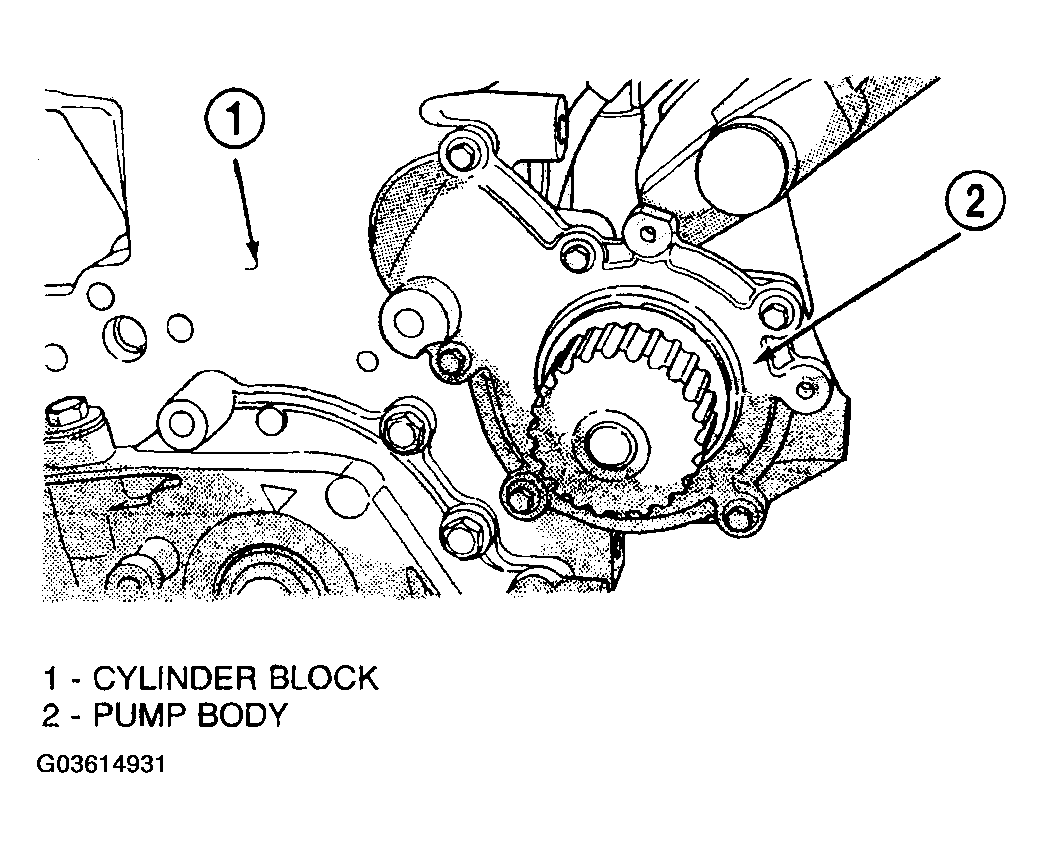

    Fig 1: Identifying Water Pump (2.4L)
    G03614931Courtesy of DAIMLERCHRYSLER CORP.
