Installation - 2.4L

  1. Clean all gasket sealing surfaces.

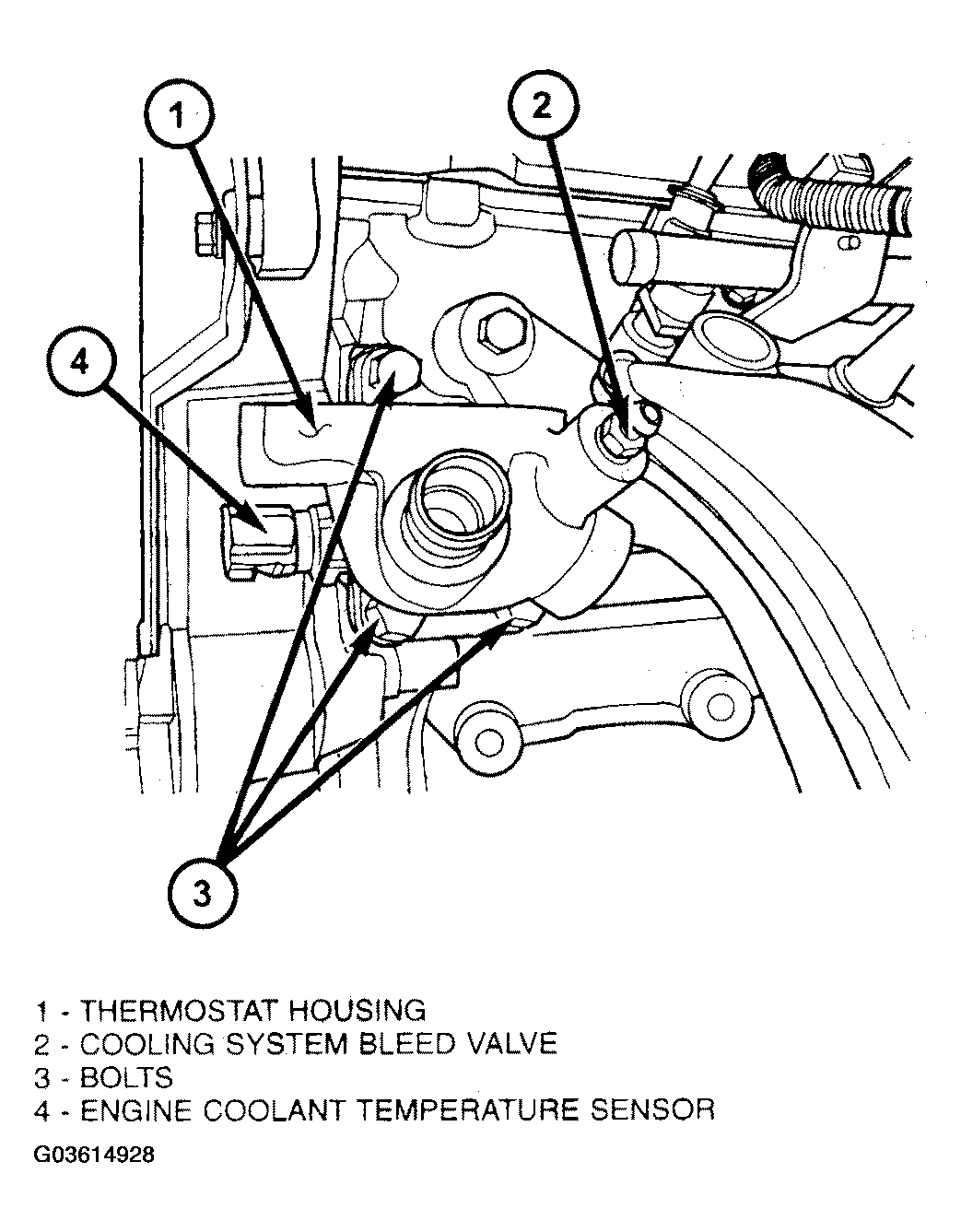

  2. Install gasket and housing (Figure). Tighten bolts to 28 N.m (20 ft. lbs.).
  3. Reconnect heater supply hose.
  4. Reconnect engine coolant temperature sensor connector.
  5. Install thermostat (refer to INSTALLATION ).
  6. Fill cooling system (Refer to COOLING SYSTEM - FILLING ).
