Radiator Fan(S): Description

The radiator fan module includes a support shroud with two electrically driven motors with fan blades (Fig 1). The radiator fan module is fastened to the radiator. The motors, shroud, and fan blades are serviced separately.

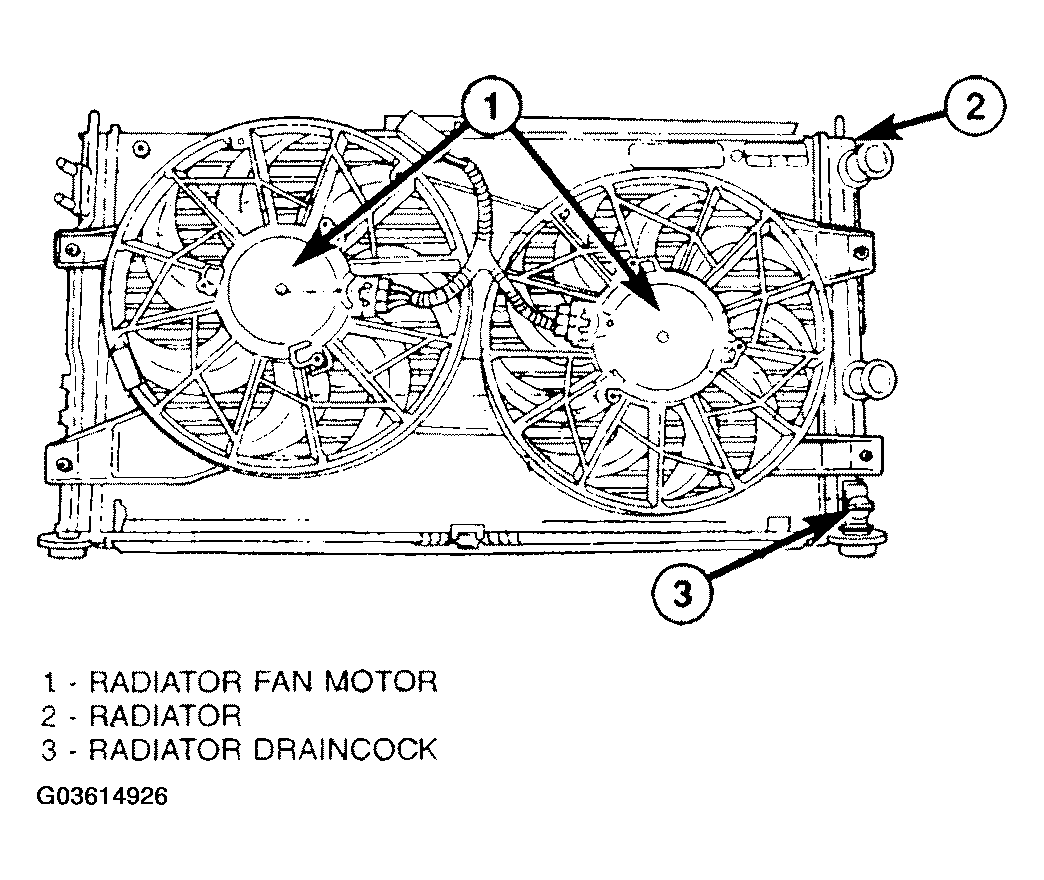

Fig 1: Identifying Fan Module
G03614926Courtesy of DAIMLERCHRYSLER CORP.
