Installation - 2.4L

  1. Clean sealing surfaces.
  2. Place the new thermostat assembly into the coolant outlet connector. Align air bleed with notch on the coolant outlet connector (Fig 1).
  3. Install coolant outlet connector onto thermostat housing and tighten bolts to 12.5 N.m (110 in. lbs.) (Figure).
  4. Connect hoses to coolant outlet connector.
  5. Fill cooling system (Refer to COOLING SYSTEM - FILLING ).

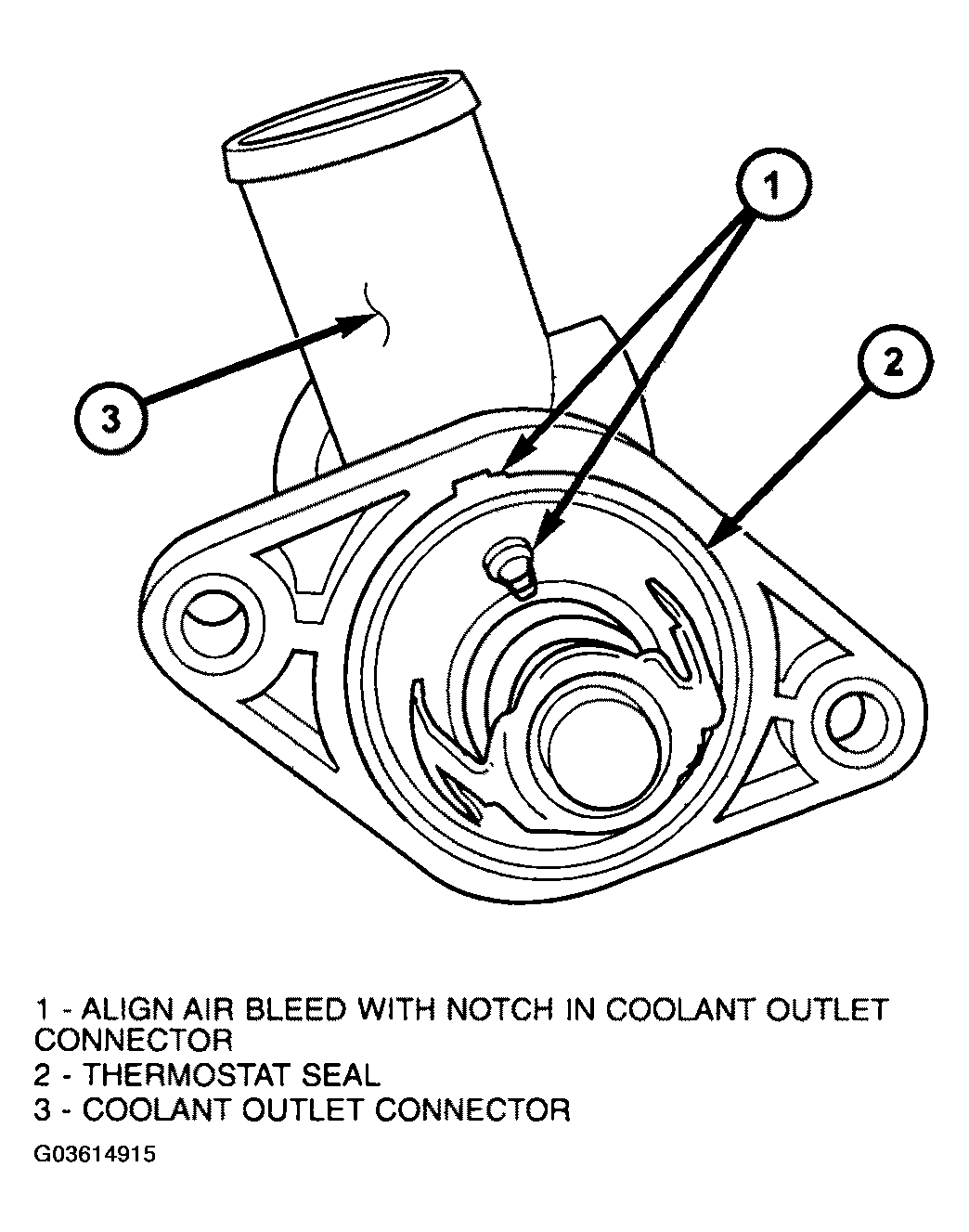

    Fig 1: Identifying Thermostat Indexing - 2.4L
    G03614915Courtesy of DAIMLERCHRYSLER CORP.
