2.7L Engine

  1. Clean sealing surfaces. Inspect gaskets for tears and cuts. Replace as necessary.

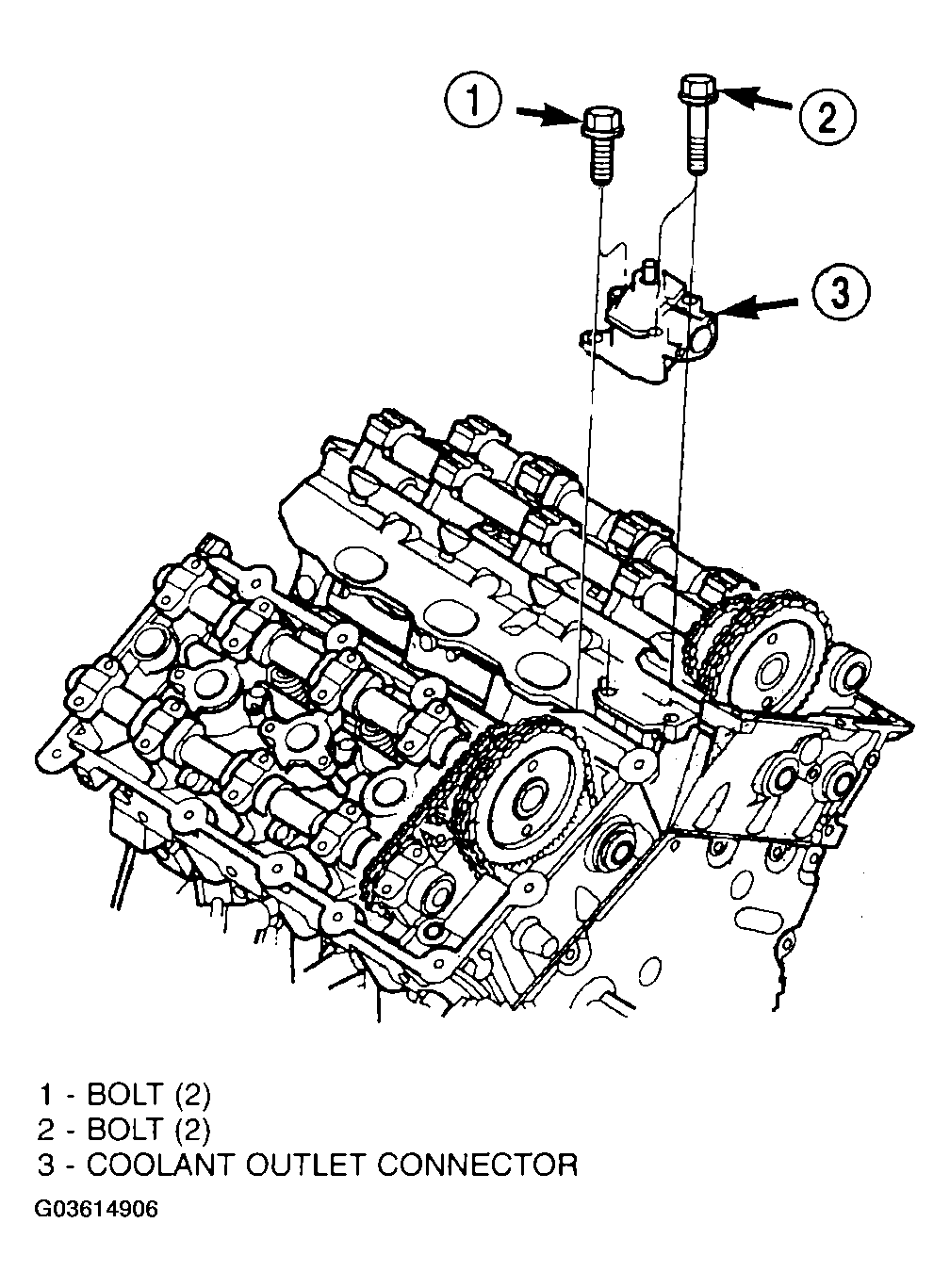

  2. Install coolant outlet connector and tighten bolts to 12 N.m (105 in. lbs.) (Figure).
  3. Connect hoses at coolant outlet connector. Use Special Tool 8495 Pliers to install clamps (Figure).
  4. Connect engine coolant temperature sensor connector.
  5. Install upper intake manifold (refer to appropriate ENGINES article.)
  6. Fill cooling system (Refer to COOLING SYSTEM - FILLING ).
