2.4L Engine

  1. Clean sealing surfaces. Inspect gaskets for tears and cuts. Replace as necessary.

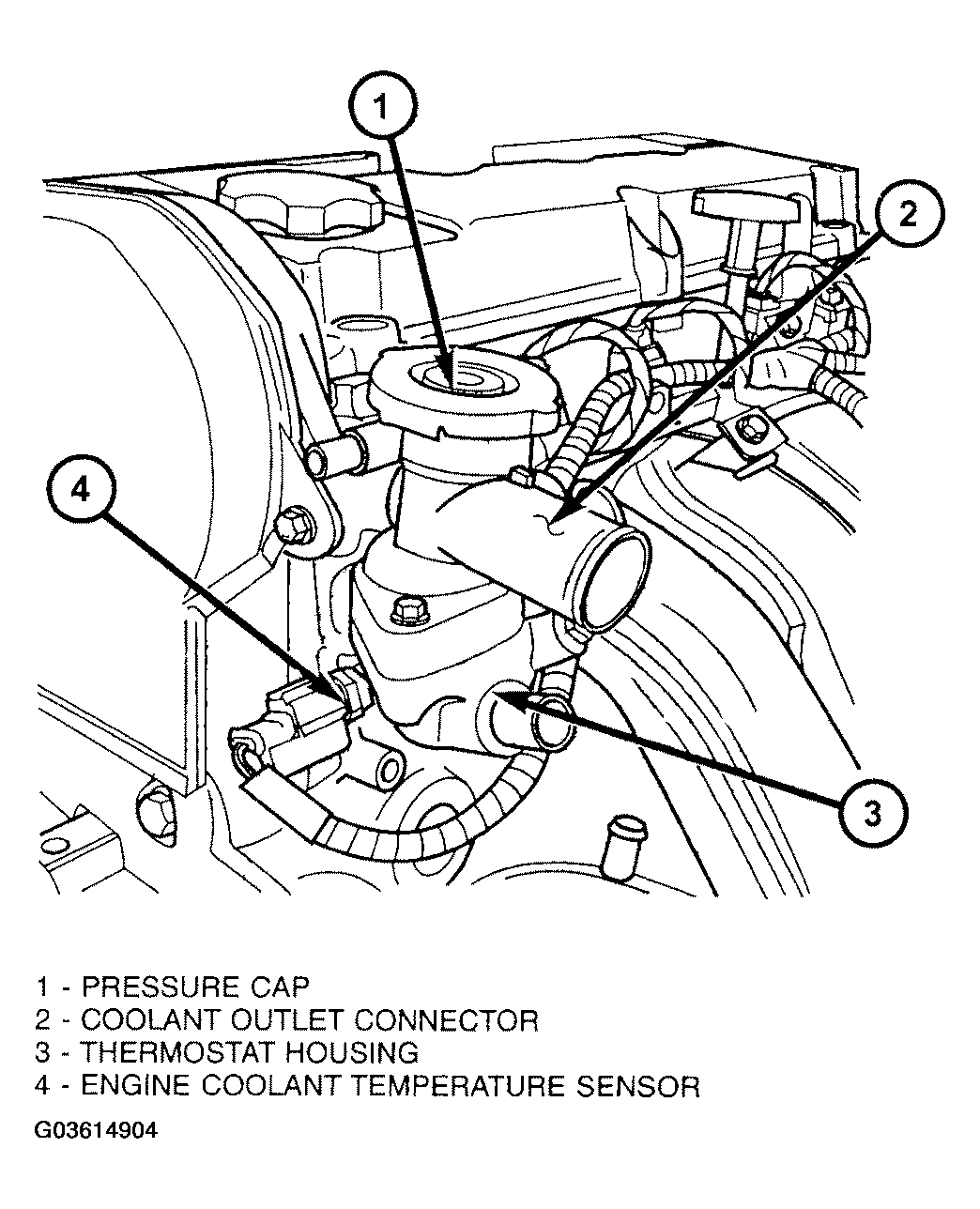

  2. Install coolant outlet connector and tighten bolts to 12 N.m (105 in. lbs.) (Figure).
  3. Connect hoses at coolant outlet connector.
  4. Fill cooling system (Refer to COOLING SYSTEM - FILLING ).
