Rear Brake Pads: Removal

  1. Raise and support vehicle. Remove rear wheel and tire assemblies from vehicle.
  2. Remove rear calipers. See REAR BRAKE CALIPER  .
  3. Remove rear rotor. See REAR BRAKE ROTOR  .
  4. Remove outboard brake pad from caliper by prying brake pad retaining clip over raised area on caliper. Then slide brake pad down and off the caliper. See Fig 1 .
  5. Pull inboard brake pad away from caliper piston, until retaining clip is free from cavity in piston. See Fig 2 .

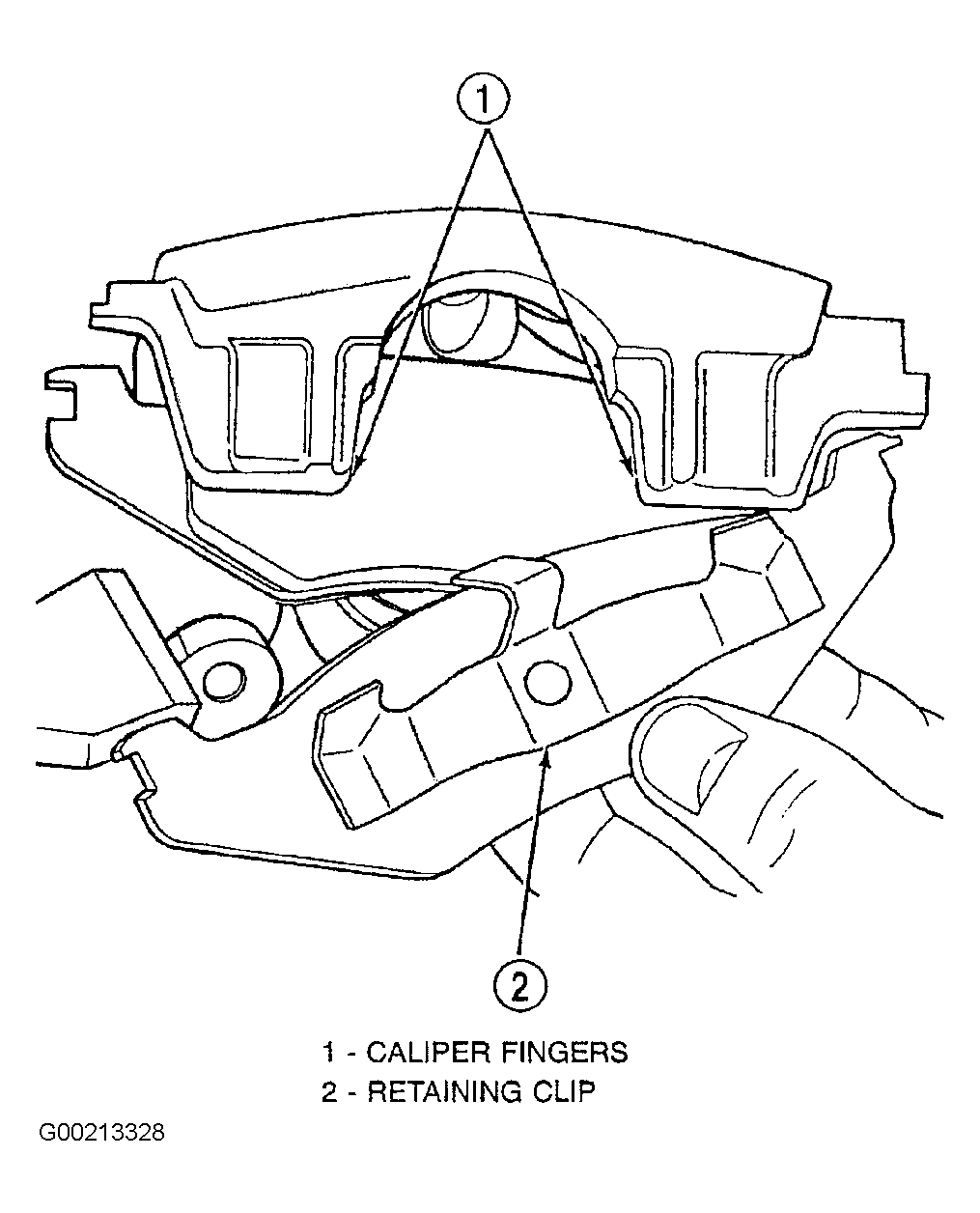

Fig 1: Removing Outboard Brake Pad
G00213328Courtesy of CHRYSLER CORP.

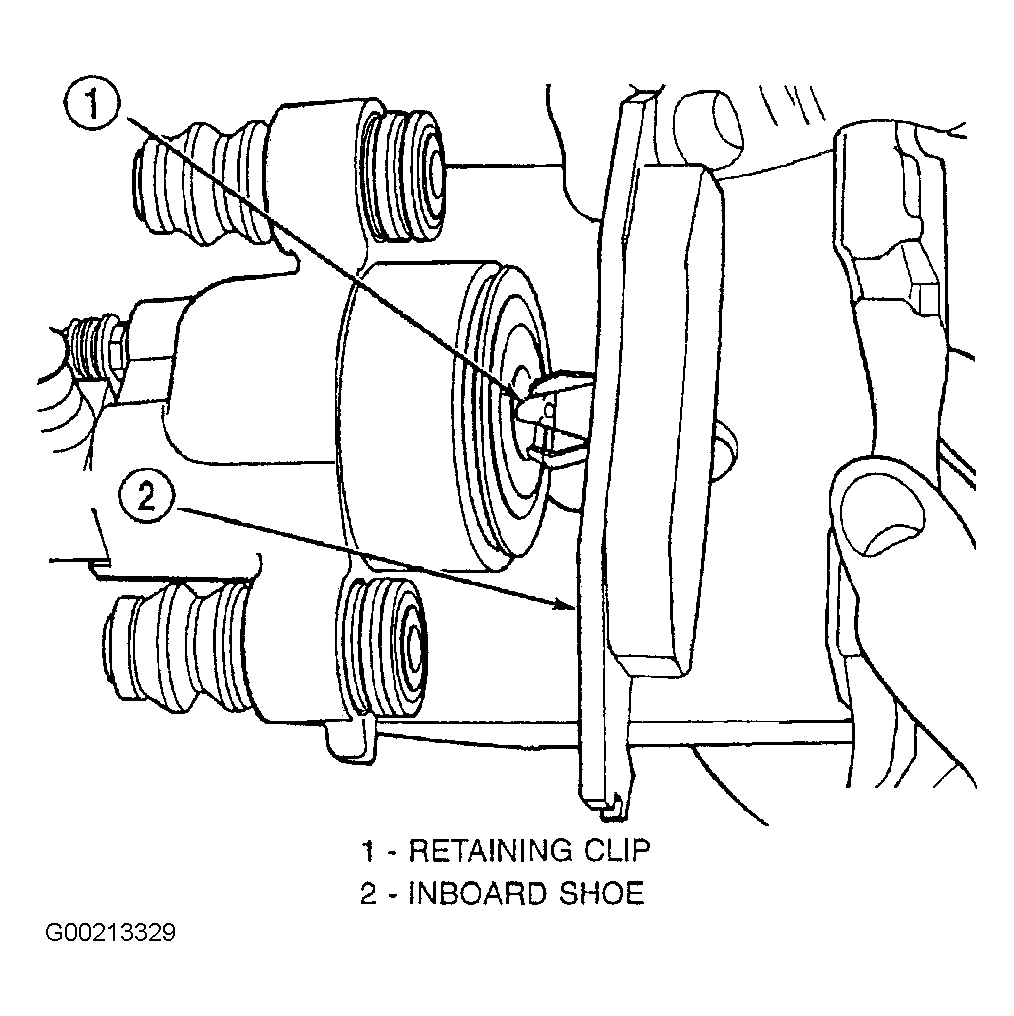

Fig 2: Removing Inboard Brake Pad
G00213329Courtesy of CHRYSLER CORP.
