Master Cylinder: Removal

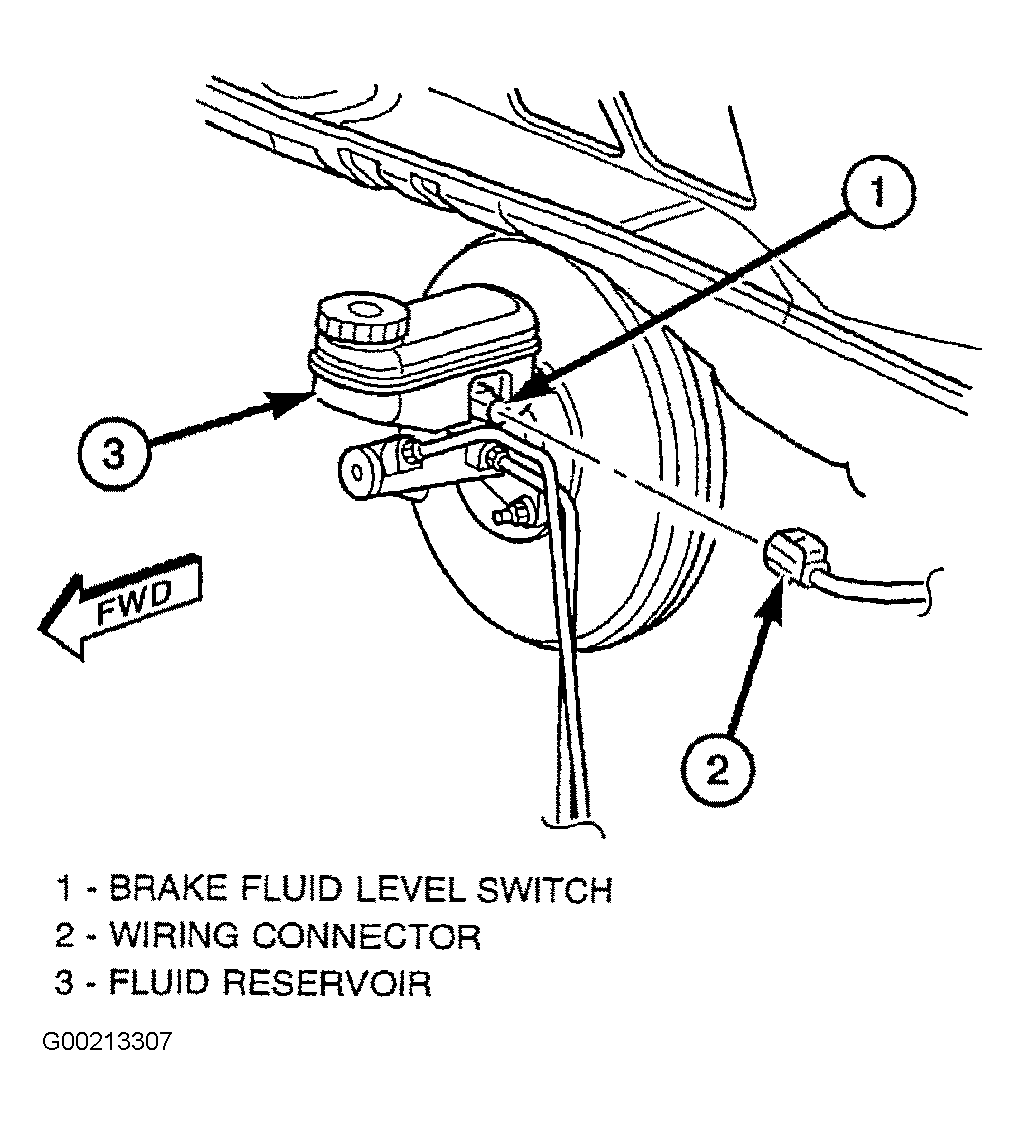

  1. Remove vehicle wiring harness connector from brake fluid level switch in side of master cylinder brake fluid reservoir. See Figure .
  2. Disconnect the primary and secondary brake tubes from master cylinder outlet ports. See Fig 1 . Install plugs at open brake tube outlets on master cylinder assembly.
  3. Using Mopar(R) Brake Parts Cleaner, clean area where master cylinder attaches to booster.
  4. Remove the 2 nuts attaching master cylinder assembly to power brake vacuum booster. Slide the master cylinder assembly straight off its mounting studs on the power brake vacuum booster.
Fig 1: Identifying Primary & Secondary Brake Tubes At Master Cylinder
G00213333Courtesy of CHRYSLER CORP.
