Center Console: Installation

  1. Position console in vehicle. Connect wire connector for floor console accessories at floor pan.

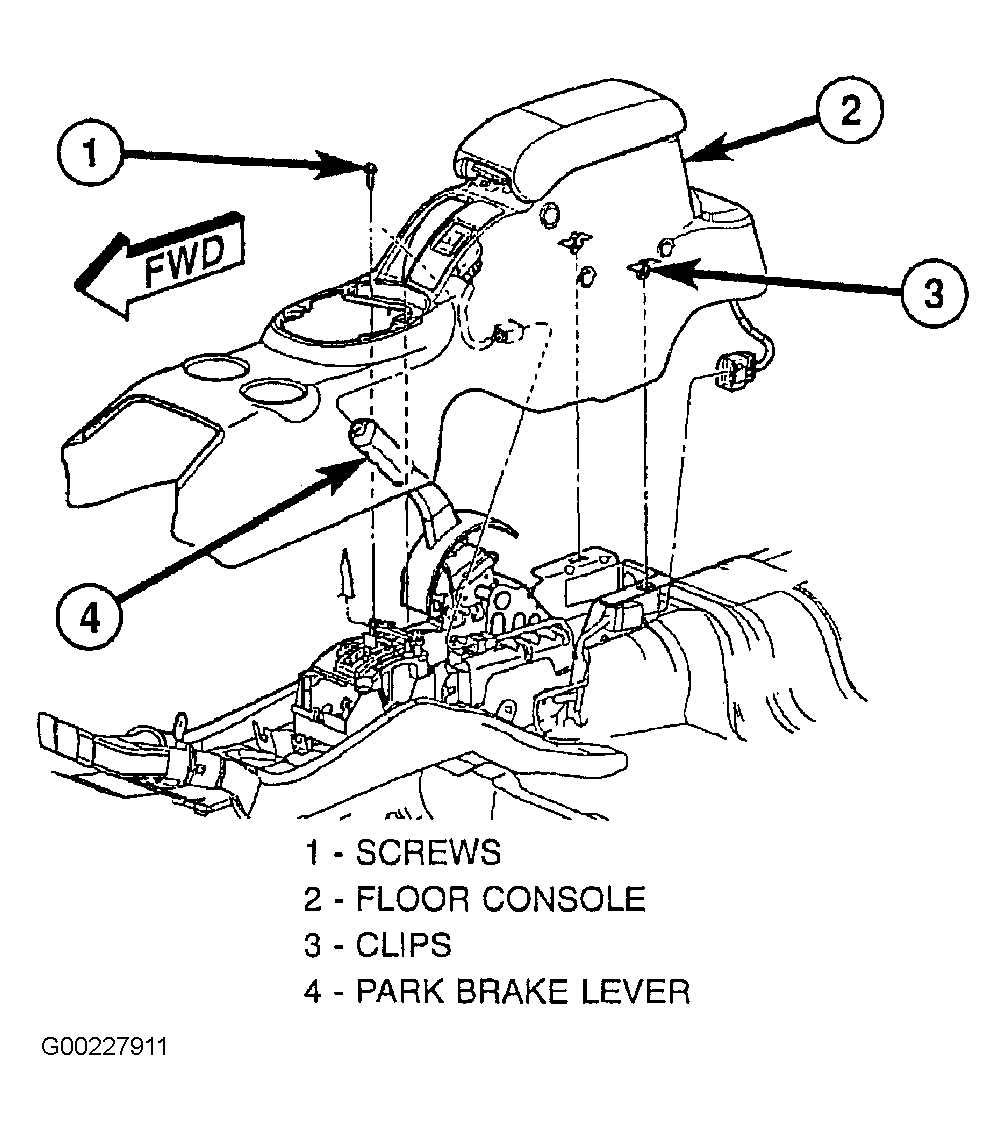

  2. Verify that the rear locator pin on the bottom of the storage bin is engaged to the slot in the body bracket and the front pin is engaged to the shift mechanism. See Figure .
  3. Install screws, next to floor shifter and in console storage compartment, holding floor console to brackets on floor pan. Connect transmission range indicator bezel wire connector on shifter mechanism.
  4. Install lighted transmission range indicator letter bezel. Install shift lever knob and tighten set screw on front of shifter knob.
