Component Locations
NOTE:
For component locations, see COMPONENT LOCATIONS
table.
NOTE:

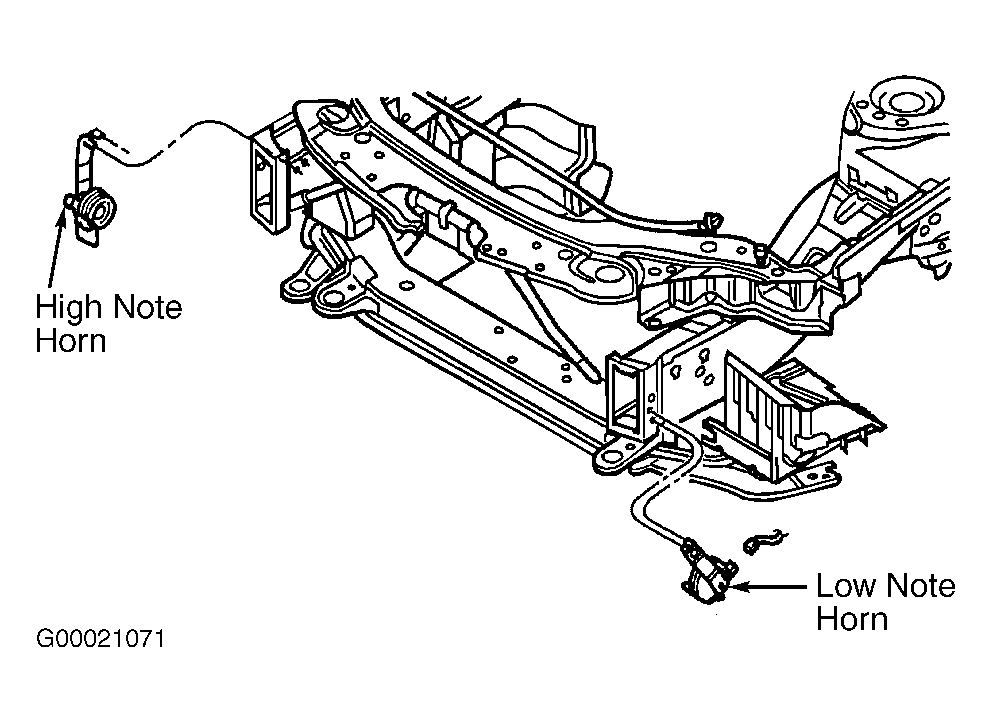

For high and low note horn location, see Fig 1
.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Combo-Flasher Relay | Multifunction Switch |
| High & Low Note Horns | Right & Left Front Frame Rails |
| Horn Relay | Junction Block |
| Junction Block | Left End Of Instrument Panel |
| Power Distribution Center | Left Front Of Engine Compartment |
