2.4L (Except Sebring Coupe & Stratus Coupe)

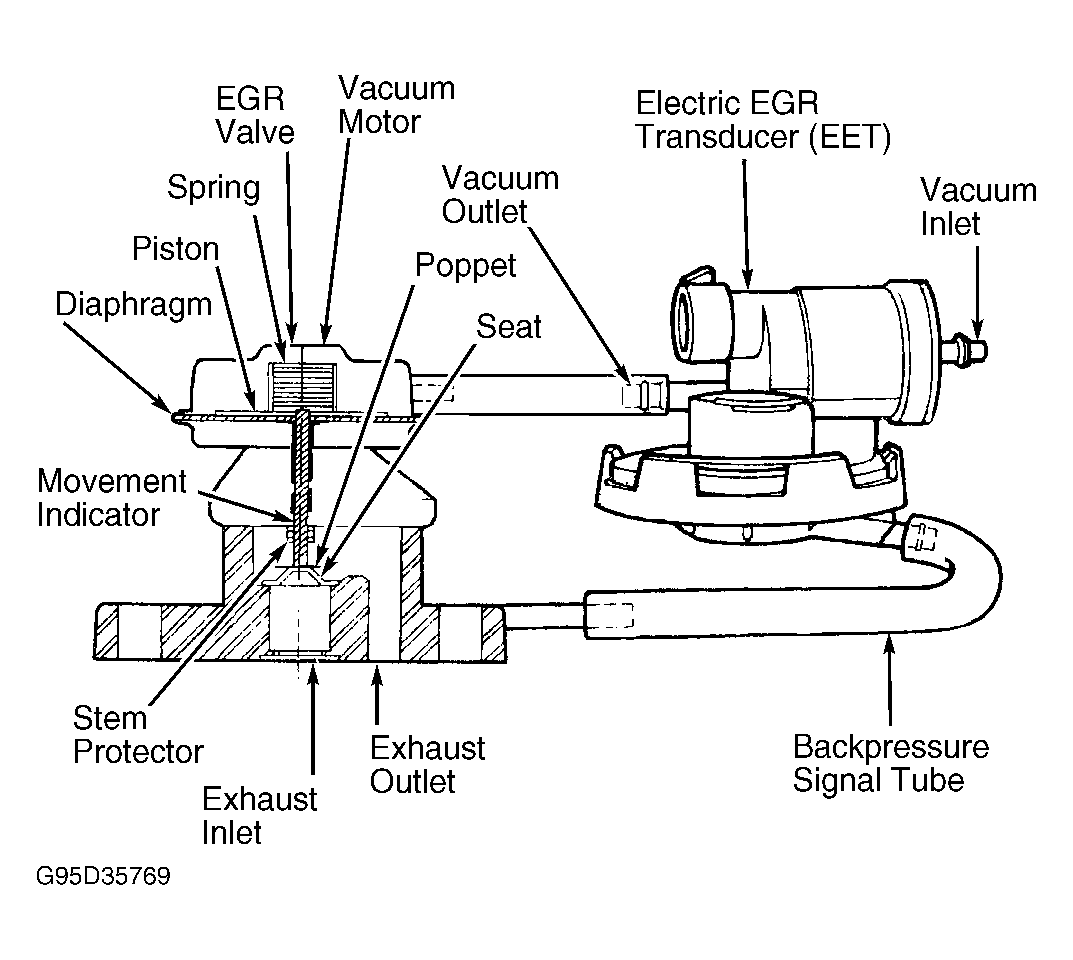

EGR system is a backpressure type and uses an Electric EGR Transducer (EET). See Fig 1 . This system incorporates backpressure transducer and EGR solenoid into one unit. Backpressure transducer measures amount of exhaust gas backpressure on exhaust side of EGR valve and varies amount of vacuum applied to EGR valve.
This system allows backpressure transducer to provide proper vacuum signal to EGR valve for all engine operating conditions. EGR system is controlled by an EGR vacuum solenoid using a manifold vacuum signal from throttle body.
