Removal - 2.4L

  1. Drain cooling system (Refer to COOLING SYSTEM - DRAINING )
  2. Raise vehicle on hoist.
  3. Disconnect lower radiator hose and heater hose from the inlet tube (Fig 1).
  4. Remove fasteners that hold the inlet tube to the block.
  5. Rotate inlet tube while removing from the engine block (Fig 1).

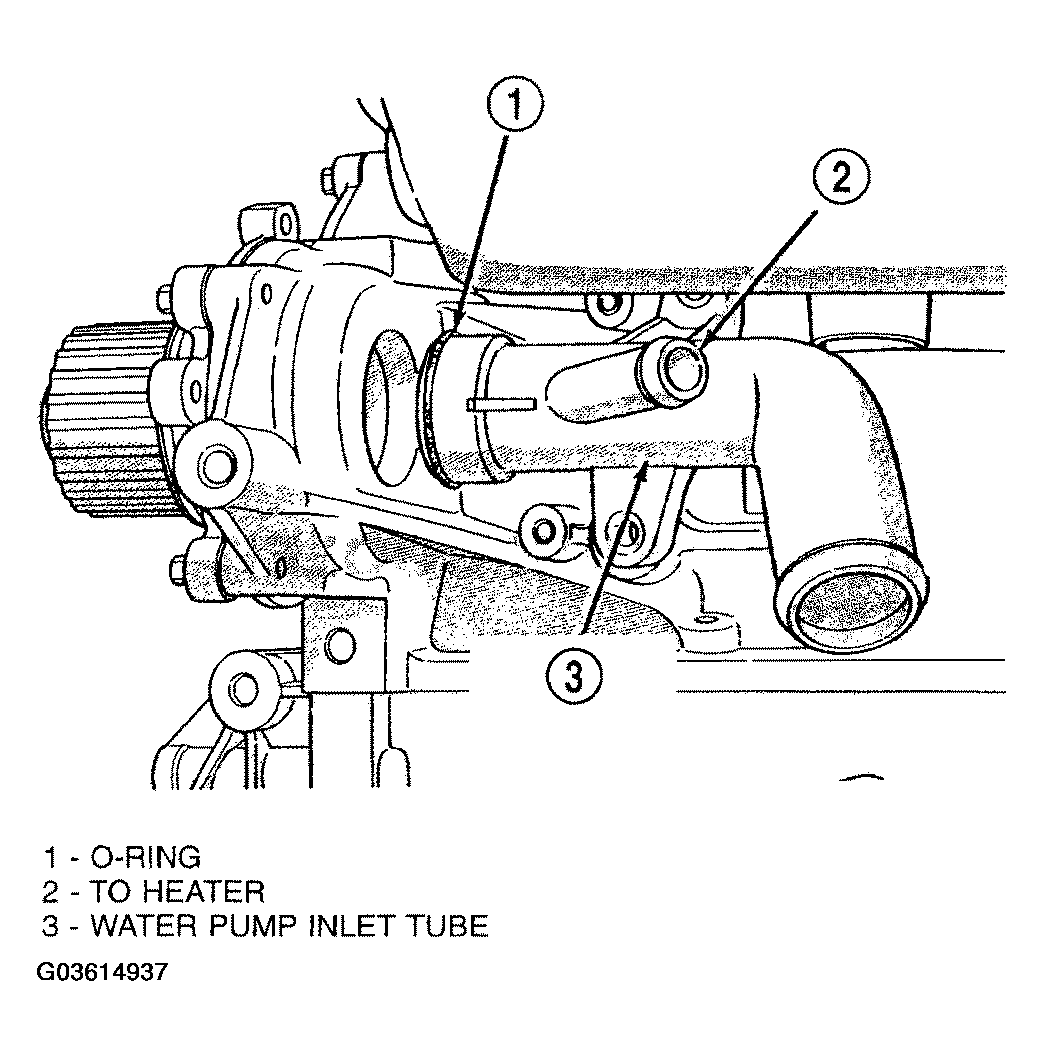

    Fig 1: Removing Water Pump Inlet Tube (2.4L)
    G03614937Courtesy of DAIMLERCHRYSLER CORP.
