Description - 2.7L

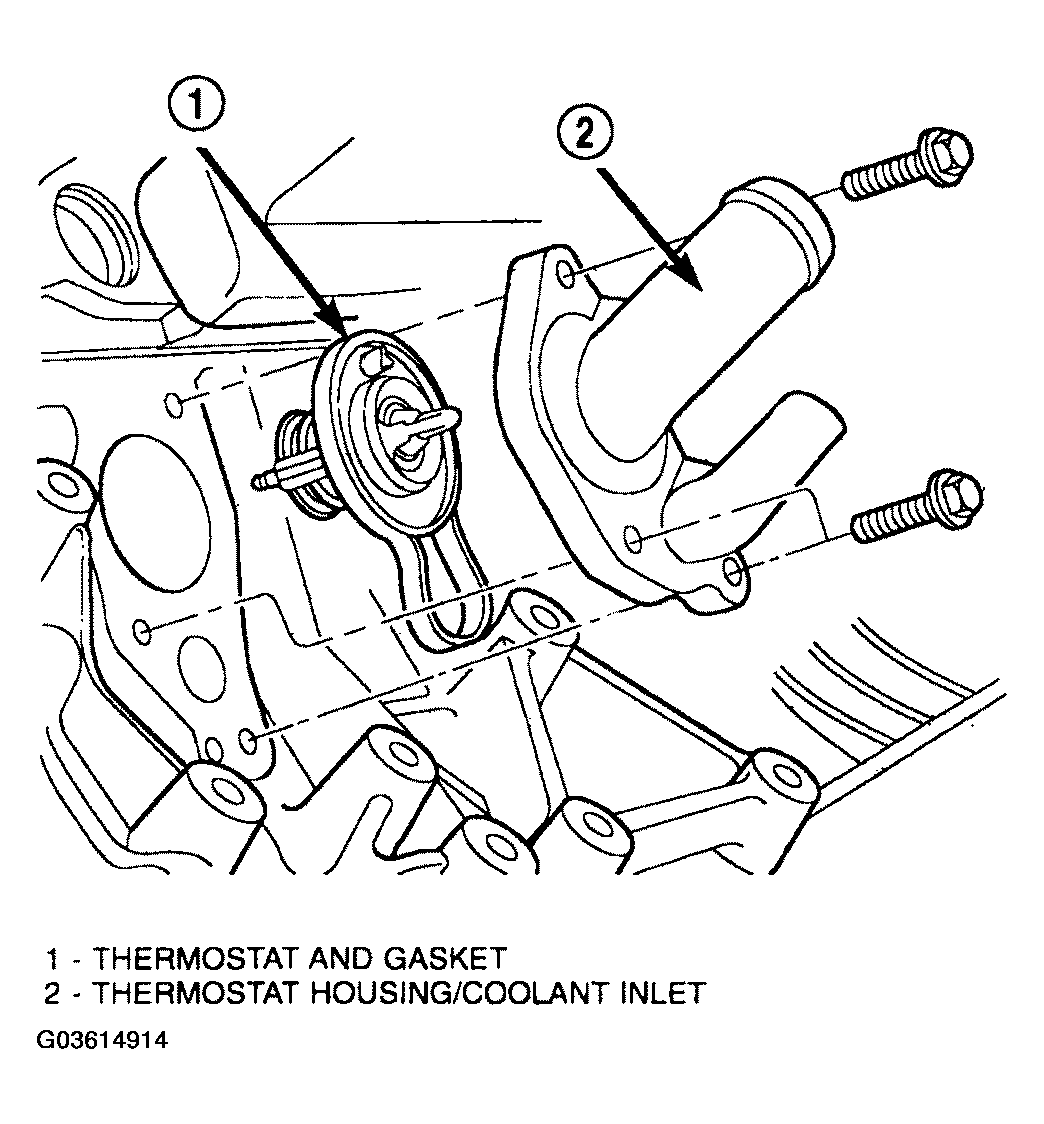

The thermostat is located on the lower left side of engine, near the front (Figure). The thermostat is on the inlet side of the water pump. It has an air bleed located in the thermostat flange. The air bleed allows internal trapped air during cooling system filling to be released.
