Description - 2.4L

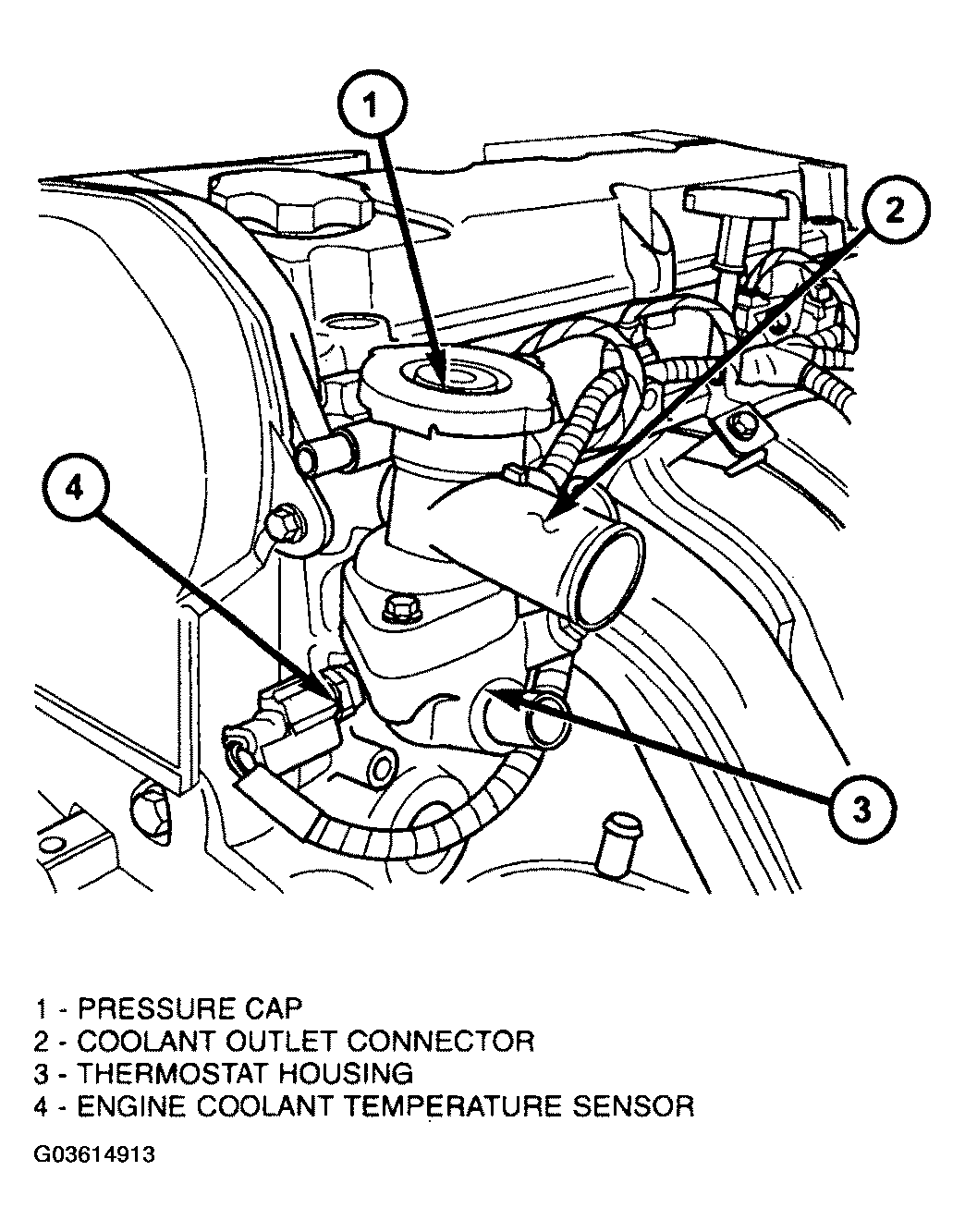

The thermostat is located on the front of the engine (radiator side) in the thermostat housing/coolant outlet connector (Figure). The thermostat has a air bleed vent located in the flange and an O-ring with a locating dimple incorporated on it. There is a relief in the housing for positioning the air bleed.
