Ignition Switch: Removal

  1. Disconnect negative battery cable. Remove fuse panel cover from left end of instrument panel. Remove screw holding end of instrument panel top cover.
  2. Pull center bezel off. Remove screws holding instrument panel top cover to center of instrument panel. Pull instrument panel top cover up enough to gain access to knee bolster screws.
  3. Remove lower knee bolster screws and knee bolster. Remove screws from lower steering column shroud. Pull lower shroud clear of ignition cylinder. Hold tilt wheel lever down, and slide lower shroud forward to remove it from column.

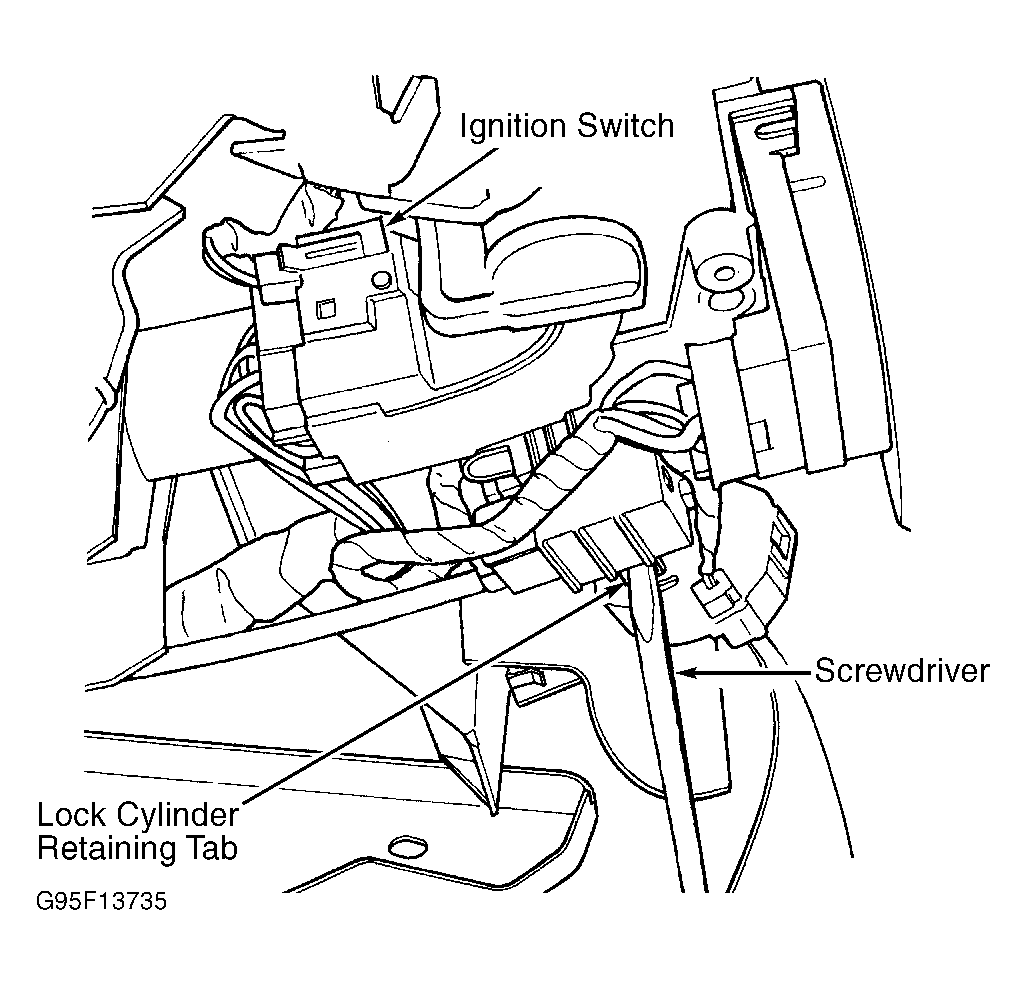

  4. Tilt wheel to full down position. Remove upper steering column shroud. Remove screws holding multifunction switch to lock housing. Place key in ON position. Press lock cylinder retaining tab inward and remove lock cylinder. See Figure .

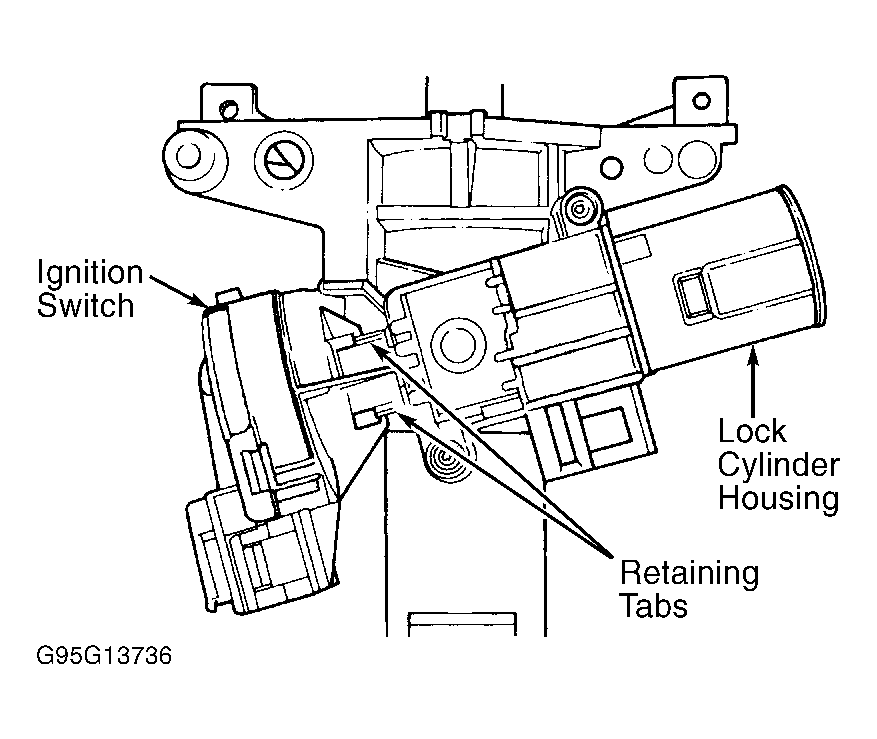

  5. Disconnect ignition switch electrical connectors. Using a No. 10 Torx bit, remove ignition switch mounting screw. Pull ignition switch from steering column. See Figure .
