MULTIFUNCTION Switch

Disconnect negative battery cable. Remove steering column covers. Disconnect multifunction switch harness connector. Remove combination flasher relay. Check continuity between specified terminals with switch in appropriate position. See MULTIFUNCTION SWITCH CONTINUITY TEST table. For dimmer resistance, see MULTIFUNCTION SWITCH DIMMER RESISTANCE (2001) or MULTIFUNCTION SWITCH DIMMER RESISTANCE (2002) tables. See Fig 1 . If continuity is not as specified, replace multifunction switch.

MULTIFUNCTION SWITCH CONTINUITY TEST

Switch Position

Continuity Between Terminals

Foglights ⁽¹⁾

B13 & B14

Hazards On ⁽²⁾

B2 & B4; B2 & B5; B2 & B6

Headlights

Park

B9 & B20

Low

B9 & B20; B16 & B18

High

B17 & B18

Flash-To-Pass

B17 & B19

Turn Signals ⁽³⁾

Neutral

B1 & B4; B1 & B5

Left

B1 & B5

Right

B1 & B4

Instrument Panel Dimmer

⁽⁴⁾

Wiper/Washer

Off

C1 & C6

Low

C4 & C6

High

C4 & C5

Mist

C4 & C6

Wash

C3 & C4

Intermittent

⁽⁵⁾

⁽¹⁾	With headlight switch in ON position.

⁽²⁾	Ensure turn signal switch is in neutral position.

⁽³⁾	Ensure hazard switch is off.

⁽⁴⁾	Measure resistance between terminals B7 and B8. See MULTIFUNCTION SWITCH DIMMER RESISTANCE (2001) or 2002 MULTIFUNCTION SWITCH DIMMER RESISTANCE (2002) table.

⁽⁵⁾	Cannot be checked.

MULTIFUNCTION SWITCH DIMMER RESISTANCE (2001)

Switch Position

Ohms ⁽¹⁾

Dome On

Parade Mode

100

Dim 5 (Brightest)

250

Dim 4

598

Dim 3

1202

Dim 2

1851

Dim 1 (Dimmest)

3181

⁽¹⁾	Measure resistance between terminals B7 and B8. Value is plus or minus 10 percent.

MULTIFUNCTION SWITCH DIMMER RESISTANCE (2002)

Switch Position

Ohms ⁽¹⁾

Dome On

Parade Mode

90.9

Dim 5 (Brightest)

252.9

Dim 4

600.9

Dim 3

1204.9

Dim 2

1853.9

Dim 1 (Dimmest)

3223.9

⁽¹⁾	Measure resistance between terminals B7 and B8. Value is plus or minus 1 percent plus 20 ohms.

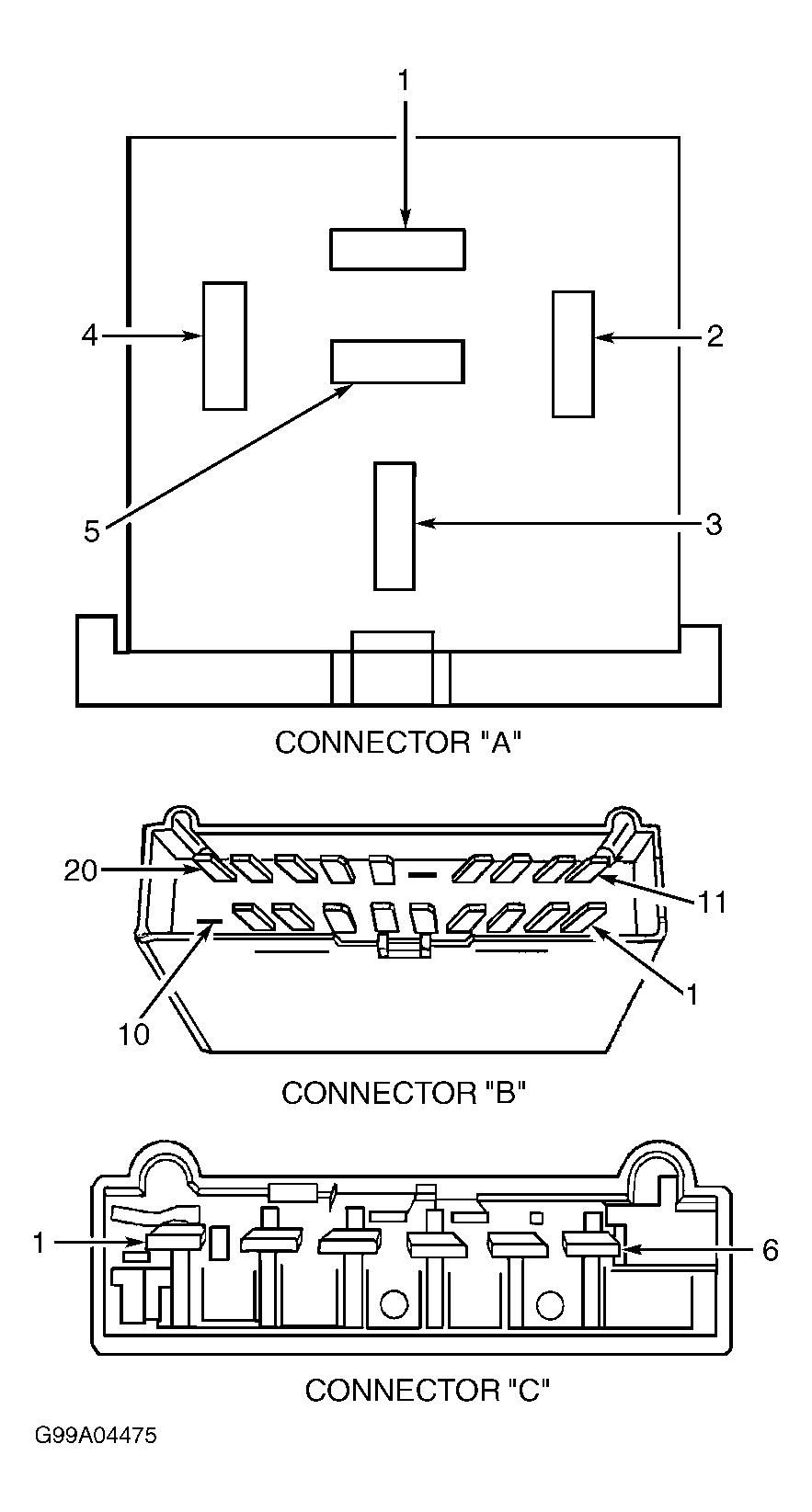

Fig 1: Identifying Multifunction Switch Connector Terminals (Component Side)

Courtesy of DAIMLERCHRYSLER CORP.
