Drive Belt (2.0L & 2.4L Neon & Pt Cruiser)

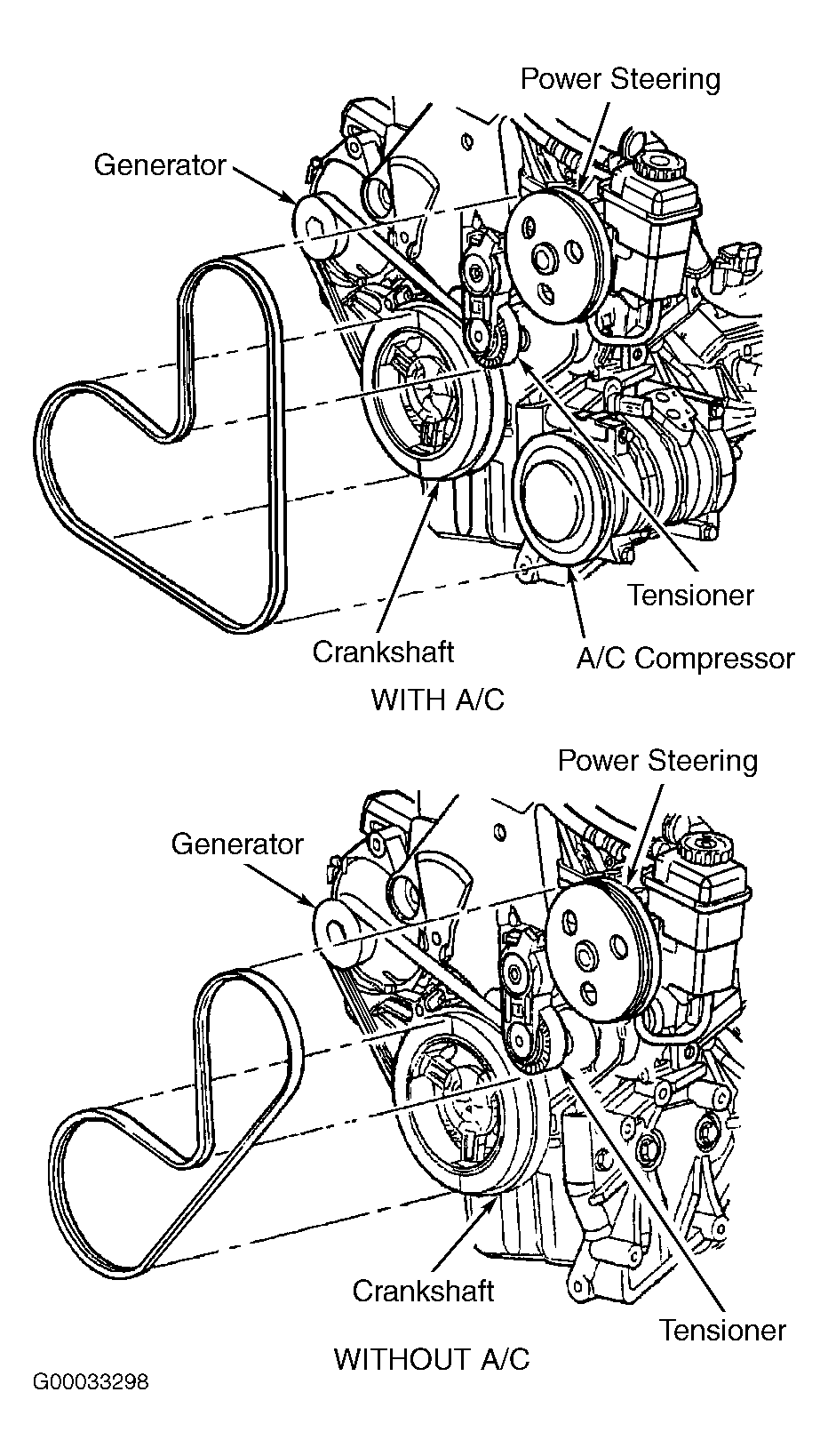

Fig 1: Identifying Drive Belt (2.0L & 2.4L Neon & PT Cruiser)

G00033298

Courtesy of CHRYSLER CORP.
