Input/Output Speed Sensor Check

Disconnect suspect speed sensor connector located on front of transmission. See Fig 1 . Using DVOM, measure resistance between terminals of sensor. See Fig 2 . Resistance should be 0.3-1.2 k/ohms. If resistance is not as specified, replace suspect speed sensor.

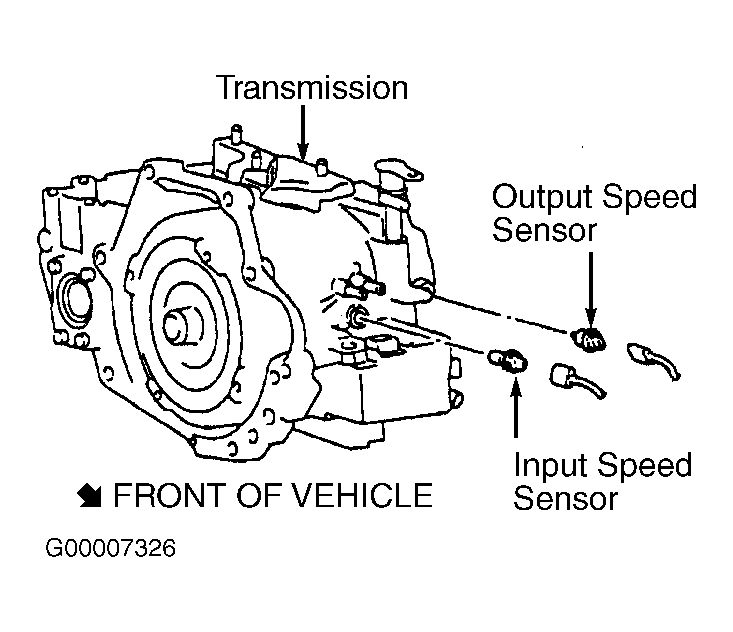

Fig 1: Locating Input/Output Speed Sensors

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Testing Input/Output Speed Sensors

Courtesy of DAIMLERCHRYSLER CORP.
