Rear Crankshaft Oil Seal Retainer: Installation

1. Clean mating surfaces and replace gasket as necessary. Install gasket and loosely assemble rear crankshaft oil seal retainer to engine block. Using oil pan bolts, attach crankshaft oil seal retainer aligner to oil pan rail. See Fig 1. Ensure "3.2/3.5L" mark, stamped on crankshaft oil seal retainer aligner, is facing engine block.
2. While pushing rear crankshaft oil seal retainer toward aligner, tighten crankshaft oil seal retainer bolts to specification. See TORQUE SPECIFICATIONS . Install crankshaft rear oil seal. Install oil pan.

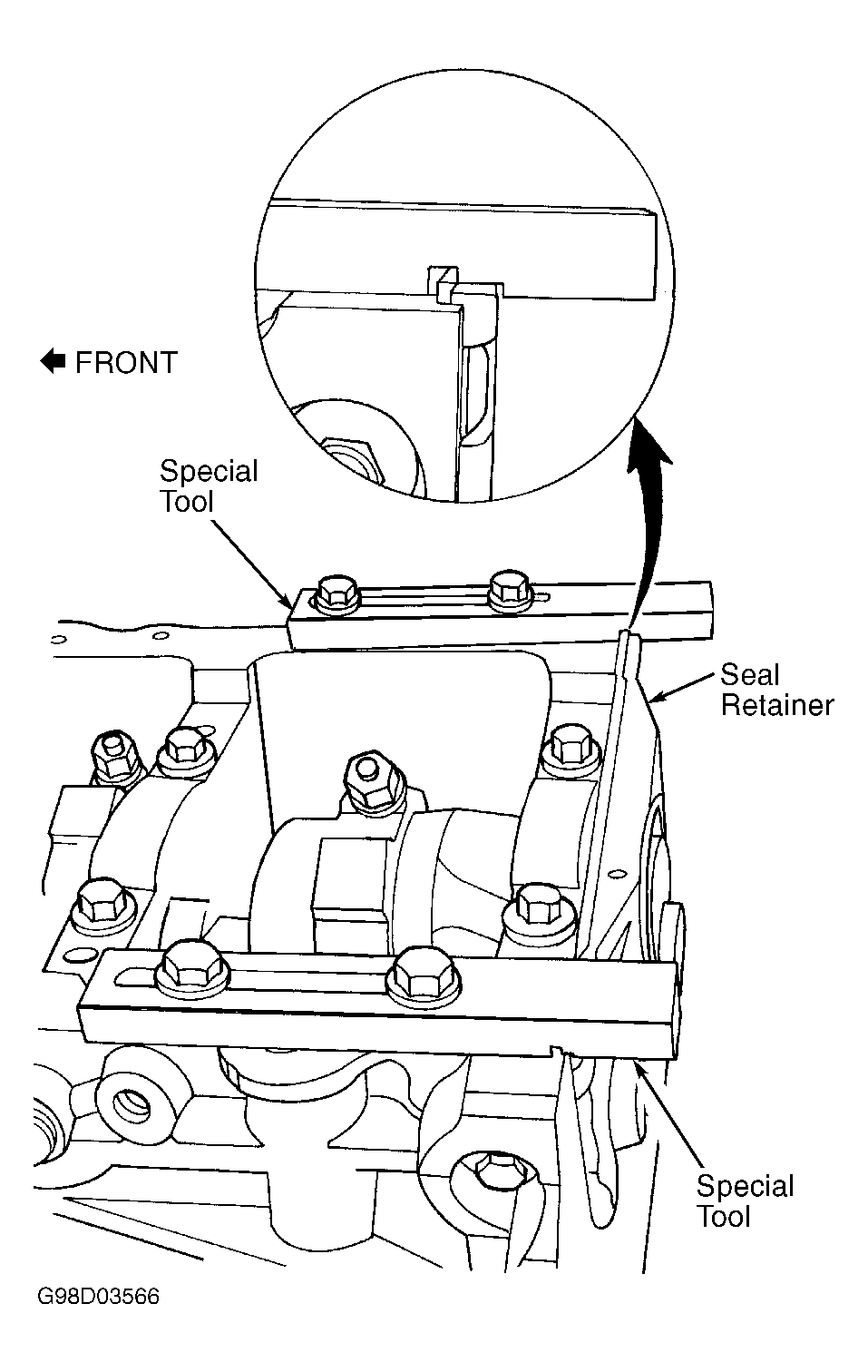

Fig 1: Installing Rear Crankshaft Oil Seal Retainer

Courtesy of CHRYSLER CORP.
