Drive Belt (3.3L & 3.8L Caravan, Town & Country, & Voyager) (2000)

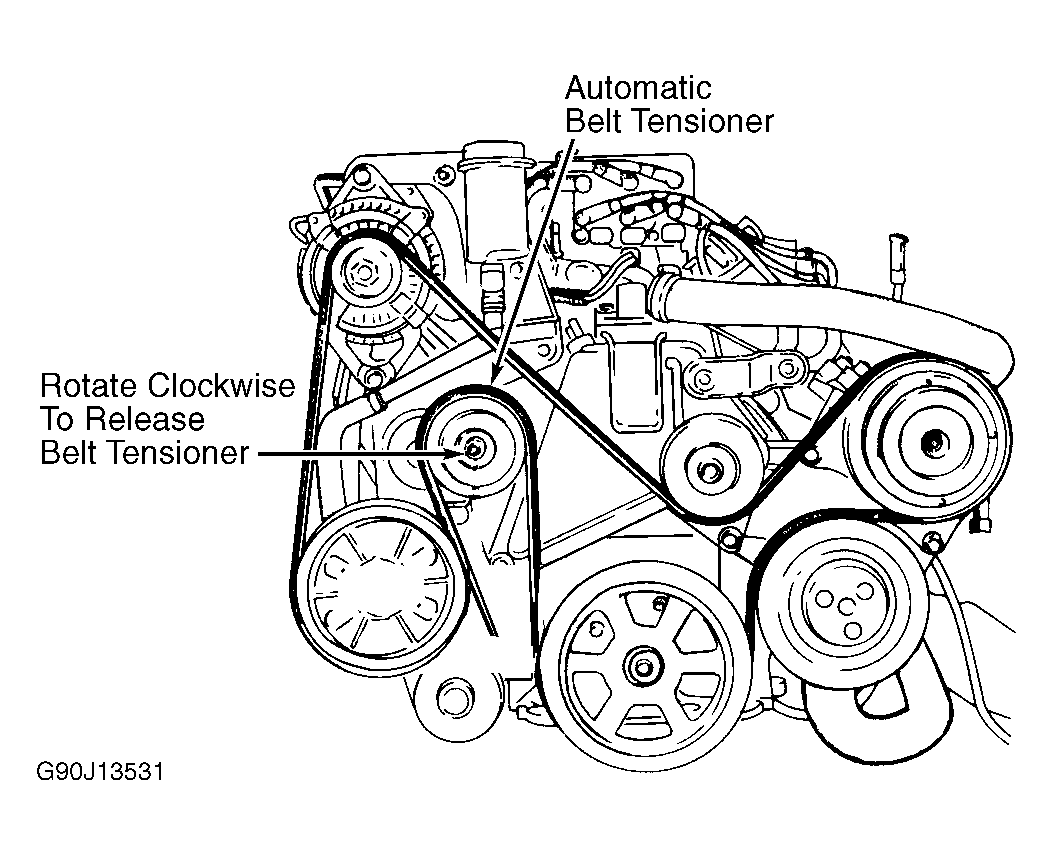

Fig 1: Identifying Drive Belt (3.3L & 3.8L Caravan, Town & Country, & Voyager) (2000)

G90J13531

Courtesy of CHRYSLER CORP.
